Midea M7 Bedienungsanleitung

ROBOTIC

FAQs

MAINTENANCE

Cleaning the Side Brush

Cleaning the Dustbin,Sponge and Filter

Cleaning the Water Tank

Cleaning the Sensor and Wheel

Cleaning the Charge Terminal

Cleaning the Brushroll

STRUCTION OF THE PRODUCT

CONTENTS

Assembly and parts description

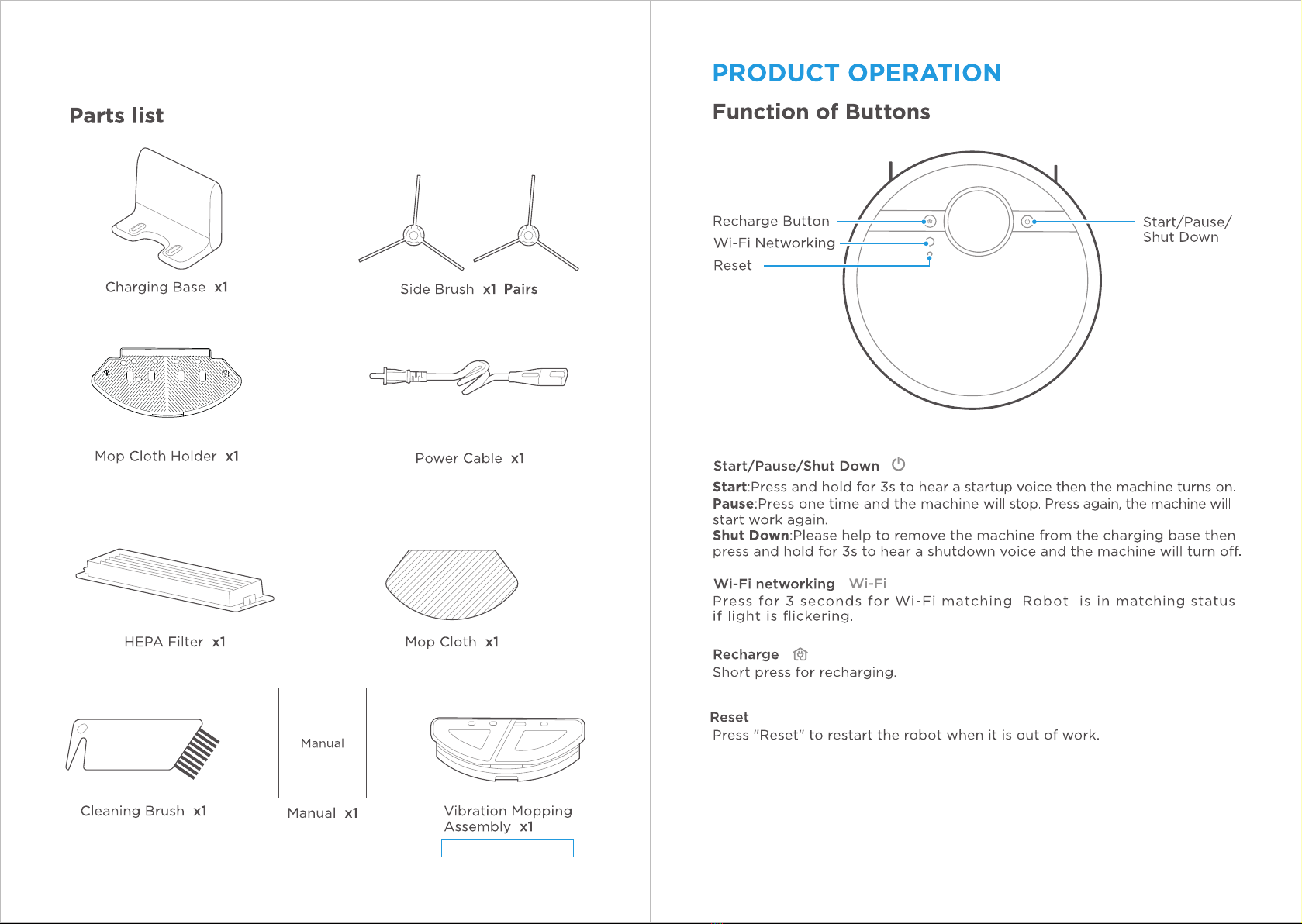

Parts list

PRODUCT OPERATION

SAFETY INSTRUCTIONS

TECHNICAL DATA 09

Function Of Buttons

Installing The Side Brushes

Charging Robot Vacuum

Cleaning

Mopping

Using APP

M-smartLife App Quik Guide

01 02

SAFETY INSTRUCTIONS

Warning for the machine

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

Plug must be removed from the socket-outlet

before cleaning or maintaining the appliance.

Switch o before cleaning or maintaining the

appliance.

If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

WARNING: For the purposes of recharging the

battery, only use the detachable supply unit

provided with this appliance.

Use only with M7-DS supply unit.

This appliance contains batteries that are only

replaceable by skilled persons.

Do not bring the smart robot close to heatsource,

radiation or burning cigarette butts. It is strictly

forbidden to vacuum the following objects:

1)All liquids such as water and solvents;

2)Lime, cement dust and other construction dust

and garbage;

3)Heat generating objects, such as unextinguished

carbon butts, cigarette butts;

4)Sharp fragments, such as glass, etc.;

5)Flammable and explosive items, such as

gasoline and alcohol products.

Before using, please remove all fragile items from

the ground (such as glasses, lamps, etc.), and

items that may be tangled with the side brush,

Roller brush and drive wheels(such as wires,

curtains and other easily-entangled materials).

Please pay attention to your hair and avoid

entanglement on wheels or roller brushes when

using, cleaning and maintaining the robot.

Do not use this product at an altitude of more

than 2000m

Correct Disposal of this product.

This marking indicates that this product should

not be disposed with other household wastes

throughout the EU. To prevent possible harm to

the environment or human health from

uncontrolled waste disposal, recycle it responsibly

to promote the sustainable reuse of material

resources. To return your used device, please use

the return and collection systems or contact the

retailer where the product was purchased. They

can take this product for environmental safe

recycling.

Warranty Information

The manufacturer provides warranty in

accordance with the legislation of the customer's

own country of residence, with a minimum of 1

year (Germany: 2 years), starting from the date on

which the appliance is sold to the end user.

The warranty only covers defects in material or

workmanship.

The repairs under warranty may only be carried

out by an authorized service centre. When making

a claim under the warranty, the original bill of

purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

- Normal wear and tear

10.

11.

- Incorrect use, e.g. overloading of the appliance,

use of non-approved accessories

- Use of force, damage caused by external

inﬂuences

- Damage caused by non-observance of the user

manual, e.g. connection to an unsuitable mains

supply or non-compliance with the installation

instructions

- Partially or completely dismantled appliances

WIFI:2400-2483.5MHz, MAX POWRE:20dBm,

BLUETOOTH MAX POWR:10dBm

To satisfy RF exposure requirements, a separation

distance of 20 cm or more should be maintained

between the antenna of this device and persons

during device operation.To ensure compliance,

operations at closer than this distance is not

recommended.

CLASS 1 LASER PRODUCT

INVISIBLE LASER RADIATION

12.

13.

03 04

05 06

Warning for docking station

“IMPORTANT SAFETY INSTRUCTIONS – SAVE

THESE INSTRUCTIONS" and "DANGER – TO

REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, CAREFULLY FOLLOW THESE

INSTRUCTIONS".

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

Children should be supervised to ensure that they

do not play with the appliance.

If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

Docking station is only applicable to the product

M7/M7 Pro.

Warning: The battery charger(Docking station) is

not intended to charge non-rechargeable

batteries.

Warning for batery

Do not dismantle, open or shred secondary cells or

batteries.

b) Do not expose cells or batteries to heat or ﬁre.

Avoid storage in direct sunlight.

Do not short-circuit a cell or a battery. Do not store

cells or batteries haphazardly in a box

or drawer where they may short-circuit each other or

be short-circuited by other metal objects.

Do not remove a cell or battery from its original

packaging until required for use.

Do not subject cells or batteries to mechanical shock.

In the event of a cell leaking, do not allow the liquid to

come in contact with the skin or eyes. If contact has

been made, wash the aected area with copious

amounts of water and seek medical advice.

Do not use any charger other than that speciﬁcally

provided for use with the equipment.

Observe the plus (+) and minus (–) marks on the cell,

battery and equipment and ensure correct use.

Do not use any cell or battery which is not designed

for use with the equipment.

Do not mix cells of dierent manufacture, capacity,

size or type within a device.

07 08

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Always purchase the correct cell or battery for the

equipment.

Keep cells and batteries clean and dry.

Wipe the cell or battery terminals with a clean dry

cloth if they become dirty.

Secondary cells and batteries need to be charged

before use. Always use the correct

charger and refer to the manufacturer’s

instructions or equipment manual for proper

charging instructions.

Do not leave a battery on prolonged charge when

not in use.

After extended periods of storage, it may be

necessary to charge and discharge the cells

or batteries several times to obtain maximum

performance.

Secondary cells and batteries give their best

performance when they are operated at normal

room temperature (20 °C ±5 °C).

Retain the original product literature for future

reference.

Use only the cell or battery in the application for

which it was intended.

When possible, remove the battery from the

equipment when not in use.

Dispose of properly.

10.

11.

Keep cells and batteries out of the reach of children.

Seek medical advice immediately if a cell or a battery

has been swallowed.

[symbol IEC 60417-5957

( 2004-12 )]

[symbol ISO 7000-0790

( 2004-01 )]

[symbol IEC 60417-5031

( 2002-10 )]

[symbol IEC 60417-5032

( 2002-10 )]

[symbol IEC 60417-5172

( 2003-02 )]

time-lag miniature fuse-link where X is the symbol for

the time/current characteristic as given in IEC 60127

for indoor use only

read operator's manual

direct current

alternating current

class II equipment

09 10

TECHNICAL DATA

Warning for batery

Product Model: M7/M7 Pro

Host Charging Voltage: 16.9 V

Host Rated Voltage:14.4 V

Host Rated Power:55 W

Docking Station Model:M7-DS

Docking Station Input:100-240V~,50-60Hz,38W

Docking Station Output:16.9V ,2A

Battery Model:BP14452B

Battery Rated Voltage:14.4V

Battery Capacity:5200mAh 74.88Wh

Charging Limit Voltage:16.8V

10.

11.

Importer: MD (SINGAPORE) CONSUMER

PRODUCT CO.PTE.TD

Address:

158 Cecil Street, #07-01 Singapore 069545

Email: [email protected]

Jiangsu Midea Cleaning Appliances Co.,Ltd.

Add.: No.39 Caohu Avenue,

Xiangcheng District, Suzhou, Jiangsu, China

11 12

Only for M7 Pro

13 14
