INSTRUCTION MANUAL

Vacuum Cleaner

PLEASE READ THE

MANUAL CAREFULLY

BEFORE USING AND

KEEP IT PROPERLY

FOR FUTURE USE

Warning notices: Before

using this product, please

read this manual carefullly

and keep it for future

reference.

The design and

speciﬁcations are subject to

change without prior notice

for product improvement.

Consult with your dealer or

manufacturer for details.

MCS1825WB

IMPORTANT SAFETY INSTRUCTIONS

This section contains safety instructions that will help protect from risk of

personal injury or property damage. Failure to follow these instructions

invalidates the given warranty.

• This appliance complies with international safety standards.

• Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• If the adapter or the appliance itself is damaged, do not use it. Contact

an authorised service centre.

• Prevent damage to the power cable by not squeezing, bending, or

rubbing it on sharp edges.

• Do not touch the appliance or its plug when it is plugged if your hands

are damp or wet.

• Do not pull the power cable when unplugging the appliance.

• Do not vacuum flammable materials and when vacuuming cigarette ash,

make sure that it has cooled down.

• Do not vacuum water or other liquids.

• Protect the appliance from rain, humidity and heat sources.

• Never use the appliance in or near places where combustible or

flammable environments are present.

• Unplug the appliance before cleaning and maintenance.

• Do not immerse the appliance in water for cleaning.

• Do not attempt to dismantle the appliance.

• Use the original parts or parts recommended by the manufacturer only.

• Do not attempt to vacuum particles such as cement, plaster and

compressed paper in order to prevent the filter from being clogged and

the motor being damaged.

• If the adapter is damaged, it must be replaced by the manufacturer or its

agent or similarly qualified person in order to avoid hazard.

IMPORTANT SAFETY INSTRUCTIONS

• Use the appliance only with the power adapter supplied.

• Do not use the appliance without filters fitted, otherwise it can get

damaged.

• If you keep the packaging materials, store them out of the reach of

children.

• This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• The appliance is only to be used with the power supply unit provided

with the appliance.

• The adapter must be removed from the socket-outlet and the battery

pack must be removed from the appliance before cleaning or

maintaining the appliance

• Keep fingers, hair and loose clothing from moving parts and openings

whilst using the vacuum cleaner.

• The battery must be removed from the appliance before it is scrapped;

• Please dispose of used batteries according to local laws and regulations.

• This appliance contains batteries that are only replaceable by skilled

persons.

• The supply terminals are not to be short-circuited.

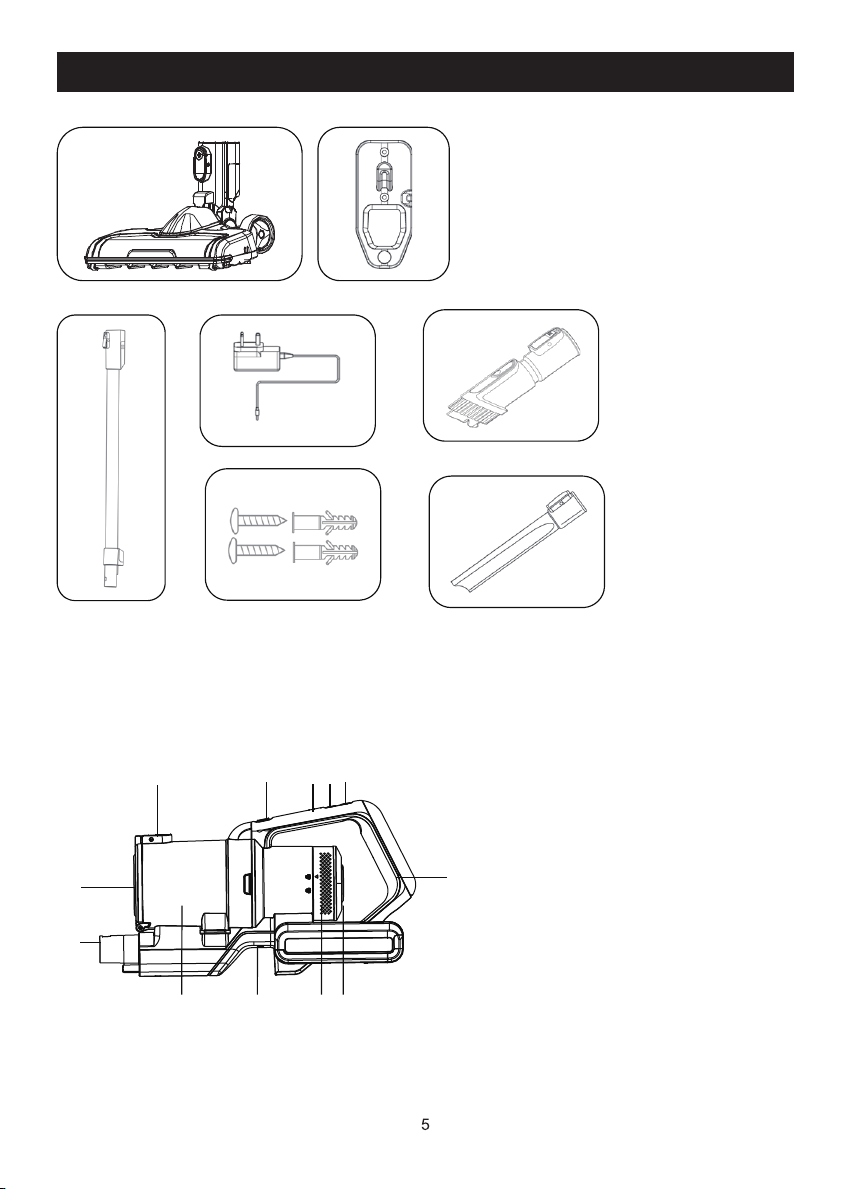

PRODUCT OVERVIEW

Floor head

Adaptor/charger

Wall fixings Crevice nozzle

Combination nozzle

Extension tube

wall bracket

Part identification

11 9

6 7

1012

1 Accessory attachment point

2 Collection container lid

3 Dust release button

4 Dust container release

button

5 Battery indicator light

6 Low/high mode button

7 Power on/off button

8 Handle

9 Filter cover

10 Motor filter

11 Mounting Recess

12 Dust container

Operation

Charging the Vacuum

This vacuum uses a rechargeable 25.2V Lithium battery. We recommend to

fully charge before using for the first time. It takes 3-5 hours.

1. Place the body of the cleaner onto a flat surface either a table or fit into

the wall bracket.

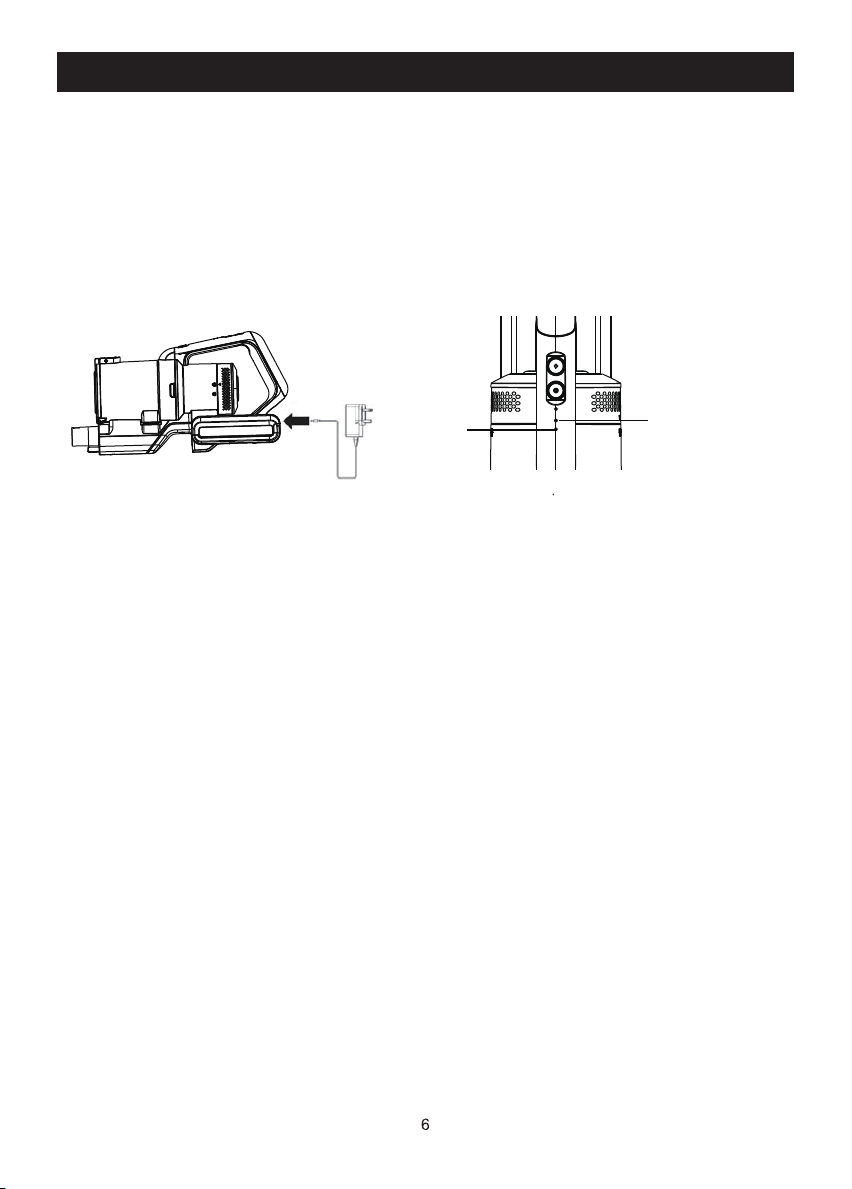

Fig. 1 Fig. 2

2. Insert the adaptor cord into the DC jack at the end of the cleaner handle

and plug the adaptor into the mains supply socket (fig.1).

3. The light indicator shows the status (Fig 2):

Charging: Light 1 flash, light 2 off

Half charged: Light 1 on, light 2 flash

Fully charged: Light 1 & 2 on, then off in 10 mins

Low battery: Light 1 flash, light 2 off

Notes

• Light indicator 1(Fig 2) will flash when the battery is running low and

needs to be recharged, If recharge is not commenced, the vacuum will

power off.

• Only charge or recharge the vacuum indoors.

• Do not recharge the battery when the air temperature is below 0°C or

above 37°C.

• Batteries become hot after heavy use and will become difficult to charge.

Allow to cool after use and wait about an hour between recharges.

Operation

Assembling your vacuum

Bringing it all together

Safety • Before drilling into wall surface, check for hidden cables or

pipes.

• Wear safety goggles and dust mask when drilling.

• The use of a residual current device (RCD) is recommended

when working with power tools.

Tools

required

• Drill fitted with a 6mm masonry drill bit

• Screwdriver

• Pencil

• Ruler

• Spirit level

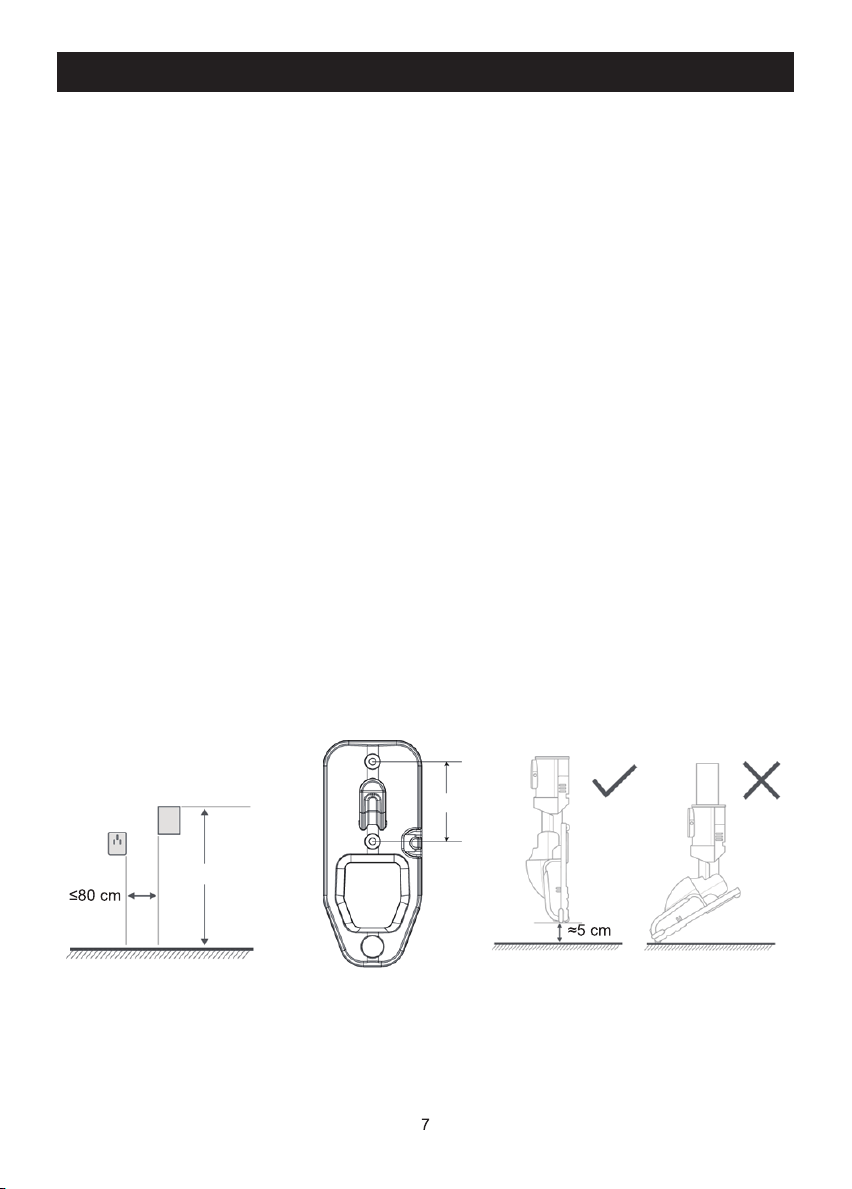

1. Choose a suitable location for the wall bracket away from areas where

it will get wet or knocked and close to a socket outlet. Check that the

charge cable will reach the mains socket (180cm distance max) and that

there is sufficient space above and below the bracket (approx.125cm

below) for the fully assembled vacuum cleaner to be inserted. No part of

the vacuum cleaner should touch the floor when fitted into the bracket

(fig 6).

Fig. 4

120~125 cm

48 cm

Floor Floor

Fig. 5 Fig. 6

2. Place the bracket in the desired position

and using a pencil, mark the position for the

two screw holes. Using a ruler, draw a line

joining the points marked for the two screws

and using a spirit level, check that it is on the

same level.

3. If fixing to a masonry wall, use a masonry drill

bit, drill holes to a depth of 30mm and insert

the wall plugs.

4. If fixing to ceramic tiles, use a tile and glass

drill bit to drill through the tile and then drill

holes to a depth of approximately 32 mm

using a masonry drill bit. Insert the wall plugs

beyond the depth of the tile.

5. Hold the bracket into position, align the fixing

holes in the bracket with the wall plugs and

insert the screws until the bracket is held

firmly into position.

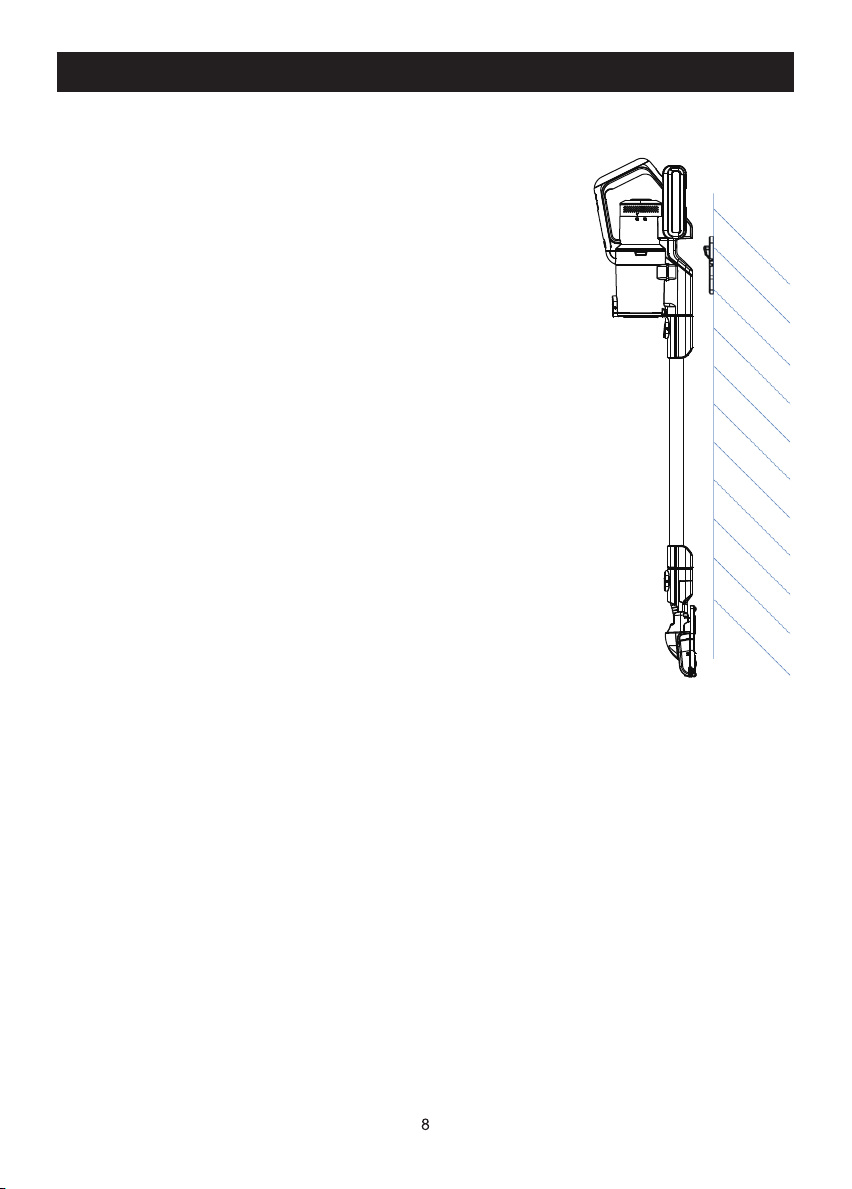

6. Fit the nozzles onto their storage posts, and

insert the assembled vacuum cleaner into the

bracket (fig.7).

Notes:

• If fixing the bracket to timber, follow the directions above, but only drill a

small pilot hole for each screw and do not use wall plugs. This fitting is

not suitable for mounting onto doors.

• If fixing to hollow plasterboard walls, use a drill bit suitable for wood and

use wall anchors suitable for cavity walls. For maximum strength locate

into wall studs and cross braces if possible.

Operation

Fig. 7

Assembly

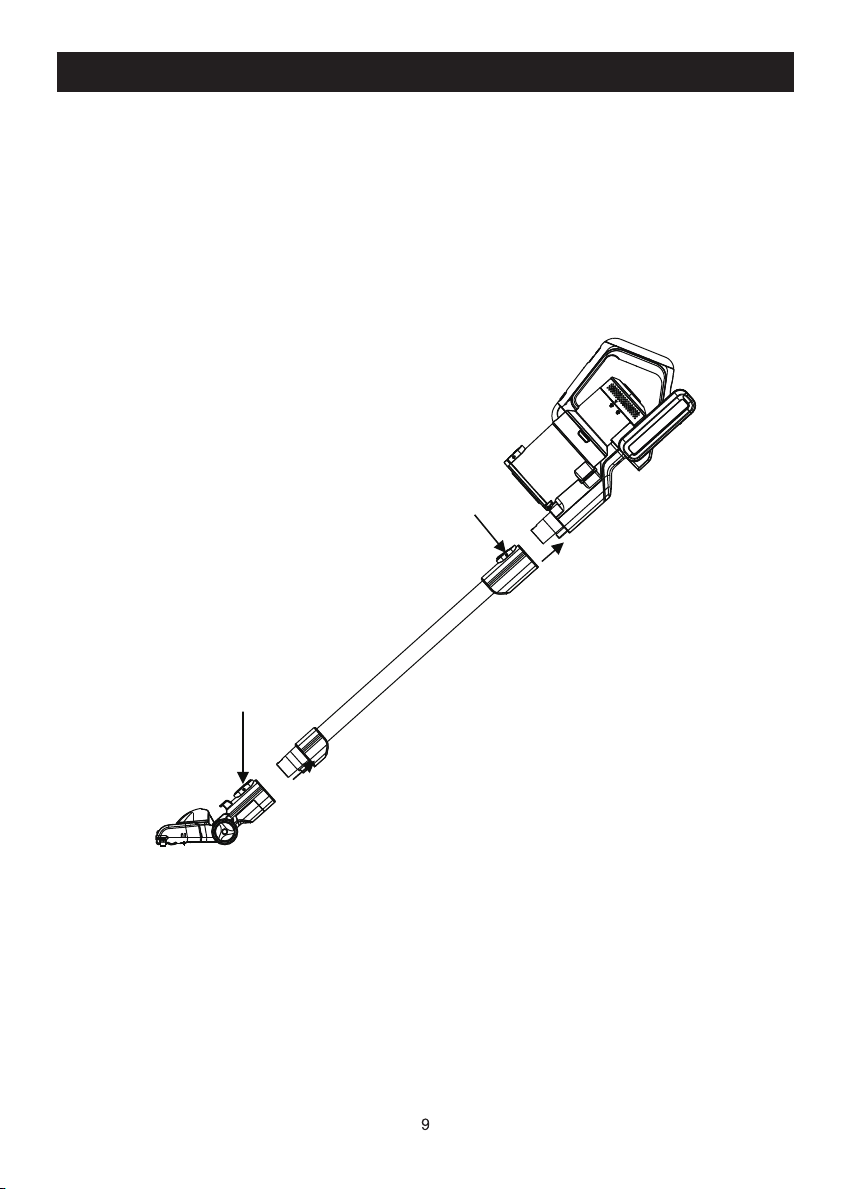

1. Insert the extension tube onto the body of the vacuum as shown (fig. 8)

and push to secure, a click will be heard.

2. Push fit the floor head onto the etexnsion tube (fig. 8), a click will be

heard. The crevice nozzle and combination nozzle can be fitted in place

of the floor head.

Fig. 8

Release button

3. Alternatively, do not use the extension tube and fit the crevice nozzle

or combination nozzle directly onto the body of the vacuum cleaner

(fig. 9). The floor head can be fitted in a similar manner, but if using in

this configuration ensure hands are kept away from the floor head

during operation – due to a potential entrapment hazard.

Operation

Fig. 9

4. To remove the all parts press the release button and accessories firmly

pull apart.

Getting started

1. Fit the correct nozzle for the cleaning

application, ensure that the battery has

sufficient charge.

2. Click power button once to start, the

LED lights on the floor head (if fitted)

will illuminate and the vacuum cleaner

will start with middle power mode. Use

Low/Mid/High button to switch between

modes. The vacuum cleaner may be

used for 20min with high power mode

and 45min with low power mode.

3. Click the power button again to stop the vacuum cleaner after use.

4. Store the vacuum in the wall bracket when not in use.

*Note: Low power mode is indicated with no indicator lights. Mid power

mode with the white indicator light and High power mode, with the Blue

indicator light.

Power button

Low/High button

Low/High indicator lights*

Operation
