Wireless Multifunctional CO2 Sensor

R718UBD Series

Wireless Multifunctional

CO2 Sensor

R718UBD Series

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be

maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written

permission of NETVOX Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction..........................................................................................................................................2

2. Appearance...........................................................................................................................................4

3. Main Feature.........................................................................................................................................4

4. Set up Instruction..................................................................................................................................5

5. Data Report ..........................................................................................................................................6

5.1 Example of ReportDataCmd..........................................................................................................7

5.2 Example of ConfigureCmd............................................................................................................8

5.3 Example of calibration configuration...........................................................................................10

6. Installation..........................................................................................................................................12

6-1 Precautions for use of dust sensor................................................................................................12

6-2. Precautions for use of TVOC sensor...........................................................................................12

6-3 Precautions for outdoor installation.............................................................................................13

7. Important Maintenance Instruction.....................................................................................................14

1. Introduction

R718UBD all-in-one series is a ClassA type of netvox based on LoRaWAN open protocol, which can support a variety of combined

detection devices composed of temperature and humidity, CO2, vibration, atmospheric pressure, illumination, TVOC and dust, and is

compatible with LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely

used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation device,

wireless security systems, industrial monitoring. Main features include small size, low power consumption, transmission distance,

anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

The specific model of R718UBD all-in-one is shown in the following table:

UBD represents the basic function CO2 of DC power supply

“1” represents temperature and humidity,

“2” represents vibration

“3” represents air pressure

“5” represents light

“6” represents TVOC

“7” represents PM2.5

Device Model Product functions

R718UBD CO2

R718UBD1 CO2, temperature and humidity

R718UBD12 CO2, temperature and humidity, vibration

R718UBD123 CO2, temperature and humidity, vibration, air pressure

R718UBD23 CO2, vibration, air pressure

R718UBD25 CO2, vibration, light

R718UBD125 CO2, temperature and humidity, vibration, light

R718UBD235 CO2, vibration, air pressure, light

R718UBD1235 CO2, temperature and humidity, vibration, air pressure, light

R718UBD126 CO2, temperature and humidity, vibration, TVOC

R718UBD1236 CO2, temperature and humidity, vibration, air pressure, TVOC

R718UBD127 CO2, temperature and humidity, vibration, PM2.5

R718UBD1237 CO2, temperature and humidity, vibration, air pressure, PM2.5

R718UBD12357 CO2, temperature and humidity, vibration, air pressure, light, PM2.5

R718UBD1257 CO2, temperature and humidity, vibration, light, PM2.5/10

R718UBD256 CO2, vibration, light, TVOC

R718UBD257 CO2, vibration, light, PM2.5/10

R718UBD236 CO2, vibration, air pressure, TVOC

R718UBD237 CO2, vibration, air pressure, PM2.5/10

R718UBD2356 CO2, vibration, air pressure, light, TVOC

R718UBD2357 CO2, vibration, air pressure, light, PM2.5/10

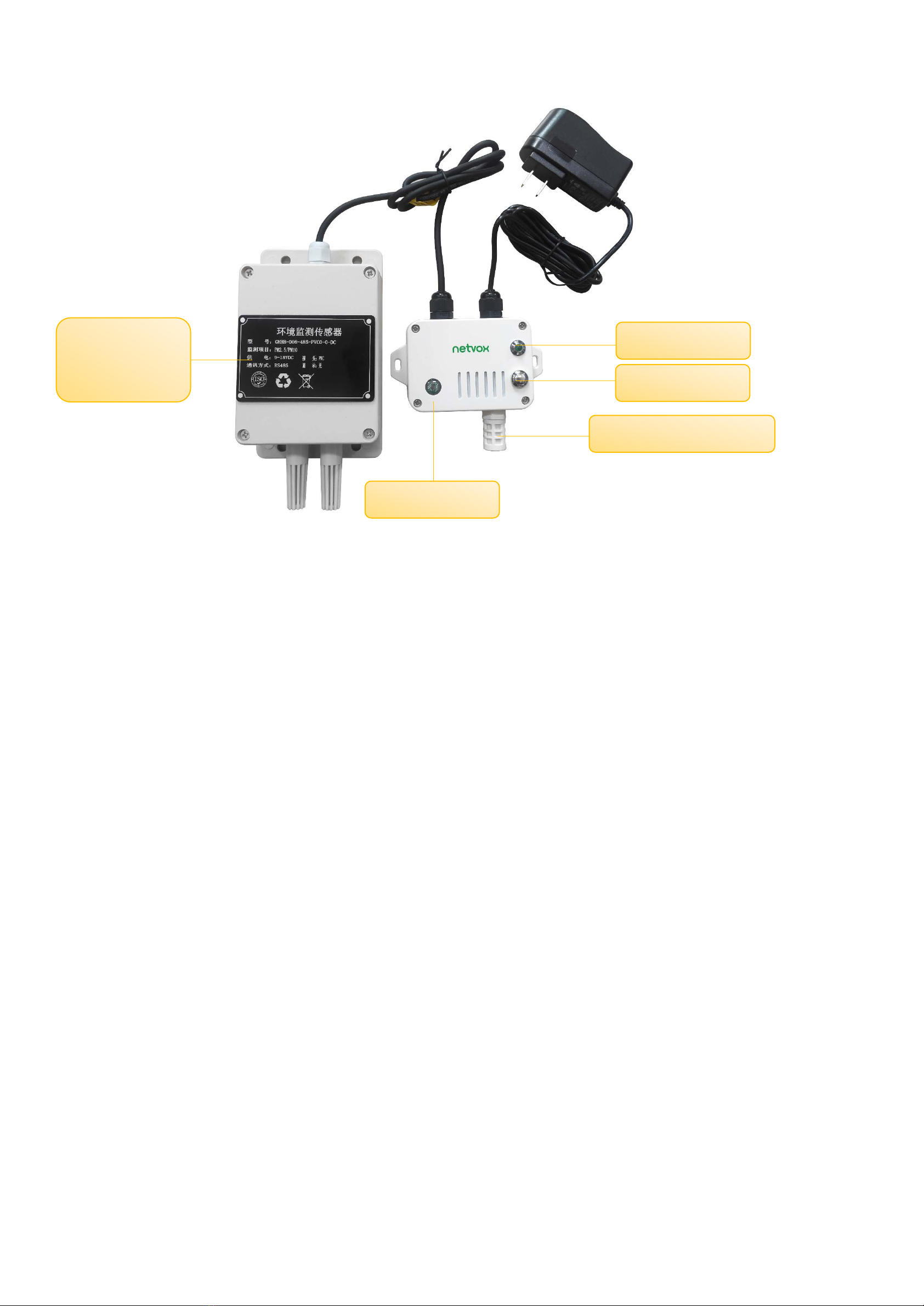

2. Appearance

3. Main Feature

Apply SX1276 wireless communication module

DC 12V power supply

It can detect temperature and humidity, CO2, vibration, atmospheric pressure, illumination, TVOC and dust

The base is attached with a magnet, which can be adsorbed on iron objects

Host Body Protection Level: IP65

Compatible with LoRaWANTM Class A

Frequency Hopping Spread Spectrum (FHSS) technology

Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via

SMS text and email (optional)

Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne

Indicator

Temperature and humidity

Function Key

Dust sensor

(PM2.5 / PM10)

Light Sensor

4. Set up Instruction

On/Off

Power on Power on

Restore to factory setting Press and hold the function key for 5 seconds till green indicator flashes 20 times.

Power off Remove adapter

Note:

1. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor

inductance and other energy storage components.

2. In the first 5 seconds after power on, the device will be in engineering test mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(not at factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to Join The Network Suggest to check the device verification information on the gateway or consult your platform

server provider.

Function Key

Press and hold for 5 seconds

Restore to factory setting

The green indicator rapidly flashes for 20 times: success

The green indicator remains off: fail

Press once The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Sleeping Mode

The device is on and in the network

Sleeping period: Max Interval.

When the reportchange exceeds setting value or the state changes: send a data report according

to Max Interval.

5. Data Report

When the device is powered on, it will immediately send a version package report and then report the device data.

Default setting:

Min interval = 10s // The interval between multiple data packets

Max interval = 900s

Report count=1, R718UBD, R718UBD1, R718UBD12

Report count=2, R718UBD123, R718UBD23, R718UBD25, R718UBD125, R718UBD235, R718UBD 1235

R718UBD126, R718UBD127

Report count=3, R718UBD1236, R718UBD1237, R718UBD12357, R718UBD1257, R718UBD256, R718UBD257,

R718UBD236, R718UBD237

Data detection:

When the device is in a network state, the light flashes once after pressing the key, and then reads the data. When the time to

return the corresponding data or configure is up, it will also detect and return the corresponding data information.

(Note: The interval between multiple data packets is mintime)

Note:

1. Before any configuration, the device sends data according to the default configuration.

2. Do not send any configuration before turn on the device.

3. CO2 data will be unstable due to transportation relations, long storage time and other factors.

If the CO2 value which customers test is inconsistent ,or there is large discrepancy of the primary standard,

it can be recalibrated. For specific calibration methods,please refer to command 0x03 CalibrateType.

Refer to Netvox LoRaWan Application Command documents and for data analysis reported by the device

http://www.netvox.com.cn:8888/page/index Instruction parsing

The report configuration and sending time are as follows:

Min Interval (Unit: s) Max Interval (Unit: s) Sending interval of multiple data packets Report cycle

Not 0 Mintime * reportcount ~ 65535 By Min Time Report Report by Max Time

5.1 Example of ReportDataCmd

FPort：0x06

Bytes 1 1 1 Var(Fix=8 Bytes)

Version DeviceType ReportType NetvoxPayLoadData

Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version

DeviceType– 1 byte – Device Type of Device

The devicetype is listed in Netvox LoRaWAN Application Devicetype doc

ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype

NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)

Device Device

type

Report

type NetvoxPayloadData

R718UBD 0xBB

0x01

Battery

(1Byte)

unit:0.1V)

Temperature

(Signed 2Bytes)

unit:0.01°C

Humidity

(2Bytes)

unit:0.01%

CO2

(2Bytes)

unit:1ppm

ShockEvent

(1Byte)

0x00_NoShock

0x01_ Shock

0x02 Battery

(1Byte, unit:0.1V)

AirPressure

(4Bytes,unit:0.01hPa)

illuminance

(3Bytes,unit:1Lux)

0x03

Battery

(1Byte)

unit:0.1V

PM2.5

(2Bytes)

Unit:1 ug/m3

PM10

(2Bytes)

Unit: 1ug/m3

TVOC

(2Bytes)

Unit:1ppb

Reserved

(1Byte)

fixed 0x00

R718UBD12357 report example:

# Report data 1: 01BB0100097A151F020C01

1st byte (01): Version

2nd byte (BB): DeviceType 0xBB －R718UBD Series

3rd byte (01): ReportType

4th byte (00): Battery－0x00 means is powered by DC power source

5th 6th byte (097A): Temperature－24.6°C ,097A(HEX)=2426(DEC),2426*0.01°C =24.26°C

7th 8th byte (151F): Humidity－54.07% , 151F(HEX)=5407(DEC),5407*0.01%=54.07%

9th 10th byte (020C): CO2－524ppm , 020C(HEX)=524(DEC),524*1ppm=524ppm

11th byte (01): Shock Event－1 , Shock

# Report data 2: 01BB02000001870F000032

1st byte (01): Version

2nd byte (BB): DeviceType 0xBB －R718UBD Series

3rd byte (02): ReportType

4th byte (00): Battery－0x00 means is powered by DC power source

5th ~ 8th byte (0001870F): AirPressure－1001.11hPa,1870F(HEX)=100111(DEC),100111*0.01hPa=1001.11hPa

9th ~11th byte (000032): Illuminance－50 Lux ,000032(HEX)=50(DEC),50*1Lux=50Lux

# Report data 3: 01BB030000110011FFFF00

1st byte (01): Version

2nd byte (BB): DeviceType 0xBB －R718UBD Series

3rd byte (03): ReportType

4th byte (00): Battery－0x00 means is powered by DC power source

5th 6th byte (0011):PM2.5－17ug/m3, 11(HEX)=17(DEC)

7th 8th byte (0011): PM10－17ug/m3, 11(HEX)=17(DEC)

9th 10th byte (FFFF): TVOC

11th byte (00): Reserved

Note:

Unsupported sensor detection item data is 0xFF/0xFFFF/0xFFFFFF/0xFFFFFFFF

5.2 Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

Description Device CMD

Report

type NetvoxPayloadData

Config

ReportReq

R718UBD

0x01

0xBB

MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

Reserved

(2Bytes,Fixed 0x00)

Config

ReportRsp 0x81 Status

(0x00_suBBess)

Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq 0x02 Reserved

(9Bytes,Fixed 0x00)

ReadConfig

ReportRsp 0x82 MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit:s)

Reserved

(2Bytes,Fixed 0x00)

Calibrate

CO2Req 0x03

CalibrateType (1Byte)

0x01_TargetCalibrate

0x02_ZeroCalibrate

0x03_BackgroudCalibrate

0x04_ABCCalibrate

CalibratePoint

(2Bytes,Unit:1ppm)

Only valid in

targetCalibrateType

Reserved

(6Bytes,Fixed 0x00)

Calibrate

CO2Rsp 0x83 Status

(0x00_suBBess)

Reserved

(8Bytes,Fixed 0x00)

SetShockSensor

SensitivityReq 0x04 ShockSensorSensitivity

(1Byte)

Reserved

(8Bytes,Fixed 0x00)

SetShockSensor

SensitivityRsp 0x84 Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

GetShockSensor

SensitivityReq 0x05 Reserved

(9Bytes,Fixed 0x00)

GetShockSensor

SensitivityRsp 0x85 ShockSensorSensitivity

(1Byte )

Reserved

(8Bytes,Fixed 0x00)

(1)Configure the device parameter MinTime = 300s, MaxTime = 900s

Downlink: 01BB012C03840000000000//12C(Hex)=300(Dec), 384(Hex)=900(Dec)

Device return:

81BB000000000000000000 (configuration successful)

81BB010000000000000000 (configuration failed)

(2) Read the device parameter

Downlink: 02BB000000000000000000

Device Return:

82BB012C03840000000000 (device current parameter)

(3) Set CO2 calibration

Downlink:

03BB0103E8000000000000 // Select Target-calibrations

(calibrate when the known CO2 concentration is 1000ppm (concentration optional))

03BB020000000000000000 // Select Zero-calibrations

(Calibration in an environment with a CO2 concentration of 0 ppm)

03BB030000000000000000 // Select Background calibrations

(calibration shall be carried out in a stable environment in fresh air, i.e. 400 ppm concentration)

03BB040000000000000000 // Select ABC calibrations

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere netvox Zubehör Handbücher

netvox

netvox R311FA Bedienungsanleitung

netvox

netvox R718LB Bedienungsanleitung

netvox

netvox R718PB13 Bedienungsanleitung

netvox

netvox R718MA Bedienungsanleitung

netvox

netvox Z808B Bedienungsanleitung

netvox

netvox R712 Bedienungsanleitung

netvox

netvox R816B Bedienungsanleitung

netvox

netvox R718PA9 Bedienungsanleitung

netvox

netvox R718DB Bedienungsanleitung

netvox

netvox R313B Bedienungsanleitung

netvox

netvox R72616A Bedienungsanleitung

netvox

netvox R718VA Bedienungsanleitung

netvox

netvox R718PG-AS923 Bedienungsanleitung

netvox

netvox R718NL3 Series Bedienungsanleitung

netvox

netvox R718PB15A Bedienungsanleitung

netvox

netvox R313M Bedienungsanleitung

netvox

netvox R311K Bedienungsanleitung

netvox

netvox R718VA Bedienungsanleitung

netvox

netvox R718PQA Bedienungsanleitung

netvox

netvox R718VB Bedienungsanleitung

netvox

netvox ZigBee Z801WLS Bedienungsanleitung

netvox

netvox R718AD Bedienungsanleitung

netvox

netvox ZigBee Z311G Bedienungsanleitung

netvox

netvox R72615A Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung

netvox R718UBD Series Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken
