Assembly and Operating Instructions for Outback®

Excel 100, Excel 200, and Excel 300 Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions

could result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets

away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check

that the hose connections are tight and leak test each time you reconnect the

gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other

flammable vapours or liquids in the vicinity

of this or any other appliance.

2. A gas bottle not connected for use must not

be stored in the vicinity of this or any other

appliance.

0359

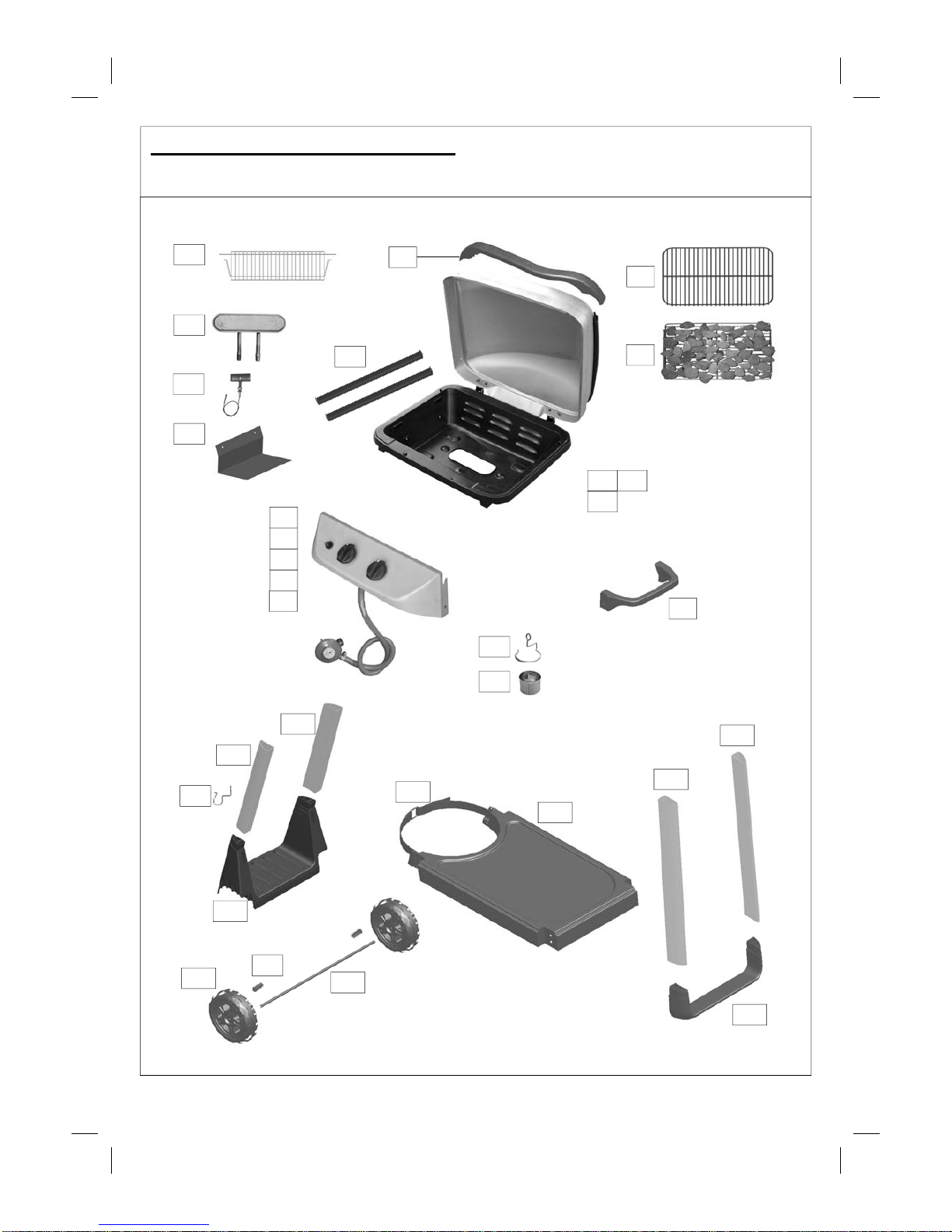

1. Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model

CODE PART QTY OUTBACK®

EXCEL 100 OUTBACK®

EXCEL 200 OUTBACK®

EXCEL 300

HOOD

A1 Hood (Pre-Assembled to Body)

1 √√√

A2 Hood Handle 1 √√√

A3 Warming Rack 1 √√√

BODY

B1 Barbecue Body 1 √√√

B2 Burner 1 √√√

B3 Control Panel 1 √√√

B4 Knob 2 √√√

B5 Hose and Regulator assembly 1 √√√

B6 Lava Rock in Basket 1 √√√

B7 Cooking Grill 1 √√√

B8 Ignition Button 1 √√√

B9 Control Panel Heat Shield 1 √√√

B10 Main Electrode 1 √√√

B11 Hinge Bracket 2 √√√

B12 Body Heat Shield 1 √√√

B13 Body Support 2 √√√

B14 Grease Cup Holder 1 √√√

B15 Grease Cup 1 √√√

TROLLEY

C1 Trolley Handle 1

C2 Side Shelf (with bracket)  1

C6 Side Burner Knob  1

C7 Side Burner Grid  1

C8 Side Burner Shelf  1

C9 Side Burner  1

C10 Side Burner Electrode  1

C11 Side Burner Valve / Hose Assembly  1

C12 Left Front Leg 1 √√√

C13 Left Rear Leg 1 √√√

C14 Right Front Leg 1 √√√

C15 Right Rear Leg 1 √√√

C16 Hose Tidy 1 √√√

C17 Gas Bottle Holder 1 √√√

C18 Leg End Loop 1 √√√

C19 Wheel Spacer 2 √√√

C20 Wheel 2 √√√

C21 Axle 1 √√√

C22 Bottom Shelf 1 √√√

C23 Gas Bottle Strap 1 √√√

HARDWARE

D1 M6x15 Bolt 24 28 28

D2 M5x10 Bolt 4 √√√

D3 M4x10 Bolt  1

D4 ST4.0x10 Screw 7 √√√

D6 ST4.8x15 Screw 2 √√√

D7 M8 Locknut 2 √√√

D8 M5 Nut 2 √√√

D9 Spacer 2 10 6

D5 ST4.0x15 Screw 4 4

C3 Side Shelf (without bracket)  1 1

C4 Side Shelf Bracket A  1 1

C5 Side Shelf Bracket B  1 1

B15

B14

2.1. Parts Diagram: Excel 100

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C13

C23

A1 B1

B11

Pre-assembled body unit

includes the following

individual parts:

B12

B13

C16

C19

C17

C20 C21

C18

C14

C15

C22

B10

C12

2.2. Hardware Reference Diagram: Excel 100

Specifications subject to change without prior notice.

D1 D4 D2

D7D8 D9

3.1. Parts Diagram: Excel 200

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

A1 B1

B11

Pre-assembled body unit

includes the following

individual parts:

B12

B13

B10

B15

B14

C13

C23

C16

C17

C20 C21

C18

C14

C15

C22

C12

C19

3.2. Hardware Reference Diagram: Excel 200

Specifications subject to change without prior notice.

4.1. Parts Diagram: Excel 300

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C10

A1 B1

B11

Pre-assembled body unit

includes the following

individual parts:

B12

B13

C11

B10 B7

B15

B14

C13

C23

C16

C17

C20 C21

C18

C14

C15

C22

C12

C19

4.2. Hardware Reference Diagram: Excel 300

Specifications subject to change without prior notice.

D2 D4 D8

D3 D9 D5 D7

C15

5. Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• The assembly of this barbecue requires 2 people.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Front Leg

(C12) and Left Rear Leg

(C13) to the Gas Bottle

Holder (C17) using

ST4.0x10 Screws(D4).

C18 Attach the Right Front Leg

(C14) and Right Rear Leg

(C15) to the Leg End Loop

(C18). The legs are a push

fit onto the leg end loop. In

case of difficulty, they may

need tapping with a soft

faced mallet. Take care not

to damage the parts.

1 Excel 100  Excel 200  Excel 300

Excel 100  Excel 200  Excel 300

C12

C13

C17

C14

C15

Attach the Bottom Shelf (C22) to the Gas Bottle

Holder (C17) using ST4.8x15 Screws (D6).

Take care not to over tighten these screws

which will damage the plastic gas bottle holder.

Attach the leg assembly to the bottom

shelf assembly using M6x15 Bolts (D1).

3 Excel 100  Excel 200  Excel 300

Excel 100  Excel 200  Excel 300

C22

C17 D6
