CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manu-
al for future reference.
Serial
Number
Decal
Model No. PFE 77807.1
Serial No.
Write the serial number in the
space above for reference.
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
V
USERʼS MANUA
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
P EASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CA TO -FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
TAB E OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
OWTOUSET EELLIPTICALEXERCISER ..................................................12
MAINTENANCEANDTROUBLES OOTING ...................................................19
EXERCISEGUIDELINES ...................................................................20
PARTLIST ..............................................................................21
EXPLODEDDRAWING ....................................................................22
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2
WARNING DECA P ACEMENT

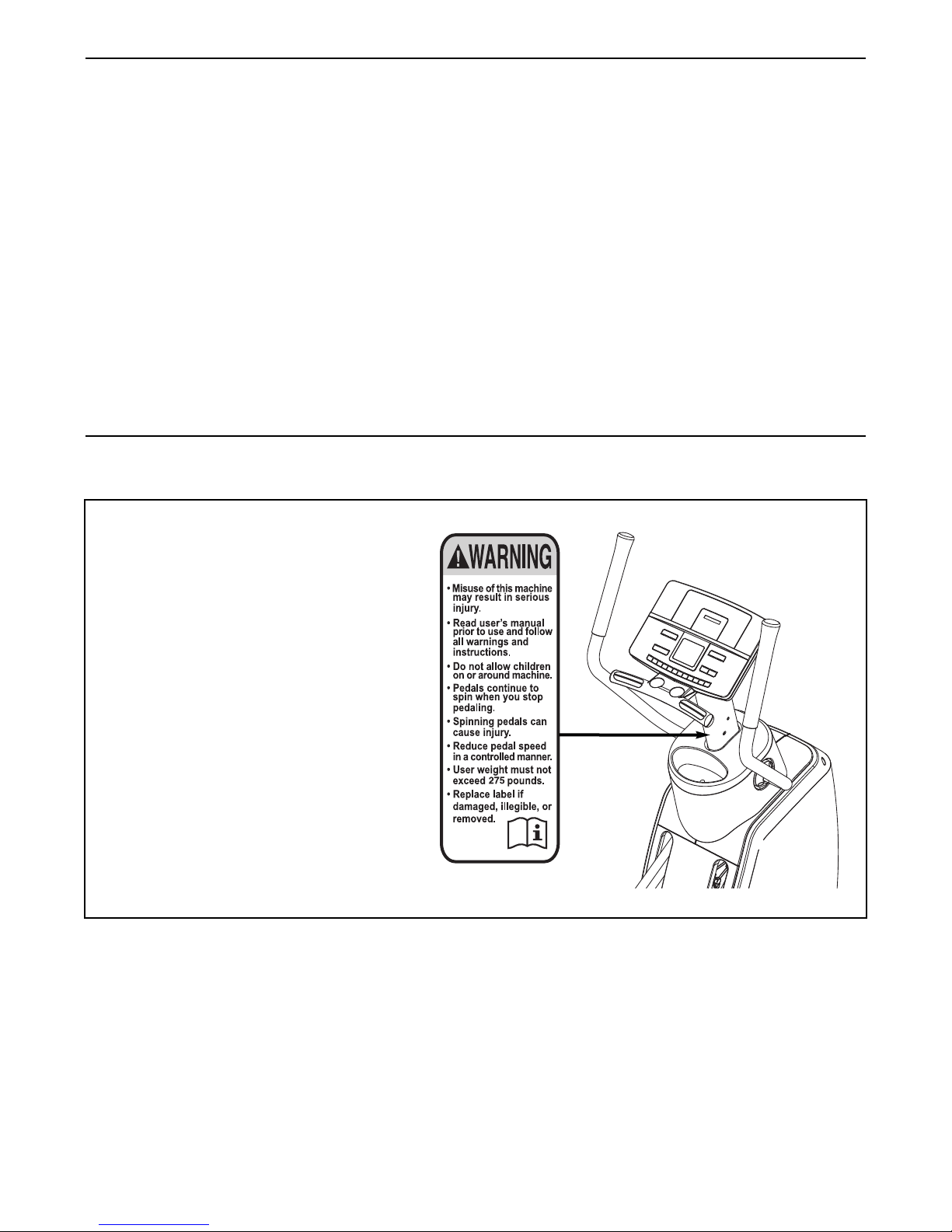

The warning decal shown here has
been applied in the location shown. If
the decal is missing or illegible, call
the telephone number on the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown. Note:
The decal may not be shown at actual
size.
PROFORM is a registered trademark of ICON IP, Inc.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
3
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 275 lbs.
(124 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the han-
dlebars when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
850 elliptical exerciser. The 850 elliptical exerciser
provides an impressive array of features designed to
make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
andgrip Pulse Sensor
Game Controller
Power Supply
andlebar
Wheel
Pedal
Console
Water Bottle older*
Leveling Foot
Leveling Foot
*No water bottle is included
Integrated Universal
Dock for iPod
5
M4 x 16mm
Screw (80)–4
M10 x 120mm Patch Screw (58)–2
M8 Hex Nylon
Locknut (77)–4
M8 x 19mm Patch
Screw (65)–4
M6 x 18mm Patch
Screw (57)–6
M10 x 27mm Patch
Screw (64)–4
M6 x 14mm
Flat Head
Screw (55)–1
M10 x 15mm Patch
Screw (71)–2
M10 x 22mm x
1.5mm Washer
(63)–2
Barrel Nut (56)–1
#8 x 1/2"
Screw (79)–6
#
#8 x 2"
Screw (68)–4
M8 x 55mm Patch
Bolt (61)–4
ASSEMB Y
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable
wrench , and rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
6

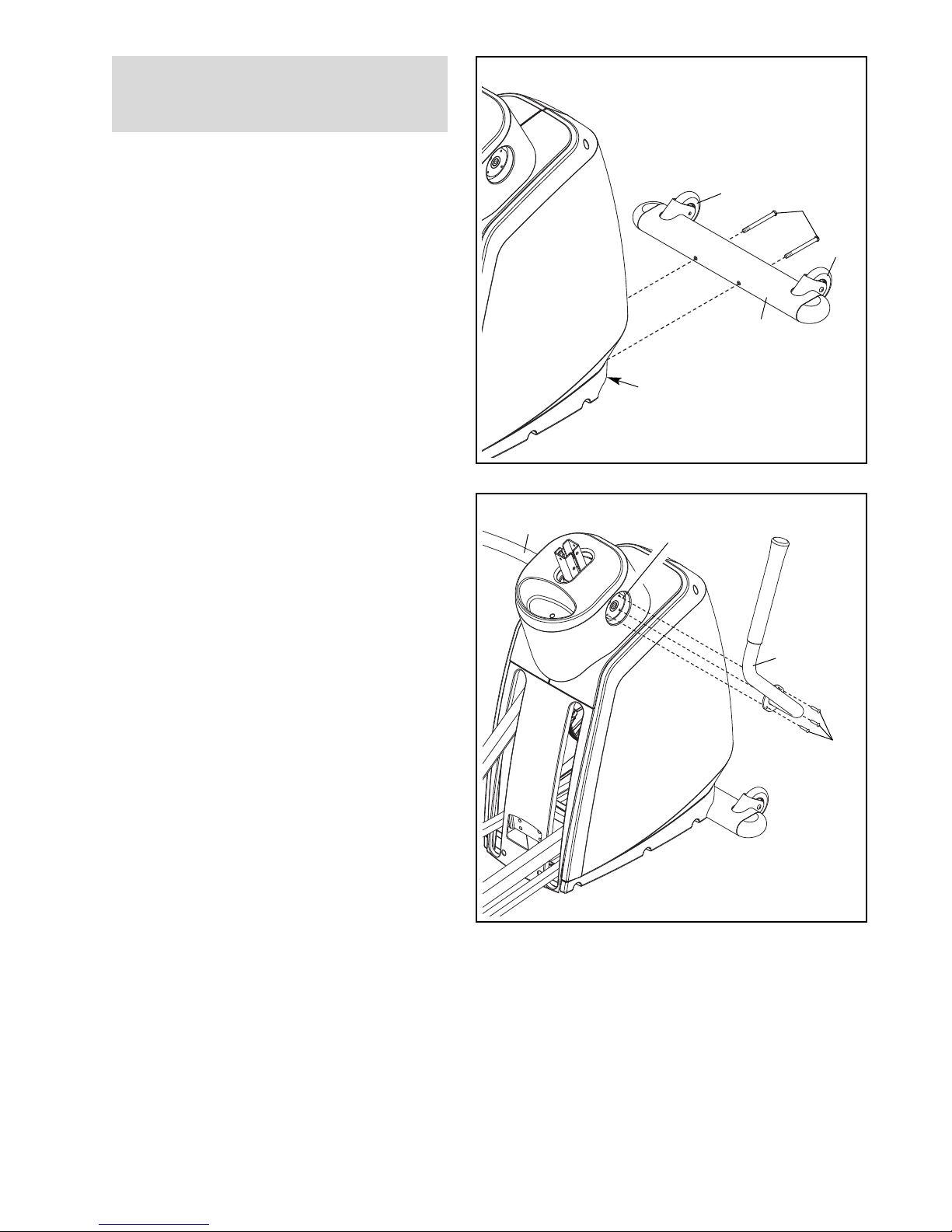

1.
Remove the two M10 x 120mm Patch Screws
(58) and the shipping bracket (not shown)
attached to the front of the Frame (1). Discard
the shipping bracket. Do not discard the two
M10 x 120mm Patch Screws.
Orient the Stabilizer (49) with the Wheels (8) in
the position shown. While a second person tips
the Frame (1) backward, attach the Stabilizer to
the Frame with the two M10 x 120mm Patch
Screws (58).
2. Identify the Right andlebar (36), which is
marked with an “R” sticker, and orient it as
shown. Attach the Right andlebar to the Frame
(1) with three M6 x 18mm Patch Screws (57).
Repeat this step to attach the eft Handlebar
(22).
58
49
1
2
1
1
8
8
22
57
36
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
7
4. While a second person holds the Console (4)
near the Upright (3), connect the console wire to
the Wire arness (46). Insert the excess wire
downward into the Upright.
Tip: Avoid pinching the wires during this
step. Attach the Console (4) to the Upright (3)
with four M4 x 16mm Screws (80).
4
80
3. Identify the Upright (3) and orient it as shown.
ave a second person holds the Upright near
the top of the Frame (1). Locate the wire tie
(see the inset drawing) in the Upright. Tie the
lower end of the wire tie to the Wire arness
(46). Next, pull the upper end of the wire tie
upward out of the top of the Upright. Then, untie
and discard the wire tie. Tip: Do not allow the
Wire Harness to fall into the Upright. Use a
piece of tape or an elastic band to hold the
Wire Harness in place until step 4.
Tip: Avoid pinching the Wire Harness (46)
during this step. Insert the Upright (3) into the
Frame (1). Attach the Upright with four M8 x
19mm Patch Screws (65).
3
3
4
46
46
Console Wire
3
1
65
65
Avoid pinching the
Wire Harness (46)
during this step
Avoid pinching the
wires during this step
Wire Tie
46
8
5. Identify and orient the Ramp (2) as shown.
Tip: Remove the Ramp Cover (not shown)
from the Ramp and set it aside until step 9.
Attach the Ramp to the Frame (1) with four M10
x 27mm Patch Screws (64). Tip: To prevent
squeaking, do not overtighten the Patch
Screws.
5
64
2
55
30
56
25
24
Grease
oles
6
1
6. Cut and remove the wire tie that holds the Link
Tube (30) inside the left Link Arm (25). Leave
the Link Tube inside the left Link Arm and then
position the Left Pedal Leg (24) and the left Link
Arm as shown.
Apply a small amount of the included grease to
a Barrel Nut (56). Insert the Barrel Nut through
the indicated holes in the Left Pedal Leg (24)
and the left Link Arm (25). Then, insert the
Barrel Nut through the Link Tube (30) inside the
left Link Arm.
Tighten an M6 x 14mm Flat ead Screw (55)
into the Barrel Nut (56).
9
8. Orient a Pedal (26) as shown. Attach the Pedal
to the bracket on the Left Pedal Leg (24) with
two M8 x 55mm Patch Bolts (61) and two M8
ex Nylon Locknuts (77).
Repeat this step to attach the other Pedal
(26).
8
25
71
63
27
7
7. Insert the axle of a Roller (27) through the right
Link Arm (25); make sure that the Roller is on
the inner side of the ink Arm. Attach the
Roller with an M10 x 15mm Patch Screw (71)
and an M10 x 22mm x 1.5mm Washer (63). Tip:
Use a wrench to hold the axle of the Roller
firmly in place while you tighten the Patch
Screw into the axle.
Repeat this step to attach the other Roller
(27) to the left ink Arm (25).
24 77
61
26
26
25
10

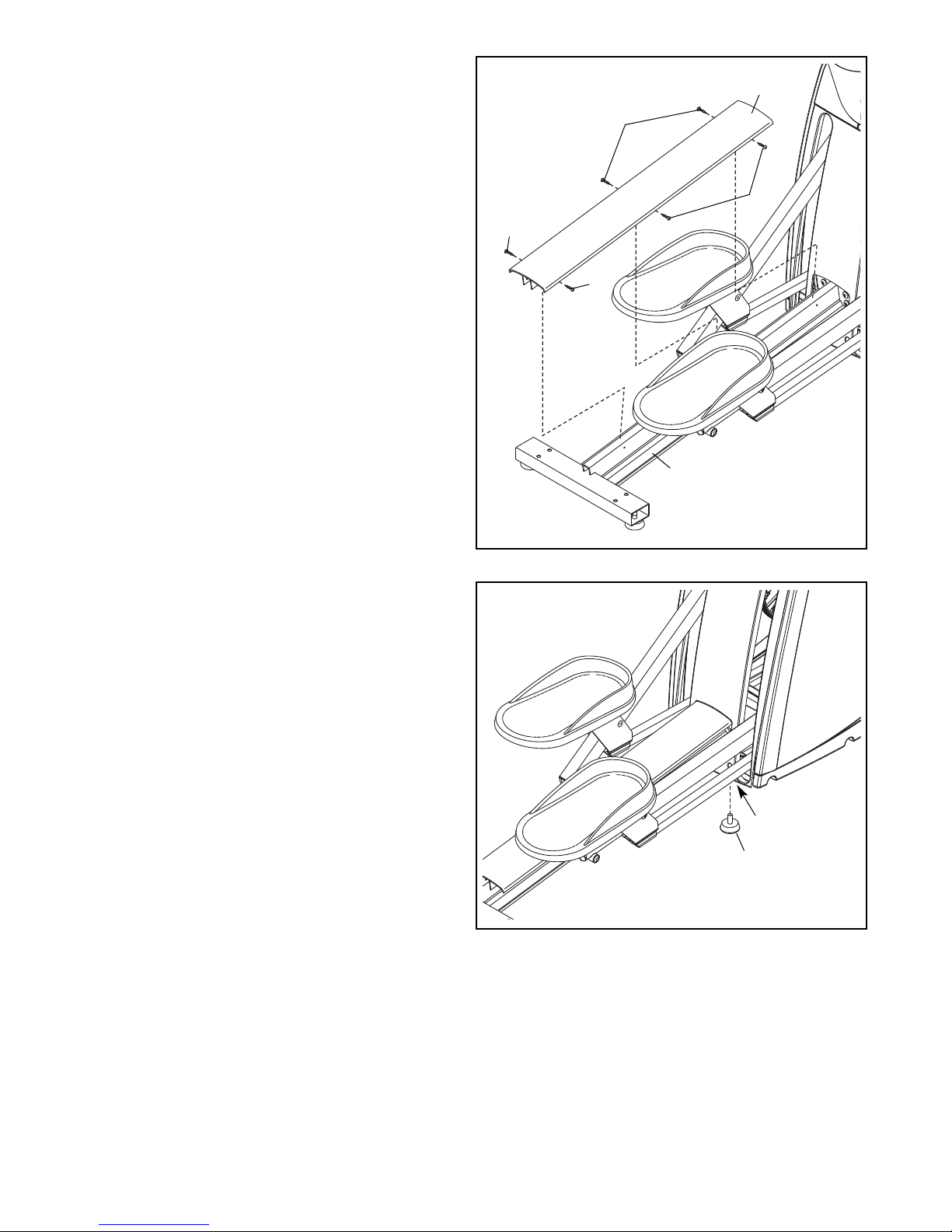

9. Attach the Ramp Cover (7) to the Ramp (2) with
six #8 x 1/2” Screws (79). 9
79
79
79
79
7
10. Remove the shipping bracket (not shown)
inserted into the underside of the Frame (1).
Discard the shipping bracket.
While a second person tips the Frame (1) for-
ward, tighten a Foot (9) into the underside of the
Frame.
10
2
9
1
Andere Handbücher für 850 Elliptical
1
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Pro-Form Ellipsentrainer Handbücher
Pro-Form
Pro-Form 500 Ekg Elliptical Benutzerhandbuch
Pro-Form
Pro-Form PFEL1303.3 Bedienungsanleitung
Pro-Form
Pro-Form 310 Re Elliptical Bedienungsanleitung
Pro-Form
Pro-Form PFEL79907.1 Bedienungsanleitung
Pro-Form
Pro-Form 420 Zle Elliptical Bedienungs- und Wartungshandbuch
Pro-Form
Pro-Form 7.0 Re Elliptical Bedienungsanleitung
Pro-Form
Pro-Form PFEL54931 Bedienungsanleitung
Pro-Form
Pro-Form 700 CardioCrossTrainer Bedienungsanleitung
Pro-Form
Pro-Form Crosstrainer 970 Bedienungsanleitung
Pro-Form
Pro-Form 465S Bedienungsanleitung
Pro-Form
Pro-Form 15.5 s 831.28622.1 Bedienungsanleitung
Pro-Form
Pro-Form PFEL85607.0 Bedienungsanleitung
Pro-Form
Pro-Form Space Saver 895 ZLE Bedienungsanleitung
Pro-Form
Pro-Form 1150 Rxw Benutzerhandbuch
Pro-Form
Pro-Form 20.0 CrossTrainer Bedienungsanleitung
Pro-Form
Pro-Form PFEL04907.0 Bedienungsanleitung
Pro-Form
Pro-Form 510 E Elliptical Bedienungsanleitung
Pro-Form
Pro-Form 762 Ekg Bike Bedienungsanleitung
Pro-Form
Pro-Form 420 Zle Elliptical Kurzanleitung
Pro-Form
Pro-Form 320 Zle Elliptical Bedienungsanleitung
Beliebte Ellipsentrainer Handbücher anderer Marken
Weslo
Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch
Progear Fitness
Progear Fitness Air elliptical pro 1307 Bedienungsanleitung
Torque Fitness
Torque Fitness XPLLP Bedienungsanleitung
Octane Fitness
Octane Fitness PRO3700C Bedienungsanleitung
Xterra
Xterra FS5.8e Bedienungsanleitung
Bodyguard
Bodyguard E-40 Bedienungsanleitung
Bonn Germany
Bonn Germany Concept 2.2 Bedienungsanleitung
Precor
Precor Resolute RSL 620 Bedienungsanleitung
NordicTrack
NordicTrack E 9.2 Elliptical Bedienungsanleitung
Vision Fitness
Vision Fitness X6600iNetTV Bedienungsanleitung
Matrix
Matrix MX-A5x Bedienungsanleitung
SportsArt Fitness
SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung
