Pro-Form PFEL05807.2 Bedienungsanleitung

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manu-

al for future reference.

Serial Number

Decal

(under frame)

Model No. PFEL05807.2

Serial No.

Write the serial number in the

space above for reference.

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. f you have questions,

or if parts are damaged or missing,

PLEASE DO NOT CONTACT THE

STORE; please contact Customer

Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

USERʼS MANUAL

TABLE OF CONTENTS

WARNNGDECALPLACEMENT ..............................................................2

MPORTANTPRECAUTONS ................................................................3

BEFOREYOUBEGN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLPTCALEXERCSER ..................................................13

MANTENANCEANDTROUBLESHOOTNG ...................................................20

EXERCSEGUDELNES ...................................................................21

PARTLST ..............................................................................23

EXPLODEDDRAWNG ....................................................................25

ORDERNGREPLACEMENTPARTS ..................................................BackCover

LMTEDWARRANTY ..............................................................BackCover

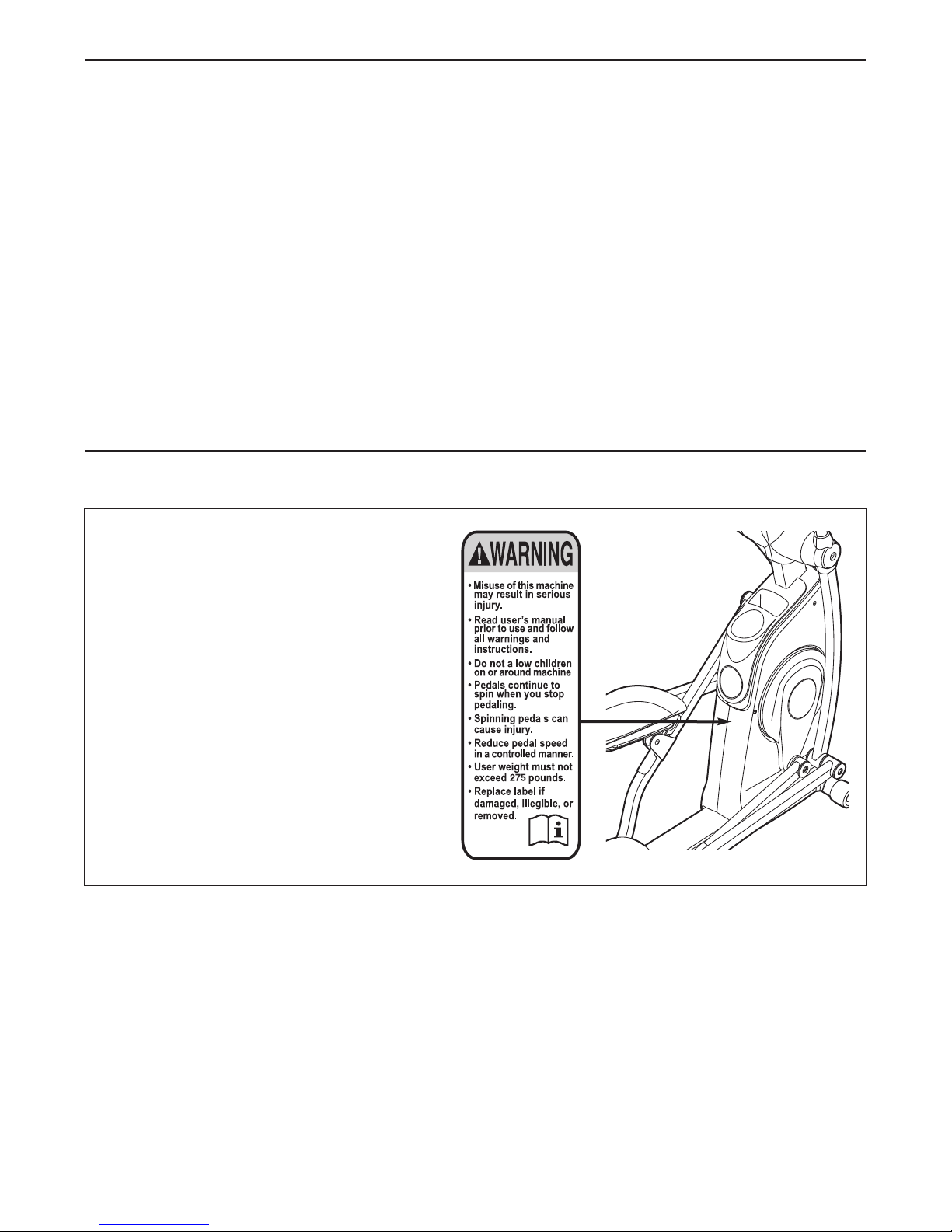

WARNING DECAL PLACEMENT

The drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, call the telephone number on

the front cover of this manual and

request a free replacement decal. Apply

the decal in the location shown. Note:

The decal(s) may not be shown at actual

size.

PROFORM is a registered trademark of CON P, nc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. eep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. eep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 275 lbs.

(124 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the handle-

bars when mounting, dismounting, or using

your elliptical exerciser.

10. eep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

STR DECL MBER 650 elliptical exerciser. The PRO-

FORM STR DECL MBER 650 elliptical exerciser

provides a wide array of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. f you have ques-

tions after reading this manual, please see the back

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

To avoid a registration fee for any service needed

under warranty, you must register the elliptical

exerciser at www.proformservice.com/registration.

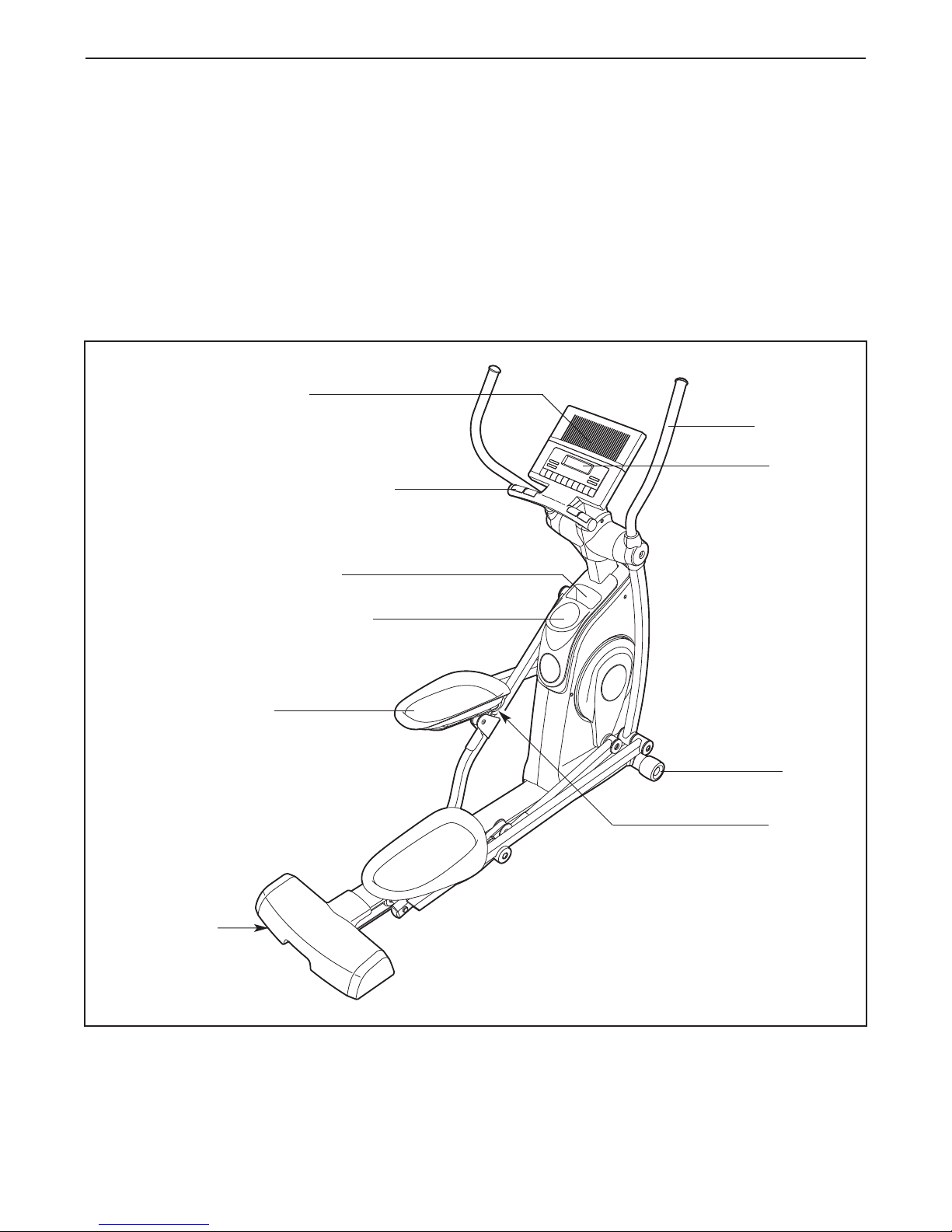

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

Wheel

Selector

Pedal

Console

Water Bottle Holder*

Accessory Tray

Leveling Foot

Book Rack

*No water bottle is included

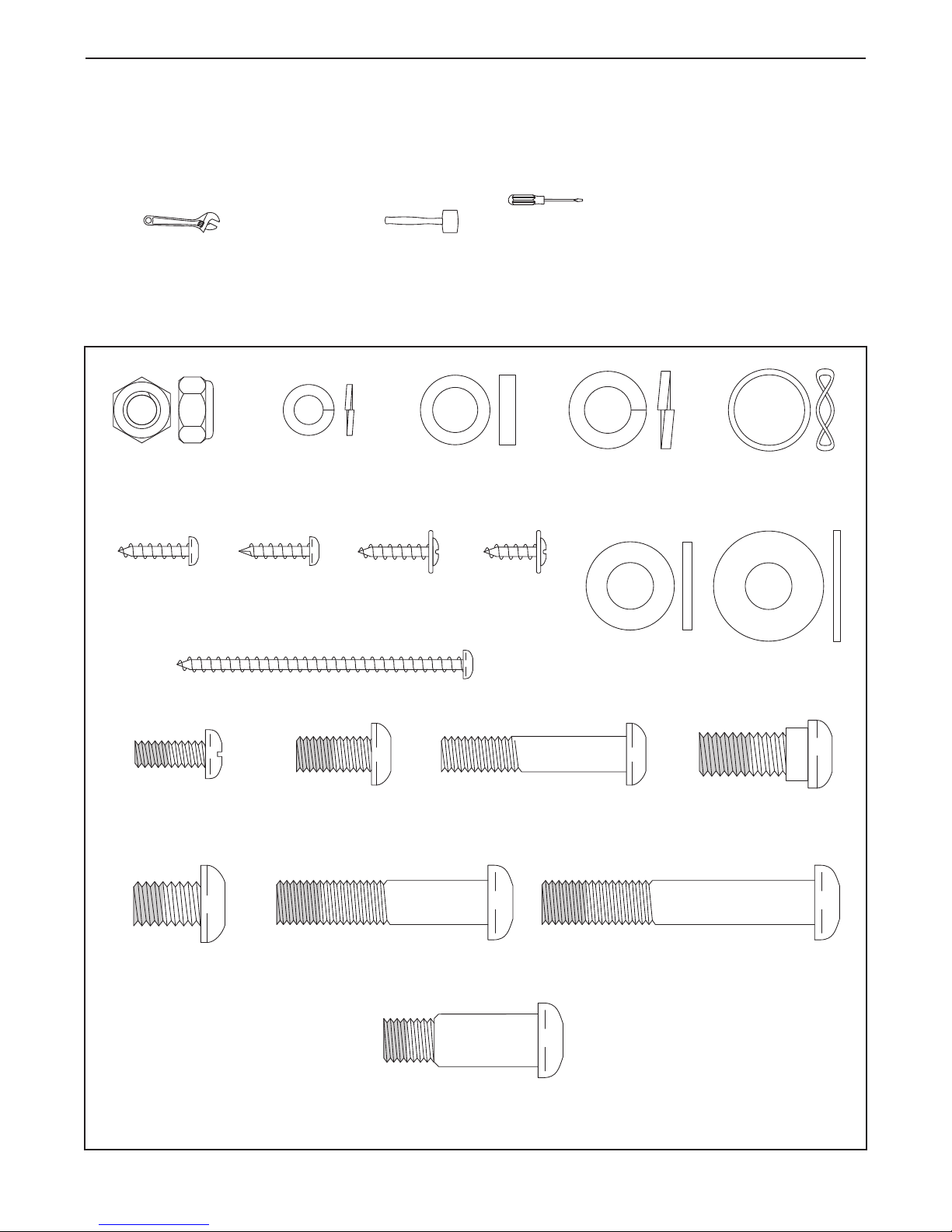

M4 x 16mm

Self-tapping

Screw (79)–10

M10 Spacer

(76)–2

M6 Split

Washer (88)–8

M10 x 20mm x

2mm Washer

(81)–2

M10 x 25mm x

1.5mm Washer

(83)–10

M8 Nylon

Locknut (96)–4

Wave Washer

(93)–6

M10 Split

Washer (72)–2

M4 x 65mm Screw (91)–4

M4 x 16mm

Screw (86)–4 M4 x 16mm

Flange Screw

(84)–2

M4 x 12mm

Flange Screw

(73)–6

M8 x 42mm Button Bolt (71)–4M8 x 16mm Patch

Screw (95)–3

M10 x 23mm Shoulder

Patch Screw (80)–2

M10 x 15mm Patch

Screw (82)–10

M6 x 16mm Phillips

Patch Screw (87)–8

M10 x 62mm Patch Bolt (97)–2M10 x 48mm Patch Screw (78)–2

M10 x 35mm Shoulder

Patch Screw (94)–2

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included tools, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART L ST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. IMPORTANT: Some small parts may

have been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.

While a second person tips the Frame (2)

backward, attach a Wheel (25) to each side of

the Frame with an M10 X 35mm Shoulder Patch

Screw (94).

2. Carefully tip the Frame (2) onto its side. Orient

the Base (1) as shown, and then insert the Base

into the Frame. Attach the Base with two M10 x

62mm Patch Bolts (97), two M10 Spacers (76),

two M10 x 48mm Patch Screws (78), and two

M10 Split Washers (72).

Then, carefully tip the elliptical exerciser to an

upright position.

78 97

To make assembly easier, read the

information on page 5 before you begin.

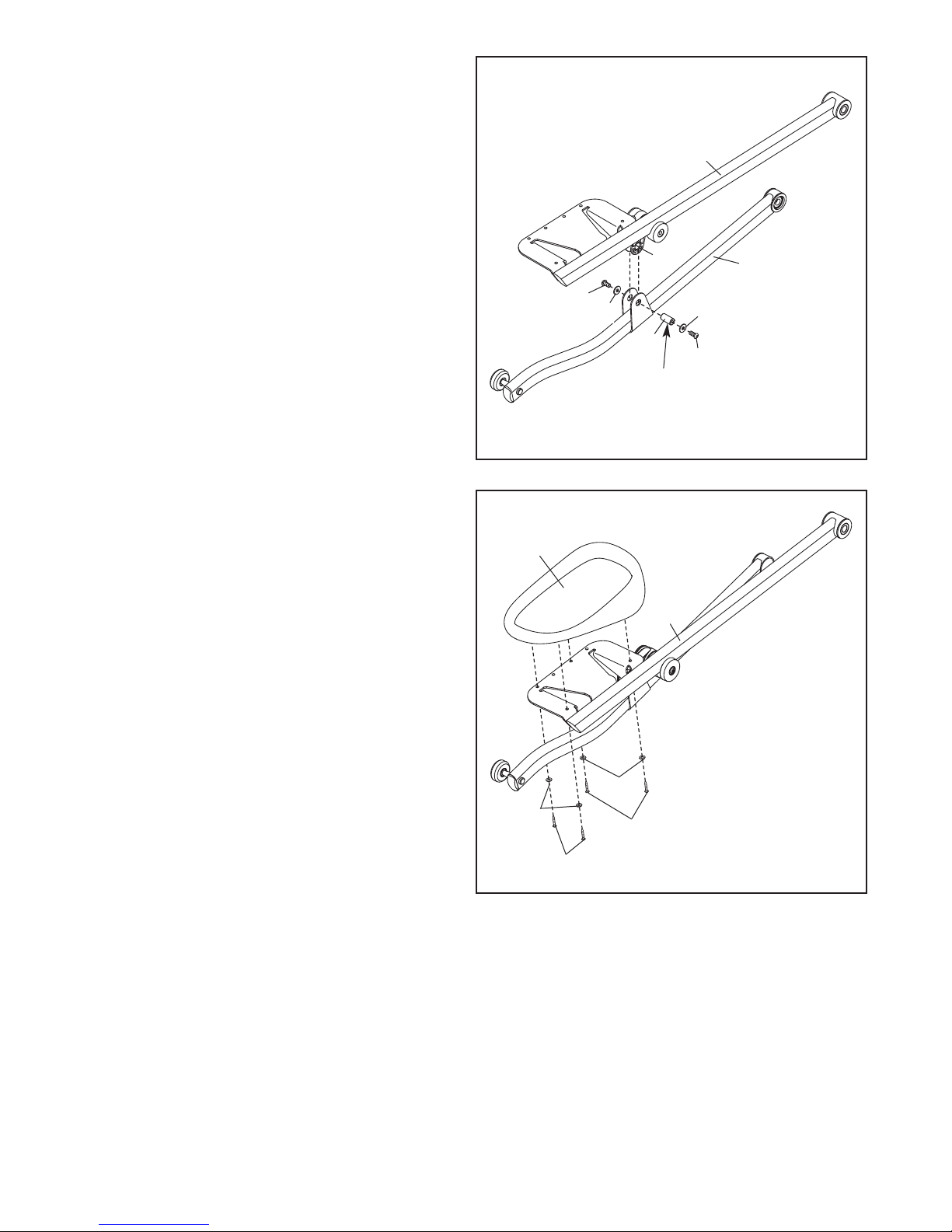

3. dentify the Right Roller Leg (21) and the Right

Pedal Leg (16), which are marked with “R” stick-

ers. Orient the Right Roller Leg and the Right

Pedal Leg as shown.

Apply a small amount of the included grease to

a Roller Axle (24). Attach the Selector (34),

which is located on the Right Pedal Leg (16), to

the Right Roller Leg (21) with the Roller Axle,

two M10 x 25mm x 1.5mm Washers (83), and

two M10 x 15mm Patch Screws (82).

Repeat this step for the Left Roller Leg (not

shown) and the Left Pedal Leg (not shown).

Grease

4. dentify the Right Pedal (15) and the Right Pedal

Leg (16), which are marked with “R” stickers.

Orient the Right Pedal and the Right Pedal Leg

as shown. Attach the Right Pedal with four M6 x

16mm Phillips Patch Screws (87) and four M6

Split Washers (88).

Repeat this step for the Left Pedal (not

shown) and the Left Pedal Leg (not shown).

6. Attach the Center Frame Cover (27) to the Base

(1) with six M4 x 12mm Flange Screws (73). 6

173

5. Apply a small amount of grease to the axle on

the right Crank Arm (36) and to a Wave Washer

(93). Then, slide the Wave Washer onto the

Crank Arm.

Also, apply a small amount of white grease,

which is marked with a “For Wheels” sticker, to

the Roller (22) on the Right Roller Leg (21);

spread the grease evenly around the Roller.

Slide the Right Roller Leg (21) onto the axle on

the right Crank Arm (36) and set the Roller (22)

on the Base (1). Attach the Right Roller Leg with

an M10 x 15mm Patch Screw (82), a Crank Axle

Cap (30), and an M10 x 25mm x 1.5mm Washer

(83).

Repeat this step for the other side of the

elliptical exerciser.

Grease

8. Have a second person hold the Upright (6) near

the Frame (2) as shown.

Pull the Wire Harness (48) out of the Frame (2)

and insert it upward through the Upright (6). Tip:

Use a piece of tape or an elastic band to hold

the Wire Harness in place until step 14.

nsert the Upright (6) into the Frame (2). Tip:

Start all screws before tightening any of

them. Attach the Upright with three M8 x 16mm

Patch Screws (95). Avoid pinching the Wire

Harness (48) between the Upright and the

Frame.

9. Apply a generous amount of grease to the Pivot

Axle (65) and insert it into the Frame (2).

Orient the two Frame Covers (17) as shown.

Attach the Frame Covers to the Frame (2) with

four M4 x 16mm Screws (86).

17 17

Grease

Avoid pinching the

Wire Harness (48)

during this step

7. Orient the Rear Frame Cover (23) as shown.

While a second person tips the elliptical exercis-

er forward, attach the Rear Frame Cover to the

Base (1) with four M4 x 65mm Screws (91) and

two M4 x 16mm Self-tapping Screws (79). 23

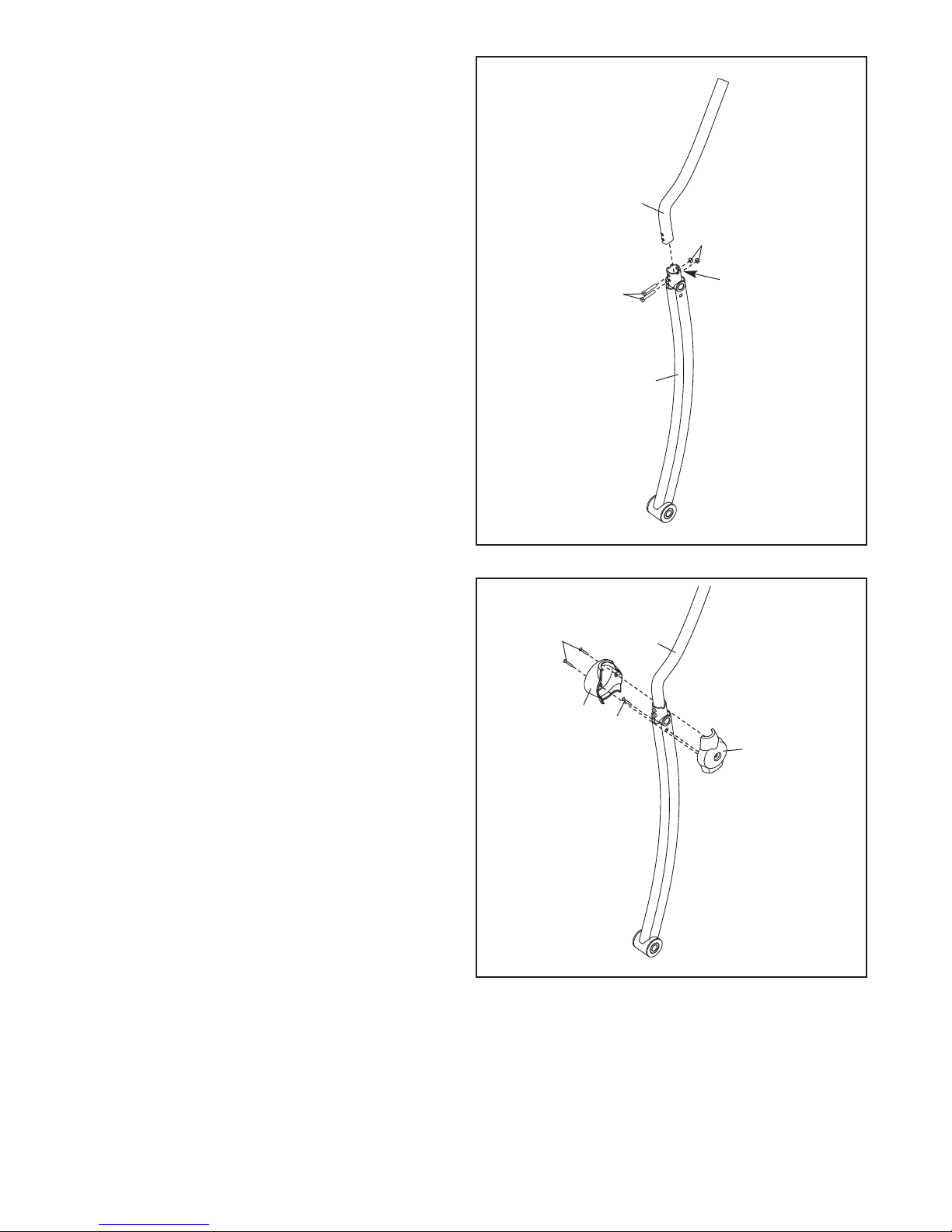

11. Orient an nner Handlebar Cover (18) and an

Outer Handlebar Cover (19) around the Right

Handlebar (9) as shown.

Attach the Outer Handlebar Cover (19) with an

M4 x 16mm Flange Screw (84). Then, attach the

nner Handlebar Cover (18) with two M4 x 16mm

Self-tapping Screws (79).

Repeat this step for the Left Handlebar (not

shown).

10. dentify the Right Handlebar (9), which is

marked with an “R” sticker. nsert the Right

Handlebar into one of the Handlebar Legs (11)

as shown.

Attach the Right Handlebar (9) with two M8 x

42mm Button Bolts (71) and two M8 Nylon

Locknuts (96). Make sure that the Nylon

Locknuts are inside the hexagonal holes.

Repeat this step for the Left Handlebar (not

shown) and the other Handlebar Leg (not

shown).

Hexagonal

Holes

Dieses Handbuch passt für folgende Modelle

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form PFEL03907.0 Bedienungsanleitung

Pro-Form

Pro-Form 720 Zle Elliptical Benutzerhandbuch

Pro-Form

Pro-Form 465S Systemhandbuch

Pro-Form

Pro-Form 880 S Bedienungsanleitung

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Bedienungsanleitung

Pro-Form

Pro-Form PFEVEL96107.0 Bedienungsanleitung

Pro-Form

Pro-Form 700 CardioCrossTrainer Bedienungsanleitung

Pro-Form

Pro-Form 595 HR Referenzhandbuch

Pro-Form

Pro-Form PFEL2595.0 Bedienungsanleitung

Pro-Form

Pro-Form 20.0 Crosstrainer Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 696 Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 480 Spacesaver Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 310 Re Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 400 Zle Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 550 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 890 E Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 300 Zle Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form Comfort Stride Bedienungsanleitung

Pro-Form

Pro-Form ENDURANCE 520 E Bedienungsanleitung

Pro-Form

Pro-Form pacerprograms 485p Bedienungsanleitung

Pro-Form

Pro-Form 720 Zle Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form 640s Bedienungsanleitung

Pro-Form

Pro-Form Stride Select PFEL09807.0 Bedienungsanleitung

Pro-Form

Pro-Form 390 E Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
