SICK GL6 V Series Bedienungsanleitung
OPERATING INSTRUCTIONS
GL6V
Miniature photoelectric sensors
Described product
G6 Inox
GL6V
Manufacturer
SICK AG
Erwin-Sick-Str. 1
79183 Waldkirch
Germany
Production location
SICK, Malaysia
Legal information
This work is protected by copyright. Any rights derived from the copyright shall be
reserved for SICK AG. Reproduction of this document or parts of this document is only
permissible within the limits of the legal determination of Copyright Law. Any modifica‐
tion, abridgment or translation of this document is prohibited without the express writ‐
ten permission of SICK AG.
The trademarks stated in this document are the property of their respective owner.
© SICK AG. All rights reserved.
Original document
This document is an original document of SICK AG.
8021851 | SICK
Subject to change without notice 3
Contents
1 Safety notes....................................................................................... 5
2 Intended use...................................................................................... 5
3 Operating and status indicators...................................................... 5
4 Mounting............................................................................................. 6
5 Electrical installation........................................................................ 6
6 Commissioning.................................................................................. 7
7 Troubleshooting................................................................................. 9
7.1 Troubleshooting table............................................................................... 10
8 Disassembly and disposal............................................................... 10
9 Maintenance...................................................................................... 10
10 Technical specifications................................................................... 11
CONTENTS
48021851 | SICK
Subject to change without notice
1 Safety notes
■Read the operating instructions before commissioning.
■
Connection, mounting, and setting may only be performed by skilled per‐
son.
■Not a safety component in accordance with the EU Machinery Directive.
■Power supply: Class 2
Enclosure type 1
■When commissioning, protect the device from moisture and contamination.
■These operating instructions contain information required during the life cycle of
the sensor.
2 Intended use
The GL6V is an opto-electronic photoelectric retro-reflective sensor (referred to as “sen‐
sor” in the following) for the optical, non-contact detection of objects, animals, and per‐
sons. A reflector is required for this product to function. If the product is used for any
other purpose or modified in any way, any warranty claim against SICK AG shall become
void.
3 Operating and status indicators
34.2 (1.35)
37.1 (1.46)
25.4 (1.0)
37.4 (1.47)
21.7 (0.85)
21 (0.83) 14.5 (0.57)
3
4
1
5
6
8
7
7.6
(0.3)
7.1
(0.28)

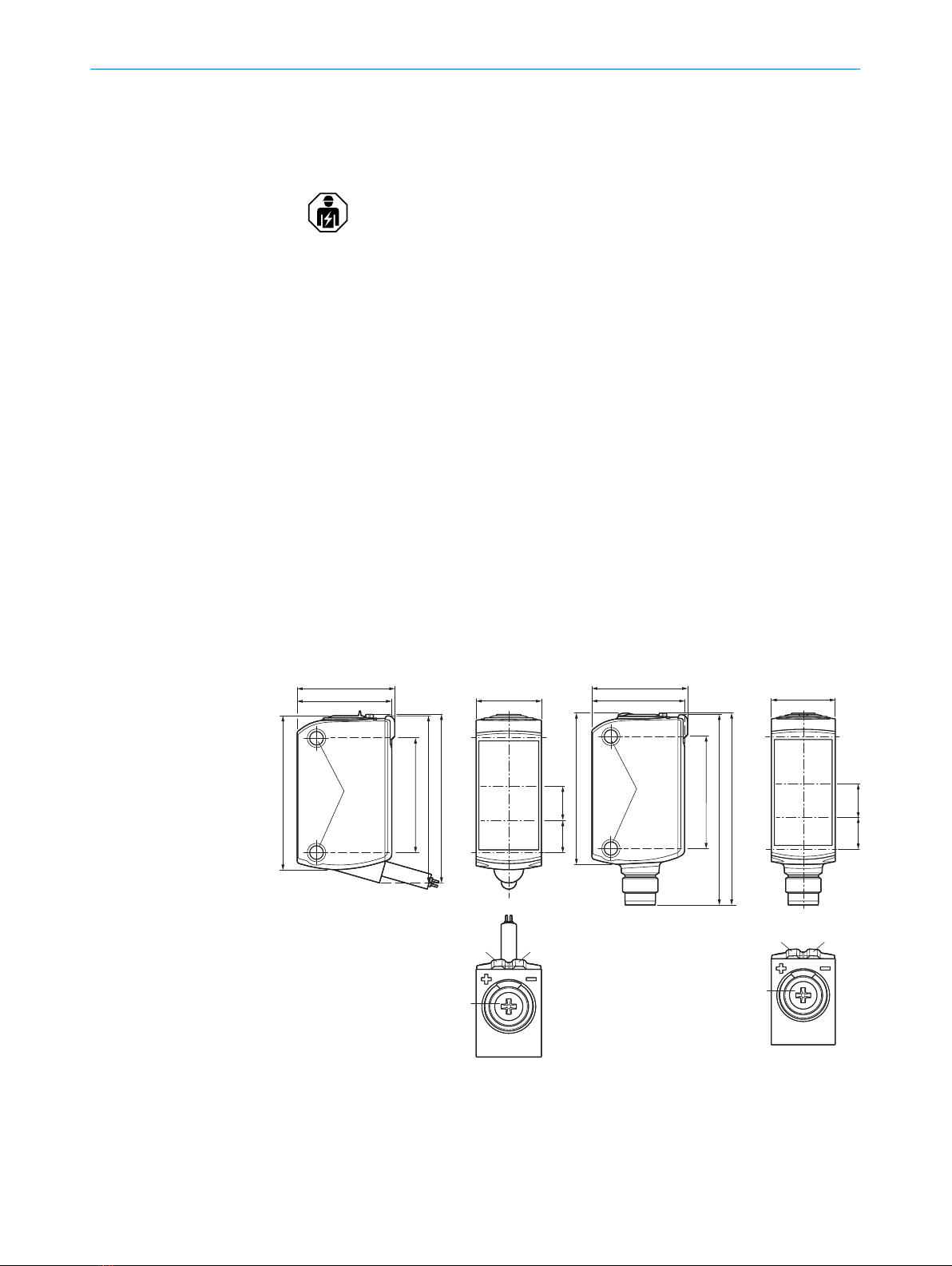

Figure 1: Connection type: cable
1Mounting holes M3
3Optical axis, receiver
4Optical axis, sender
5Cable
21.7 (0.85)
34.3 (1.35)
43.2 (1.7)
43.5 (1.71)
21 (0.83) 14.5 (0.57)
25.4 (1.0)
7.6
(0.3)
7.1
(0.28)
3
4
1
5
6
8
7
Figure 2: Connection type: plug, M8
1Mounting holes M3
3Optical axis, receiver
4Optical axis, sender
5Connector, M8
SAFETY NOTES 1
8021851 | SICK
Subject to change without notice 5
6LED indicator yellow: Status of received
light beam
7LED indicator green: Supply voltage
active
8Potentiometer: sensitivity adjustment
6LED indicator yellow: Status of received
light beam
7LED indicator green: Supply voltage
active
8Potentiometer: sensitivity adjustment
4 Mounting
Mount the sensor and the reflector using suitable mounting brackets (see the SICK
range of accessories). Align the sensor and reflector with each other.
< 0.4 Nm
5 Electrical installation
The sensors must be connected in a voltage-free state (UV = 0 V). The following informa‐
tion must be observed, depending on the connection type:
– Male connector connection: pin assignment
– Cable: wire color
Only apply voltage/switch on the voltage supply (UV > 0 V) once all electrical connec‐
tions have been established. The green LED indicator lights up on the sensor.
Explanations of the connection diagram (Tables 2 and 3):
Q / Q = switching outputs
n. c. = not connected
DC: 10... 30 V DC, see „Technical specifications“, page 11

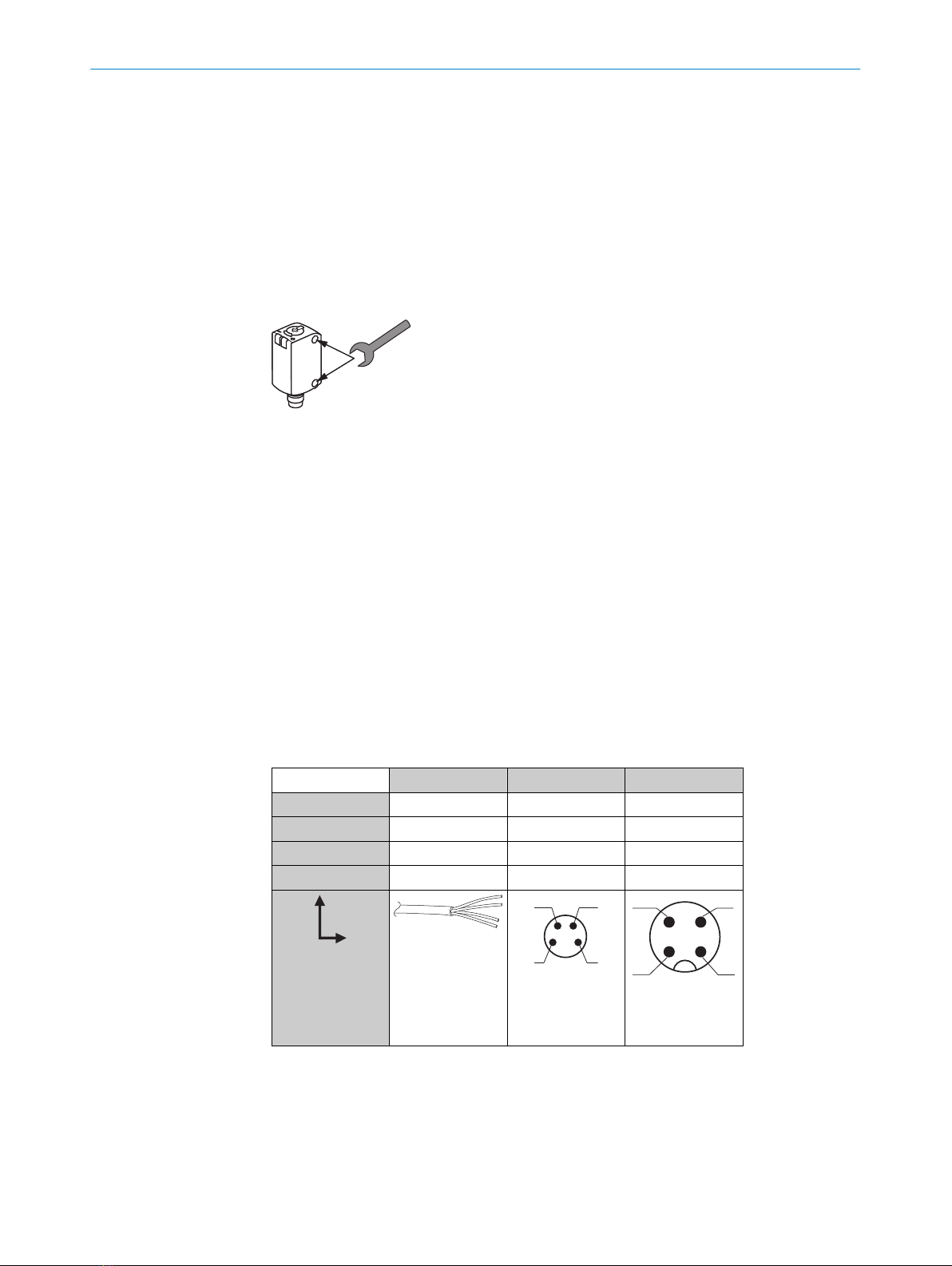

Table 1: DC
GL6- x13xxV x44xxV / -x43xxV x74xxV / -x73xxV
1+ (L+) + (L+) + (L+)
2QQQ
3- (M) - (M) - (M)
4Q Q Q
1 = brn
2 = wht
3 = blu
4 = blk
0.14 mm2
AWG26
2
1
4
3
12
4 3
4 MOUNTING
68021851 | SICK
Subject to change without notice

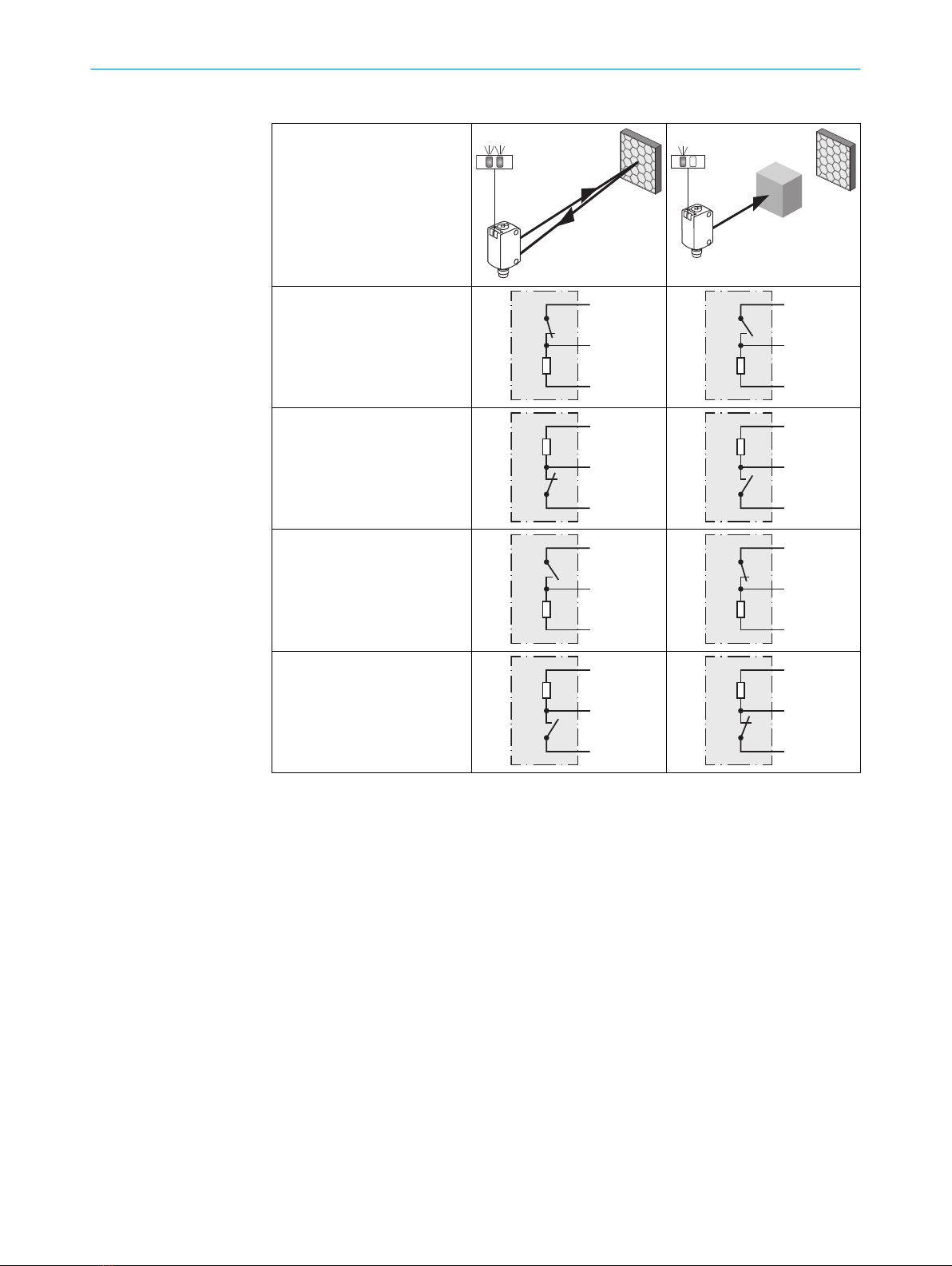

Table 2: DC
PNP: Q (≤ 100 mA)
+ (L+)
Q
– (M)
+ (L+)
Q
– (M)
NPN: Q (≤ 100 mA)
+ (L+)
Q
– (M)
+ (L+)
Q
– (M)
PNP: Q (≤ 100 mA)
+ (L+)
Q
– (M)
+ (L+)
Q
– (M)
NPN: Q (≤ 100 mA)
+ (L+)
Q
– (M)
+ (L+)
Q
– (M)
6 Commissioning
1Alignment
Align the sensor with a suitable reflector. Select the position so that the red emitted light
beam hits the center of the reflector. The sensor must have a clear view of the reflector,
with no object in the path of the beam [see figure]. You must ensure that the optical open‐
ings of the sensor and reflector are completely clear.
COMMISSIONING 6
8021851 | SICK
Subject to change without notice 7
Figure: Alignment
2Sensing range
Adjust the distance between the sensor and the reflector according to the corresponding
diagram [ see figure 3] (x = sensing range, y = operating reserve).
0 2 3 41 5 6
100
10
1
Funktionsreserve
Abstand in m
1
2
3
4
5
6

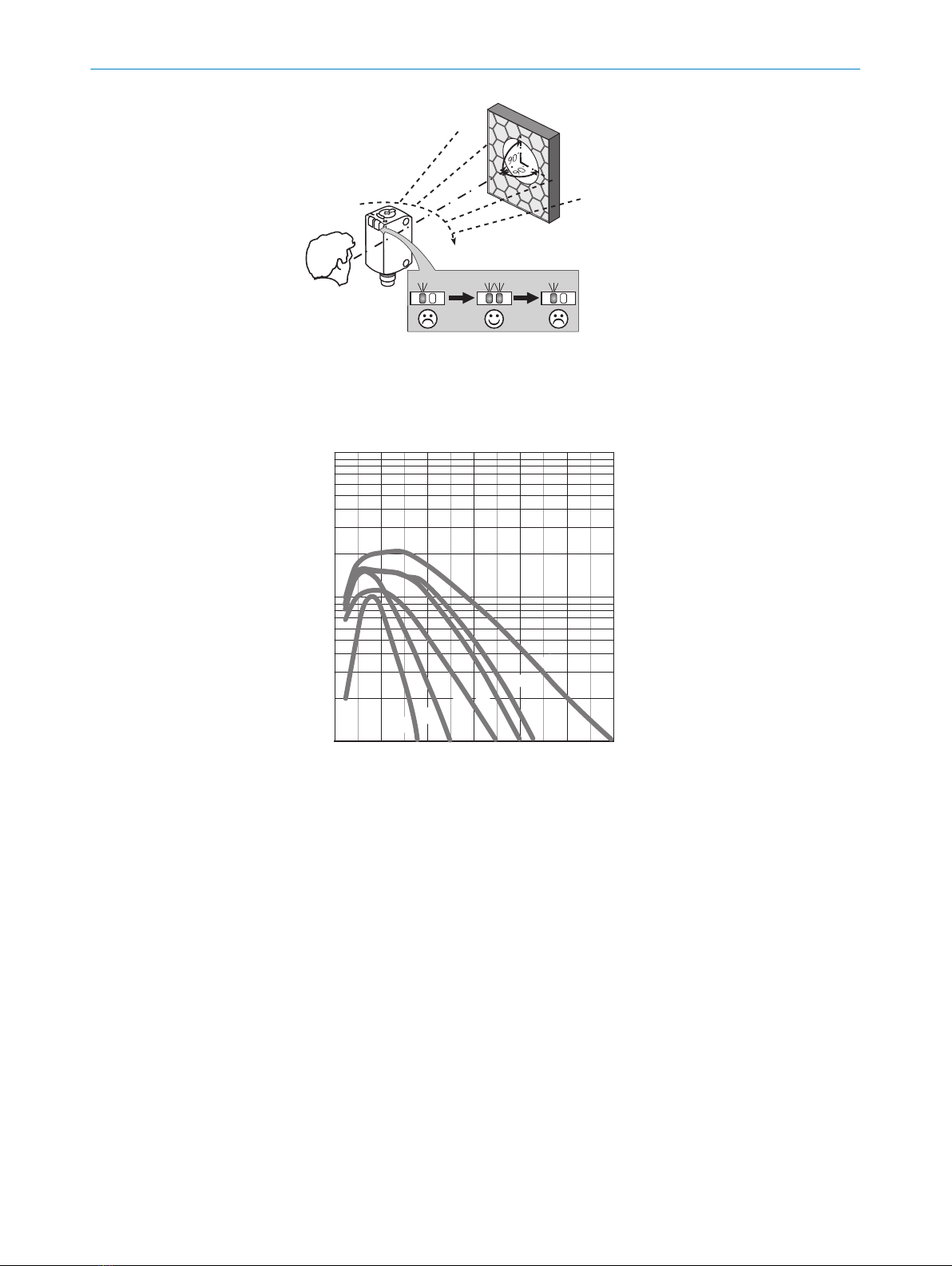

Figure 3: red light
6 COMMISSIONING
88021851 | SICK
Subject to change without notice
0 2 3 41 5 6
100
10
1
Funktionsreserve
Abstand in m
1
2
3
4
5
6

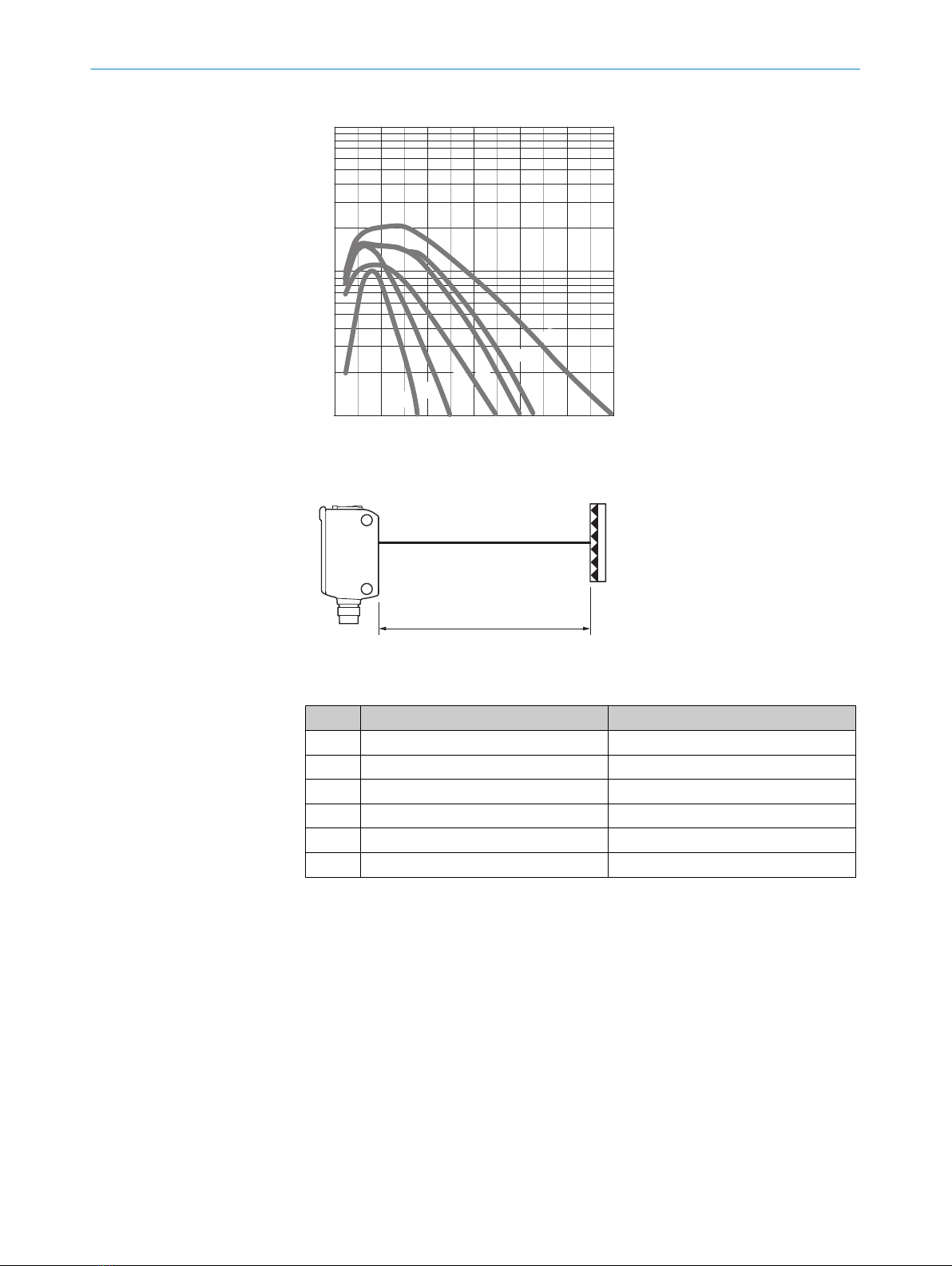

Figure 4: IR
1
2
Figure 5: sensing range areas
Table 3: Definition of sensing range
2GL6V
1PL80A 0.03 ... 6 m
2PL40A 0.03 ... 4.3 m
3P250 0.03 ... 4 m
4P250 CHEM 0.03 ... 3.5 m
5PL20A 0.03 ... 2.5 m
6REF-IRF-56 0.03 ... 1.8 m
3Sensitivity setting
The sensitivity is adjusted with the potentiometer (type: 270°). Clockwise rotation: operat‐
ing reserve increased; counterclockwise rotation: operating reserve reduced. We recom‐
mend setting the potentiometer to “Maximum”. A lower operating reserve may be neces‐
sary for depolarizing surfaces.
The sensor is adjusted and ready for operation.
7 Troubleshooting
The Troubleshooting table indicates which measures are to be taken if the sensor stops
working.
TROUBLESHOOTING 7
8021851 | SICK
Subject to change without notice 9
7.1 Troubleshooting table
Table 4: Troubleshooting
LED indicator/fault pattern Cause Measures
Green LED does not light up No voltage or voltage below
the limit values
Check the power supply,
check all electrical connec‐
tions (cables and plug connec‐
tions)
Green LED does not light up Voltage interruptions Ensure there is a stable power
supply without interruptions
Green LED does not light up Sensor is faulty If the power supply is OK,
replace the sensor
Yellow LED flashes Sensor is still ready for opera‐
tion, but the operating condi‐
tions are not ideal
Check the operating condi‐
tions: Fully align the beam of
light (light spot) with the
reflector / Clean the optical
surfaces (sensor and reflec‐
tor) / Readjust the sensitivity
(potentiometer) / If the poten‐
tiometer is set to the max.
sensitivity: Reduce the dis‐
tance between the sensor and
the reflector, and check the
reflector type / Reflector is not
suitable for the application in
question (we recommend only
using SICK reflectors)/ Check
sensing range and adjust if
necessary, see table 3. / Dis‐
tance between the sensor and
the reflector is too long
Signal interruptions when
object is detected
Depolarizing property of the
object surface (e.g., tape),
reflection
Reduce sensitivity or change
the position of the sensor
8 Disassembly and disposal
The sensor must be disposed of according to the applicable country-specific regula‐
tions. Efforts should be made during the disposal process to recycle the constituent
materials (particularly precious metals).
9 Maintenance
SICK sensors are maintenance-free.
We recommend doing the following regularly:
•Clean the external lens surfaces
•Check the screw connections and plug-in connections
No modifications may be made to devices.
Subject to change without notice. Specified product properties and technical data are
not written guarantees.
7 TROUBLESHOOTING
10 8021851 | SICK
Subject to change without notice
