StarTech.com SDOCKU33BV Bedienungsanleitung

Manual Revision: 08/31/2016

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SDOCKU33BV

USB 3.0 to 2.5/3.5in SATA Hard Drive

Dock w/UASP

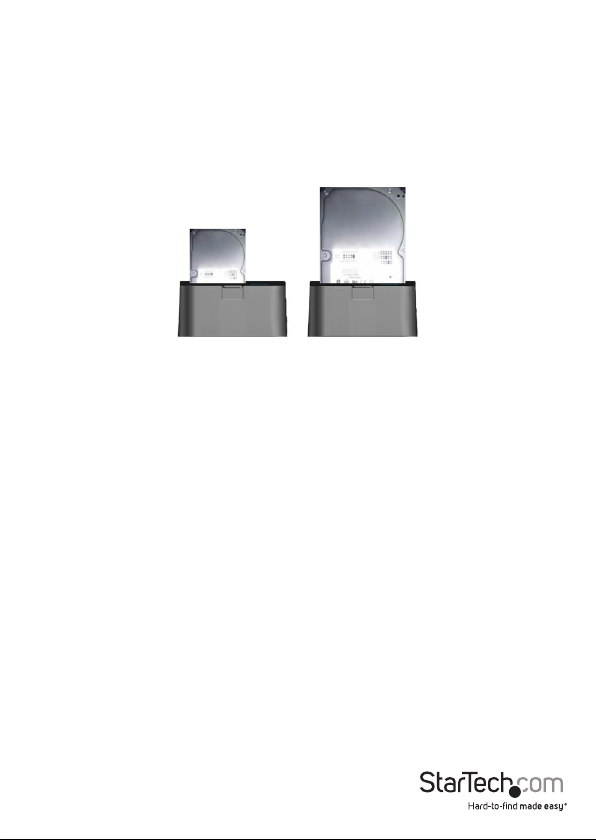

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Package Contents ..................................................................................................................................... 1

Product Overview ..................................................................................1

Rear View...................................................................................................................................................... 1

Disk Installation......................................................................................2

SATA Drive Removal...............................................................................2

Initializing the Hard Drive.....................................................................3

Specications..........................................................................................4

Technical Support ..................................................................................5

Warranty Information............................................................................5

Instruction Manual

Introduction

Package Contents

• 1 x USB 3.0 SATA hard drive docking station

• 1 x USB cable

• 1 x universal power adapter (NA/JP, EU, UK, ANZ)

• 1 x instruction manual

Rear View

DC Power Adapter

On/O

Switch

USB 3.0

Port

Product Overview

Instruction Manual

Disk Installation

1. Connect the Dock to an available power outlet, using the provided power adapter.

2. Connect the Dock to the (powered) Host Computer, using the provided

USB 3.0 cable.

3. Insert the 2.5”or 3.5”SATA drive you wish to install, such that the SATA power

and data connectors at the back of the drive are properly aligned with the

corresponding connectors inside the Dock.

4. Switch the power switch to “ON”position.

Once the drive has been inserted, the operating system will detect that it has been

connected and automatically update the drivers for proper operation.

SATA Drive Removal

When removing the installed drive from the Dock, please ensure that you have

followed the appropriate steps (dependant on the operating system) to disconnect

removable storage. In Windows for example, click on the Safe Remove icon located in

the taskbar. Select the drive from the menu provided, then click Stop. Select the device

to disconnect, and click OK.

In Mac OSX®, click on the USB storage icon on the desktop, and drag it to the Trash Can

icon on the desktop.

Instruction Manual

Initializing the Hard Drive

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before

use. From the main Windows desktop, right-click on “My Computer” (“Computer” in

Vista/ 7 / 8), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

2. A dialog window should automatically appear, asking you to initialize the drive.

Depending on the version of Windows, it will give you the option of either creating

an “MBR” or “GPT”disk. GPT (GUID partition) is not compatible with some older

operating systems, while MBR is supported by newer and older operating systems.

3. Once initialized, locate the Disk that says it is “Unallocated” (check the listed hard

drive capacity to conrm it’s the correct hard drive) and then right-click in the

section that says “Unallocated” and select“New Partition”.

Follow the on screen prompts to initialize the drive in the format of your choice.

Instruction Manual

Specications

Internal

Connectors

1 x SATA Power 15-Pin Female

1 x SATA Data 7-Pin Female

External

Connectors

1 x USB 3.0 type B w/ UASP Female

1 x DC Power Adapter

Drive

Compatibility 2.5/3.5”SATA Hard Drives

OS Support Windows 2000/2003/XP/Vista/7/8 x64/x86, Mac OS

10.0 and up, Linux

Power Adapter 12V 2.0A

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
