Supermicro SUPERO SuperServer 1018L-MP Bedienungsanleitung

SuperServer

1018L-Mp

SUPER

uSer’S MANuAL

Revision1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and

documentation, is the property of Supermicro and/or its licensors, and is supplied only under a

license. Any use or reproduction of this product is not allowed, except as expressly permitted by

the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class

A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the manufacturer’s instruction manual, may cause harmful

interference with radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference, in which case you will be required to correct the interference at your

own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate

warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to

the State of California to cause birth defects and other

reproductive harm.

Manual Revision 1.0

Release Date: June 18, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

Preface

iii

Preface

About This Manual

This manual is written for professional system integrators and PC technicians.

It provides information for the installation and use of the server. Installation and

maintainance should be performed by experienced technicians only.

Please refer to the server specications page on our Web site for updates on

supported memory, processors and operating systems (http://www.supermicro.

com).

SuperServer 1018L-MP User's Guide

Contents

Chapter 1 Introduction..............................................................................1-1

1-1 Overview ......................................................................................................... 1-1

1-2 Motherboard Features..................................................................................... 1-1

Processors ...................................................................................................... 1-1

Memory ........................................................................................................... 1-1

Serial ATA........................................................................................................ 1-2

PCI Expansion Slots ....................................................................................... 1-2

Rear I/O Ports................................................................................................. 1-2

1-3 Server Chassis Features ................................................................................ 1-2

System Power................................................................................................. 1-2

Hard Disk Drive .............................................................................................. 1-2

Front Panel Control ........................................................................................ 1-2

Cooling ............................................................................................................ 1-2

1-4 Contacting Supermicro.................................................................................... 1-4

Chapter 2 Server Installation ...................................................................2-1

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Warnings and Precautions.............................................................................. 2-1

Chapter 3 System Interface......................................................................3-1

3-1 Control Panel Buttons ..................................................................................... 3-1

Power .............................................................................................................. 3-1

Chapter 4 Standardized Warning Statements for AC Systems ............ 4-1

About Standardized Warning Statements....................................................... 4-1

Warning Denition ........................................................................................... 4-1

Installation Instructions.................................................................................... 4-4

Circuit Breaker ................................................................................................ 4-5

Power Disconnection Warning........................................................................ 4-6

Equipment Installation..................................................................................... 4-8

Restricted Area................................................................................................ 4-9

Battery Handling............................................................................................ 4-10

Redundant Power Supplies .......................................................................... 4-12

Backplane Voltage (if applicable to your system)......................................... 4-13

Comply with Local and National Electrical Codes........................................ 4-14

Product Disposal........................................................................................... 4-15

Hot Swap Fan Warning (if applicable to your system) ................................. 4-16

Power Cable and AC Adapter ...................................................................... 4-18

Contents

Chapter 5 Advanced Motherboard Setup ...............................................5-1

5-1 Handling the Motherboard .............................................................................. 5-1

Precautions ..................................................................................................... 5-1

Unpacking ....................................................................................................... 5-1

5-2 Processor Installation...................................................................................... 5-2

5-3 CPU Heatsink Installation ............................................................................... 5-4

5-4 Installing Memory............................................................................................ 5-6

Memory Support.............................................................................................. 5-6

5-5 Connecting Cables.......................................................................................... 5-8

Connecting Data Cables ................................................................................. 5-8

Connecting Power Cables .............................................................................. 5-8

Connecting the Power Button ......................................................................... 5-8

5-6 Rear I/O Ports................................................................................................. 5-9

5-7 Motherboard Details...................................................................................... 5-10

5-8 Connector Denitions.................................................................................... 5-12

Power Button (JF1) ....................................................................................... 5-14

5-9 Jumper Settings ............................................................................................ 5-19

Explanation of Jumpers ................................................................................ 5-19

CMOS Clear.................................................................................................. 5-19

5-10 Onboard Indicators........................................................................................ 5-22

5-11 Serial ATA and HDD Connections................................................................. 5-23

5-12 Installing Software......................................................................................... 5-24

SuperDoctor III.............................................................................................. 5-25

5-13 Onboard Battery............................................................................................ 5-27

Chapter 6 Advanced Chassis Setup........................................................6-1

6-1 Removing the Power Cord.............................................................................. 6-1

6-2 Installing Mounting Brackets ........................................................................... 6-2

6-3 Removing the Chassis Cover ......................................................................... 6-3

6-4 Installing the Hard Drive ................................................................................ 6-4

6-6 Installing the Motherboard .............................................................................. 6-5

6-7 Replacing the System Fan.............................................................................. 6-7

Chapter 7 BIOS .........................................................................................7-1

7-1 Introduction...................................................................................................... 7-1

Starting BIOS Setup Utility.............................................................................. 7-1

How To Change the Conguration Data ......................................................... 7-1

How to Start the Setup Utility ......................................................................... 7-2

7-2 Main Setup...................................................................................................... 7-2

7-3 Advanced Setup Congurations...................................................................... 7-4

SuperServer 1018L-MP User's Guide

7-4 Event Logs .................................................................................................... 7-25

7-5 Boot Settings................................................................................................. 7-26

7-6 Security Settings ........................................................................................... 7-28

7-7 Save & Exit ................................................................................................... 7-29

Appendix A POST Error Beep Codes..................................................... A-1

Recoverable POST Error Beep Codes...........................................................A-1

Appendix B System Specications ........................................................ B-1

Chapter 1

Introduction

1-1 Overview

The SuperServer 1018L-MP is a compact, embedded system comprised of the

SC101i chassis and the X10SLV single processor motherboard. Refer to our web

site for information on operating systems that have been certied for use with the

system (www.supermicro.com).

For your system to work properly, please follow the links below to download all

necessary drivers and utilities, and the user’s manual for your server.

•Supermicro product manuals: http://www.supermicro.com/support/manuals/

•Product drivers and utilities: ftp://ftp.supermicro.com

•Product safety info: http://super-dev/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[email protected].

This manual may be periodically updated without notice. Please check the

Supermicro Web site for possible updates to the manual revision level.

1-2 Motherboard Features

The server is built around the X10SLV, a single processor motherboard based on

the Intel H81 chipset. Below are the main features. Figure 1-1 is a block diagram

of the chipset.

Processors

The X10SLV supports a single 4th Generation Intel Core i7, i5, i3, Pentium/Celeron

processor. Refer to the web site for a complete listing of supported processors

(www.supermicro.com).

Memory

The board has two DIMM slots that can support up to 16GB of Non-ECC DDR3

SODIMM up to 1600MHz memory. See Chapter 5 for details.

Chapter 1: Introduction

1-1

1-2

SUPERSERVER 1018L-MP User's Manual

Serial ATA

A SATA controller is also integrated into the chipset to provide two SATA 3.0 (mSATA)

and two SATA 2.0 ports.

PCI Expansion Slots

The system has one mini PCIe slot, full and half card with mSATA support.

Rear I/O Ports

The color-coded I/O ports include:

One DVI-I One HDMI

One DP Two GbE LAN

Two USB 3.0 Two USB 2.0

Two COM One Audio

1-3 Server Chassis Features

The SC101i is an mini-ITX form factor chassis. The following the main features.

System Power

Power is supplied through an 80W power adapter, plugged into a standard 110V

AC power outlet.

Hard Disk Drive

One 2.5" internal drive is supported by the system. This drive is not hot-swappable.

Front Panel Control

The front panel of the chassis includes a main power button with LED status

indicators.

Cooling

The chassis includes one 6cm fan.

1-3

Chapter 1: Introduction

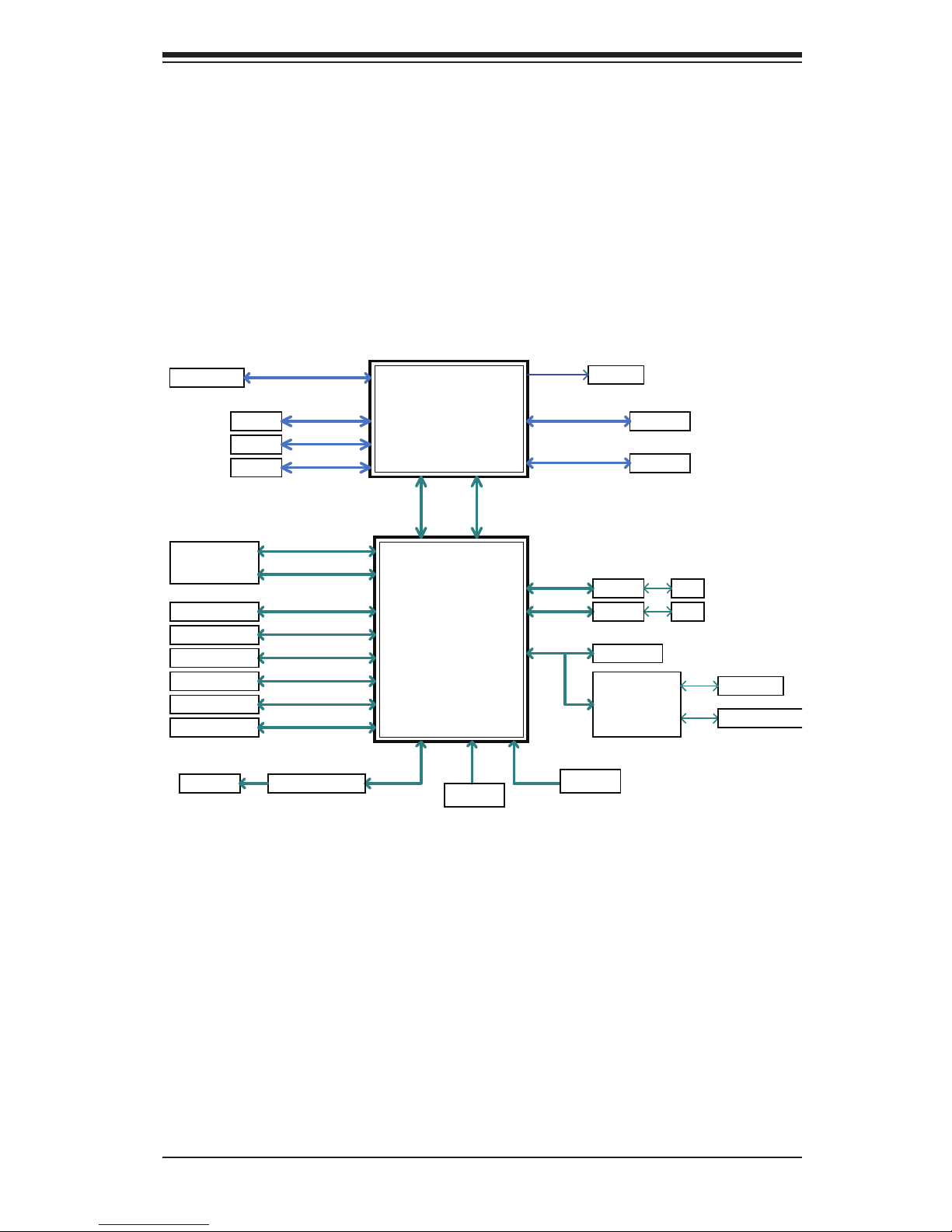

Figure 1-1. System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

1600/1333/1066MHz

2 X USB 3.0 Rear

5Gbps

USB3.0

VRD12.5

INTEL LGA1150

PCIe x16 SLOT

PCIe2.0_x16

5.0GT/s

SVID

VRM 12.5

DDR3 (CHA)

DIMMA1

DDR3 (CHB)

DIMMB1

1600/1333/1066MHz

5GT/s

x4 DMI

Shared with mSATA

SATA-III (X10SLV-Q)

2 X USB 2.0 REAR

6Gb/s

480Mbps

USB2.0

2 X SATA-III

SATA-III

RJ45

2.5GT/s

PCIe2.0_x1 GLAN1

I217V

PCH

Intel

H81 / Q87

(Socket-H3)

2.7 Gb/s

x2 FDI

AZALIA

Realtek ALC888S-VD2

RJ45

2.5GT/s

PCIe2.0_x1 GLAN2

I210-AT

Mini PCI-E SLOT

PCIe2.0_x1

5GT/s

BLOCK DIAGRAM

RoHS 6/6

FLASH

SPI 128Mb

SPI

Display Port

HDMI

DVI-I Digital port B

Digital port C

Digital port D

TPM1.2 Header

LPC

HWM

COM1/2 Rear

NCT6106D

LPC I/O

SODIMM

X10SLV / X10SLV-Q

PCIE[3]

PCIE[4]

PCIE[2]

SATA[0/1]

SATA[0]

SATA-II

3Gb/s

SATA[4/5]

Note: I-SATA0 Functiondisabled whe m-SATA inserted .

DDI B

DDI C

DDI D

RGB

USB[0/1]

USB[2/3]

2 X USB 2.0 Front

480Mbps

USB2.0

USB[4/5]

6Gb/s

COM 3/4/5 Header

1 X USB A-type

480Mbps

USB2.0

USB[10]

Note: COM5 support RS485

/422

GPIO

Expander

USB[11]

3x audio jack

Express

2 X SATA-III

(X10SLV-Q)

2 X SATA-II

(X10SLV)

(X10SLV Only)

PCIe3.0_x16

8.0GT/s

(X10SLV-Q)

(X10SLV)

1-4

SUPERSERVER 1018L-MP User's Manual

1-4 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Web Site: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: [email protected]

Web Site: www.supermicro.com.tw

Inhaltsverzeichnis

Andere Supermicro Server Handbücher

Supermicro

Supermicro SuperServer E300-9A-8CN10P Bedienungsanleitung

Supermicro

Supermicro SuperServer 110T-M Bedienungsanleitung

Supermicro

Supermicro SUPERSERVER 6028TP-HTR-SIOM Bedienungsanleitung

Supermicro

Supermicro AS -1124US-TNRP Bedienungsanleitung

Supermicro

Supermicro SuperBlade SBI-6119R-C3N Bedienungsanleitung

Supermicro

Supermicro SUPERSERVER 8044T-8R Bedienungsanleitung

Supermicro

Supermicro SUPERSERVER 8046B-TRLF Bedienungsanleitung

Supermicro

Supermicro SuperStorage SSG-136R-4MU32JBF Bedienungsanleitung

Supermicro

Supermicro SuperServer 6029P-TR Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-E100-13AD-H Bedienungsanleitung

Supermicro

Supermicro SUPERSERVER 6013A-T Bedienungsanleitung

Supermicro

Supermicro A+ Server AS -3015MR-H8TNR Bedienungsanleitung

Supermicro

Supermicro SUPERSERVER 5016i-URF Bedienungsanleitung

Supermicro

Supermicro SuperServer 5019S-W4TR Bedienungsanleitung

Supermicro

Supermicro SuperServer E300-8D Bedienungsanleitung

Supermicro

Supermicro SuperServer 5019C-M4L Bedienungsanleitung

Supermicro

Supermicro SuperServer series Bedienungsanleitung

Supermicro

Supermicro AS-1011M-T2 Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-E403-12P-FN2T Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-1029U-T Series Bedienungsanleitung

Supermicro

Supermicro SuperServer SYS-621H-TN12R Bedienungsanleitung

Supermicro

Supermicro SuperServer 510P-M Bedienungsanleitung

Supermicro

Supermicro SuperServer 6027TR-DTRF+ Bedienungsanleitung

Supermicro

Supermicro SuperServer 1019S-M2 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
