Sylvac Hi Cal Bedienungsanleitung
HEIGHT GAUGE E
COLONNE DE MESURE F
HÖHENMESSGERÄT D
COLONNA DI MISURA I
COLUMNA DE MEDICIÓN S
INSTRUCTIONS
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
MANUALE D’USO
MODO DE EMPLEO
1
3
45
90°
2

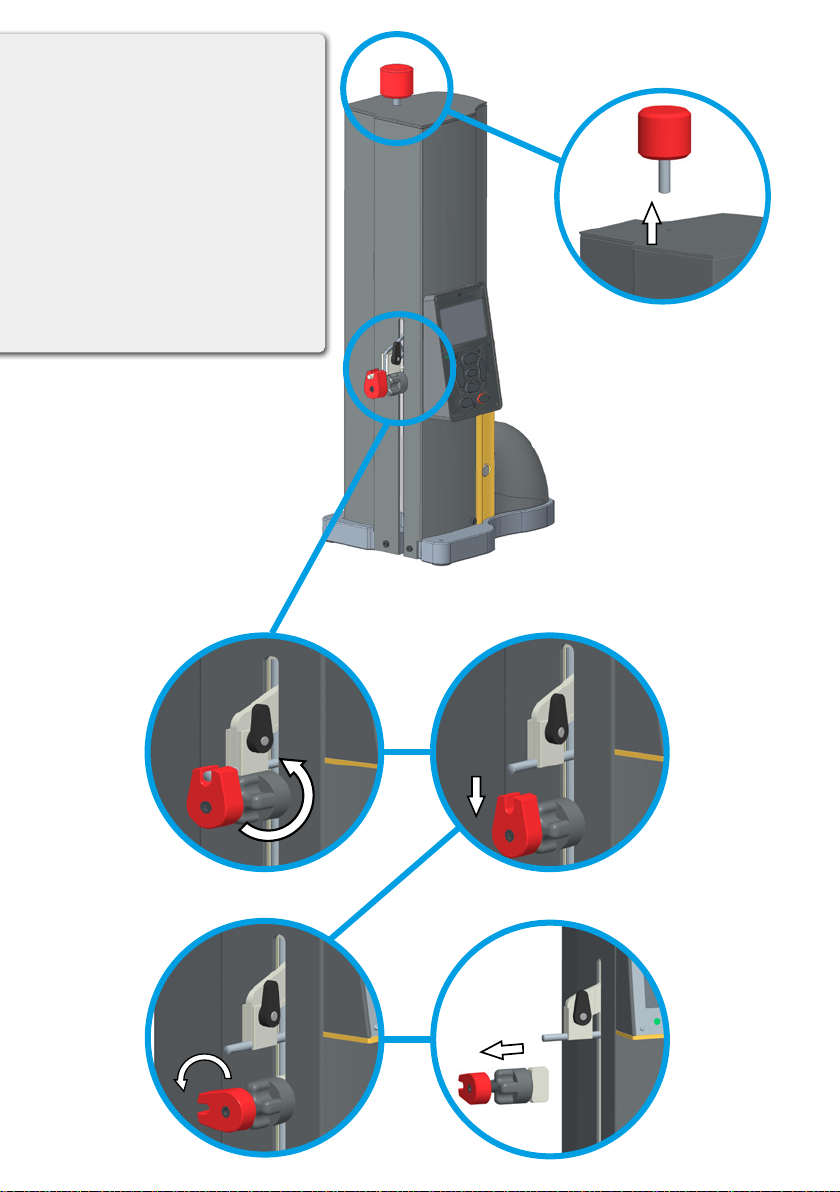

COMMISSIONING
MISE EN SERVICE
INBETRIEBNAHME
MESSA IN SERVIZIO
PUESTA EN SERVICIO
CH-1400 Yverdon-les-Bains (Suisse)
Echelle
381 / 531 / 681
95
17
101
111
31
124 / 194 / 194
187 / 187 / 187
92 / 92 / 112
06/55/55
147 / 147 / 172
Ensemble général 150 2:5
Dess.: 08-Jun-20 DNi
Modèle:302_150_101{.prt/asm}
Liste de pces selon nomenclature:
-
A3
1/1 PM 302.150.101 -
Matière: - - - Chanfreiner:
Article: M302-150-101 Trait. thermiques: -
Masse / Volume: 44513824297.825 g Trait. de surfaces: -
Cotes non tolérancées selon SN EN 22768-1 / Classe f (fine), tolérances indiquées en 1/1000 mm
Indice Date Nom Modification
-
CH-1400 Yverdon-les-Bains (Suisse)
Echelle
381 / 531 / 681
95
17
101
111
31
124 / 194 / 194
187 / 187 / 187
92 / 92 / 112
06/55/55
147 / 147 / 172
Ensemble général 150 2:5
Dess.: 08-Jun-20 DNi
Modèle:302_150_101{.prt/asm}
Liste de pces selon nomenclature:
-
A3
1/1 PM 302.150.101 -
Matière: - - - Chanfreiner:
Article: M302-150-101 Trait. thermiques: -
Masse / Volume: 44513824297.825 g Trait. de surfaces: -
Cotes non tolérancées selon SN EN 22768-1 / Classe f (fine), tolérances indiquées en 1/1000 mm
Indice Date Nom Modification
-
CH-1400 Yverdon-les-Bains (Suisse)
Echelle
381 / 531 / 681
95
17
101
111
31
124 / 194 / 194
187 / 187 / 187
92 / 92 / 112
06/55/55
147 / 147 / 172
Ensemble général 150 2:5
Dess.: 08-Jun-20 DNi
Modèle:302_150_101{.prt/asm}
Liste de pces selon nomenclature:
-
A3
1/1 PM 302.150.101 -
Matière: - - - Chanfreiner:
Article: M302-150-101 Trait. thermiques: -
Masse / Volume: 44513824297.825 g Trait. de surfaces: -
Cotes non tolérancées selon SN EN 22768-1 / Classe f (fine), tolérances indiquées en 1/1000 mm
Indice Date Nom Modification
-
DIMENSIONS
DIMENSIONS
ABMESSUNGEN
DIMENSIONI
DIMENSIONES
4
CH-1400 Yverdon-les-Bains (Suisse)
Echelle
187 / 187 / 187
92 / 92 / 112
55 / 55 / 60
147 / 147 / 172
Ensemble général 150 2:5
Dess.: 08-Jun-20 DNi
Modèle:302_150_101{.prt/asm}
Liste de pces selon nomenclature:
-
A3
1/1 PM 302.150.101 -
Matière: - - - Chanfreiner:
Article: M302-150-101 Trait. thermiques: -
Masse / Volume: 44513824270.302 g Trait. de surfaces: -
Cotes non tolérancées selon SN EN 22768-1 / Classe f (fine), tolérances indiquées en 1/1000 mm
Indice Date Nom Modification
-
20 A
A
Toutes modifications réservées - Anderungen vorbehalten - Changes without prior notice
Modèle:PM302_000_001{.prt/asm} Dessin:302_000_071 .drw
Available for:
Ref. Nr:
Dimensions in mm
CH-1023 Crissier (Suisse)
web site : www.sylvac.ch
sav @ sylvac.ch
e-mail : vente @ sylvac.ch
PM 302.000.071
832.0150
.
.
Rev. Date Visa
- 28-Sep-17 MTr
Encombr. Hi-Cal V2 - 150
SET
Clear
REF
I / II
Quit
Setup
MIN
MAX
DEL
M
M
REFII
PRESET
MINMAX
DELTA
mmIN
H
OK
1
9
2
6
810
3
4
5
7
19
20
27
22
21
23 24 26
25
11
17
16
12
15
18
14
13
28
29
30
31
32
33
34 3735
Intuitive keyboard Display
39
3836
5
E
Description
1. Display
2. Intuitive keyboard
3. Probe measuring indicator
4. Probe
5. Probe xing lever
6. Probe weight adjustement selector
7. Multi function key FCT
8. Ergonomic handle and battery cover
9. UP / DOWN button, progressive activation of measurement carriage speed
10. USB connector
11. Power or foot pedal input connector
12. Power or foot pedal input connector
13. RS232 connector
14. DC power and charge indicators
15. Battery cover xing screw location
Description of intuitive keyboard and display
16. Preset |Zero
17. Min | Max measuring mode key
18. Activation of extended functions and parameters key
19. Surface |diameter measuring modes key
20. Active reference selection key
21. ON |OFF key
22. Probe constant setting key
23. Unit indicators
24. Reference active indicator
25. Probe constant setting | display indicator
26. Keyboard locked indicator
27. Displayed value frozen until probe contacts again
28. RS232 | USB |
Bluetooth®
transmission indicator
29. Diameter value indicator
30. Center value indicator in diameter/centerline mode
31. Low battery warning - charger must be connected
32. Min | Max mode active indicator
33. Min | Max mode active indicator
34. Diameter measuring mode indicator
35. Probe direction indicators
36. Deactivated corrections alert indicator
37. Preset input indicator
38.
Bluetooth®
connection indicators
39. Buer full indicator (buer mode)
6
Contents Pages
Introduction 7
Getting Started 7
Intuitive and interactive keypad 8
Keypad direct function 8
Setting and parameter key 9
FCT key 10
FCT key used in diameter mode 11
Measuring using Hi_Cal 11
Constant setting 11
Measuring heights 12
Measuring upward 12
Measuring diameters and centerlines 13
Bluetooth® conguration 14
Bluetooth® specications 15
RS232 connector 15
Data transmission format 15
USB connector 16
Printer connection 17
Commands 18
Changing the probe 21
Foot pedal input 21
Adjusting the cursor balance 22
Error messages 22
Replacing the batteries 23
Technical specications Hi_Cal 150 / Hi_Cal 300 / Hi_Cal 450 24
Standard delivery 25
In the event of problems 25
7
E
Introduction
Getting Started
The Hi_Cal height gauge has been designed to work on small at reference
surfaces such as granite or scraped cast iron plates. A number of technological
innovations make this instrument very suitable for easy, fast and reliable
measurements. It oers the following advantages :
• Very low measuring force (0.3N)
• Excellent repeatability
• Fully motorized probe displacement. The movement speed is proportional
to the pressure on the UP/DOWN button. The probe automatically tracks
proles and maintains a constant measuring force : measuring diame-
ters is, therefore, fast and precise
• Reduced weight for easy handling
• Very easy to operate and versatile: can be used both in the workshop and
laboratory
• Two lines display, enabling viewing of diameter and centerline simultaneously
Simply remove the transport xing part by pulling it upward, then x the probe on
the support: instrument is ready for measuring. Keep the transport clamp and the
locking system for any subsequent transport. (see commissioning diagram p.2)
Important: Always check the xing of the probe and the probe constant
value before measuring.
Connect the AC/DC adapter, and check the status lights:
Top light :
Bottom light :
Remark: initially, or after a long period without use of the instrument, battery
loading may take a few minutes before the instrument is ready.
ON
OFF
Fast charge (2 hours)
Holding charge. This is a safe charge mode to avoid
battery losses in case of continuous AC/DC power
connection
ON Power connected
8
SET
Clear
REF
I / II
Quit
Setup
MIN
MAX
DEL
SET /CLEAR
REF
MIN / MAX / DEL
Intuitive and interactive keypad
Keypad direct function
On starting, the Hi_Cal will automatically check the probe measuring detection
sensor (Init), then move the probe up and down for setting the system refe-
rence.
In case of a problem during initialization, please proceed with following
controls:
• Is the probe free to move ?
• Is the measuring force correctly set ? (see chapter « Selector adjustement »)
• In the event of uncontrolled movement (without using the UP/DOWN button)
of the carriage, switch the instrument o by pressing >5s on ON | OFF and
switch it on again by pressing >0.5s on ON | OFF.
The Hi_Cal display electronic has been designed to make its use very easy,
following the concept of «start and go». All the main functions are accessible
by direct use of the corresponding button.
The Setup key enters a menu sequence which enable
access to parameters and extended functions
During the menu sequence:
• UP and DOWN keys select the next or previous
menu
• LEFT and RIGHT keys select settings within
the active menu.
ON |OFF |Stand-by
SET : Zero (long press) | preset recall (short press)
CLEAR : Initialisation of Min | Max during Min | Max measuring mode
Displays and activates the constant entry mode
Exchanges the reference Ref I ↔ Ref II
Changes the active mode SURFACE ↔ DIAMETRE
Selects MIN | MAX | DELTA measurement modes
9
13.09.13
Preset value entry Enter a preset value using
LEFT, RIGHT, UP and DOWN
keys
Keyboard lock. Only SET |
CLEAR, FCT and FOOT pedal
remain active
ON | OFF
Press SETUP for 2 s. to disable
keyboard lock function
Unit changes mm |INCH
Resolution changes 0.005 |0.001 |0.01
Activates | deactivates automatic
print out of measurement
Auto |Nor
Selects dierent function for FCT
key
0. Unit mm ↔ inch
1. Print Data output
2. Zero Preset
3. Preset Preset calling
4. Dia Surface ↔ Dia
5. Min Min ↔ Dia
6. Clear Clear Min | Max
7. Ref Ref1 ↔ Ref2
9. Di Measure ↔ Di
10. BT On ↔ O
Selects dierent function for
FOOT Pedal
Activates | deactivates sound OFF | LO | HI
Blind mode: display is frozen
until a new value is measured
(probe action)
ON | OFF
Software version. Displays the version
Software date 01.01.20 (day | month | year)
CR or CRLF Option to add an LF (Line feed),
function needed depending on
the type of printer used. (see
chapter «Printer connection»)
E
Setting and parameter key
Setup Function Settings
sequence
10
bt
bt cfG
Printing the diameter or center in
diameter mode.
Option selection for printing in
diameter mode:
• Dia, center
• Dia
• Center
Bluetooth® modes • On
• O
• Reset
• MAC
Bluetooth® proles • Simple
• Pair
• HID
FCT key
Setup Function Settings
sequence
The FCT button as well as the external contact (EXT) can be set to perform
dierent functions related to the type of measurements in progress.
The dierent settings are:
FCT0 mm ↔ INCH : change the unit of the active measurement
FCT1 data output : sends displayed value to RS232 and USB
FCT2 Zero setting : zero setting
FCT3 preset recall : preset value recall
FCT4 surface ↔ Dia : toggles between surface and diameter mode
FCT5 Surface ↔ Min : toggles between surface and Min | Max mode
FCT6 Clear Min | Max : initializes Min and Max value to probe position
FCT7 Ref 1↔ Ref 2 : toggles ref1, ref2
FCT9 measure ↔ Di : dierence between the 2 last measurements
FCT10 BT ON ↔ OFF : Activate, deactivate the Bluetooth® module
(even if a preset has been entered)
ou Bluetooth®
Andere Handbücher für Hi Cal
1
Inhaltsverzeichnis
Sprachen:
Andere Sylvac Messgerät Handbücher
Sylvac
Sylvac EVO Bluetooth Bedienungsanleitung
Sylvac
Sylvac Hi Cal 150 Bedienungsanleitung
Sylvac
Sylvac S-Mike PRO Bedienungsanleitung
Sylvac
Sylvac S Dial Mini Bedienungsanleitung
Sylvac
Sylvac SYLVAC-SCAN S145 XL Bedienungsanleitung
Sylvac
Sylvac SYLVAC-SCAN S145 Bedienungsanleitung
Sylvac
Sylvac UL 4 Bedienungsanleitung
Sylvac
Sylvac SCAN 52 Bedienungsanleitung
Sylvac
Sylvac SYLVAC-SCAN 52 REFLEX-CLICK Bedienungsanleitung
Sylvac
Sylvac S Mike PRO Bedienungsanleitung
Sylvac
Sylvac PS16 V2 Bedienungsanleitung
Sylvac
Sylvac PS15 Bedienungsanleitung
Sylvac
Sylvac S_Cal EVO Smart Form E Bedienungsanleitung
Sylvac
Sylvac SCAN F60 Bedienungsanleitung
Sylvac
Sylvac D104-PC Bedienungsanleitung
Sylvac
Sylvac SCAN F60 Bedienungsanleitung
Sylvac
Sylvac S Mike IP67 Bedienungsanleitung
Sylvac
Sylvac S Dial WORK Bedienungsanleitung
Sylvac
Sylvac Fowler Ultra-cal II Bedienungsanleitung
Sylvac
Sylvac SYLVAC-VISIO 300 GL Bedienungsanleitung
