Uplus Lighting RETRO 360 Bedienungsanleitung

User manual

RETRO 360

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions………………………………………………………………………………3-4

Technical Specifications…………………………………………………………………………4

Control Menu ………………………………………………………………………………………5

DMX Channels ……………………………………………………………………………………6-7

Trouble Shooting……………………………………………………………………………………8

Fixture Cleaning………………………………………………………… …………………………8

STATEMENT

The product has well capability and intact packing when leave factory. All of the user should

comply with warning item and manual, any misuse cause of the damages are not included in our

guarantee, and also can not be responsible for any malfunction & problem owing to ignore the

manual.

1.Safety Instructions

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction booklet.

•Unpack and check carefully there is no transportation damage before using the unit.

•Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

•The unit is for indoor use only. Use only in a dry location.

•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

•Disconnect main power before replacement or servicing.

•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always

by taking its base.

•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand

during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before

replacing or serving.

•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit

by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center. Always use the same type spare parts.

•DO NOT touch any wire during operation as high voltage might be causing electric shock.

Warning:

•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Caution:

•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any

repairs yourself. In the unlikely event your unit may require service, please contact your nearest

dealer.

Installation:

•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly

fixed to avoid vibration and slipping while operating. And make sure that the structure to which you

are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also

always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the

touch of people.

2.Technical Specifications

SPECIFICATIONS:

Light Source: 3*60W white & 72*0.3w RGB led

Input Voltage:AC90-260V 50/60Hz

Power Consumption: 250W

Control mode:DMX512,Auto-run , Master-Slave,RDM

Control Channel: 4/14/147 channels

PowerCon : powerCon in & out

DMX sockets:3-pin XLR sockets

Display: Digital Display

Strobe：1-30Hz multiple stroboscopic effect

Dimming：32bit 0-100% linear dimmer

3.Control Menu

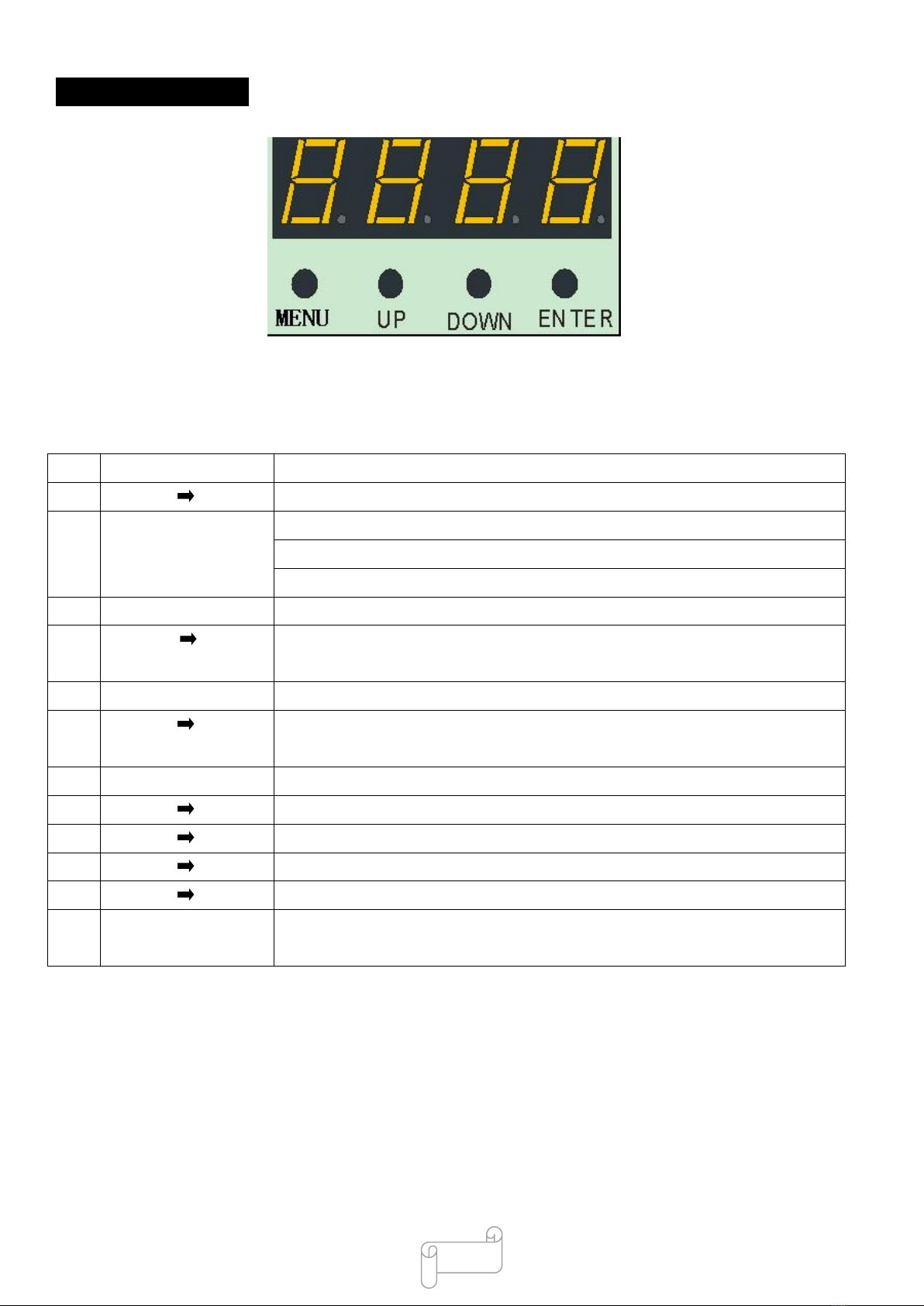

Menu Operation

On the base of the control panel offers a number of features, such as setting DMX fixture address,

switch the lamp, run the test program, the mode selection.

Show

Instruction

A001 A512

001-512

Channel

4CH

14CH

147CH

N127

Fill light effect mode

S000 S255

Modify the auxiliary light effect running speed up or down

(S000~S255)

E007

Intermediate key light mode

S000 S255

Modify the running speed of the intermediate main light up or down

(S000~S255)

Sound

R255 R000

R dimmer

G255 G000

G dimmer

B255 B000

B dimmer

W255 W000

W dimmer

T000

Display temperature, such as T045 means the current lamp

temperature is 45℃

4.DMX Channels

4 DMX channels

CH 4

DMX Value

Function

Function Illustration

0-255

Red

R Dimmer dark to light

0-255

Green

G Dimmer dark to light

0-255

Blue

B Dimmer dark to light

0-255

White

W Dimmer dark to light

14 DMX channels

CH 14

DMX Value

Function

Function Illustration

0－255

Total Dimmer

0－9

Strobe

No function

10－255

Slow to fast

0-255

Red

R Dimmer dark to light

0-255

Green

G Dimmer dark to light

0-255

Blue

B Dimmer dark to light

0-255

RGB Effect

2 values and one effect

0-127

RGB Speed

positive

128-255

reverse

0-255

RGB background color

0-255

RGB background Dimmer

0-255

White Dimmer

White Dimmer dark to light

0-255

White Strobe

White Strobe slow to fast

0-255

White Liner Dimmer

White Liner Dimmer dark to light

0-255

White Effect

32 values for one effect

0-255

White speed

fast to slow

147 DMX channels

CH 147

DMX Value

Function

Function Illustration

0-255

Red1

Red1 Liner Dimmer

0-255

Green1

Green1 Liner Dimmer

0-255

Blue1

Blue1 Liner Dimmer

0-255

Red2

Red2 Liner Dimmer

0-255

Green2

Green2 Liner Dimmer

0-255

Blue2

Blue2 Liner Dimmer

0-255

Red3

Red3 Liner Dimmer

0-255

Green3

Green3 Liner Dimmer

0-255

Blue3

Blue3 Liner Dimmer

…

0-255

…

136

0-255

Red46

Red46 Liner Dimmer

137

0-255

Green46

Green46 Liner Dimmer

138

0-255

Blue46

Blue46 Liner Dimmer

139

0-255

Red47

Red47 Liner Dimmer

140

0-255

Green47

Green47 Liner Dimmer

141

0-255

Blue47

Blue47 Liner Dimmer

142

0-255

Red48

Red48 Liner Dimmer

143

0-255

Green48

Green48 Liner Dimmer

144

0-255

Blue48

Blue48 Liner Dimmer

145

0-255

White1

White1 Liner Dimmer

146

0-255

White2

White2 Liner Dimmer

147

0-255

White3

White3 Liner Dimmer

EFFECT Mode

DMX Value

Function

0-7

No function

8-15

Effect 1

16-23

Effect 1

24-31

Effect 3

32-39

Effect 4

…

……

232-239

Effect 29

240-247

Effect 1-29 cycle

248-255

Sound

5.Trouble Shooting

ollo

ing

few

oble

y occu

uring

ope

tion

. He

tion

leshooting

The

does

work

, no

ght

Check

nect

ion of p

owe

eas

ure

ins

volt

Check

pow

LED

responding

LED

on.

che

nectors,

link

ope

If th

nd no

espons

el,

che

ess

etti

s a

ity

nter

ittent

oble

che

ins

onn

ecto

PCB

nit

the

iou

ntroller

Check

or run

lon

volta

les

terfer

ence

inter

face

circui

. One

the

cha

ing

tep

moto

dam

the

nect

to th

PCB

oken.

oto

’

ive

PCB

ndition

6.Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to

optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,

smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.

Clean with soft cloth using normal glass cleaning fluid.

Always dry the parts carefully.

Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
