Vacmaster UC0902EHUK Bedienungsanleitung

22 23 2524

TABLE OF CONTENTS

SECTION PAGE

Symbols ........................................................................................................................................... 4

Safety Information ............................................................................................................................ 5

Unpacking and Product Features..................................................................................................... 7

Assembly ......................................................................................................................................... 8

Operation ......................................................................................................................................... 9

Maintenance....................................................................................................................................11

Troubleshooting.............................................................................................................................. 14

Technical Data ................................................................................................................................ 17

Recycling and Disposal .................................................................................................................. 17

Guarantee....................................................................................................................................... 18

SYMBOLS

Caution.

Read instruction manual. Failure to follow the warnings and

instructions may result in electric shock, re and/or serious injury.

Appliance in which protection against electric shock does not rely on

basic insulation only but in which additional safety precautions are

provided, such as double insulation or reinforced insulation, there

being no provision for protective earthing or reliance upon installation

conditions.

Do not dispose of electrical equipment in domestic waste.

Thank you for purchasing this Vacmaster®vacuum cleaner. This is a vacuum cleaner intended for

domestic use only and suitable for indoor use within a normal household environment for light, dry

dust and debris.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SAFETY INFORMATION

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

• This machine is for dry and indoor use only.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance o󰀨 or unplug it from the

power supply.

• Do not vacuum or use this vacuum cleaner near ammable

liquids, gases or explosive vapours like gasoline or other fuels,

lighter uids, cleaners, oil-based paints, natural gas, hydrogen,

or explosive dusts like coal dust, magnesium dust, grain dust or

gun power, or toxic materials. Sparks inside the motor can ignite

ammable vapours or dust. Do not vacuum toxic materials.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Do not use the vacuum cleaner in a wet environment or to

vacuum wet materials.

• Do not use steam cleaners, pressure washers or immerse in

water to clean the vacuum cleaner.

• Ensure the hose and connections are always pointed away from

the operators face, hair, ears and eyes during operation and

never direct the nozzle towards persons or animals.

• Clear the working area of any items or possessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors only.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door on

cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used near children. Do not allow the appliance to be used

by children.

• Do not try to touch the brushroll while the vacuum cleaner is

switched on and the brushroll is spinning.

• Unplug from power supply when not in use or before carrying

out maintenance.

• Turn o󰀨 vacuum cleaner before unplugging from power source.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• Besides the operating instructions and the binding accident

prevention regulations valid in the country of use, observe

recognized regulations for safety and proper use.

• Before starting work, the operating sta󰀨 must be informed on

- use of the vacuum cleaner.

- risks associated with the material to be picked up.

- safe disposal of the picked up material.

1 Handle 14 Suction Control

2 Wand 15 Handle Release Button

3 Dust Bin Release Button 16 Accessory Storage

4 Carry Handle 17 Connection Hose

5 Dust Bin Lid Release Button 18 Lift O󰀨 Release Pedal

6 Dust Bin 19 Wand Release Button

7 Exhaust Filter Cover 20 On/O󰀨 Switch

8 Task Lights 21 Flexible Suction Hose

9 Motorised Floor Head 22 3-in-1 Combination Tool

10 Brushroll Status Indicator 23 Pet Mate Tool

11 Lower Cord Hook 24 Upholstery Tool

12 Power Cord 25 Instruction Manual

13 Upper Cord Hook

UNPACKING AND PRODUCT FEATURES

ASSEMBLY

Remove all the contents from the packaging; make sure you have all contents as listed on page 7.

2. Insert the wand into the main body until you hear a ‘click’ (Fig. 1).

3. Insert the handle into the wand until you hear a ‘click’ (Fig. 2).

To remove: Press handle release button and pull up on handle.

4. Insert one end of the exible suction hose into the main body as shown until you hear a ‘click’.

Insert the other end of the hose into the handle until you hear a ‘click’ (Fig. 3).

5. Insert the combination tool and the upholstery tool onto the accessory storage located on the

back of the main body (Fig. 4).

6. Wrap the power cord around the upper and lower cord hooks (Fig. 5).

NOTE: Make sure to wrap the power cord around the upper cord hook rst, and then around the

lower cord hook to avoid damaging the power cord.

7. Secure the plug to the power cord (Fig. 6).

WARNING: Wrapping the power cord too tightly with excessive stress on the cord may

cause damage. A damaged cord is an electrical shock hazard and could cause personal

injury or damage.

OPERATION

CAUTION: Moving parts!

To reduce the risk of personal injury, DO NOT touch the brushroll

when vacuum cleaner is turned on. Contacting the brushroll while it is rotating can cut, bruise or

cause other personal injuries. Always turn o󰀨 before maintenance. Use caution when operating

near children or pets (Fig. 7).

1. Power Cord - Release & Use

1) Turn the upper cord hook to either side to release the power cord (Fig. 8).

2) Detach the power cord plug from the power cord.

3) Be sure the power cord is locked into the upper locking notch (

) as shown (Fig. 9).

4) Plug the power cord into a power outlet.

5) Move the On/O󰀨 switch to the desired cleaning operation. Refer to page 9.

6) Once you have completed vacuuming, move the On/O󰀨 switch to the O󰀨 ‘O’ position and

unplug the power cord plug from the outlet.

7) Return the upper cord hook into the upright storage position and wrap the cord loosely.

WARNING: If any abnormality/failure occurs, stop using the product immediately and

disconnect the power plug.

2. Operation Modes

UPRIGHT MODE

NOTE: Make sure the vacuum cleaner is correctly assembled and the dust bin is empty before

using. Do not operate vacuum cleaner without lters in place.

1) Release the handle by placing a foot on the oor head nozzle and pull back (Fig. 10).

2) To turn the vacuum cleaner on, move the On/O󰀨 switch to the desired position (Fig. 11).

'O' Power O󰀨

'I' Hard oor, small area rugs and delicate surfaces. NOTE: The brushroll will not spin in this

position.

'II' Carpets. NOTE: The brushroll will spin in this position.

CAUTION: Do not allow the vacuum cleaner to remain in one spot for any length of time

when the brushroll is turning. Damage to carpet may occur.

NOTE: Brushroll does not rotate in either mode when handle is in fully upright position.

3) Once you have completed vacuuming, switch to the O󰀨 “O” position and unplug the power cord

from the power outlet.

The brushroll indicator status light:

Colour Status

Green The brushroll is spinning and working as intended.

Red There is a jam in the brushroll area. Turn o󰀨 and unplug

the vacuum. Remove any blockages in the nozzle.

No Light The brushroll is not active.

ABOVE FLOOR MODE

1) Place the vacuum cleaner in the upright locked position.

2) Press the wand release button and lift up the wand for above oor cleaning (Fig. 12).

3) Choose the desired attachment and insert it into the wand (Fig. 13).

CAUTION: When using attachments, be careful not to over stretch the suction hose to avoid

causing the vacuum cleaner to tip over.

LIFT OFF MODE

1) Place the vacuum cleaner in the upright locked position.

2) Press the Lift O󰀨 release pedal with foot to detach and raise vacuum body from oor head (Fig.

14).

3) Press the wand release button and lift up the wand for cleaning stairs or other hard to reach

places.

4) Choose the desired attachment and insert it into the wand or handle (Fig. 15).

3. Attachments

NOTE: All accessories are compatible with both the wand and the handle (Fig. 16).

1) 3-in-1 Combination Tool

Use crevice tool for cleaning in tight spaces (Fig. 17).

Use the dusting brush mode by sliding the adapter towards the end of the tool (Fig. 18). Ensure

the locking button (

) is engaged. Use the dusting brush for cleaning loose or delicate surfaces.

Press the locking button to remove the tool adaptor. Remove and ip the adapter to use the

upholstery brush (Fig. 19). Use in upholstery brush for cleaning fabric surfaces.

To return the combination tool to crevice tool mode, press the locking button and slide the adaptor

back down the tool.

2) Pet Mate Tool

Use Pet Mate tool to pick up pet hair and loose debris. Rotating brushroll powerfully, deep cleans

dander out of upholstery and other surfaces (Fig. 20).

WARNING: Never use the Pet Mate tool directly on pets.

CAUTION: Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll

when vacuum cleaner is on. Contacting the brushroll while it is rotating can cut, bruise or

cause other personal injuries.

Inhaltsverzeichnis

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VZA306P 0201 Bedienungsanleitung

Vacmaster

Vacmaster VSH01 Bedienungsanleitung

Vacmaster

Vacmaster VOC507S Bedienungsanleitung

Vacmaster

Vacmaster VF408 Bedienungsanleitung

Vacmaster

Vacmaster VJF912PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VDK1538SWC Bedienungsanleitung

Vacmaster

Vacmaster VQ1420SWD Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

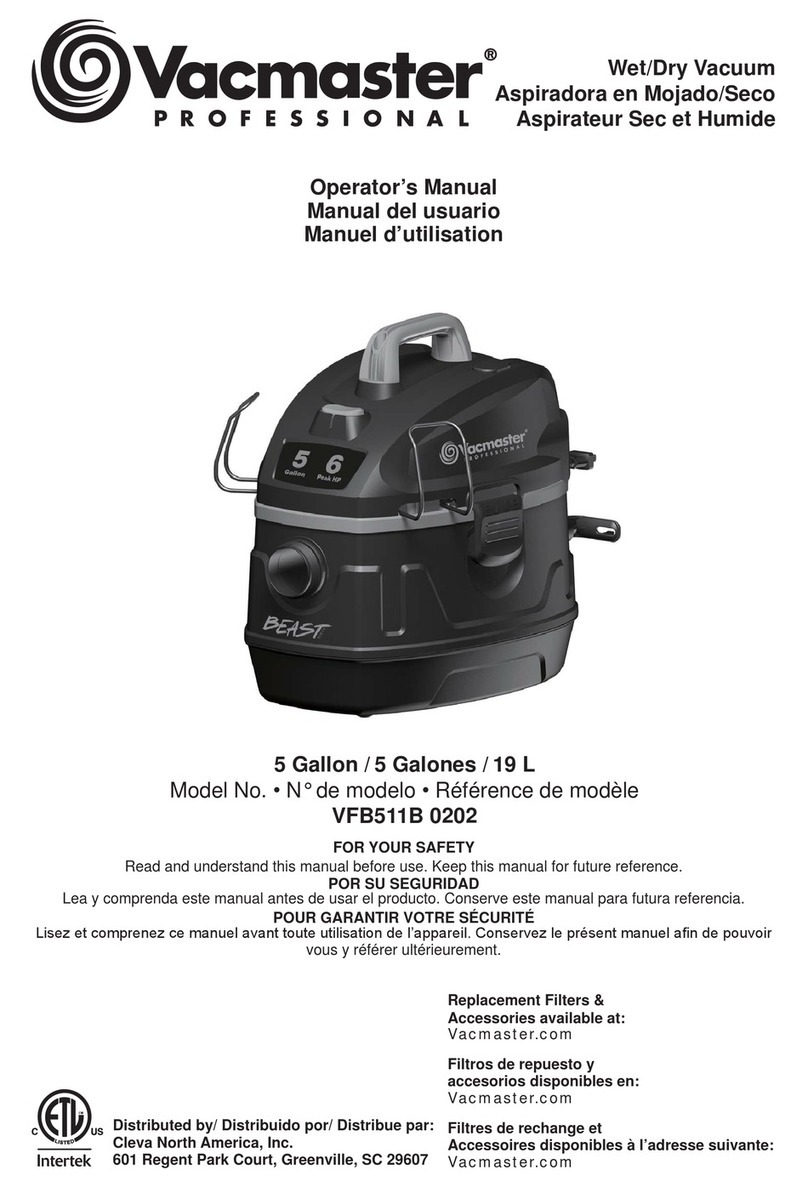

Vacmaster VFB511B 0202 Bedienungsanleitung

Vacmaster

Vacmaster VJC507P Bedienungsanleitung

Vacmaster

Vacmaster VF409 Bedienungsanleitung

Vacmaster

Vacmaster VHB305M 0101 Bedienungsanleitung

Vacmaster

Vacmaster vmvK1650SWdc Bedienungsanleitung

Vacmaster

Vacmaster VJF912PF 0202 Bedienungsanleitung

Vacmaster

Vacmaster VJE1412SW 0202 Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VF1515HJ Bedienungsanleitung

Vacmaster

Vacmaster VJC809PF Bedienungsanleitung

Vacmaster

Vacmaster PROFESSIONAL VJE1412SW 0201 Bedienungsanleitung

Vacmaster

Vacmaster VBV1412P Bedienungsanleitung

Vacmaster

Vacmaster VMVQ1220SS Bedienungsanleitung

Vacmaster

Vacmaster VSA2111EU Bedienungsanleitung

Vacmaster

Vacmaster VOC1218PF Bedienungsanleitung

Vacmaster

Vacmaster VOC507S 1001 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
