Vacmaster VBV809PF Bedienungsanleitung

Wet/Dry Vacuums

Operator’s Manual

Wet/Dry Vacuum with Detachable Blower

8 Gallon

Model No.

VBV809PF

FOR YOUR SAFETY

Read and understand this manual before use

Keep this manual for future reference

www.vacmaster.com

Cleva North America

44 Parkway Commons, Greer, SC 29650 Part No. VR16BZ.20.60.02

SECTION PAGE

Thank you for purchasing this Vacmaster®wet/dry vacuum cleaner. Feel confident that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance. This

vacuum is capable of picking up liquids and dry materials.

FOR YOUR SAFETY CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS

We take pride in producing a high quality, durable product. This Vacmaster®product carries a limited two (2)

year warranty against defects in workmanship and materials from date of purchase under normal household

use. If product is to be used for commercial, industrial or rental use, a 90 day limited warranty will apply.

Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse, accidents, repairs or

alterations and lack of maintenance. Please keep your receipt as proof of purchase. This warranty gives you

specific legal rights. For product service call Customer Service at (866) 384-8432

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM

Read and understand this owner’s manual and all labels on the Wet/Dry Vacuum cleaner before operating.

Safety is a combination of common sense, staying alert and knowing how your vacuum works. Use this

Wet/Dry Vac only as described in this manual. To reduce the risk of personal injury or damage to your

Wet/Dry Vac, use only Vacmaster®recommended accessories.

TABLE OF CONTENTS

Warranty……………………………………………………………………………………………….

Safety Instructions and Warnings…………………………………………………………………..

Double Insulation Instructions....……………………………………………………………………

Extension Cord……………………………………………………………………………………….

Unpacking and Checking Carton Contents………….……………………..………………………

General Assembly Instructions……………………………………………………………………...

Dry Vacuum Operation……………………………………………………………………………….

Liquid Vacuum Operation……………………………………………………………………………

Blowing Operation…………………………………………………………………………………...

Maintenance…………………………………………………………………………………………..

Installing & Cleaning Cartridge Filter……..………………………...………………..….…………..

Installing & Cleaning Foam Sleeve Filter………………………...………………….…..….……..

Troubleshooting………………………………………………………………………………………

Exploded View and Parts List…………………………………………………………..…………..

SAFETY INSTRUCTIONS & WARNINGS

WARRANT

Household Type

SAVE THIS MANUAL FOR FUTURE REFERENCE.

When using an electrical appliance, basic precautions should always be followed including the

following:

WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Do not run vac unattended.

• Do not vacuum, or use this Wet/Dry Vac near flammable liquids, gases, or explosive vapors like gasoline or

other fuels, lighter fluids, cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust,

magnesium dust, grain dust, or gun power. Sparks inside the motor can ignite flammable vapors or dust.

• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug or other parts.

• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water,

return it to a service center.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or

corners.

• Do not run Wet/Dry Vac over cord.

• Do not handle plug or the Wet/Dry Vac with wet hands.

• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.

• Do not use or store near hazardous materials.

• Do not use this Wet/Dry Vac with a torn filter or without the filter installed except when vacuuming liquids

as described in the operation section of this manual.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not leave Wet/Dry Vac unattended when plugged in. Unplug from outlet when not in use and before

servicing.

• Turn off Wet/Dry Vac before unplugging.

• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked;

keep free of dust, lint, hair or anything that may reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• To reduce the risk of falls, use extra care when cleaning on stairs.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vac as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Use safety goggles.

This Wet/Dry Vac is double-insulated, eliminating the need for a separate grounding system. Use only

identical replacements parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs before

servicing. Use this Wet/Dry Vac as described in this manual. Observe the following warnings that appear on

the motor housing of your Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS.

DOUBLE INSULATION INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT EXPOSE TO RAIN. STORE

INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND OPERATOR’S MANUAL. DO NOT

RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER

HAZARDOUS MATERIALS, DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash with standard Wet/Dry filter. This is a very fine dust

which will not be captured by the filter and may cause damage to motor. When vacuuming fine dust use a

fine dust filter (sold separately).

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM

WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE PROVIDED

INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A DOUBLE-INSULATED

APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE

INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM,

AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A

DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS THEY REPLACE.

YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’

AND THE SYMBOL (SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.

• To reduce the risk of electric shock-unplug before cleaning or servicing.

• DO NOT use without filters in place.

CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS- UNPLUG BEFORE SERVICING.

When using an extension cord with your Wet/Dry Vac refer to the following table to determine the required

A.W.G. wire size. Before using the cleaner make sure the power cord and extension cord are in good working

conditions. Make repairs or replacements before using the vacuum cleaner. Only use extension cords that

are rated for outdoor use.

Length of Extension Cord

110V-120V

25 Feet 7.5

Meter

50 Feet

15.25 Meters

100 Feet 30.5

Meters

150 Feet

45.7 Meters

Amps A.W.G Wire Size

0-6 18 16 16 14

7-10 18 16 14 12

11-12 16 16 14 12

13-16 14 12 Not recommended

EXTENSION CORDS

Remove entire contents of carton. Check each item

against the carton contents list.

Carton contents lists

UNPACKING AND CHECKING CARTON CONTENTS

Key Description……………………..……

A Vac Assembly…………………….…..

B Extension Wands……..……………..

C Hose……….………………………….

D Blower Wand…………….…….........

E Caster Foot W/Accessory Storage…

F Caster…………………………………

G Foam Sleeve Filter………………....

H Cartridge Filter……………………….

I Filter Retainer...………….……….....

J Concentrator Nozzle…………………

K Crevice Tool….…. ….……………….

L 2-in-1 Floor Brush/Squeegee………

M Adaptor...……………………………..

N 4 Screws (Bag)………………………

O Operator’s Manual.....………………

Qty.

NOTE: The hose and accessories for this

vacuum are 1.25 inch (3.2 cm) diameter.

Blower wand and nozzle are 2.5 inch (6.4 cm)

diameter.

A Philips head screwdriver is required.

WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM.

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Undo the latches. (fig. 2)

3. Lift the power head off the container. (fig. 3)

4. Remove the contents from inside the container, make sure you have all contents as listed on page 5.

(fig. 4)

5. Turn the container upside down and insert the four caster feet into the slots on the container and tighten

with supplied screws. Verify that the casters are mounted correctly. Do not over-tighten screw. (fig. 5)

6. Your vacuum comes ready for dry vacuum cleaning. If cartridge filter is not installed refer to page 10 for

filter installation. (fig. 6 & 7)

7. For wet vacuum cleaning, install the supplied foam filter. (fig. 8) See page 11 for filter installation.

8. Place the power head back on the container, aligning the top section with the latches, and snap into

place. Keep in mind to position the power head so that the blower port is towards the rear. (fig. 9)

9. Insert the locking end of the hose into the port of the container and lock in to place. (fig. 10)

10. Choose the desired wands or accessories and push onto the hose. (fig. 11)

POLARIZED PLUG

To reduce the risk of electrical shock, this appliance has a polarized plug (one with the blade wider than the

other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the

plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in

any way. Double insulation eliminates the need for the three wire grounded power cord and grounded

power supply system.

GENERAL ASSEMBLY INSTRUCTIONS

DRY VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL

OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL,

MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM

VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

1. Verify that the power cord is disconnected from the outlet. (fig.1)

2. In order to prepare your vacuum for dry vacuuming, verify that the cartridge filter is securely mounted.

Make sure the filter is pushed in until it stops against the power head. (fig. 2) (Your Wet/Dry Vac comes

with the cartridge filter pre-installed, if not see page 10 for installation instructions.)

3. Place filter retainer on top of cartridge filter and tighten down by turning the retainer handle clockwise.

(fig. 3)

4. Place the power head back on the container, aligning the top section with the latches, and snap into

place. (fig. 4)

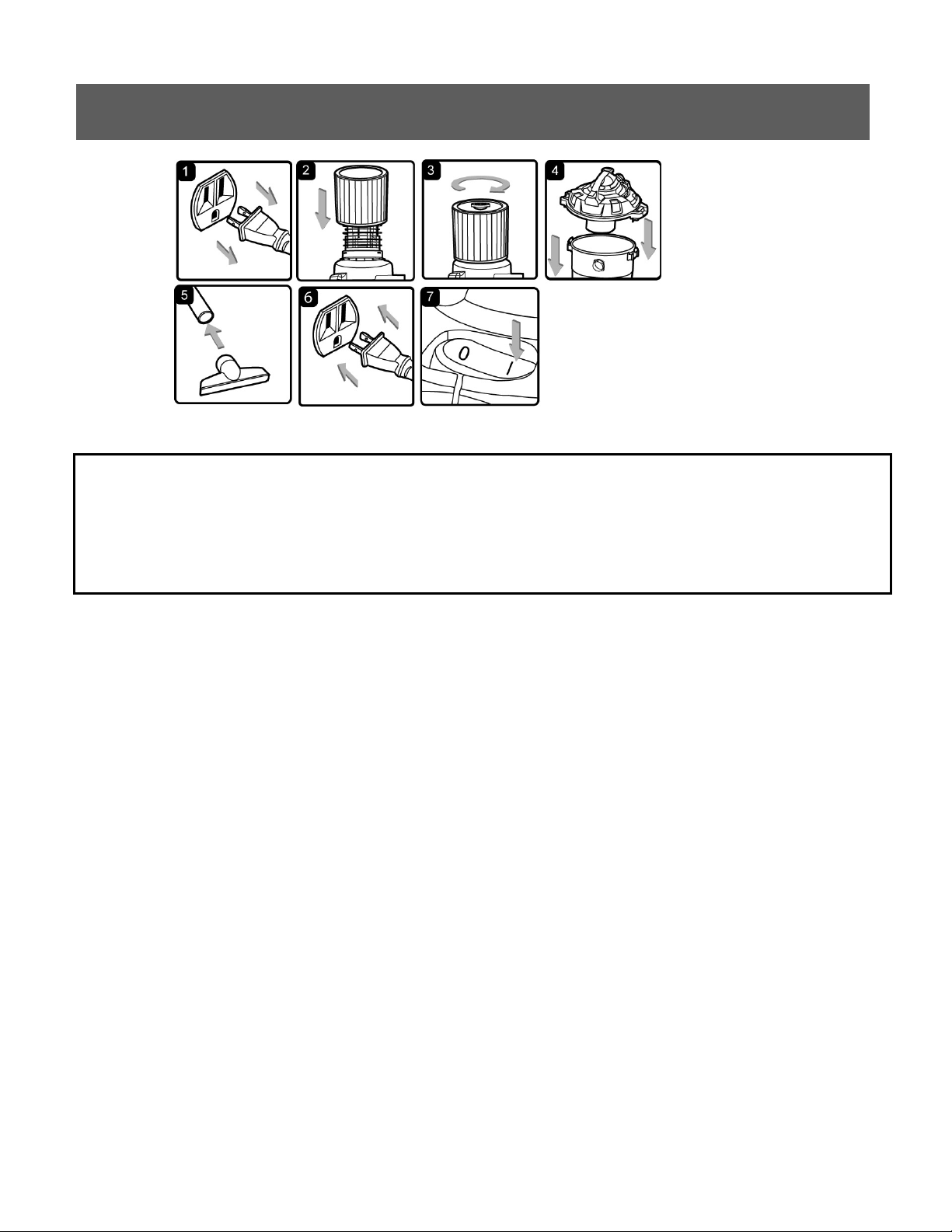

OPERATING INSTRUCTIONS: DRY VACUUMING

5. Insert the locking end of the hose into the vacuum port on the front of the tank and lock in place. Push the

required attachment onto the free end of the hose or extension. (fig. 5)

6. Plug in the power cord into the outlet. (fig. 6)

7. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 7)

8. Once you have completed vacuuming, flip the switch to the ‘O’ OFF position and unplug the power cord

from the outlet.

O = OFF I = ON

DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.

ACUUM OPERATION

LIQUID VACUUMING

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY

INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS,

OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT

LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL

OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL,

MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM

VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

WARNING: DO NOT PLUG IN POWER CORD TO POWER OUTLET, MAKE SURE PLUG IS

DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM.

1. Verify that the power cord is disconnected from the outlet. (fig. 1) Verify that the container is clean and free

of dust and dirt.

2. Remove cartridge filter, then carefully install the foam sleeve filter over the filter cage and place the

power head back on the container. (fig. 2) See filter installing instructions on page 11.

DO NOT USE CARTRIDGE FILTER FOR LIQUID VACUUMING.

OPERATING INSTRUCTIONS – WET VACUUMING

3. Fit the desired nozzle to the vacuum hose. (fig. 3)

4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the outlet. (fig. 4)

5. Turn the motor on by flipping the switch to the ‘I’ ON position. (fig. 5)

6. After use, empty the container by unscrewing the drain cap. Drain liquids into a suitable receptacle or drain.

Remember to refit the drain cap to the container after draining container. (fig. 6)

IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the

liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve

that stops the suction action when the container reaches its maximum capacity. You will notice an increase in

motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid

into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After wet

vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the

inside and outside before storage.

REMEMBER! The foam filter must be removed after wet vacuuming, and a cartridge filter must be installed

before dry vacuuming again.

UID

ACUUM OPERATION

This Wet/Dry Vac converts to a detachable blower that can be used for leaf blowing in yards, decks and patios.

To use the detachable blower feature follow the instructions listed.

WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA,

CSAZ94.3) BEFORE USING BLOWER.

CAUTION: TO REDUCE THE RISK OF HEARING DAMAGE, WEAR EAR PROTECTION WHEN USING

THE VAC/BLOWER FOR EXTENDED HOURS OR WHEN USING IT IN NOISY AREAS.

WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Squeeze the locking lever and lift the detachable blower from the vacuum lid. (fig. 2 & 3)

3. Insert the adaptor into the blowing port and fit it the desired extension wands and or nozzles. (fig. 4 & 5)

4. Ensure the power switch is turned off and plug into the power supply. (fig. 6)

5. Firmly hold the blower before turning it on. Turn the motor on by flipping the switch to the ‘I’ ON

position. (fig. 7)

MAINTENANCE

BLOWING OPERATION

WARNING! ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE

REMOVING THE POWER HEAD FROM THE CONTAINER.

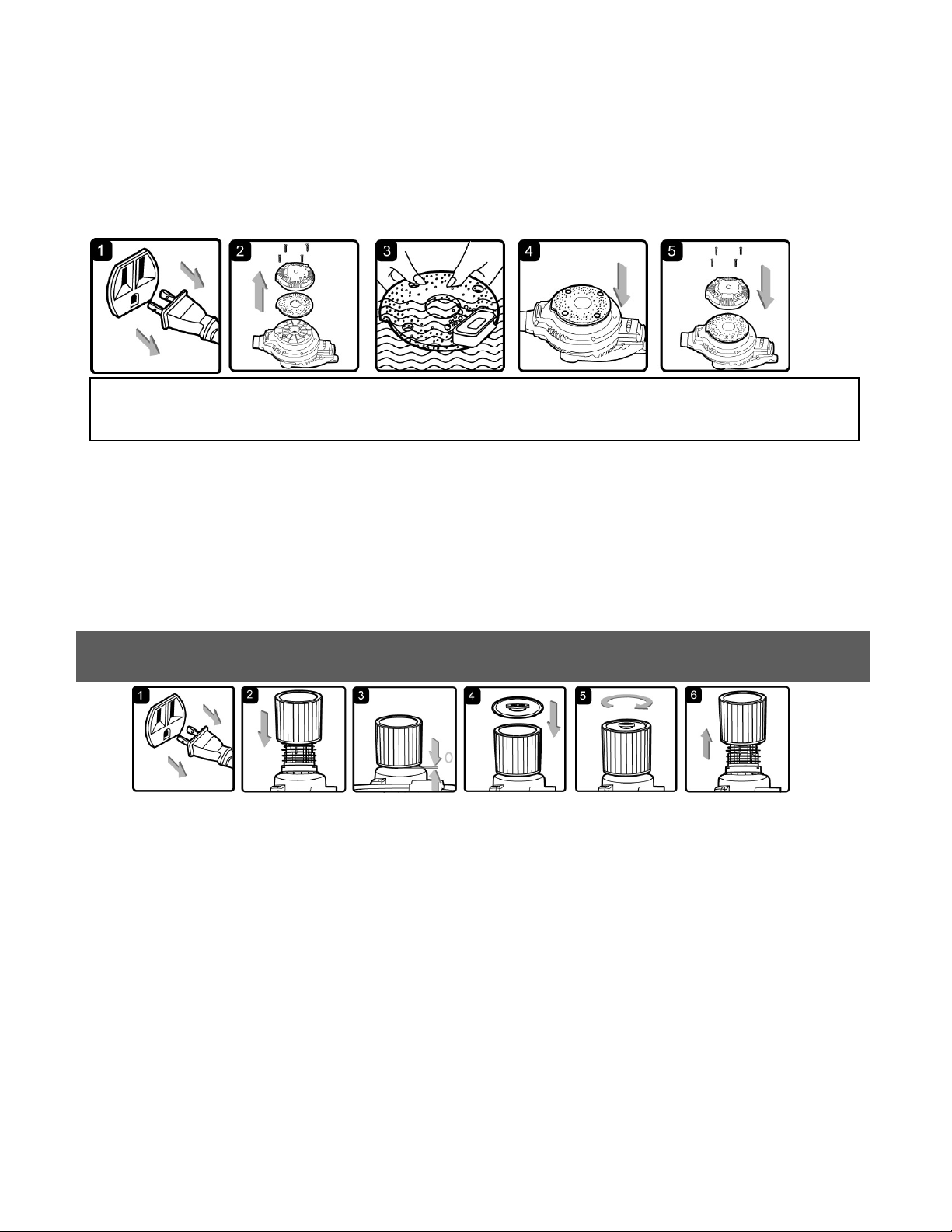

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Disconnect the hose from the unit. (fig. 2)

3. Undo the latches and remove the power head from the container. (fig. 3)

4. Clear all dirt or debris from the container and hose. (fig. 4)

5. Clean the foam filter by washing it with water and mild soap. (fig. 5)

6. Check the hose, attachments, and power cord to verify that they have not been damaged.

BLOWER INTAKE

After using the blower, examine the bottom of the blower for debris and blockages and remove if found. To

clean the foam pad of the intake:

1. Verify that the power cord is disconnected from the outlet. (fig. 1)

2. Remove the four screws holding the intake shield and lift off the shield. (fig. 2)

3. Remove the foam pad from the blower and clean the foam pad with soapy water and allow to dry. (fig. 3)

4. Check the foam pad for reuse. If you need to replace the foam pad consult the parts list of the manual.

5. Replace the foam pad on to the blower aligning the wholes to the screw tabs. (fig. 4)

6. Reinstall the intake shield and the four screws. (fig. 5)

Installing Cartridge Filter

1. Verify that the power cord is disconnected from the outlet.

2. Remove lid and power head and place in upside down position.

3. Install the cartridge filter over the filter cage with the flat end of the filter towards the vacuum lid.

Carefully push filter in until it stops against the lid. (ﬁg. 2 & 3)

4. Place filter retainer on top of cartridge filter over the raise lip and tighten down by turning retainer

clockwise, do not over tighten. (fig. 3 & 4)

Removing and Cleaning Cartridge Filter

1. Unlock and remove the filter retainer by tuning retainer handle counter clockwise.

2. Carefully hold and pull the cartridge filter up for removal. (ﬁg. 6)

3. Clean the cartridge filter by gently tapping or brushing dirt off. Cleaning should not be done indoors in

living areas. For optimal performance a new filter is recommended.

4. Install cleaned or new filter into place as instructed above in steps 2 and 3 of Installing cartridge filter.

5. Wet filters should be removed and allowed to air dry for 24 hours before installing onto the filter cage.

WARNING! ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE

REMOVING THE POWER HEAD FROM THE CONTAINER.

INSTALLING & CLEANING CARTRIDGE FILTE

Andere Handbücher für VBV809PF

Inhaltsverzeichnis

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VK1630SWC Bedienungsanleitung

Vacmaster

Vacmaster VBV1210 Bedienungsanleitung

Vacmaster

Vacmaster VJ205 Bedienungsanleitung

Vacmaster

Vacmaster VJC809PF Bedienungsanleitung

Vacmaster

Vacmaster VZA0708P Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 0203 Bedienungsanleitung

Vacmaster

Vacmaster VJE1412SW 0202 Bedienungsanleitung

Vacmaster

Vacmaster VJC1412PWT 0201 Bedienungsanleitung

Vacmaster

Vacmaster vmVF1515HJ Bedienungsanleitung

Vacmaster

Vacmaster VJC1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VWMB508 0101 Bedienungsanleitung

Vacmaster

Vacmaster VOC1218PF Bedienungsanleitung

Vacmaster

Vacmaster VWM510 Bedienungsanleitung

Vacmaster

Vacmaster PROFESSIONAL VJE1412SW 0201 Bedienungsanleitung

Vacmaster

Vacmaster CDM0610P Bedienungsanleitung

Vacmaster

Vacmaster VBV1412P Bedienungsanleitung

Vacmaster

Vacmaster VJC507P Bedienungsanleitung

Vacmaster

Vacmaster VOM205P Bedienungsanleitung

Vacmaster

Vacmaster VQ1220PFC Bedienungsanleitung

Vacmaster

Vacmaster VK1530SIWDC-T 950204 Bedienungsanleitung

Vacmaster

Vacmaster VJ206H Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 1101 Bedienungsanleitung

Vacmaster

Vacmaster VQ1220PF Bedienungsanleitung

Vacmaster

Vacmaster VDK1430SFC Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
