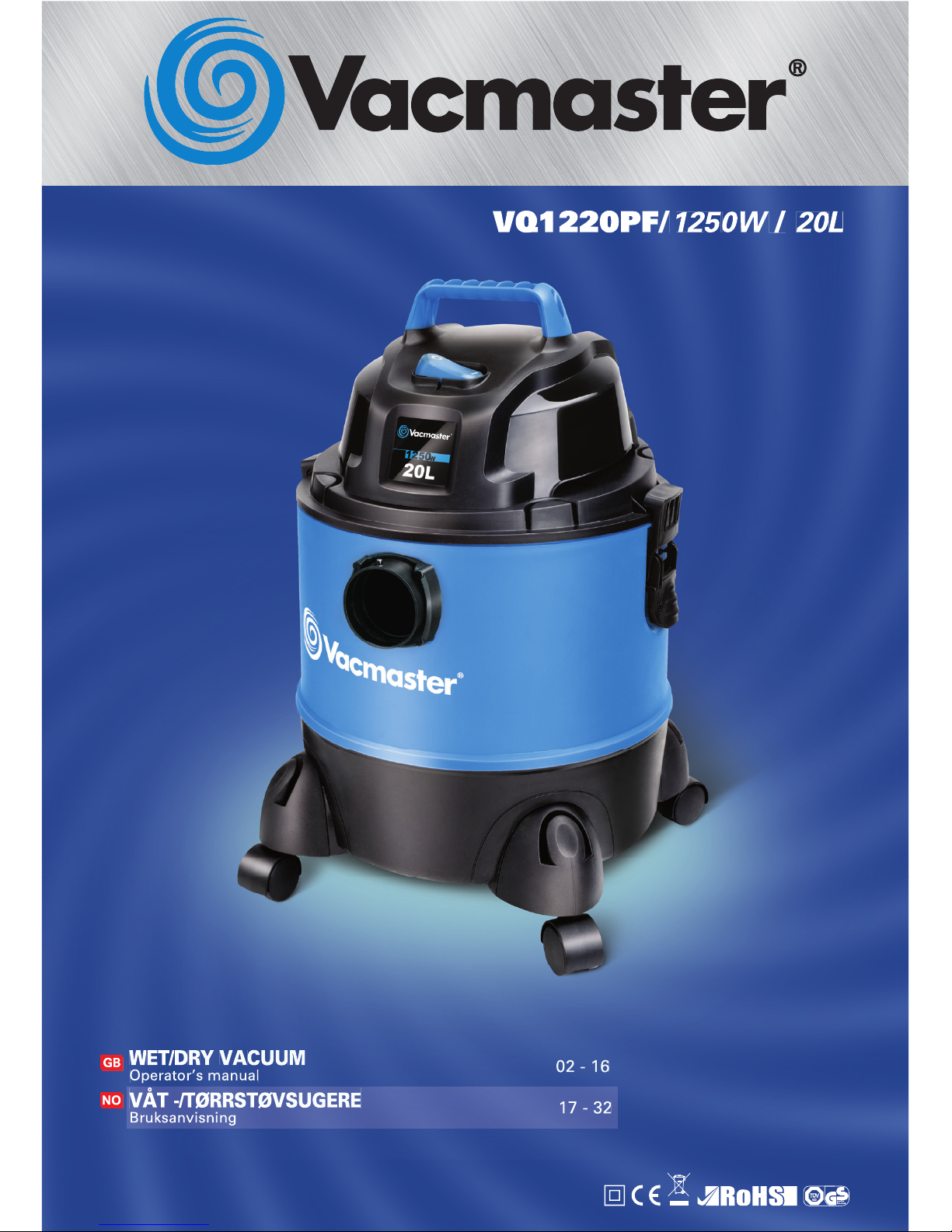

Vacmaster VQ1220PF Bedienungsanleitung

02 - 16

WET/DRY VACUUM

Operator’s manual

VÅT -/TØRRSTØVSUGERE

Bruksanvisning

17 - 32

VQ1220PF/1250W / 20L

IP24

SECTION Page

Thank you for purchasing this Vacmaster®wet/dry vacuum cleaner.

Feel confident that with Vacmaster®you are obtaining a high quality

product engineered for optimal performance. This vacuum is capable

of picking up liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL

INSTRUCTIONS

Vacmaster®takes pride in producing a high quality, durable product. This

Vacmaster®product carries a limited two (2) year warranty against defects in

workmanship and materials from date of purchase under normal household

use. Warranty does not apply to defects due to direct or indirect abuse,

negligence, misuse, accidents, repairs or alterations and lack of

maintenance. Please keep you receipt as proof of purchase.

TABLE OF CONTENTS

Warranty…………………………………………………...……..…………...…......

Safety Instructions and Warnings………………………………..…...……...…....

Double Insulation Instructions....…………………………………..…..…..…....…

Specifications....................……………………………………..…….......….…..…

Unpacking and Checking Carton Contents…………....…………......…………..

General Assembly Instructions………………………...………....…..……………

Dry Vacuum Operation………………………………..…………….….……....…..

Liquid Vacuum Operation……………………………...………….….....……….…

Blowing Operation…………………………………..……………......….……….…

Maintenance…………………………………………..………….....…….…………

Installing & Cleaning Dust Filter………………......………....…..….….….…......

Installing & Cleaning Foam Sleeve Filter………………………......….……….…

Trouble shooting……………………………………………….........…….………..

Exploded view and parts list……………......................................…….………..

WARRANTY

IMPORTANT SAFETY INSTRUCTIONS

Read and understand all instructions before using this vacuum

Read and understand this owner’s manual and all labels on the Wet/Dry

Vacuum cleaner before operating. Safety is a combination of common

sense, staying alert and knowing how your vacuum works. Use this Wet/Dry Vac

only as described in this manual. To reduce the risk of personal injury or damage

to your Wet/Dry Vac, use only Vacmaster®recommended accessories.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

When using an electrical appliance, basic precautions should always be

followed including the following :

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR INJURY:

• This appliance complies with the compulsory safety regulations for electric

equipment. However, improper use can be harmful to people and property.

Please read these operating instructions through carefully and completely

before switching the appliance on. Keep the operating instructions, the

guarantee certificate, the receipt, as well as the packaging and packaging

material if at all possible.

• This appliance is designed solely for use in the private sector and for the

designated purpose. The appliance is not suitable for commercial use. Don’t

use the appliance outdoors. Don’t subject the appliance to heat, direct

sunshine or very high moisture (e.g. rain). Never immerse

• The appliance in liquids and be aware of sharp edges that may damage it.

• This wet/dry vacuum cleaner may only be used and kept in a private home.

• The appliance is designed to vacuum up materials that are not hazardous to

your health and that are not flammable.

• Never hold the connectors in front of your face (especially your eyes, ears, etc.)

Never direct the nozzle towards persons or animals.

• Only use the appliance for its designated purpose. Any other types of use are at

your own risk and are possibly dangerous.

SAFETY INSTRUCTIONS & WANINGS

• Other uses and unattended operation are not allowed.

• The manufacturer cannot be made responsible for damages that are caused by

improper use or incorrect operation.

• Connect the appliance only to a 220-240 volt alternating current receptacle. The

receptacle should be protected by a 16-amp fuse.

• Make sure that the correct dust bag has been inserted securely in its holder

before using the appliance. The wrong dust bag or incorrectly installed dust

bags can cause damage to the appliance and cause the guarantee to become

void.

• If the power cord is damaged, it must be completely replaced along by

customer service.

• Do not vacuum cleaner up ashes, hot coals or the like, large fragments of glass

and sharp objects.

• If you would like to vacuum up cold ashes, then you can do this with our ash

tank. This special accessory can be obtained under the specified article

number from your specialized dealer.

• Don’t vacuum up any toner dust, which is used in printers and copiers for

example, because it is electrically conductive. In addition, it is possible that it

will not be completely filtered out by the filter system of the wet/dry vacuum

cleaner and can be released into the air via the exhaust fan.

• Never vacuum asbestos or asbestos dust.

• Never vacuum flammable or poisonous liquids like petrol, oil, acids, or other

volatile substances.

• Don’t vacuum up liquids that are hotter than 60℃or any poisonous or

flammable dusts.

• Never lay the appliance on its side. Pay particular attention to a horizontal

position and adequate stability on stairs.

• Always unplug the appliance after use and before cleaning or changing the

filters or accessories.

• Only trained specialists may make repairs on electric equipment. Improper

repairs could result in considerable danger to the user.

• Do not store the appliance directly beside a hot oven or radiator.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the

appliance.

• When cleaning or removing the appliance, always switch it off. The plug must

be removed from the socket-outlet before cleaning or maintaining the

appliance. Pull the plug out of the receptacle, if you are not going to use the

appliance for an extended period of time. Never pull on the cable to unplug the

appliance, rather pull on the plug itself. Also, remove any special accessories

from the appliance.

• Always keep the appliance clean. Don’t use any solvents or cleaners that

contain solvents for cleaning.

• Never leave the appliance switched on unattended. If you leave the work area,

switch the appliance off or unplug it from the receptacle (don’t pull the cord, but

use the plug).

• In order to protect children from electric household appliances, make sure that

the cable can’t cause children to stumble and don’t give children access to the

appliance.

• Never use the appliance when you are under the influence of medication,

alcohol or drugs, if you are currently under medical care, or if you are tired.

• Check the appliance and the power cord regularly for any possible damage.

Don’t use damaged appliances.

• Don’t try to repair the appliance yourself. Always use an authorized technician

for repairs. Always have faulty power cords replaced immediately by the

manufacturer or a qualified electrician. Use the same type of cable in order to

prevent any danger of electric shock and injury.

• Only use original spare parts and accessories. Non approved parts or

third-party accessories may be a possible source or danger and cause the

guarantee to become void.

• Check the float often.

• If you notice liquid leaking from your appliance, switch it off immediately and

unplug it.

• Don’t put the appliance in water. Make sure that water is not spilled on the

appliance.

•When disposing of the wastewater, make sure that you observe any legal

regulations.

• Only store the appliance in a safe and dry location outside the reach of children.

•Please also pay particular attention to the following “Special Safety Information”.

Special Safety Information:

• Never vacuum up hot ashes or pointed or sharp objects.

• Never use the appliance in damp rooms.

•Don’t use the appliance without a dust bag (an exception is wet vacuuming).

Make sure that the dust bag is inserted into the appliance correctly.

•When using the appliance, make sure that no hair, clothing, or members are

drawn in.

•Keep the vacuum cleaner away from heat sources such as radiant heaters,

ovens, and so on.

• Do not run vac unattended

Disposal Information:

The appliance contains electric and electronic components and may not be disposed of as

household garbage.

The local and currently applicable legislation must be observed unconditionally.

When using as blower:

• Direct air discharge only at work area.

• Do not use Wet/Dry Vac as a sprayer.

• Do not direct air at bystanders.

• Keep children away when blowing.

• Wear safety goggles.

This Wet/Dry Vac is double-insulated, eliminating the need for a separate

grounding system. Use only identical replacements parts. Read the instructions

for Servicing Double-Insulated Wet/Dry Vacs before servicing. Use this Wet/Dry

Vac as described in this manual.

Observe the following warnings that appear on the motor housing of your

Wet/Dry Vac.

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN

SERVICING USE ONLY

IDENTICAL REPLACEMENT PARTS.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK-DO NOT

EXPOSE TO RAIN. STORE INDOORS.

WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND

OPERATOR’S MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP

HOT ASHES, COALS, TOXIC, FLAMMABLE OR OTHER HAZARDOUS

MATERIALS, DO NOT USE AROUND EXPLOSIVE LIQUIDS OR VAPORS.

CAUTION:

• Do not vacuum drywall dust or fireplace soot or ash with standard Wet/Dry filter.

DOUBLE INSULATION INSTRUCTIONS

This is very fine dust which will not be captured by the filter and may cause

damage to motor. When vacuuming fine dust use a fine dust filter (sold

separately).

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY

VACUUMM

WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF

INSULATION ARE PROVIDED INSTEAD OF GROUNDING. NO GROUNDING

MEANS IS PROVIDED ON A DOUBLE-INSULATED APPLIANCE, NOR

SHOULD A MEANS FOR GROUNDING BE ADDED. SERVICING A DOUBLE

INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND

KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY

QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A

DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE

PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS

MARKED WITH THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL

(SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE

APPLIANCE.

• DO NOT use without filters in place.

CAUTION: TO REDUCE THE RISK OF INJURY FROM MOVING PARTS-

UNPLUG BEFORE SERVICING.

Motor 220-240V~50Hz 1250W.

Container 20ltr.

Filter-Dry Dustfilter.

Filter-Wet Foamfilter.

SPECIFICATIONS

1.Overview of the Appliance

Components

A Vac assembly….…………….…...

B Hose…………….………...……...

C Caster ………….…………...…...

D Extension wands..……….……...

E Crevice tool……………………....

F Floor brush……………………….

G Foam filter………………………..

H Dust bag………………………….

I Dust filter………………………....

J Operator’s manual…….………....

UNPACKING AND CHECKING CARTON

3.1 Verify that the power cord is disconnected from the power outlet.(As show in

ﬁg.1)

3.2. Undo the latches. (fig.2)

3.3. Lift the power head off the container. (fig.3)

3.4. Remove the contents from inside the container; make sure you have all

contents as listed. (fig.4)

3.5. Insert the casters into the socket on to bottom of the container and apply

pressure until castors snap into place (fig.5)

3.6. Your vacuum comes ready for dry vacuum cleaning with dust filter. If the

dust filter is not installed, refer to page 13 for filter installation. (fig.6）

3.7. Optional, for improved dust bag, fit dust bag flange onto the inlet stub,

taking care not to damage the bag. (fig.7)

3.8. For wet vacuum cleaning, install the supplied foam filter. If foam filter is

not installed, refer to page 14 for filter installation (fig.8)

3.9. Place the power head back on the container, and secure into place using

the 2 side latches. (fig.9 & fig.10)

3.10. Insert the locking end of the hose into the port of the container and turn to

lock in to place. (fig.11)

GENERAL ASSEMBLY INSTRUCTIONS

3.11 Choose the desired accessories and extension wands and push onto the

suction tube.(fig.12)

WARNING! Ensure you read, understand and apply Section 1 ‘Safety Instructions’.

Reminder: DO NOT vacuum hazardous substances. Use of an incorrect dust bag

will invalidate your warranty.

4.1. Verify that the power cord is disconnected from the outlet.(fig.1)

4.2. Remove the top section and fit optional dust filter flange onto the inlet stub, taking

care not to damage the filter. (fig. 2)

4.3. Place the power head back on the container, and secure it in place using the latches.

(fig.3)

4.4. Insert the locking end of the hose into the vacuum port and screw in place. Push the

required attachment onto the free end of the hose or extension.(fig.4)

4.5. Plug in the power cord in to the outlet.(fig.5)

4.6 .Turn the motor on by dipping the switch to the “I” ON position.(fig.6)

4.7. Once you have completed vacuuming. ﬂip the switch to the “o” OFF position and

unplug the power cord from the outlet.

O = OFF I = ON

DO NOT USE THE DUST FILTER FOR LIQUID VACUUMING

DRY VACUUM OPERATION

Andere Handbücher für VQ1220PF

Inhaltsverzeichnis

Sprachen:

Andere Vacmaster Staubsauger Handbücher

Vacmaster

Vacmaster VQ1115P Bedienungsanleitung

Vacmaster

Vacmaster vmvK1650SWdc Bedienungsanleitung

Vacmaster

Vacmaster VFB511B 0201 Bedienungsanleitung

Vacmaster

Vacmaster VFB511B 0201 Bedienungsanleitung

Vacmaster

Vacmaster VJ205 Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

Vacmaster VQ1530SFDC Bedienungsanleitung

Vacmaster

Vacmaster VBV1412P Bedienungsanleitung

Vacmaster

Vacmaster VJH1612PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VWM1218R Bedienungsanleitung

Vacmaster

Vacmaster UC0902EHUK Bedienungsanleitung

Vacmaster

Vacmaster UB0212EUK Bedienungsanleitung

Vacmaster

Vacmaster VOC508S 1101 Bedienungsanleitung

Vacmaster

Vacmaster VJF608PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster DVTB2015 Bedienungsanleitung

Vacmaster

Vacmaster UC0101 Bedienungsanleitung

Vacmaster

Vacmaster VOC507PF Bedienungsanleitung

Vacmaster

Vacmaster VBV1210 Bedienungsanleitung

Vacmaster

Vacmaster VK609PFR 0201 Bedienungsanleitung

Vacmaster

Vacmaster VK809PIWR Bedienungsanleitung

Vacmaster

Vacmaster VDK611PF 0201 Bedienungsanleitung

Vacmaster

Vacmaster VZA306P 1101 Bedienungsanleitung

Vacmaster

Vacmaster VJH1211PF 0204 Bedienungsanleitung

Vacmaster

Vacmaster VQ407S Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
