Vacmaster VJF608PF 0201 Bedienungsanleitung
Distributed By
Cleva North America, Inc.
601 Regent Park Court
Greenville, SC 29607
Replacement Filters &
Accessories available at:
Vacmaster.com
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
6 Gallon
Model No.
VJF608PF 0201
Operator’s Manual
Wet/Dry Vacuum
3
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY:
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the vacuum cleaner before
operating. Safety is a combination of common sense, staying alert and knowing how your vacuum
works. Use this vacuum only as described in this manual. To reduce the risk of personal injury or
damage to your vacuum, use only manufacturer recommended accessories.
When using a vacuum, basic precautions should always be followed including
the following. Failure to follow the warnings and instructions may result in
explosion, re and/or serious injury.
• Do not run vacuum unattended.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where
they may be present.
• Do not vacuum, or use this vacuum near ammable liquids, gases, or explosive vapors like
gasoline or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or
explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the
motor can ignite ammable vapors or dust.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to a service center.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or lters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or
cleaning lter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. See
DOUBLE INSULATION INSTRUCTIONS.
4
• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
SAVE THESE INSTRUCTIONS
For Household Use Only
WARNING: To reduce the risk of electric shock - Unplug before cleaning or servicing.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO
RAIN. STORE INDOORS.
WARNING: FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR’S
MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS,
TOXIC, FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND
EXPLOSIVE LIQUIDS OR VAPORS.
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM WITH A
DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE
PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON
A DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING
BE ADDED. SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES
EXTREME CARE AND KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE
ONLY BY QUALIFIED SERVICE PERSONNEL. REPLACEMENT PARTS FOR A
DOUBLE-INSULATED WET/DRY VACUUM MUST BE IDENTICAL TO THE PARTS
THEY REPLACE. YOUR DOUBLE-INSULATED WET/DRY VAC IS MARKED WITH THE
WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL (SQUARE WITHIN A SQUARE)
MAY ALSO BE MARKED ON THE APPLIANCE.
CAUTION: To reduce the risk of injury from moving parts - Unplug before servicing.
CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH
STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY
NOT BE CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN
VACUUMING FINE DUST USE A FINE DUST FILTER.
DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE
ONLY IDENTICAL REPLACEMENT PARTS.
DOUBLE INSULATION INSTRUCTIONS
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.
Use only identical replacements parts. Read the instructions for Servicing Double- Insulated Wet/
Dry Vacuums before servicing. Use this vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your vacuum.
When using as blower:
5
EXTENSION CORDS
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine
the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension
cord are in good working condition. Make repairs or replacements before using the vacuum
cleaner. Only use extension cords that are rated for outdoor use.
Length of Extension Cord
120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere rating A.W.G. Wire Size
More than Not more than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended
6
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
NOTICE (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS
7
UNPACKING & CHECKING CARTON
CONTENTS
Handle
Hose Storage Rack
Latch
Accessory Storage
Caster
Caster Foot
Collection Tank
Vacuum Port
Power Head
On/Off Switch
Blower Port
Power Cord
Storage
Remove all contents from the box. Remove
the power head and take out any contents
inside the collection tank. Check each item
against the carton contents list.
Carton Contents List:
Key Description ..…………....……….….... Qty.
NOTE: The hose and accessories for this
vacuum are 1-7/8" (3.8 cm) diameter.
1
1
2
1
1
2
1
1
1
4
1
1
A
B
C
D
E
F
G
H
I
J
K
L
Vacuum Assembly……………………....
Hose……………………………………...
Extension Wands………………..…......
Utility Nozzle.........................................
Floor Brush/Squeegee Nozzle……
Hose Storage Rack…………….............
Foam Wet Filter………..……….............
Cartridge Filter…………..………….......
Filter Retainer……………………..........
Caster Foot Assembly........…….……....
4 Screws (Bag)…..…………………......
Operator’s Manual.…………………......
A
C
D
F G H I
K L
J
E
B
8
UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the power head off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed
on page 7 (Fig. 4).
5. Turn the collection tank upside down and insert the four caster feet into the slots on the
collection tank and tighten with supplied screws. Verify that the casters are mounted correctly.
Do not over-tighten screws (Fig. 5).
6. Position the hose storage rack as illustrated. Squeeze the open sides of the hose storage rack
inward. Insert the hose storage rack into the channel on the front side of the power head just
above the top edge of the tank. Verify that the rack is secured in place as shown in Fig. 8. Then
squeeze in the other hose storage rack and insert it into the corresponding channel making sure
it is secured (Fig. 6 - 9).
A Philips head screwdriver is required.
16
3
15
4
125
89
6710
11 12 13 14
GENERAL ASSEMBLY INSTRUCTIONS
WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.
9
DRY VACUUMING
7. Your vacuum comes ready for dry vacuum cleaning. If the cartridge lter is not installed, refer to
page 14 for installation instructions (Fig. 10 & 11).
8. For wet vacuum cleaning, remove the cartridge lter, and install the supplied foam wet lter.
See page 15 for the foam wet lter installation instructions (Fig. 12).
9. Place the power head back on the collection tank and secure into place using the latches
(Fig. 13 & 14).
10.Insert the larger end of the hose into the vacuum port on the collection tank and lock into place
(Fig. 15).
11.Choose the desired accessory and insert onto the end of the hose. (Fig. 16).
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the
other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet,
reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet. Do
not change the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
DRY VACUUM OPERATION
34
125
89
7
6
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS
WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR.
FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER
FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL,
OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO:
COAL, MAGNESIUM, GRAIN, OR GUN POWDER. TO REDUCE THE RISK OF HEALTH
HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.
10
WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
CAUTION: DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH
WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT
BE CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN
VACUUMING FINE DUST USE A FINE DUST FILTER (INCLUDED). TO PURCHASE
ADDITIONAL FINE DUST FILTERS, CALL 1-866-384-8432 OR GET THEM AT YOUR
LOCAL OR ONLINE VACMASTER®RETAILER.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare your vacuum for dry vacuuming, make sure the cartridge lter completely
covers the lter cage against the power head. Your wet/dry vacuum comes with the cartridge
lter pre-installed. For installation instructions, see page 14 (Fig. 2 & 3).
3. Place the lter retainer on the top of the cartridge lter and tighten down by turning the retainer
handle clockwise (Fig. 4).
4. Place the power head back on the collection tank and secure it in place using the latches (Fig. 5).

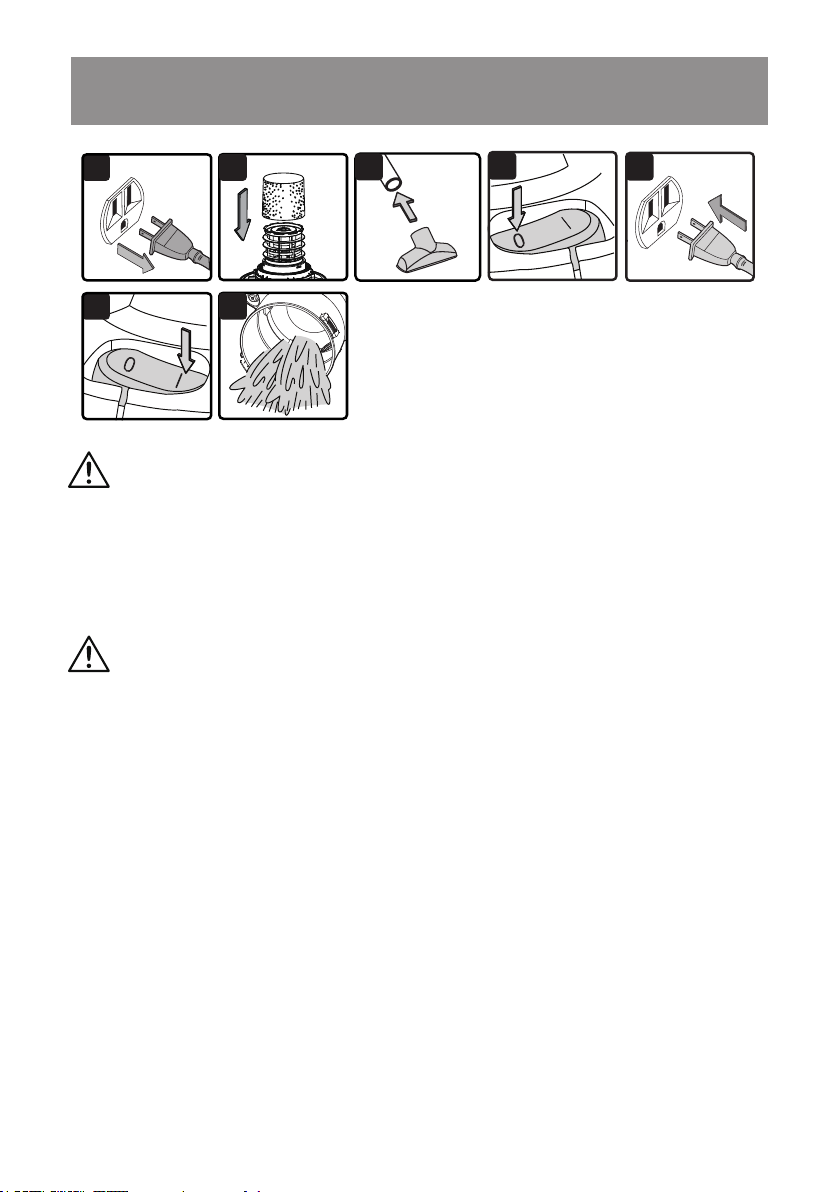

OPERATING INSTRUCTIONS: DRY VACUUMING
5. Insert the larger end of the hose into the vacuum port on the power head and lock into place.
6. Choose the desired accessory and insert onto the end of the hose (Fig. 6).
7. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 7 & 8).
8. Turn the motor on by ipping the switch to the ‘I’ ON position and begin vacuuming (Fig. 9).
9. Once you have completed vacuuming, ip the switch to the ‘O’ OFF position and unplug the
power cord from the outlet.
O = OFF I = ON
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
11
LIQUID VACUUM OPERATION
4
125
67
3
WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN,
OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR
DUST, DO NOT VACUUM TOXIC MATERIALS.
WARNING: DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is
clean and free of dust and dirt (Fig. 1).
2. Remove the cartridge lter, then carefully install the foam wet lter over the lter cage and place
the power head back on the collection tank. For foam wet lter installation instructions, see page
15 (Fig. 2).
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
OPERATING INSTRUCTIONS: WET VACUUMING
3. Choose the desired accessory and insert onto the end of the hose (Fig. 3)
4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 4 & 5).
5. Turn the motor on by ipping the switch to the ‘I’ ON position (Fig. 6).
6. Once you have completed vacuuming, ip the switch to the 'O' OFF position and unplug the
power cord from the outlet.
7. After use, empty the collection tank, clean and dry the inside and outside of the collection tank
(Fig. 7).
LIQUID VACUUMING
Inhaltsverzeichnis
Andere Vacmaster Staubsauger Handbücher
Vacmaster
Vacmaster VQ1530SIWDC Bedienungsanleitung
Vacmaster
Vacmaster VK609PFR 0201 Bedienungsanleitung
Vacmaster
Vacmaster EAT718S Bedienungsanleitung
Vacmaster
Vacmaster VJF910PF Bedienungsanleitung
Vacmaster
Vacmaster VWMB508 0101 Bedienungsanleitung
Vacmaster
Vacmaster VF1515HJ Bedienungsanleitung
Vacmaster
Vacmaster VJC809PF Bedienungsanleitung
Vacmaster
Vacmaster VF1515HJ Bedienungsanleitung
Vacmaster
Vacmaster VOC809PF Bedienungsanleitung
Vacmaster
Vacmaster VHB307WM Bedienungsanleitung
Vacmaster
Vacmaster VJH1211PF 0201 Bedienungsanleitung
Vacmaster
Vacmaster VQ1220PF Bedienungsanleitung
Vacmaster
Vacmaster Orson Lite VSE2101EU Bedienungsanleitung
Vacmaster
Vacmaster VBV1210 Bedienungsanleitung
Vacmaster
Vacmaster PROFESSIONAL VJE1412SW 0201 Bedienungsanleitung
Vacmaster
Vacmaster VF410P Bedienungsanleitung
Vacmaster
Vacmaster VDK1138SWC-110 Bedienungsanleitung
Vacmaster
Vacmaster VMVK1520SIWC Bedienungsanleitung
Vacmaster
Vacmaster VJS1211 Bedienungsanleitung
Vacmaster
Vacmaster RESPIRA UC0501 Bedienungsanleitung
Beliebte Staubsauger Handbücher anderer Marken
Bissell
Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung
Panasonic
Panasonic MC-YL637S147-AE Bedienungsanleitung
NEFF
NEFF N17XH10 0 Series Bedienungsanleitung
LG
LG A9 Series Bedienungsanleitung
Oreck
Oreck Cordless Captura BK51700 Series Bedienungsanleitung
Kogan
Kogan KAVACROBVWA Bedienungsanleitung
