Vacmaster UC0101 Bedienungsanleitung
Use & Care Guide
MODEL NO. UC0101
Bagless Upright Vacuum Cleaner
www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
(866) 384-8432
-2-
SECTION
Important Safety Instructions...................................................................................................................
Warranty..................................................................................................................................................
Technical Data.........................................................................................................................................
Getting To Know Your Vacuum................................................................................................................
General Assembly Instructions...............................................................................................................
Operating Instructions............................................................................................................................
Maintaining Your Vacuum.......................................................................................................................
Troubleshooting.....................................................................................................................................
3
4
4
5
7
11
17
27
TABLE OF CONTENTS
PAGE
Thank you for purchasing this Vacmaster®vacuum cleaner. With it you are
obtaining a high quality product that is engineered for optimal performance.
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual and your sales check (receipt) in a safe place for future
reference.
-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Failure to follow the warnings and instructions may result in electric shock, re
and/or serious injury.
WARNING–To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or
near children.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, return it to a
service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull
cord around sharp edges or corners. Do not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use without lters in place.
SAVE THESE INSTRUCTIONS
Household use only
-4-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call (866) 384-8432.
• This warranty does not cover lters or belt, which are expendable parts that
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household
purposes.
• This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.
TECHNICAL DATA
Bagless Upright Vacuum Cleaner
Model: UC0101
Rated Voltage: 120V AC
Rated Frequency: 60Hz
Nominal Current: 10A
WARRANTY
TECHNICAL DATA
-5-
GETTING TO KNOW YOUR VACUUM
Handle
Hose Storage
Connection Hose
Floor Nozzle
Release Button
On/Off Button
Crevice Tool
Extension Wand
Screws (5)
Screw Bolt (Pre-installed)
Nut (Pre-installed)
Lower Cord Hook
Accessory Storage
Lower Locking Notch
Hose
Dust Cup
Release Button
Carrying Handle
Dust Cup
Lid Latch
Dust Cup
Height Adjust
Selector
Floor
Nozzle
Floor/Tools
Selector
Power Cord
Primary Filter
Pre-lter
Upper Locking Notch
Upper Cord Hook
Dusting Brush
-6-
Replacement Parts
Available online at www.vacmaster.com or call (866) 384-8432.
Item Part No.
Primary Filter 571003122
Belt 571003165
Crevice Tool 571003111
Dusting Brush 571003112
Extension Wand 571003110
Hose 571003109
Screws (5) 571003116
Screw Bolt 571003114
Nut 571003106
-7-
1. Insert the main body into the oor nozzle and secure with screws provided.
Insert four screws into the front of the main body, and insert one screw into the
back of the main body.
Note: Make sure all screws are installed into place correctly. If the screws are not
installed or not fully tightened, this may impact the performance of the vacuum
cleaner and may cause personal injury or damage. Do not over-tighten the
screws.
2. Insert the connection hose into the main body until you hear a click.
GENERAL ASSEMBLY INSTRUCTIONS

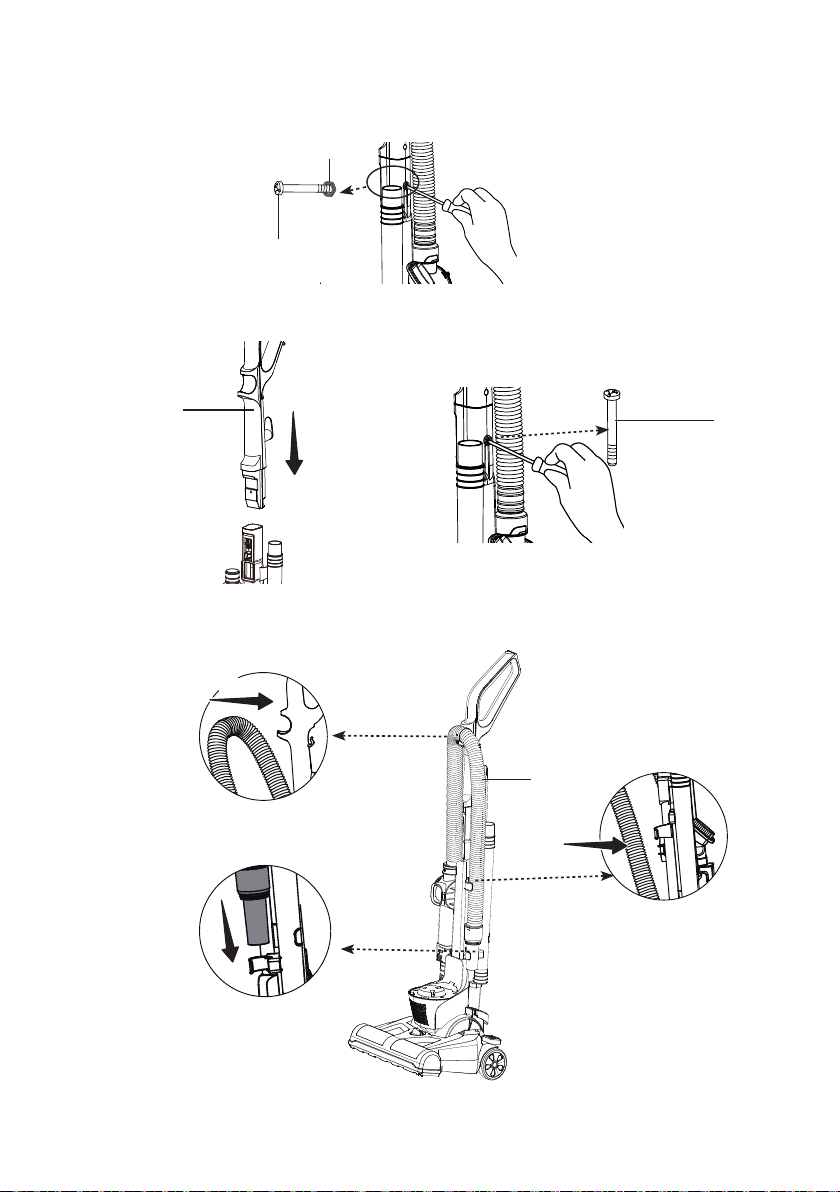

3. There is a screw bolt and nut pre-installed into the top of the main body. You
need to remove the bolt before installing the handle into the main body.
Assembly Instructions
Main Body
Connection Hose
Floor Nozzle
-8-
5. Install the hose into the main body. Insert the other end of the hose into the
hose storage and x into place.
4. Insert the handle into the main body and secure with one screw bolt provided.
Hose
Screw Bolt
Nut
Screw Bolt
Handle
1
3
2
-9-

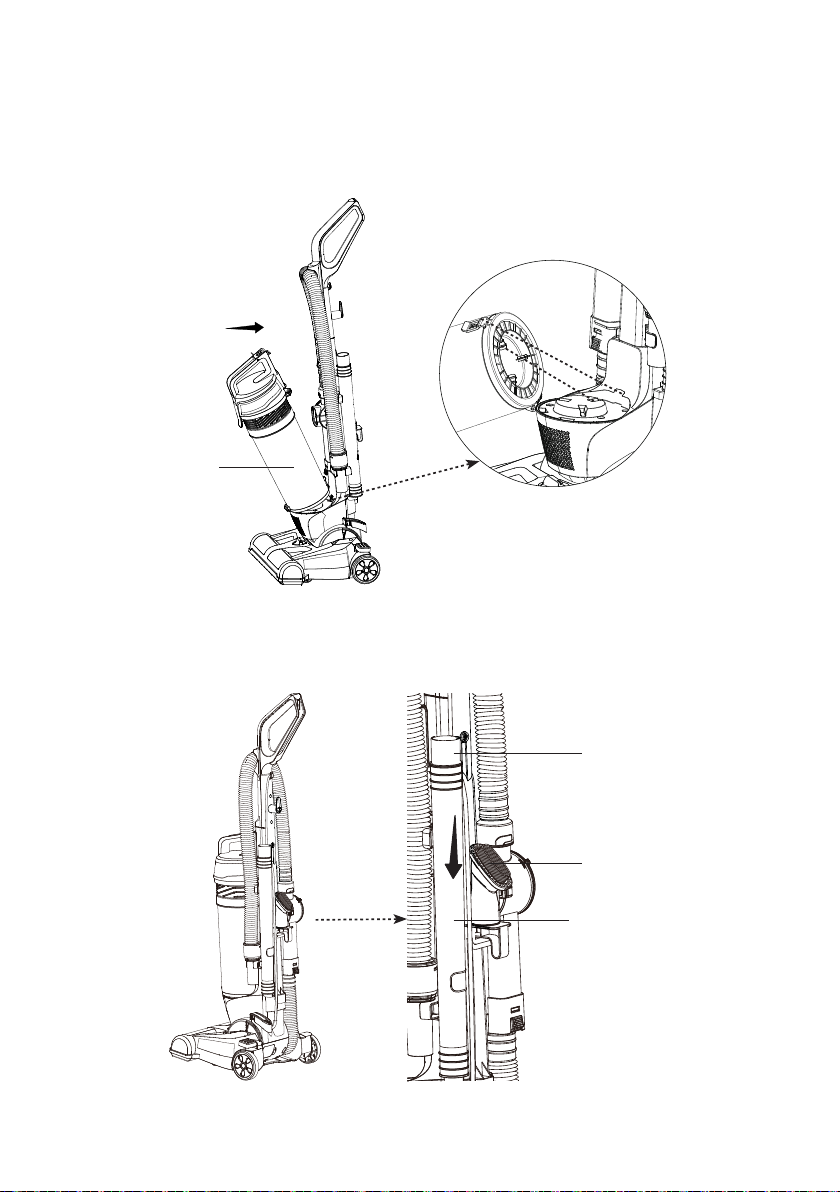

6. Insert the dust cup into the slots on the bottom of the main body, then press
the dust cup into locked slot and click into place.
7. Insert the dusting brush onto the accessory storage located on the back of
the main body. Make sure the extension wand is inserted into the accessory
storages located on the side of the main body as shown. Note, the crevice tool
ts inside the extension wand for storage convenience.
Crevice Tool
Dusting Brush
Extension Wand
Dust Cup
-10-
9. Lock power cord plug onto the power cord.
WARNING
Wrapping the cord too tightly with excessive stress on the cord may cause cord
damage. A damaged cord is an electrical shock hazard and could cause personal
injury or damage.
8. Make sure the upper cord hook is in the upright position as shown. Wrap the
power cord loosely around the upper and lower cord hooks.
Upper Cord Hook
Lower Cord Hook
Power Cord Plug
Power Cord
