U85-I3-Be/U85-I3-Pe/U85-I3-Re

Impact Plus

Let’s get started

Please keep instructions for further

use and use only as instructed in

this guide.

This vacuum cleaner is intended for

household use only and NOT for

commercial or industrial use.

• Only use the vacuum cleaner

indoors on dry surfaces and keep

the area you’re cleaning well lit.

• Keep ngers, hair and loose

clothing away from moving parts

and openings whilst using the

vacuum cleaner.

• This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand the

hazards involved. Children shall not

play with the appliance. Cleaning and

user maintenance shall not be made

by children without supervision.

• Only Vax recommended tools should

be used with this vacuum cleaner.

Basic safety precautions

8Don’t use this vacuum cleaner if it

has been dropped, damaged or left

outdoors.

8Don’t run over the power cord or

use vacuum cleaner if the power

cord or plug is damaged. Please

contact our Customer Care Line on:

0330 026 8455 (Mon-Fri: 8.30am to

6.30pm, Sat: 9.00am to 5.00pm).

8Don’t handle the plug or use the

vacuum cleaner with wet hands.

8Don’t pull or carry this vacuum

cleaner by the power cord.

8Don’t use the power cord as a

handle, pull the power cord around

corners, sharp edges or close a

door over the power cord.

8Don’t unplug vacuum cleaner by

pulling on the power cord.

8Don’t vacuum up any ammable

or combustible materials (lighter

uid, petrol, kerosene etc.) or use

the vacuum cleaner in an area with

explosive vapours or liquid.

Dont’s

Let’s talk safety

3Turn o all controls on the vacuum

cleaner before disconnecting or

connecting the power cord.

3Always keep the power cord away

from the brushes whilst using your

vacuum cleaner. After use always

wrap the power cord around the

cord clips provided.

3Always make sure both the pre-

motor/post-motor lters are in place

before use.

3Always make sure the brushbar is

set to hard oor when using your

vacuum on the stairs and take extra

care when positioning the vacuum

cleaner on the stairs.

3Always switch o the vacuum

cleaner before disconnecting

or connecting the hose

and accessories.

3Keep all openings clear and free

from debris as this may aect the

airow/suction.

3Always replace the fuse in the plug

with a British 13amp fuse. Always

protect the power cable from heated

surfaces and open ames.

3Use only CE approved 13amp

extension cords, non-approved

extension cords may overheat.

Care should be taken to arrange

the extension cord as it could be a

trip hazard.

3Store the vacuum cleaner in a cool,

dry area. If lters have been cleaned

as per user the guide instructions

ensure they are thoroughly dry

before storing away.

8Don’t vacuum up hot coals, cigarette

butts, matches or smoking hot

burning items or use in an area where

there may be harmful uids (chlorine,

bleach, and ammonia drain cleaner).

8Don’t attempt to remove blockages

with sharp objects as this may cause

damage to your vacuum cleaner.

8Don’t vacuum up hard or sharp

objects such as glass, nails, screws

or coins etc.

8Don’t use the vacuum cleaner with

incorrect voltage as this may result

in damage or injury to the user.

The correct voltage is listed on the

ratings label.

Dont’s

Do’s

Let’s talk safety

Let us know what you think @VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number

of the product before calling.

Alternatively, you can write to us at:

Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,

Worcestershire, WR9 0LW, UK

This user guide can be found online at: vax.co.uk/support

Thank you for buying this Impact Plus.

Taking care of your carpets and hardoors

The Impact Plus is designed to make vacuuming carpets and hardoors regularly, as eective and

ecient as possible and this user guide will help you get the most out of your machine.

Maintaining your carpets and hardoor will ensure they keep their appearance for longer.

You’ve chosen the carpets and hardoors for your home for a reason and Vax will help you

take good care of them.

Taking care of your Impact Plus

Also inside this guide are instructions on maintaining your new machine, so that it’s always ready

when you are to tackle your carpets and hardoors.

Impact Plus Pet

TurboTool

Tool connector

Contents

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let’s talk technical

Accessories

What to do if it goes wrong

Getting in touch

Impact Plus

Included with

your machine

3-in-1 crevice, dust and

upholstery tool

Pre-motor lter

Post-motor lter

Hard oor adaptor

Stretch hose

Initial Setup for normal operation

1. Use the base accessories.

– Shortest hose

– Extension tube set to shortest practicable length.

2. Clean lters installed.

3. Dust receptacle empty.

4. All Bleeds must be closed.

5. Floor heads/tools set to Carpet Mode for carpet cleaning.

6. Floor heads/tools set to Hard Floor Mode for hard oor cleaning.

Impact Plus Reach

Getting to know your machine

Technical Specication

Name Impact Plus

Voltage 220-240V~50Hz

Wattage 700W

Cord length 7-9m

Weight 6.8kg

Subject to technical change without notice.

Accessories & Consumables

Filter Kit (Type 98)*

1-1-134233-00

Belt Kit (Type 1)*

1-1-130669-01

Pro Cleaning Kit (Type 2)

1-1-133326-00

TurboTool (Type 6)

1-1-134419-00

3-in-1 Tool

1-1-129167-00

*To purchase consumables and accessories, please visit vax.co.uk

Handle

TurboTool holder

(on some models)

Post-motor lter cover

Hose to

machine connector

Height adjustor dial

Handle release button

Separator

Dirt container

release button

Extension tube

Power ON/OFF button

Hose

Power cord

Quick release

cord hook

Carry handle

Twist the quick release

cord hook to release the

power cord.

Choose your desired

carpet height or

hardoor setting.

Plug in your machine and

push ON/OFF button to

switch on.

Lie vacuum cleaner on its

back exposing brushbar.

Align Hard oor adaptor

with base of vacuum

cleaner, push until its clicks

into place.

Don’t over ll the dirt

container to avoid clogging

your lter.

Before you begin cleaning

• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing

and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat

will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug from electrical

socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to

cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry before putting

back into the vacuum).

• Filters require cleaning at least every 3 months.

• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.

• When using the accessories always make sure the brushbar is switched to the o position.

IMPORTANT: When the vacuum cleaner is stood in the upright position or when using on stairs and the hose/tools,

the brushbar height adjust dial must be set to hard oor.

Using your machine

How to use

Using the Hard Floor Adaptor

Apply the Hard oor adaptor for optimum results on hard oors.

The Hard Floor Adaptor can be used on any oor setting. TIP

To ensure the Hard oor adaptor

is correctly tted, the wheels

should be towards the back of

the oor tool when attached to

vacuum cleaner.

Extension tube

Using your machine

Remove hose end from

the oorhead.

Remove extension tube

from inside the handle.

Remove the handle from

the body of the machine.

Use handle and extension

tube to reach high places

for cleaning.

Hold the machine to steady when using on the stairs.

Always make sure the brushbar is overhanging the stair tread during use.

Choose an accessory.

Turn the extension tube

and attach to the handle.

Attach accessory

to hose end.

Attach hose to the top of

the handle.

Using accessories

If required use

tool connector.

Push accessory on to the

extension tube.

Using your machine on the stairs

This machine has a constantly

rotating brushbar. When using the

machine on stairs, ensure the height

adjuster dial is set to hard oor and

the brushbar is overhanging the

stair tread (as pictured). Always take

extra care when cleaning stairs.

IMPORTANT

Taking care of your machine

24hr

MAX

40˚C

Press dirt container

release button to remove

the dirt container.

Emptying and cleaning the dirt container

Cleaning the pre-motor lter

Hold dirt container over

a bin and unclip the lock

on the bottom of the dirt

container, allowing the dirt

to fall out.

Close the base of the dirt

container, align the dirt

container base back onto

the machine and push until

it clicks back into place.

Turn the dirt container

lid anti-clockwise

to remove.

Remove the lter.Lift the dirt container lid

to remove.

Tap the lter over a bin to

release and dirt.

Wash the lter under

running water (40°C max).

Leave to fully dry for a least

24 hours before placing

back in the machine.

TIP

Wash lters with warm

water (MAX 40°C) at least

every 3 months.

24hr

MAX

40˚C

Turn the dirt container

lid anti-clockwise and lift

to remove.

Cleaning the shroud

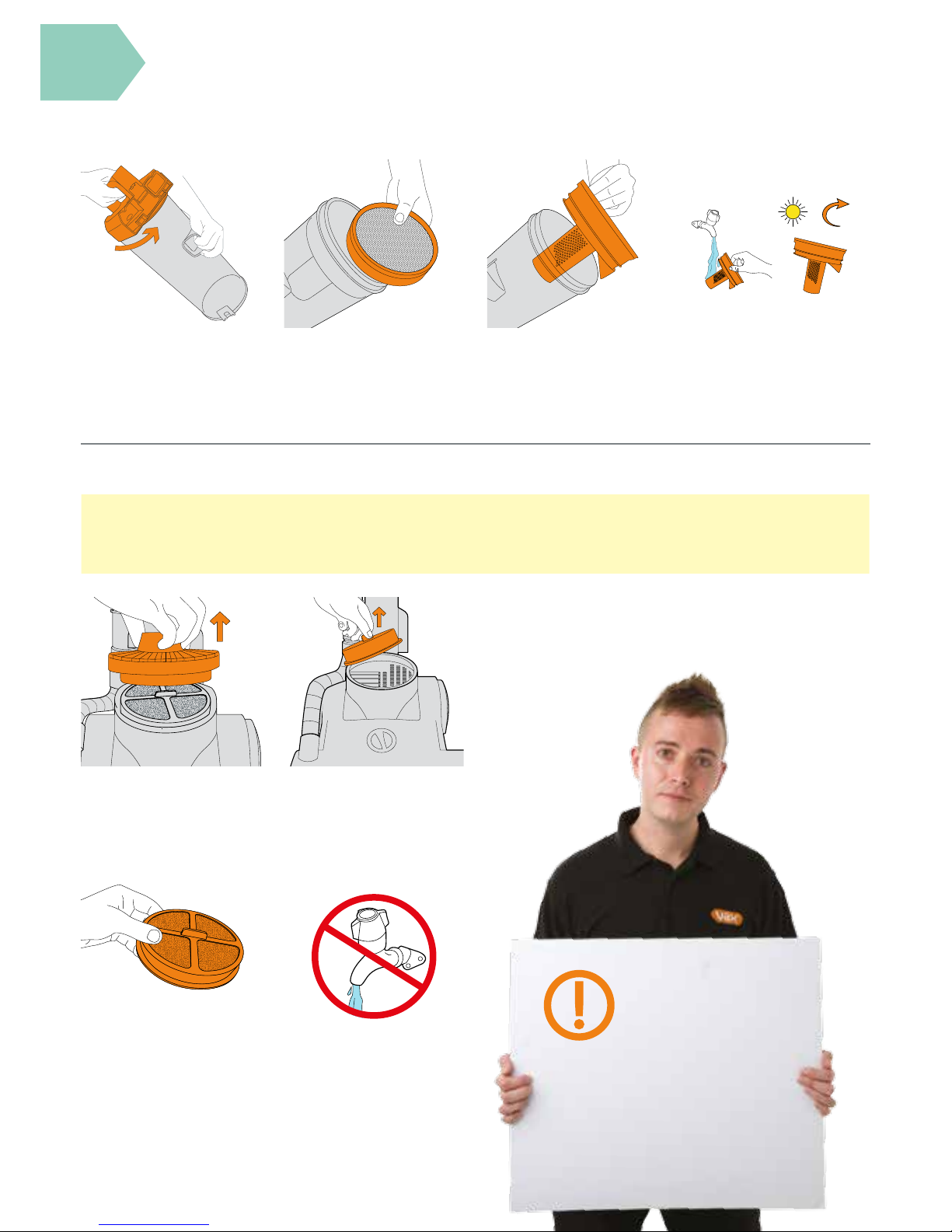

Post-motor lter maintenance

Remove the pre-motor

lter to allow access to

the shroud.

Tap the shroud over a bin

to remove dirt and debris.

Twist post-motor lter

cover anti-clockwise and

lift to remove.

Check the post-motor lter

for discolouration.

Remove the lter.

Let’s talk technical

Taking care of your machine

Wash the shroud under

running water and leave

to fully dry before placing

back into the machine.

Always switch the machine o

and unplug before carrying out

any maintenance.

IMPORTANT

IMPORTANT: The exhaust lter is designed to oer long life with no maintenance. The lter should be checked

periodically and when heavily discoloured it should be replaced. Please do not wash, scrub or brush the lter as this

will damage the delicate lter media.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vax Staubsauger Handbücher

Vax

Vax VXCB-01 Bedienungsanleitung

Vax

Vax VAU1200 Bedienungsanleitung

Vax

Vax U88-T4 series Bedienungsanleitung

Vax

Vax Cordless VII VX67 Bedienungsanleitung

Vax

Vax VGHV18 Bedienungsanleitung

Vax

Vax Essentials VEC-04 Bedienungsanleitung

Vax

Vax C88-AM-Be Bedienungsanleitung

Vax

Vax MULTIVAX 6131 SERIES Bedienungsanleitung

Vax

Vax POWER 7 Bedienungsanleitung

Vax

Vax VMUB1900 Bedienungsanleitung

Vax

Vax V-044B Series Bedienungsanleitung

Vax

Vax AIR U91-MAe Series Bedienungsanleitung

Vax

Vax C86-MA Series Bedienungsanleitung

Vax

Vax W85-PL-T Dual Power Pro Advance Bedienungsanleitung

Vax

Vax Agility Compact V-128 Bedienungsanleitung

Vax

Vax Essentials VEW-01 Bedienungsanleitung

Vax

Vax DynamoPower U85-DP-Be Bedienungsanleitung

Vax

Vax V-2300U Bedienungsanleitung

Vax

Vax C90-EL SERIES Bedienungsanleitung

Vax

Vax VX23 Series Bedienungsanleitung

Vax

Vax Magnum VZL-401AA Bedienungsanleitung

Vax

Vax Vivality V-0071 Produktinformationsblatt

Vax

Vax Impact 302 C86-ID-Pe Bedienungsanleitung

Vax

Vax VCW-01 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
