ASSEMBLY AND INSTALLATION

INSTRUCTIONS

.stnemeriuqergnidnuorgdnagniriwrofsedoclacirtcelelacoltlusnoc,gnillatsnierofeB.1:SETON

2. READ AND SAVE THESE INSTRUCTIONS.

T0503

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

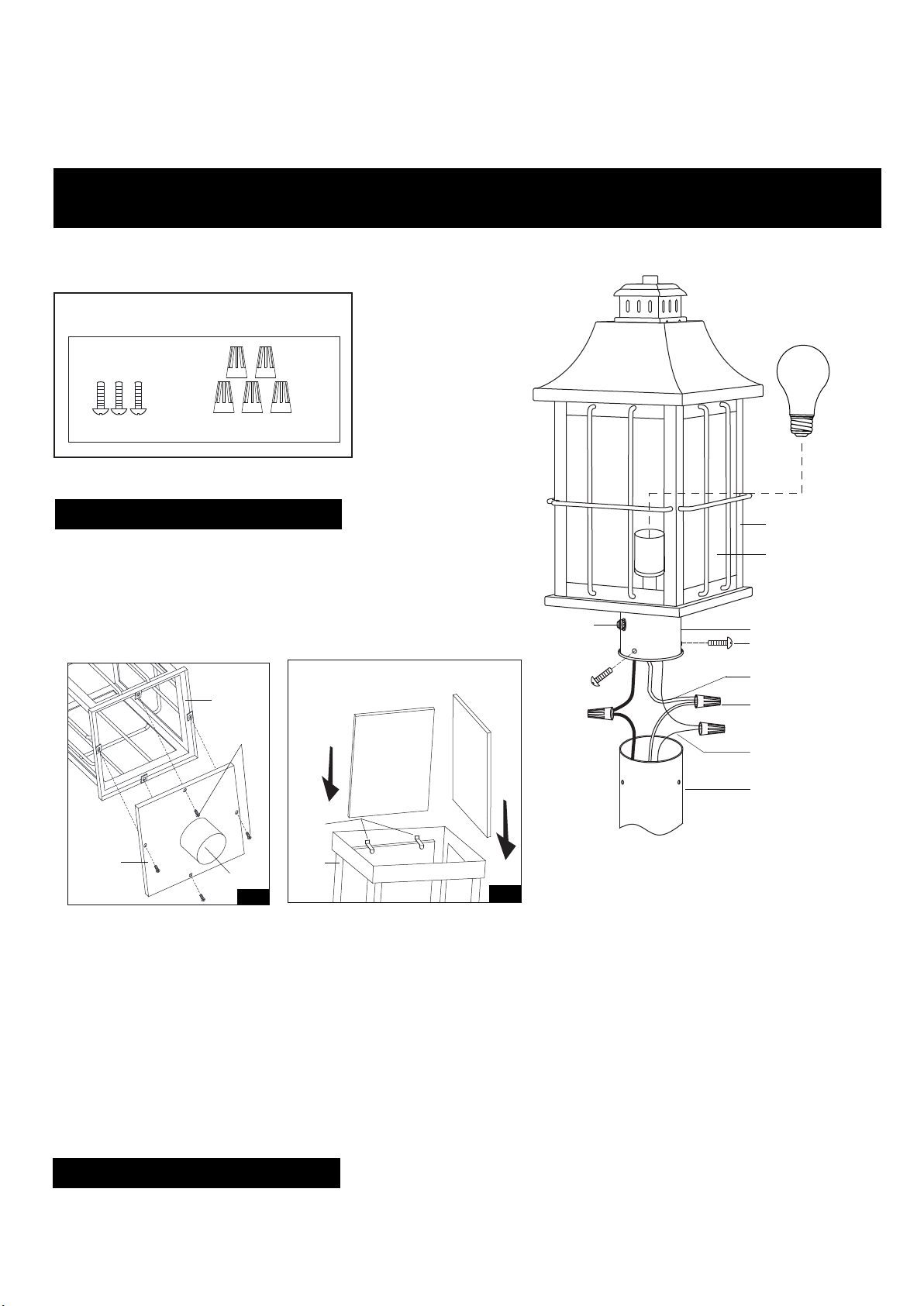

Installation Steps

181212

1. Unscrew the metal frame and the set screws on

the bottom frame. (Fig.1)

2. Make the bottom of the fixture upward, gently

place four glass panels into the metal frame,

then press the clips to secure the glass panels. (Fig.2)

Wire Connector (B)

Fitter Screw (A)

Fig.2

Glass Panel

Clip

Metal

Frame

Grounding Wire

Fixture Wire

Wire Connector (B)

Post

Fitter

Glass Panel

Metal Frame

Photocell

Fitter Screw (A)

3. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.

4. Pull out the wires and grounding wire from the post. Make wire connections using the wire connectors (B):

---The black wire from the fixture to the black wire from the post.

---The white wire from the fixture to the white wire from the post.

---The grounding wire from the fixture to the grounding wire from the post.

Carefully put the wires back into the post.

5. Place the fitter on the post, then secure it with the fitter screws (A).

CAUTION: With silicone caulking compound, caulk completely around where the fitter meets with the post

surface to prevent water from seeping into the post.

Fig.1

Metal

Frame

Set Screw

Fitter

Bottom

Frame

Bulb Type A Max.60W

(not included)

Turn on the power at fuse or circuit box

The following parts are available for re-order if damaged or missing.

181212

A:8"

B:18"

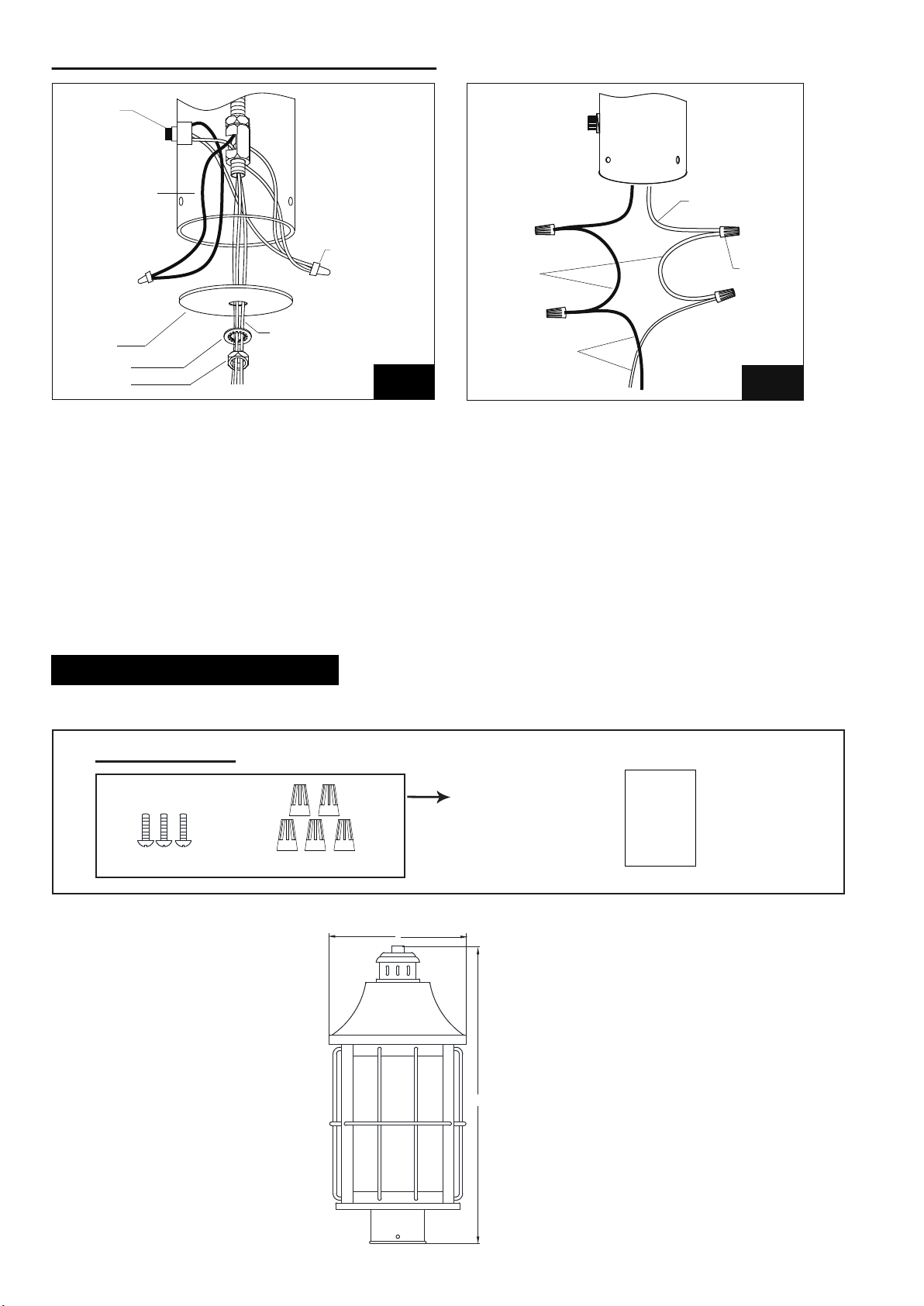

1. Turn off the power at the fuse or circuit box before starting installation.

2. Unthread the fitter screw and plate, and then Loosen the wire connectors connected with the

wires from photocell. (See Fig.3)

Note: Do not move the photocell to prevent water from seeping into the outlet box.

3. Take a white pigtail and black pigtail and make wire connections using wire connectors (B) : (See Fig.4)

a. The black wire from the fixture to one end of the black pigtail.

b. The white wire from the fixture to one end of the white pigtail.

c. The other end of the black pigtail to the black wire from the power source.

d. The other end of the white pigtail to the white wire from the power source.

Put all wires back into the back plate of the fixture.

Operation the Unit Without Photocell

Photocell

White Wires From

Photocell

Wire Connector

Wire Connector (B)

Black Wire From

Fixture

Wires From Fixture

Wires From

Main Power

White Pigtail

Pigtail

Red Wires From

Photocell

Black Wires From

Photocell

Fig.2 Fig.4

White Wire From

Fixture

Plate

Fitter Screw

Photocell

Wire Connector

Black Wire From

Fixture

White Pigtail

Fig.3

Plate

Washer

Hex Nut

Assembly Kit

6054MM (1SET)

Spare Parts List:

Glass Panel

10071RG (4PCS)

Wire Connector (B)

Fitter Screw (A)
