GNV30CB

Table of Contents

Section 1: Safety Precautions.....................................................4

Section 2: Box Contents.............................................................. 5

Section 3: Product Overview.......................................................6

3.1 – Monitor Buttons...............................................................6

3.2 – Monitor Ports...................................................................6

Section 4: Stand Installation.......................................................7

Section 5: Mount Installation ...................................................... 8

Section 6: Connectivity Options................................................. 9

6.1 – Connecting Your Earphones............................................9

6.2 – DP Connectivity ..............................................................9

6.3 – Connecting the Power Cable ..........................................10

6.4 – HDMI Connectivity..........................................................10

Section 7: Basic Operation.......................................................... 11

Section 8: Indicator Light ............................................................11

Section 9: OSD.............................................................................. 12

9.1 – OSD Menu Functions......................................................13

Section 10: RGB, LED Effects and Gameplus........................... 14

Section 11: Troubleshooting........................................................ 15

Section 12: Speciﬁcations........................................................... 16

Section 13: 1 Year Limited Hardware Warranty......................... 17

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources e.g: portable heaters or heating

vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication etc. not performed by an authorized technician

can result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

Section 2: Box Contents

Monitor x 1 Stand Stem x 1 Stand Base x 1

Power Adapter x 1

(DC 12V, 4.0A)

Cable Clip VESA Adapter x 1

Screws x 4

(for Stand Installation) DP Cable x 1

Screwdriver x 1 User Manual x 1

Extra screws may be included as backup.

Section 3: Product Overview

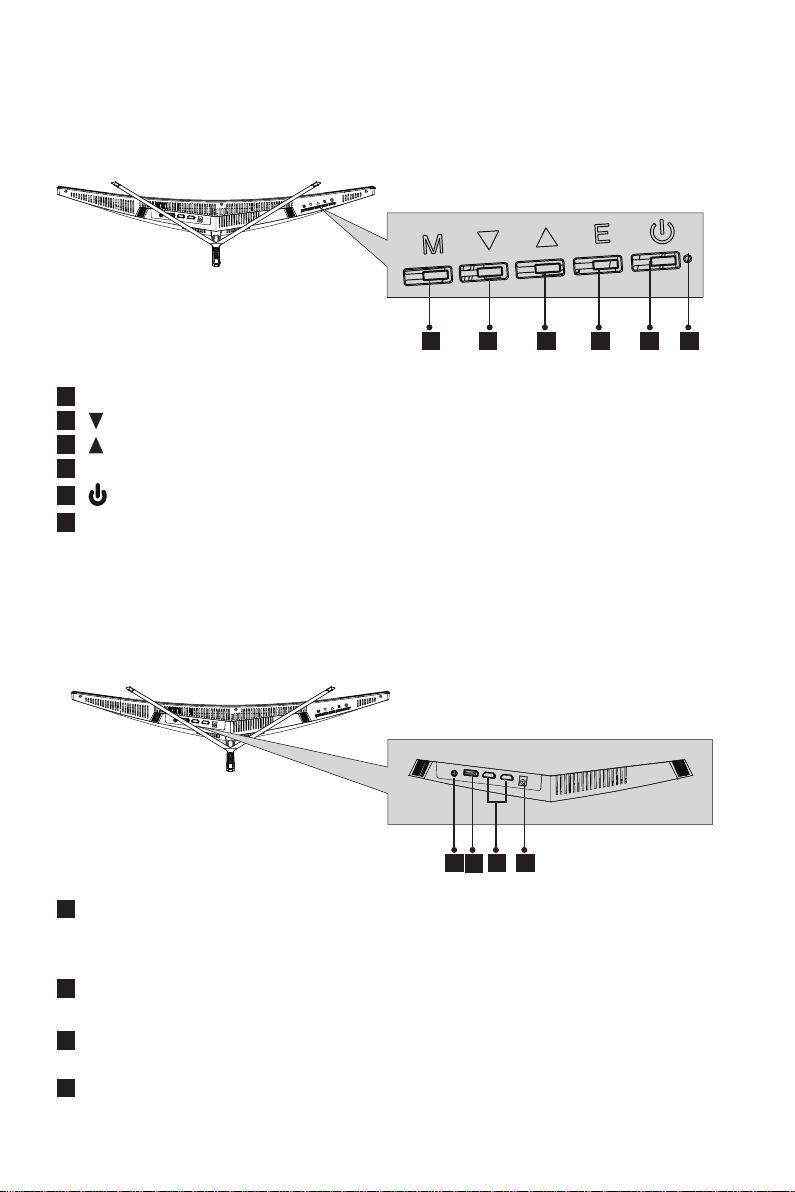

3.1 – Monitor Buttons

7 Audio Output: Insert one end of the audio cable into an external audio

source, e.g., speakers or headphones, to pass audio signals through the

monitor.

8 DP Connector: Insert one end of the DP cable into the computer’s DP output

and connect the other end to the monitor’s DP port.

9 HDMI Connectors: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

10 Power Connector: Insert the power cable to supply power to the monitor.

7 9 10

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 8.

3.2 – Monitor Ports

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package, take out the product with foam still attached, and gently place

it on a desktop or table. Next, take out the stem, cable clip, and base, use the

included screwdriver and two screws to fasten base to the stem.

Screws x 2

Stand Stem

Cable Clip

Base

2. Remove the foam covering the bottom of the monitor, and remove the rubber post

attached on stem. Use a screw to fasten the stem onto the monitor, then reinstall

the rubber post on the stem.

Rubber Post

Screw x 1

Make sure the monitor is laid on a at surface before removing the stand.

Section 5: Mount Installation

1. Open the package, take out the product with foam still attached, and gently

place it on a desktop or table. Remove the extra parts and the foam covering the

bottom of the monitor. If the monitor is already attached to the stand, remove it.

3. Use a screw to attach the included 75x75mm VESA adapter to the back of

monitor, then install the monitor on the wall, mount, or xture as desired.

Screw x 1

Mount

(not included)

Section 6: Connectivity Options

6.1 – Connecting Your Earphones

Plug in your earphones to receive audio signals from your monitor. If your earphones

are connected to the monitor and audio devices are connected to your computer

at the same time, the audio devices will not produce sound. Earphones and other

audio devices not included.

Earphones (not included)

Listening to loud audio for prolonged periods of time may permanently

damage your hearing.

6.2 – DP Connectivity

In order for the monitor to receive DP signals from the computer, use the DP cable

to connect the monitor to the computer.

DP OUTPUT

DP Cable (Included)

6.3 – Connecting the Power Cable

Connect the included power cable to the power connector, and then plug the other

end into an wall outlet.

Power Cable

6.4 – HDMI Connectivity

In order for the monitor to receive HDMI signals from the computer, use an HDMI

cable to connect the monitor to the computer.

HDMI OUTPUT

HDMI Cable (Not included)
