Viotek GFI24CBA Bedienungsanleitung

ORED GAMING MONIT

USER MANUAL

GFI24CBA

In order to continue serving our customers and providing the best products, our product

information including our user manuals may receive updates from time to time. Please

check our website for the latest user manuals and product materials.

Table of Contents

Section 1: Safety Precautions................................................................4

Section 2: Box Contents.........................................................................5

Section 3: Product Overview .................................................................6

3.1 – Monitor Button/Rocker...............................................................6

3.2 – Monitor Ports.............................................................................7

Section 4: Stand Installation..................................................................7

Section 5: Mount Installation .................................................................8

Section 6: Operations.............................................................................9

6.1 – Using the Monitor ......................................................................9

Section 7: Indicator Light .......................................................................10

Section 8: OSD ........................................................................................10

8.1 – OSD Menu Functions ................................................................11

Section 9: Enter Shortcut Menus ..........................................................12

Section 10: Troubleshooting..................................................................13

Section 11: Cleaning ...............................................................................14

Section 12: Information ..........................................................................14

12.1 – Specications ..........................................................................14

12.2 – Resolution Compatibility for DisplayPort.................................15

Section 13: Three-Year Limited Hardware Warranty ...........................16

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or

lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp

cloth, wait for your monitor to completely dry before plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking these

openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or heating vents,

as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen or any

part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it from

falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or

modication not performed by an authorized technician can result in damage to the

monitor and/or possible exposure to high voltage electricity which may lead to serious

injury or death.

VIOTEK shall not be held responsible for injury or damage of products or persons due to

failure to adhere to the aforementioned precautions or any others noted hereafter.

The terms HDMI and HDMI High-Denition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI

Licensing Administrator, Inc. in the United States and other countries.

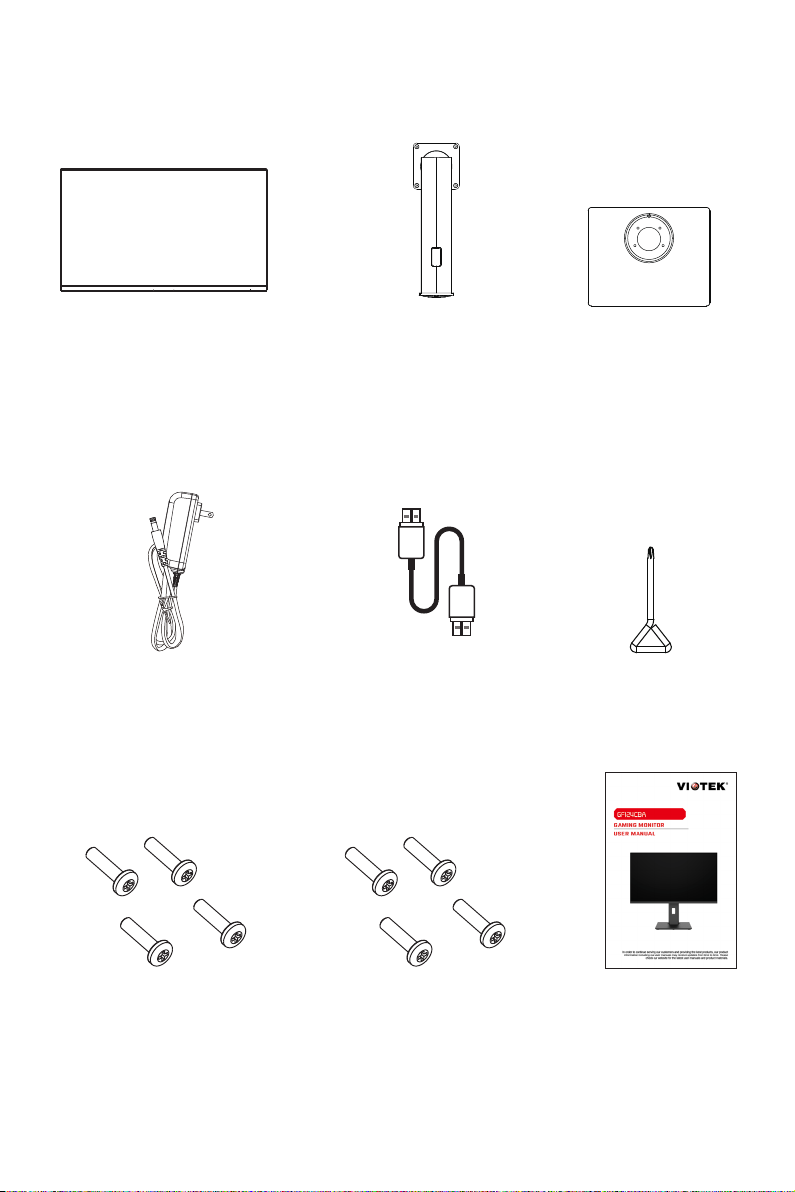

Monitor x 1 Stand Stem x 1 Stand Base x 1

Adapter x 1

M4*7mm Screws x 4 M4*8mm Screws x 4

Screwdriver x 1HDMI Cable x 1

User Manual x 1

Section 2: Box Contents

Rocker Button

Section 3: Product Overview

3.1 – Monitor Button/Rocker

Initial State:

Actions Description

Rocker Up Signal source input shortcut key

Rocker Down Volume adjustment shortcut key

Rocker Left Gameplus shortcut key

Rocker Right Preset shortcut key

Press Rocker Quick-press to turn on the display or enter the OSD menu.

Long-press to completely power-down the monitor.

Menu Navigation:

Actions Description

Rocker Up Move up / Adjust value

Rocker Down Move down / Adjust value

Rocker Left Return to previous menu

Rocker Right Enter next menu / Conrm settings

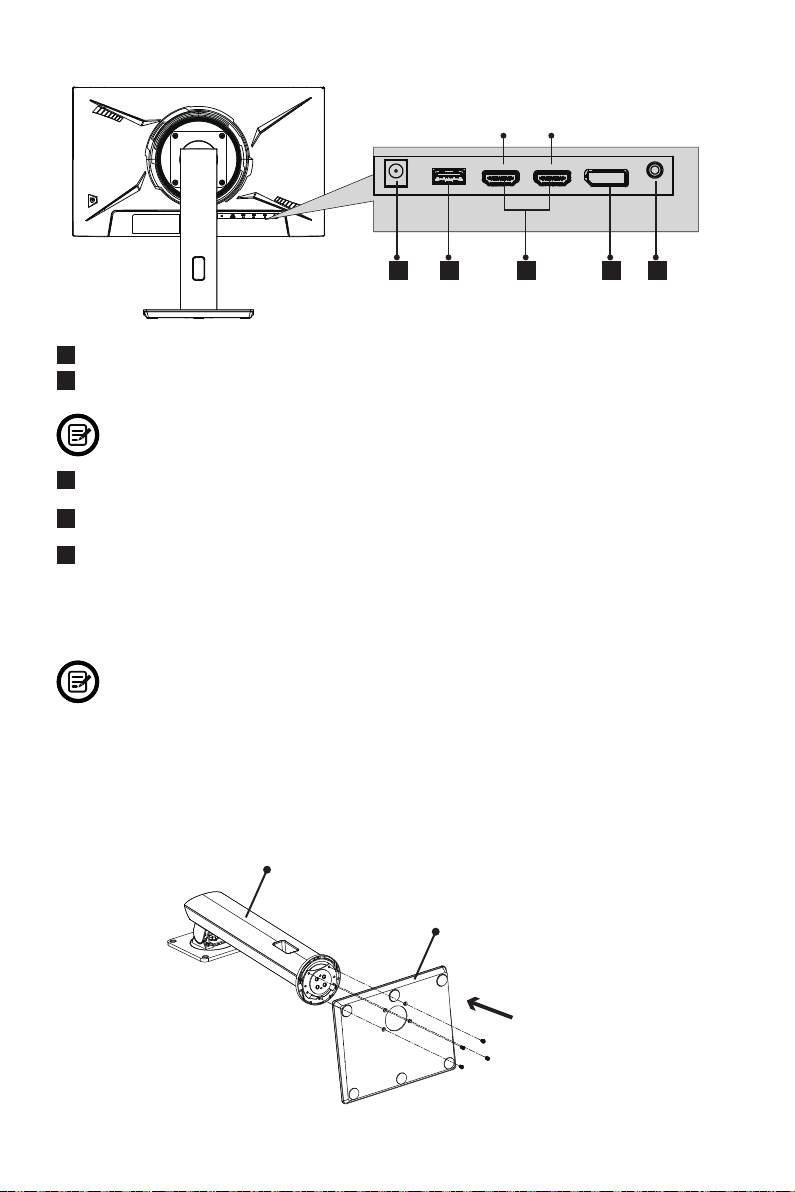

3.2 – Monitor Ports

1 32 4 5

1 Power Connector: Insert the power cable to supply power to the monitor.

2 USB Port: The USB port is only for rmware update using USB portable device. Do not

use this to connect to any other equipment.

Contact customer service if you need to upgrade the monitor’s software.

3 HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output

and connect the other end to the monitor’s HDMI port.

4 DP Connectors: Insert one end of the DP cable into the computer’s DP output and

connect the other end to the monitor’s DP port.

5 Audio Output:Insert the audio cable for output of audio signals.

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place

it face-down on a desktop or table.

2. Take out the stem and align the screws holes on the stand base, then use the

included 4x M4 (7 mm) screws to tighten the stem onto the base.

4x M4 (7mm) screws

Stand Stem

Stand Base

HDMI1 HDMI2

3. Use the 4x M4 (8mm) screws to secure the stand onto the VESA slot on the back

of monitor.

4x M4 (8mm) screws

4. Stand the monitor on a at, level desktop or table. Carefully remove the remaining

foam on the monitor once you are condent the monitor is stable.

Section 5: Mount Installation

1. Open the package and take out the product with foam still attached. Gently place it face

down on a desktop or table. Remove the extra parts and the foam covering the monitor.

2. If the monitor is already attached to the stand, remove the stand following the steps below:

- Take out the four main M4 (8 mm) screws of stand.

- Detach the stand from the monitor.

- Carefully store the stand for future use.

4x M4 (8mm) Screws

3. Connect the VESA mount accessory to the back of the monitor using the four M4 (8 mm)

screws.

Screw Holes x 4

* Supports 100x100mm VESA accessories.

4. Follow the directions received with your mount, stand, or accessory to install the monitor

on the wall or xture as desired.

Mount

(not included)

Section 6: Operations

6.1 – Using the Monitor

1. With the monitor and the PC powered off and unplugged, insert one end of the HDMI

cable into your PC’s HDMI port. For your convenience, an HDMI cable is included;

however, a DP cable (not included) may also be used.

2. Connect the other end of the cable to the corresponding connector on your monitor.

Power Connector HDMI Ports Audio Output

DP PortUSB Port

3. Connect the power cable to your monitor. Then connect the other end to your power

source. It is recommended that you use a surge protector with adequate voltage if a wall

outlet cannot be reached directly.

4. If the PC is unplugged, plug it back in and power it up. Locate and press the monitor’s the

power button to turn on the monitor.

Adaptive Sync

Adaptive sync eliminates image tearing, stuttering and ghosting by adjusting of a monitor’s

vertical refresh rate to the frame rate of the graphics card. It is compatible with GPUs that

use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off on VIOTEK monitors by

default and must be manually enabled in the monitor’s OSD (see Section 8: OSD). To use

this feature, the connecting device must be compatible with adaptive sync (FreeSync and/or

G-Sync); have the latest graphic drivers; and be connected to the monitor using a DisplayPort

(DP) cable.

Adaptive Sync is incompatible with MPRT mode. Enabling one will disable the other.

Section 7: Indicator Light

Solid blue light indicates power is on and the

monitor is operating normally. Flashing red light

indicates no video source has been detected or

the power is low. Please ensure your computer is

on and all video cables are fully inserted and/or

connected.

Section 8: OSD

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and

appears on screen after turning on the monitor and pressing the Rocker button on back

of the monitor.

When using the monitor for the rst time, settings will automatically adjust to optimal

settings according to your computer’s standard conguration settings.

1. Press the Rocker button to enter the OSD screen.

144Hz

2. Push the Rocker button up or down to browse functions.

a. Highlight the functions you want to set and push the Rocker button to the right to enter

the sub-menu.

b. Push the Rocker button up or down to browse the sub-menu. Then push the Rocker

button to the right to highlight the functions you want to set.

c. Push the Rocker button up or down to highlight the options. The push the Rocker

button to the right to conrm the settings and exit the current screen.

3. Push Rocker button to the left to return to exit the current screen and return to the

previous menu.

Indicator light
