Whispbar K138W Bedienungsanleitung

K138W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4

Revision No: 2C 1

Fitting Kit K138W

MAX kgs (lbs)

W/P WHD

Holden

Commodore VU/VY/VZ, 2dr Ute 03-07 NZ 25 kgs (55 lbs) 25 kgs (55 lbs)

Commodore VU/VY/VZ, 2dr Ute Dec 00-Aug 07 AU 25 kgs (55 lbs) 25 kgs (55 lbs)

Commodore VX/VY/VZ, 4dr Sedan Nov 00-Jul 06 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Commodore VX/VY/VZ, 4dr Sedan Nov 00-Jul 06 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Crewman , 4dr Ute Oct 03-07 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Crewman , 4dr Ute Oct 03-07 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Statesman WK, 4dr Sedan Apr 03-Jul 04 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Statesman WL, 4dr Sedan Aug 04-Jul 06 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K138W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K138W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K138W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●This setup is applicable for one crossbar

only.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 343A

Fitting Kit EN

K138W

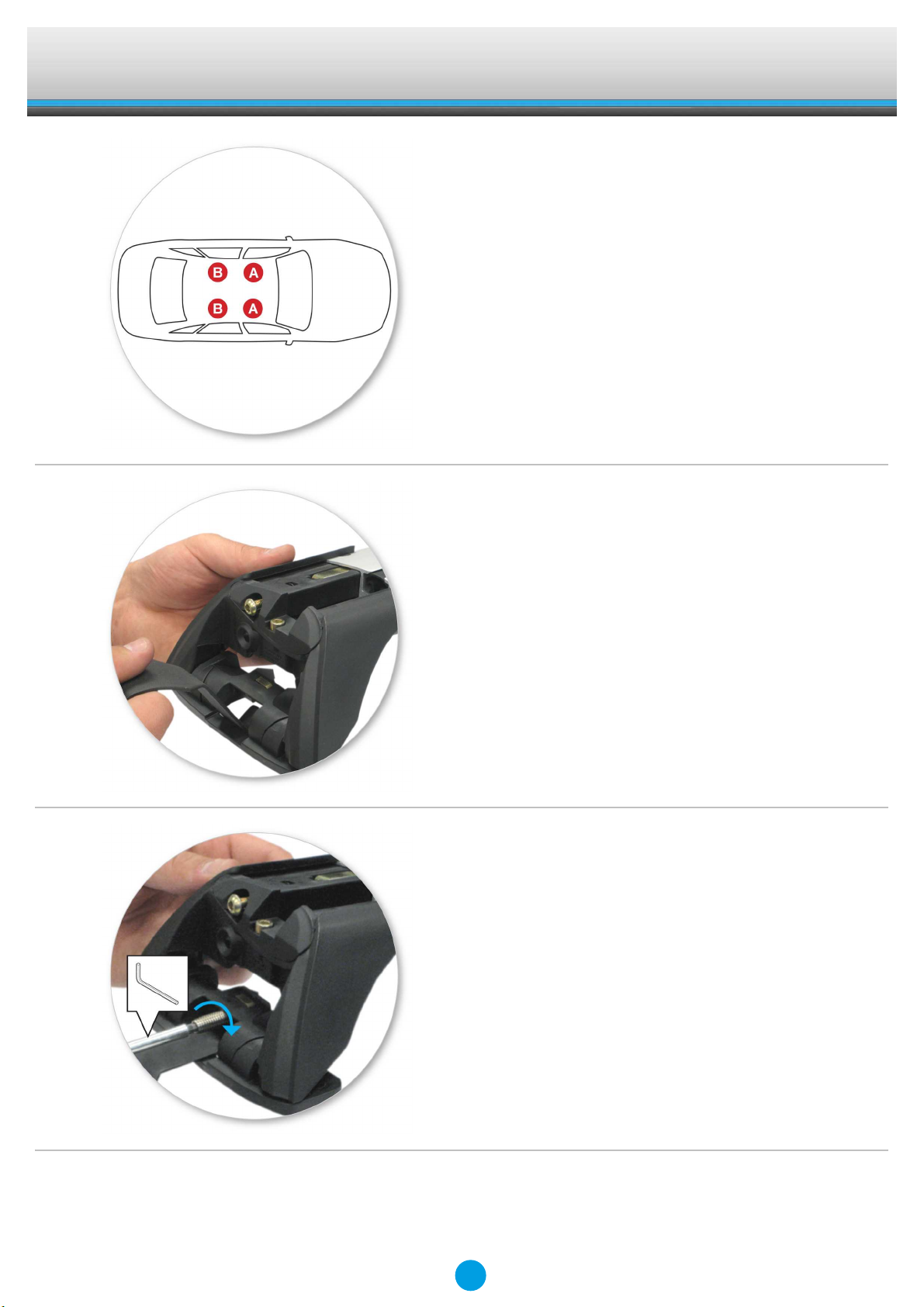

●This setup is applicable for two crossbars

only.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 343A

B = 344A

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

Fitting Kit EN

K138W

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Clamps over body trim.

Fitting Kit EN

K138W

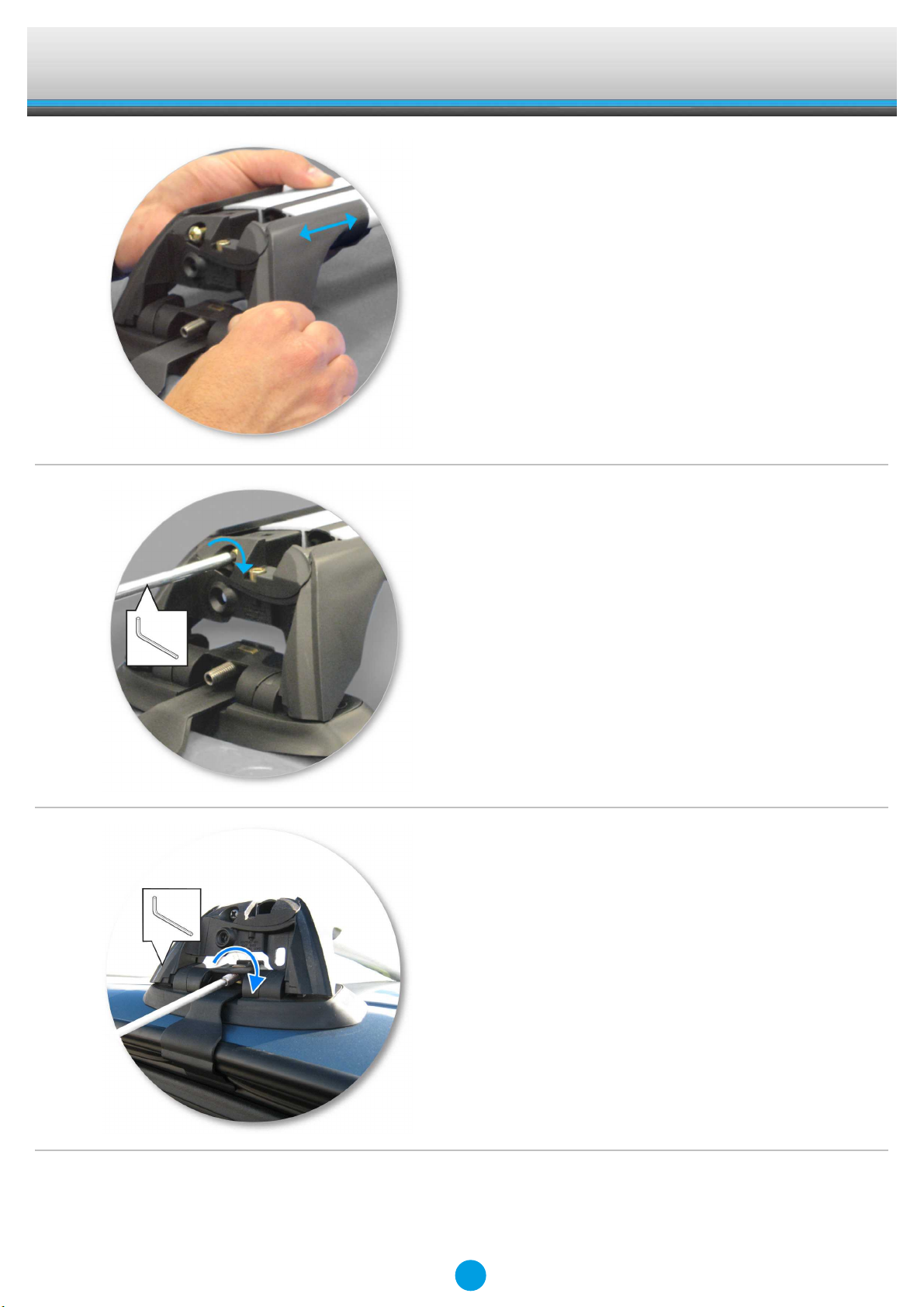

●Press adjusting screw to adjust the leg

positions on the crossbar.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

Fitting Kit EN

K138W

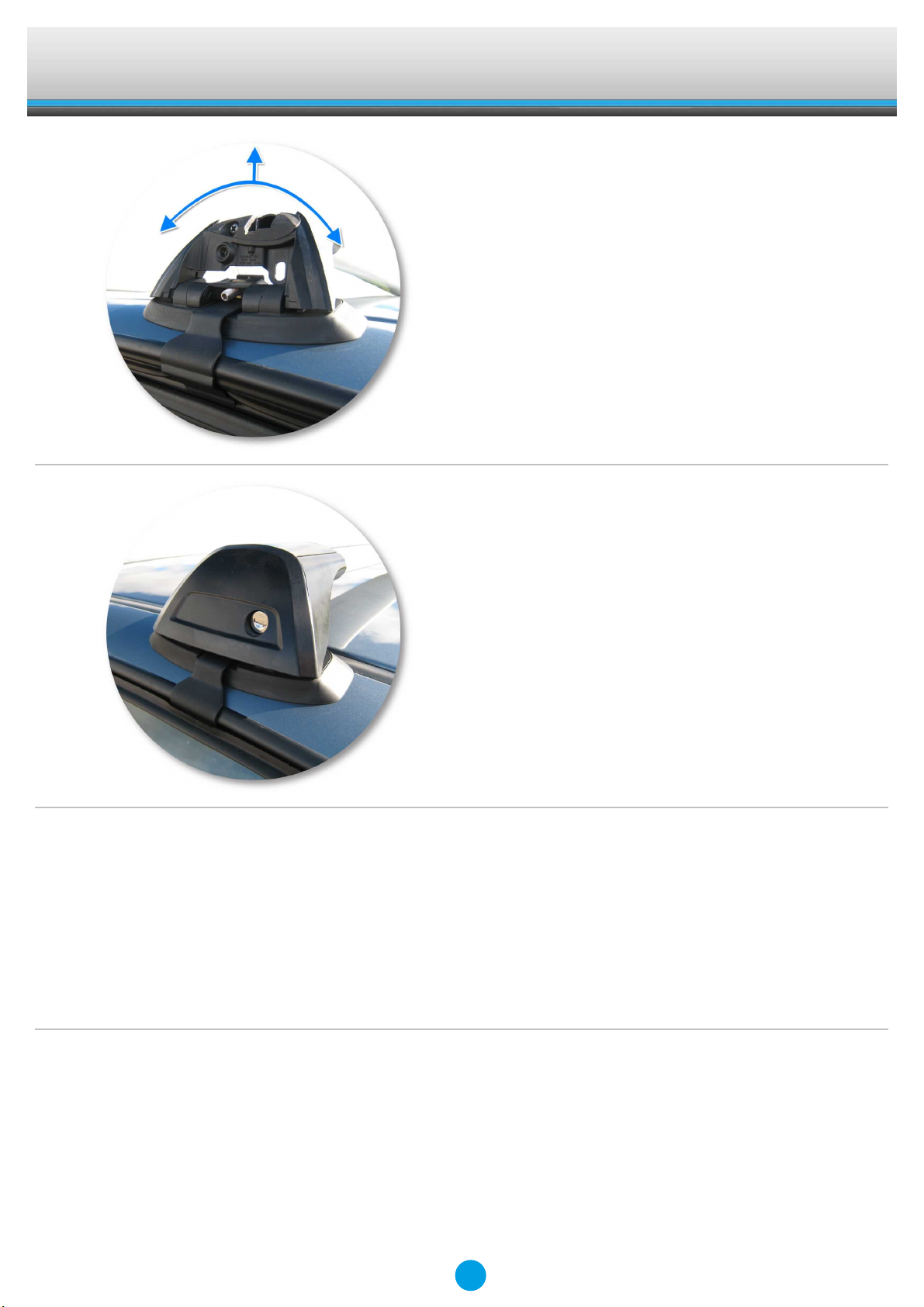

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Fitting Kit EN

K138W

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.
