Advantech PCLD-8811 Installations- und Betriebshandbuch

1 Startup Manual

Packing List

Before installation, please make sure that you have:

• 1 x Filter Board

• 2 x Screws

• 1 x Pair of Tweezers

If anything is missing or damaged, contact your

distributor or sales representative immediately.

Diagram

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCL-8811.

Part No: 2003881100 1st Edition

May 2015

STARTUP MANUAL

Features

PCLD-8811

Low-Pass Active Filter Board

General Specications

• The low-pass active filter has the flattest frequency

response as possible in the passband

• 8 set of low-pass Frequencies form 10Hz up to 40KHz

• 2 single-ended or 1 differential AI inputs

• Offset and gain calibration

General

• Connectors 2 x 5 pin male Connectors

• Dimensions 80 x 56 mm

• Filter Type Active Filter - Butterworth

• Offset Error ± 1 LSB ( LSB resolution refer to

taken DAQ spec. )

• Gain Error ± 1 LSB ( LSB resolution refer to

taken DAQ spec. )

• Filter Frequency -3dB,10Hz, 50Hz,100Hz, 500Hz

1KHz, 5KHz, 10KHz,40KHz

• Max. Input Voltage ± 10 V

• Input Impedance 1G Ω / 2pF

• Operating Temp. 0 ~ 60°C (32 ~ 140°F)

• Storage Temp -20~ 70°C (-4 ~ 158°F)

Getting Started

Before you can use the PCLD-8811, you must enable

filter function on PCLD-8810 (please refer to PCLD-

8810 Startup manual) and you can refer to the below

table to set up the cut-off frequency.

1. Plug the PCLD-8811 onto the PCLD-8810

2. Screw the pillars to the cylinders.

Note: Ensure that the pillar is aligned to the cylinder.

Startup Manual 2

STARTUP MANUAL

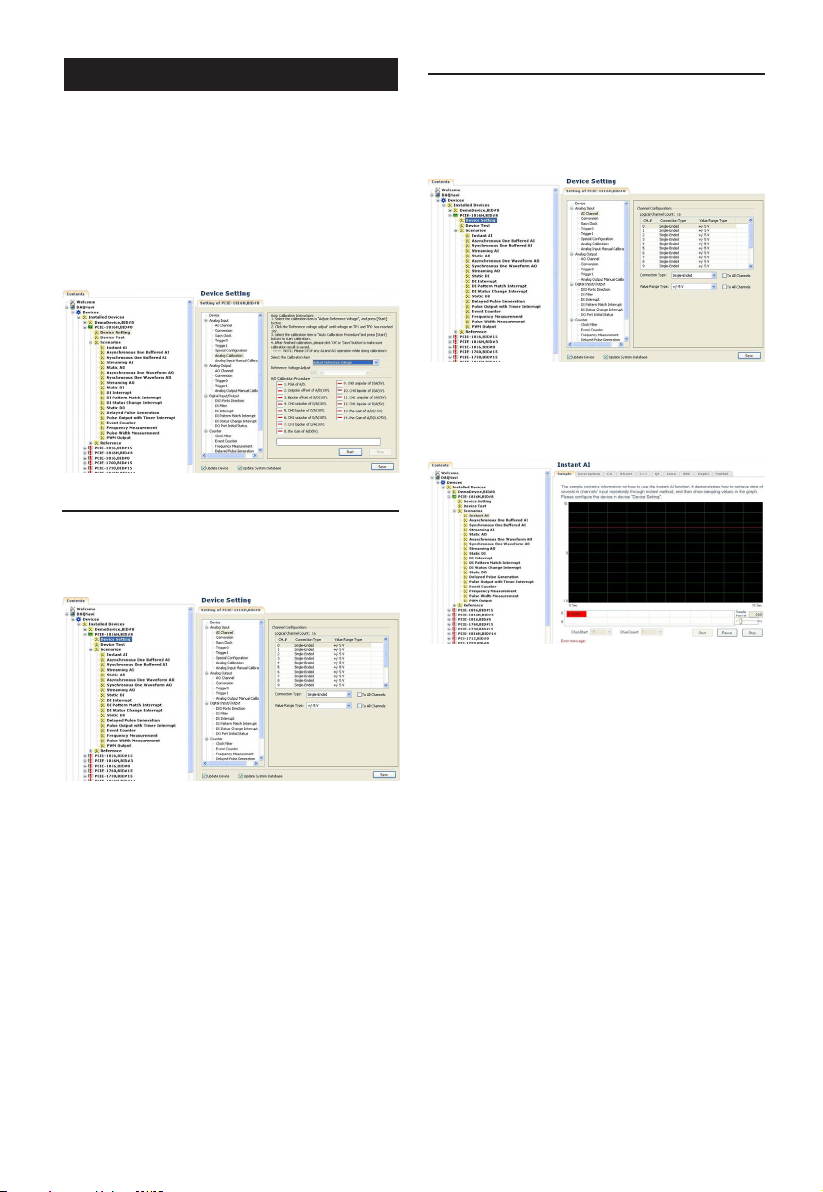

Calibration Process

Before you can use PCLD-8811 to acquire data cor-

rectly, you must have offset and gain calibration.

Disconnect PCLD-8810 and open the DAQNavi to

view the Device as Figure 1 .

1. Select Device Setting and click Analog

Calibration.

2. Click Adjust Reference Voltage first and then

click Auto Calibration Procedure to finish

auto calibration.

Offset Calibration

Connect PCIE-1816H to the PCLD-8810, and

PCLD-8811 need to be installed onto which channel

you want to calibrate AI 15 connect to AGND on

PCLD-8810.

2. Input a 4.999V to AI15 and Adjust VR4 until the

value approach to 4.999.

NOTE: please adjust VR3 if the channel number is

Even. (e.g. 0,2,4, ...)

Gain Calibration

After offset calibration finished, please execute gain

calibration as follow:

1. Click Device Setting and Setting Connect

Type and Value Range Type of AI Chan-

nel.

1. Click Instant AI.

2. Setting ChanStart =15 and ChanCount =1

3. Click Start to continuously acquire data of AI 15.

4. Adjust VR2 until the value approach to 0.000.

NOTE: please adjust VR1 if the channel number is

Even. (e.g. 0,2,4, ...)
