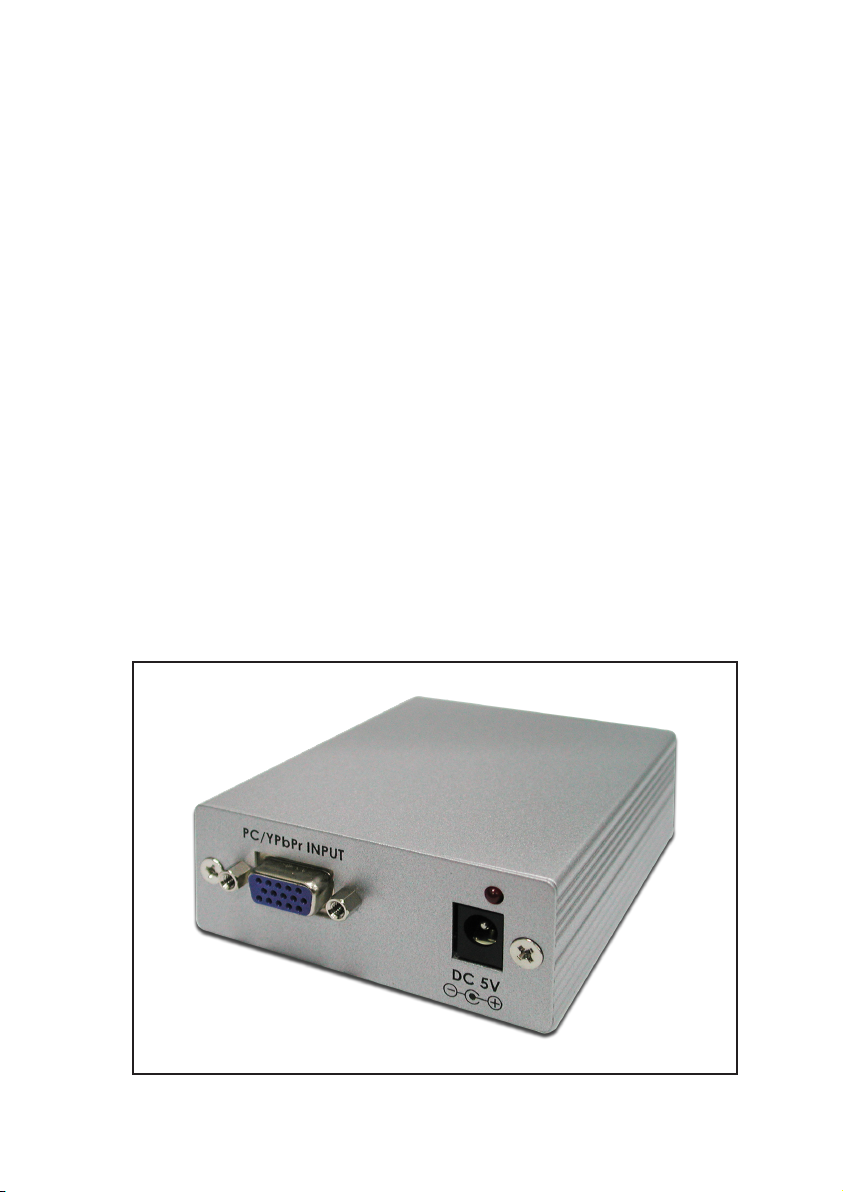

CYP CP-1261D Bedienungsanleitung

PC/HD to DVI

Format Converter

Operation Manual

CP-1261D

Revision History

Version No. Date Summary of Change

V1 20081027 Preliminary Release

Precautions

Failure to follow the precautions described below may cause damage to the

converter box and void the warranty.

DO NOT open the case. Doing so will void the warranty. If you find

problem with it, please return back to your retailer or seller who will

assist you or provide you with solution.

DO NOT use third-Party AC adapter or power cord. Doing so may

damage the PC/HD to DV Format Converter.

DO NOT bump, jar or drop contents of the products as it may

damage it and result in warranty void.

DO NOT set any liquids or beverages on the drive as they may

damage the PC/HD to DV Format Converter.

1. Introduction.....……….…………………………………................................

2. Applications.............................………………………………………….....…

3. Package Contents.....…..........………………………………………...…….

4. System Requirements......................………………………………………....

5. Features................................….……………………………………...………..

6. Operation Controls and Functions.................………...................………

7. Specifications...............................…..………………………………...………

8. DVI-Pin Configuration.......................…………………………………...……

9. Connection and Installation...................…………………………………...

Table of Contents

1. Introduction

This is a PC/HD to DVI format converter box. This box can convert and upgrade

your display image from analog into digital and VA into HD. Whether your

sources comes in from PC or traditional RGB signal through the PC/HD to DVI

Format Converter, the image will be transformed into DVI signal.

2. Applications

 Analog PC/HD signal to digital LCD monitor.

3. Package Contents

 PC/HD to DVI Format Converter x 1

 Switching power supply adaptor x 1

 HD-15 VGA to 3 RCA cable x 1

 Operation manual x 1

4. System Requirements

PC/DVD or other source input and HDTV, projector, monitor or other output

equipment.

5. Features

 Connect computers with analog PC output or DVDs with HD output to

digital DVI-I monitors or projectors.

 Select input between analog RGB and YPbPr manually.

 Select output between Bypass or digital RGB manually.

 Supports up to 1920 x 1200 @ 60 RB for PC input and 1920 x 1080p @ 60 Hz

for HD input.

 Built-in EDID

DVI-I OUTPUT OUTPUT

RGB

Bypass

INPUT

RGB

YPbPr

PC/YPbPr INPUT

Front Panel Rear Panel

1 2 45 6

6. Operation Controls and Functions

①HD-15 D-Sub input: Connects to the PC or YPbPr source equipment,

using VGA cable, or D-Sub to 3 RCA adaptor cable.

②DC 5V power input jack.

③Power LED light.

④DVI-I output: Connects to the DVI input of your display TV through DVI cable.

⑤Input format switch:

- Set the switch to YPbPr when the output format of your source equipment

is component YPbPr. Use VGA to 3 RCA adaptor cable to connect

between your source equipment and the unit.

- Set the switch to RGB when the output format of your source equipment is

RGBHV. Use- HD-15 D-Sub VGA cable to connect between your source

equipment and the unit.

⑥Output format switch:

When the input is YPbPr set the switch to bypass for digital YPbPr out, set the

switch to RGB for digital RGB out.

When the input is RGB, set the switch to either position for the digital RGB out.

There is no YPbPr out for RGB input.

DC 5V

Input

YPbPr RGB

RGB RGB

Bypass

RGB

Input SW.

Output SW. Output

7. Specifications

Input

Input Signal

Output

Output Signal

Compliant With DVI Rev 1.0

Operation Frequency

Input/ Output Resolution

Dimensions (mm)

Power

EDID

Analog HD-15 (RGBHV or YPbPr)

RGB: 0.7 Vp-p 75 ohm

H + V: 3 to 5 Vp-p

or Y :1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm

DVI-I connector (only DVI-D output)

Digital RGB or YPbPr data bit stream

up to 165MHz

PC：640x480=VGA60、VGA72、VGA75、

VGA85

PC：640x480=VGA60、VGA72、VGA75、

VGA85

800x600=SVTA56、SVGA60、SVGA72、

SVGA75、SVGA85

1024x768=XGA60、XGA70、XGA75、XGA85

1152x864=MAC70、MAC75、MAC85

1280x768=WXGA60RB、WXGA60

1280x800=WXGA60RB、WXGA60、WXGA75

1288x1024=SXGA60、SXGA75、SXGA85、

1440x900=WXGA+60RB、WXGA+60、WXGA+75

1600x1200=UXGA60

1680x1050=WSXGA+60RB、WSXGA+60

1920x1200=WUXGA60 Reduced Blanking

(pixel-rate/154MHz)

HD/RGB：480i60、576i50、480P60、576P50、

720P60、720P50、1080P60、

1080P50、1080P60、1080P50、

1080P30

Some PC monitor do not supports HD mode.

76(W)x 30(H)x105(D)

5V 500mA~2A Center-positive

Built-in

9. Connection and Installation

Monitor,HDTV,Projector

Computer PC/HD to DVI

Format Converter

DVD

Component IN

YPbPr to

VGA cable

YPbPr

DVI Cable

VGACable

RGB IN

Combined Analog and Digital Connector Pin Assignments

Pin Signal Assignment Pin Signal Assignment

T.M.D.S. Data2/4 Shield

DDC Clock

DDC Data

T.M.D.S Data1-

T.M.D.S. Data1+

T.M.D.S. Data1/3 Shield

+5V Power

Ground

(Return for +5V, Hsync, and Vsync)

Hot Plug Detect

Ground

Pin Signal Assignment

T.M.D.S Data0-

T.M.D.S. Data0+

T.M.D.S. Data0/5 Shield

T.M.D.S. Clock Shield

T.M.D.S. Clock+

T.M.D.S. Clock-

8. DVI-I Pin Configuration

1 8 C1 C2

17 24

DVI-Integrated(DVI-I): Supports both analog and digital connections to the

display. This 29-pin connector can carry single or dual-link all-digital video/

data signals on 24 pins and uses 5 pins to carry analog video/data signals

and ground.

20081106 MPM-1261D

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
