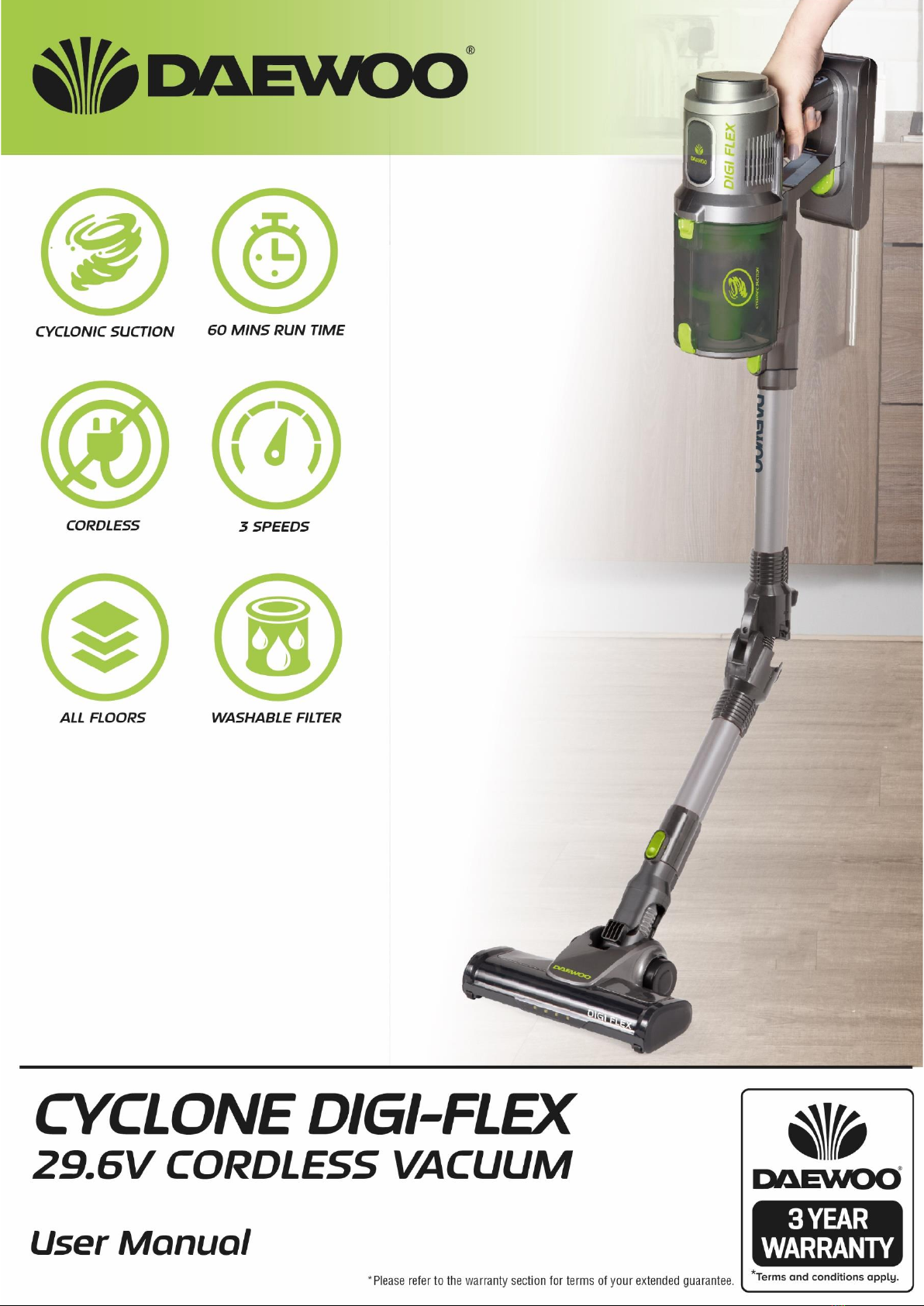

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should

always be followed. These instructions should be saved for future

reference:

•Read and familiarise yourself with all operating instructions before

using this Vacuum Cleaner.

•Before plugging your unit into the mains, visually check that the unit is

intact and has not suffered any transit damage.

•Check that the voltage indicated on the data plate corresponds with

that of the local network before connecting the appliance to the mains

power supply.

•This appliance can be used by persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

•Children shall not play with the appliance.

•Keep the appliance and its cord out of reach of children less than 8

years when it is energised or cooling down.

•Do not immerse the appliance or its cord in water or any other liquids.

•Do not leave the appliance unattended during use.

•Do not leave the appliance unattended whilst connected to the mains

supply.

•Do not use this appliance outdoors.

•It is imperative to unplug the power cord after the appliance has been

used, before it is cleaned and whilst being repaired.

•Repairs to electrical appliances should only be performed by a qualified

electrician. Improper repairs may place user at serious risk.

•Do not operate this appliance with a damaged plug or cord, after a

malfunction or after being dropped or damaged in any way.

•Regular, periodic checks should be carried out on the mains cable to

•ensure no damage is evident. Should there be any signs of damage the

appliance should not be used.

•If the power cable is damaged, it should only be replaced by the

manufacturer or a suitable qualified after-sales-service in order to

avoid a hazard

•Do not allow the mains cable to hang over sharp edges or come in

contact with hot surfaces.

•Allow the unit to cool before storage.

•Before cleaning, disconnect the appliance from the mains supply and

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

allow to cool.

•This appliance is intended for household use only and should not be

used for industrial purposes.

•Do not use any accessories or attachments with this appliance other

than those supplied or recommended by supplier.

•Do not use this appliance for anything other than its intended use.

•Do not push objects into any openings as damage to the appliance

and/or electric shock may occur.

•Unplug after each use. Grasp the plug, not the cord.

•Do not pull or carry the Vacuum Cleaner by the electrical cord, use the

handle provided.

•Ensure fingers and other objects are never placed in any part of the

vacuum cleaner. Clothing or hair may become trapped if thevacuum is

used improperly.

•Keep hair, loose clothing, jewellery, fingers and all parts of the body

away from openings and moving parts.

•Keep all air vents clear and free of dust, lint, hair and anything else that

may reduce airflow.

•Avoid directing the appliance towards naked flames as the air

discharged may extinguish gas fires or pilot lights and may disturb

ashes in open fires.

•Do not Vacuum water or any other liquids with this vacuum.

•Do not Vacuum hot ashes or lit cigarettes, etc.

•Never use the appliance without the filter in place.

•Do not use the Vacuum without the Dust Compartment attached.

•Do not vacuum any large or broken objects such as glass.

•Do not vacuum anything that is burning or smoking such as cigarettes,

matches or hot ashes.

Waste batteries should not be disposed of with household waste. Please recycle

where facilities exist. Check with your Local Authority or retailer for recycling advice.

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Description of Parts

Description of Parts –Accessories

1. Dust Release Catch

2. Hepa & Cyclonic Filters

3. Dust Compartment

4. Dust Compartment Catch

5. Air Outlet

6. Motor Housing

7. Display Panel

8. On/Off Trigger Switch

9. Handle

10.Battery Compartment

11.Charging Socket

12.Battery Compartment Catch

13.Air Intake

14.Attachment Release Catch

15.Dust Compartment Cover

16.Motorise Floor Tool

17.Crevice & Upholstery Tool

18.Small Power Plug

19.Mains Charger

20.Wall Mount Bracket

21.Aluminium Flexi-Tube

22.Carpet Brush

23.Hard Floor Roller

24.Long Reach Crevice Tool

22.Carpet Brush

23.Hard Floor Roller

24.Long Reach Crevice Tool

25.Information Screen

26.Battery Charge Display

27.Dust Sensor Failure

28.High Speed

29.Intelligent AUTO Mode

30.Battery Indicator

31.Brush Blockage Indicator

32.Air Intake Blockage Indicator

33.Eco Speed

34.Speed/Suction Indicator

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Before the first time you use your Cordless Vacuum Cleaner

Please read these operating instructions thoroughly and keep them in a safe place for future

reference.

Remove all packing materials and discard responsibly.

Charging the internal Battery

Before use, please ensure that the internal rechargeable battery is fully charged as follows:

1. Insert the Small Power Plug (18) of the Mains Charger (19) into the Charging Socket (11).

2. Plug the Mains Charger (19) into the nearest mains socket.

3. The Battery Indicator (30) will flash green and the Battery Charge Display (26) will count

up to 100% as the internal battery charges.

4. Once the battery is fully charged (after approximately 5 hours), the Battery Charge Display

(26) will display 100 (arrowed below) showing that the internal battery is 100% fully

charged and the Mains Charger (19) can now be removed.

Attaching the Accessories

CAUTION Ensure that the vacuum cleaner is not connected to the mains charger before use.

The Floor Attachment

1. Push the Aluminium Flexi Tube (21) onto the Air Intake (13) until it clicks home as shown

below:

2. Push the Motorised Floor Tool (16) onto the other end of the Aluminium Flexi Tube (21)

again until it clicks home.

NB The internal battery will need

recharging when the Battery

Indicator (30) flashes red and the

Battery Charge Display (26) reads a

low value (less than 10%). Follow

the above procedure (1 –4) to

recharge the internal battery.

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Using Your Cordless Vacuum Cleaner

The Motorised Floor Tool (16)

3. Place the brush bearing (c.) onto the end of the Hard Floor Roller (23) as shown above

left. Once in place, insert the Hard Floor Roller (23) into the Motorised Floor Tool (16) as

shown above right.

1. Before using the Motorised Floor Tool (16),

first choose the appropriate brush type for

the floor type being cleaned:

Select the Carpet Brush (22) for vacuum

cleaning carpets, rugs, etc.

Select the Hard Floor Roller (23) for

cleaning vinyl, laminate, tiled floors, etc.

2. To change the brush attachment,

slide the catch (a) to the left and lift

up the brush bearing retaining clip (b)

on the underside of the Motorised

Floor Tool (16) as shown left.

NB the Carpet Brush (22) is currently

fitted in this example.

Lift out the Carpet Brush (22) and the

brush bearing (c). Remove the brush

bearing from the Carpet Brush (22).

4. Finally, hook the brush bearing retaining

clip at the front edge (d) and push down

into until it clicks into place (e) as shown

left.

The vacuum is now ready to clean hard

floors.

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Using Your Cyclone Digi-Flex Vacuum

1. Right: Grasp the vacuum cleaner firmly by

the Handle (9) and press the On/off

Trigger Switch (8) to power up the

cleaner.

3. Right: Place your foot gently on the Motorised

Floor Tool (16) and pull the cleaner back by the

Handle (9) and start vacuum cleaning.

Press the On/off Trigger Switch (8) again at the

end of cleaning to switch the cleaner off.

Far Right: Press the catch on the Flexi joint

(arrowed right) to release the Aluminium Flexi

Tube (21) so that the tube can bend in order to

clean under furniture and other close to the

ground objects.

4. Left: If the Aluminium Flexi Tube (21) is not

required, the Motorised Floor Tool (16) can

be attached directly to the vacuum as shown

left for cleaning hard to get at areas such as

stairs, car seats, etc.

2. Left: During use, on the Information

Screen (25), press the Eco Speed (33) to

lower the vacuum speed/suction or High

Speed (28) to increase speed/suction. The

Speed/Suction Indicator (34) will move to

show the current speed/suction level (low

to high).

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

Using the Crevice & Upholstery Tool (17)

1. Attach the Crevice Tool & Upholstery Tool (17) onto the Aluminium Flexi Tube (21) to

clean carpet edges and hard to get at areas:

2. If the Aluminium Flexi Tube (21) is not required, attach the Crevice Tool & Upholstery

Tool (17) directly to the cleaner, this useful for cleaning soft furnishings, car seats, stairs,

etc.:

Left: Slide the brush back on

the tool to reveal the crevice

tool to clean carpet edges,

etc. Alternatively use the

Long Reach Crevice Tool

(24).

Right: Pull the brush down

on the tool to clean curtains,

upholstery, etc.

Above: Using the Crevice Tool &

Upholstery Tool (17) on Upholstery.

Above: Using the Crevice Tool &

Upholstery Tool (17) to clean the car.

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

1. Once the dust level reaches the ‘MAX’

mark (arrowed left) on the Dust

Compartment (3) it will need emptying

and the filters cleaned.

3. Hold the Dust Compartment (3) and

press the Dust Compartment Catch

(4) arrowed left and lift up the dust

compartment and remove.

2. To empty the cleaner, hold the Dust Compartment

(3) over a dust bin as shown right and press the

Dust Release Catch (1) (arrowed right) and the

Dust Compartment Cover (15) of the dust

compartment will swing open and allow the

collected dust to fall out into the dust bin.

Emptying and Cleaning Your Cyclone Digi-Flex Vacuum Cleaner

WARNING Always disconnect the cleaner from the mains charger before cleaning.

WARNING do not continue to use your vacuum cleaner once the ‘MAX’ mark has been

reached as permanent damage may occur to the appliance.

Cyclone Digi Flex Cordless Vacuum

FLR00041

User Manual

IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

4. Remove the Hepa & Cyclonic Filters

(2) from the Dust Compartment (3)

as shown right:

5. Above: Wash the Hepa & Cyclonic Filters (2) in warm running water until

clean. Allow the filters to dry thoroughly for 24 hours before reuse.

Dieses Handbuch passt für folgende Modelle

Andere Daewoo Staubsauger Handbücher

Daewoo

Daewoo RC-350 Bedienungsanleitung

Daewoo

Daewoo HURRICANE CAT 3 Bedienungsanleitung

Daewoo

Daewoo CYCLONE ESSENTIAL Bedienungsanleitung

Daewoo

Daewoo RC-450 Bedienungsanleitung

Daewoo

Daewoo Tornado Essential Bedienungsanleitung

Daewoo

Daewoo TORNADO F1 Bedienungsanleitung

Daewoo

Daewoo Daema RCW-120AW Bedienungsanleitung

Daewoo

Daewoo RC-6003F Bedienungsanleitung

Daewoo

Daewoo DAWF15L Bedienungsanleitung

Daewoo

Daewoo Tornado Lyte Bedienungsanleitung

Daewoo

Daewoo RC-230 Bedienungsanleitung

Daewoo

Daewoo COMPACT PRO Bedienungsanleitung

Daewoo

Daewoo RC-4085BLBA Bedienungsanleitung

Daewoo

Daewoo TORNADO FREEDOM FLR00044 Bedienungsanleitung

Daewoo

Daewoo RC-450 Bedienungsanleitung

Daewoo

Daewoo RCC-153 Bedienungsanleitung

Daewoo

Daewoo RC-1780GA Bedienungsanleitung

Daewoo

Daewoo RC-150R Bedienungsanleitung

Daewoo

Daewoo HURRICANE CAT 5 Bedienungsanleitung

Daewoo

Daewoo Cyclone Freedom FLR00010 Bedienungsanleitung

Daewoo

Daewoo DALVC18-15L Bedienungsanleitung

Daewoo

Daewoo RC-800 Bedienungsanleitung

Daewoo

Daewoo RC-2200 Bedienungsanleitung

Daewoo

Daewoo RC-400B Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
