IPL Pro Series • Setup Guide

The Extron IPL Pro Series IP Link®Pro Control Processors integrate Ethernet connection into AV systems to allow users to

remotely control, monitor, and troubleshoot AV equipment, including display

devices and switchers. These control processors include an

embedded web server and support for

power over Ethernet (PoE). Depending on

the model, an IPLPro control processor can

include multiple bidirectional serial ports

for use in applications that require control

and monitoring of multiple devices within a

large-scale AV system.

This guide provides instructions for an experienced installer to install an IPLPro Series control processor and to create a

basic configuration. Configure the control processor using Extron Global Configurator software running in Global Configurator

Professional (GCProfessional) or Global Configurator Plus (GC Plus) mode. The IPL integrates seamlessly with Extron

GlobalViewer®Enterprise (GVE) software and the GlobalViewer web-based AV resource management for remote control

applications. These control processors support multiple TouchLink®Pro touchpanel interfaces over a standard Ethernet network.

Global Configurator and other useful software applications are available at www.extron.com.

Setup Checklist: How to Proceed With Installation

Get Ready

Familiarize yourself with the features of the control processor (see Front Panel Features on page3 and Rear Panel

Features on page3) and of any TouchLinkPro touchpanels that will be part of the system.

Download and install the latest version of the following:

• Global Configurator (GC) software — for setting up and configuring the control processor. GCProfessional and

GCPlus modes include the Toolbelt feature and a way to upgrade the firmware of the control processor if the need

arises.

• IPLinkPro device drivers — for use with GC, to make control of other devices possible

• GUI Designer software — for designing layouts for Extron TouchLinkPro touchpanels and third party touch interfaces

All are available from www.extron.com (see Locating Software, Firmware, and Driver Files on the Extron Website on

page6).

Obtain network information for the unit from the network administrator. You will need the following details for each IPLinkPro

device:

DHCP setting (on or off) Subnet mask User name

Device (IPCP Pro, TouchlinkPro, IPLPro) IP address Gateway IP address Passwords

Write down the MAC addresses of each IPLinkPro device to be used.

Obtain model names and setup information for devices the IPL will control.

Mount and Cable All Devices

Mount the unit to a rack or furniture (see Mounting on page3).

Cable devices to the control processor (see Cabling and Features on page 4).

Connect power cords and power on all the devices.

Set up the Control Processor and Touchpanels for Network Communication

Connect the PC that you will use for setup, the control processor, and touchpanels to the same Ethernet subnetwork.

For control processor LAN connections, see Control - LAN (Ethernet) on page5.

Start Global Configurator and use the Toolbelt feature of the software to set the IP address, subnet, gateway IP address,

DHCP status, and related settings. See the flowchart in Network Communication Setup on page2.

Reserve this text for release with “day 2” or “day 3”

products that include these ports.

, relays, IR/serial ports, or contact input ports

Reserve this text for release with “day 2” or “day 3” products that include IR ports.

• , IR LearnerPro (for creating IR driver files using the remote controls

of AV products if drivers are not already available from Extron),

IPL Pro Series • Setup Guide (Continued)

Configure the Control Processor and Touchpanels

The most basic steps are outlined below in the recommended order.

NOTE: See the Global Configurator Help file and GUI Designer Help file as needed for step-by-step instructions and detailed

information. The help file for GC includes an introduction to the software and how to start a project and configuration.

If TouchLinkPro touchpanels will be part of the system, start and use GUI Designer to design, save, and build the graphical

user interface (GUI) layout for the touchpanels. See the GUIDesigner Help file for instructions.

Using GC, create a new GCPlus or GCProfessional project and configure the control processor and other IPLinkPro

devices. The configuration tells the control processor how its ports will function; how to control other products; which

touchpanels to interact with; what to monitor; when to do things; and whom to notify, how, and under what circumstances.

Configure ports on the control processor.

• Select device drivers and link them to each serial or Ethernet port.

• Select settings (serial protocol) as needed.

Set up monitors, schedules, macros, and local variables.

Add touchpanels and set them up:

• Upload the GUI configuration to the touchpanels using Global Configurator.

• Assign any appropriate functions, monitors, or schedules to the touchpanels and their buttons.

Save and build the project.

Upload the system configuration to the control processor.

Test and Troubleshoot

Test the system. See the IPLProUser Guide for an outline of the system testing procedure.

Make adjustments to wiring or configuration as needed.

Network Communication Setup

Network setup is essential prior to configuration.

Use the flowchart as a guide to setting up the control processor for network use.

Connect the control processor and PC

to the same LAN and apply power.

Open the Toolbelt utility in

Global Congurator (GC Professional or GC Plus mode).

ToolBelt displays a list of all IP Link Pro devices

connected to the network.

Select the desired

device from the list.

Activate the Identify Hardware feature.

To determine the correct device, click on a

device in the list and observe the device. The

front panel LEDs of the selected device ash.

Click on devices in the list until the LEDs

of the correct device ash.

Do you

know the MAC

address?

Yes

Network Communication Setup,

Connected/Online Method

Enable DHCP or you must type in the

IP address, subnet address, and gateway,

then congure other network settings as needed.

Figure 1. Network Setup, Online Method

and Program

• , IR/serial,

Reserve this text for use once additional models are released.

• , relay behavior, contact input behavior

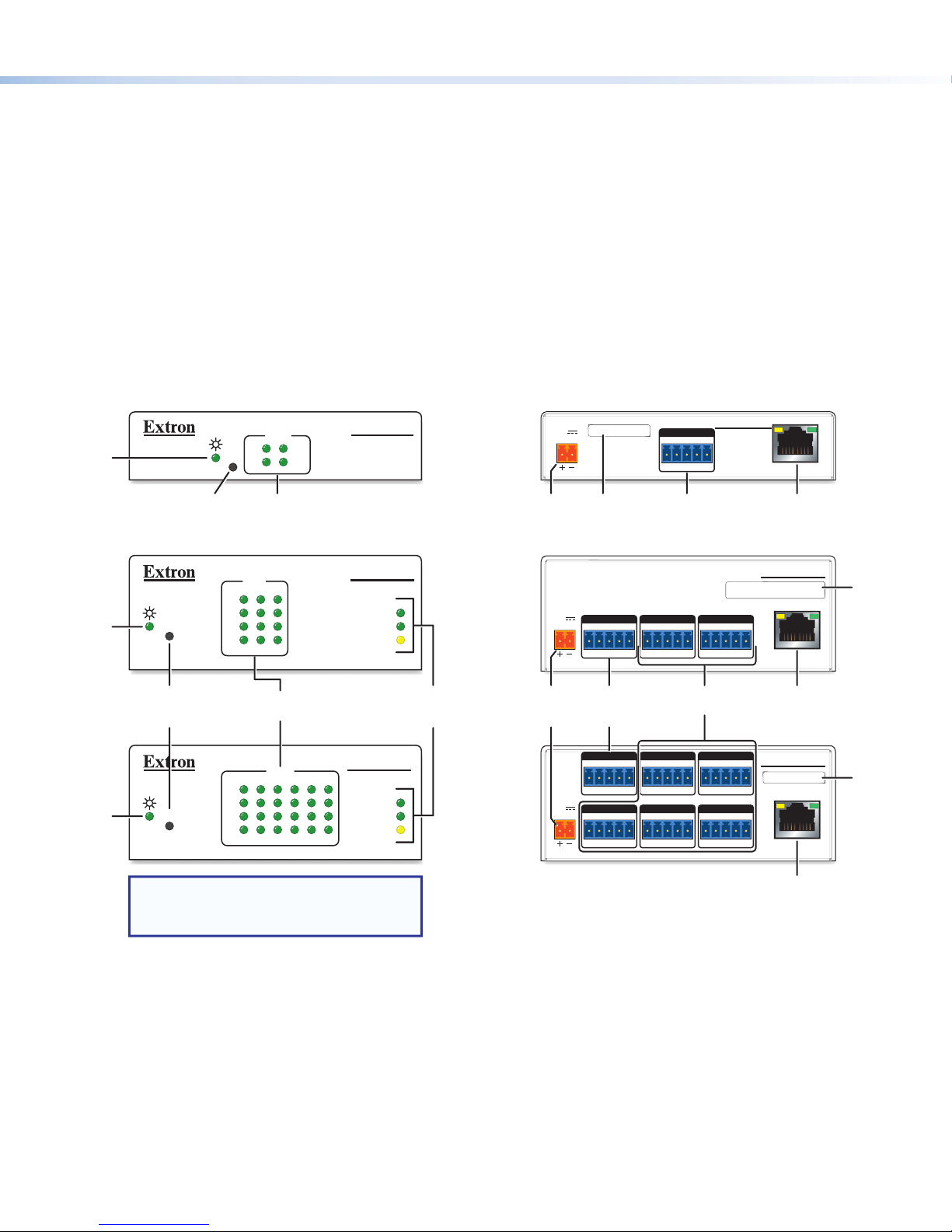

Front Panel Features

1000

LINK

ACT

COM

312 645

RTS

CTS

1000

LINK

ACT

IPL PRO S3

312

RTS

CTS

COM

RTS

CTS

IPL PRO S1

IPL PRO S6

NOTE: Numbers adjacent to LEDs

correspond to the like-numbered

rear panel ports.

COM (Serial)

LEDs

COM (Serial)

LEDs

Reset

Button

(recessed)

Reset

Button

(recessed)

Power

LED

Power

LED

Power

LED

LAN/

Network

LEDs

Figure 2. IPL Pro Series Front Panel Features

Rear Panel Features

POWER

12V

0.2A MAX

POWER

12V

X.XA MAX

POWER

12V

X.XA MAX

IPL PRO S3

LAN / PoE

Tx Rx

RTSCTS

COM

Tx Rx

RTSCTS

COM 1

Tx Rx

RTSCTS

COM 3

Tx Rx

RTSCTS

COM 2

Tx Rx

RTSCTS

COM 1

Tx Rx

RTSCTS

COM 3

Tx Rx

RTSCTS

COM 2

Tx Rx

RTSCTS

COM 4

Tx Rx

RTSCTS

COM 6

Tx Rx

RTSCTS

COM 5

LAN / PoE

IPL PRO S6

IPL PRO S1

LAN / PoE

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

5-pole COM

RS-232 ports

5-pole COM

RS-232/RS-422/

RS-485 ports

MAC

addr

ess

Power

input

connector

Power

input

connector

MAC

address

MAC

addr

ess

LAN/PoE (Ethernet)

connector and LEDs

5-pole COM

RS-232 port

LAN/PoE

(Ethernet)

connector and LEDs

LAN/PoE (Ethernet)

connector and LEDs

Figure 3. IPL Pro Series Rear Panel Features

Panels and Locations of Features

Location and quantity of LEDs and corresponding connectors vary by model, but the functions and port wiring are identical

across models for each port type.

Mounting

Securely mount the control processor and other devices and attach cables using the wiring section (Cabling and Features on

page4) as a wiring guide. Optional 1U rack shelves and furniture mounting bracket kits are available for use with the control

processor. Read the instructions and UL guidelines that come with the rack shelf or mounting kit for installation procedures.

See the product-specific page at www.extron.com for a list of compatible accessories for mounting your control processor.

IPL Pro Series • Setup Guide (Continued)

Cabling and Features

Attach cables using the following wiring diagrams as a guide. Full details are available in the IPLPro Series User Guide.

ATTENTION: Installation and service must be performed by experienced personnel.

ATTENTION: L’installation et l’entretien doivent être effectués par du personnel expérimenté.

Power

POWER

12V

X.XA MAX

Ground

all devices.

External

Power Supply

(12 VDC, 1 A max.)

– Return

+12 VDC input

Ridged

Smooth

1AMAX

100-240V 50-60Hz

Tie Wrap

3/16"

(5 mm)

Max.

Rear

Panel

Front Panel

NOTE:

Check the

polarity of the

power supply

before connecting

it to the IPL.

Power Input, External Power Supply

• Front panel LED ( ) blinks during

boot-up and lights when the IPL is

powered and operational.

• Connect to

included 12 VDC

power supply.

NOTE: IPL Pro Series control processors accept power over Ethernet (PoE) through

the LAN port in addition to network communication (see Control - LAN (Ethernet) on

page5 for cabling and details). Both an exte rnal power supply and PoE can be

connected to the control processor simultaneously. The IPL uses PoE when it is available

but can switch seamlessly to the external 12VDC power supply if the PoE connection is

dropped.

ATTENTION:

Always use a power

supply supplied or

specified by Extron.

Use of an unauthorized

power supply voids all

regulatory compliance

certification and may

cause damage to the

supply and the unit.

ATTENTION:

Utilisez toujours une

source d’alimentation

fournie par Extron.

L’utilisation d’une source

d’alimentation non

autorisée annule toute

conformité réglementaire

et peut endommager la

source d’alimentation

ainsi que l’unité.

Control — Serial (COM)

Tx Rx

RTS CTS

COM 1

Tx Rx

RTS CTS

COM 4

COM

312 645

RTS

CTS

COM

RTS

CTS

NOTE: If you use cable that has a drain wire, tie the drain wire to ground at both ends.

Strip wires

3/16" (5 mm)

max.

Transmit (Tx)

Receive (Rx)

Projector, Panel

Display, PC, or

Other RS-232,

RS-422, or

RS-485 Device

Request to send

Clear to send

Transmit

Rx Receive

CTS

RTS

GGround

Front Panels

5-pole COM

(RS-232, RS-422*, RS-485*)

*See the Serial Options

table for which port

supports which standards.

Select protocol via software.

COM port default protocol:

• 9600 baud

• 8 data bits • 1 stop bit

• no parity • no ow control

NOTE: The 5-pole COM ports support both

hardware and software ow control.

Heat ShrinkHeat Shrink

Over Shield Wires

5-pole

COM port

RTS =

Request to Send

CTS = Clear to Send

Tx = Transmitting Data

Rx = Receiving Data

Serial (COM) Ports

Rear Panels

RS-232

Ground

RTS

CTS

RS-422*

Tx-

Rx-

Ground

Tx+

Rx+

RS-485*

Ground

5-pole COM Pin Conﬁgurations

Data-

(pins 1 & 2

tied together)

Data+

(pins 4 & 5

tied together)

1(Tx)

2(Rx)

3(G)

4(RTS)

5(CTS)

*See the Serial Options table of supported

formats for each port.

Control — LAN (Ethernet)

1000

LINK

ACT

LAN / PoE

PL PR

-A6-

XX-XX-XX

## E######

-A6-XX-XX-XX

RJ-45

Connector

Insert Twisted

Pair Wires

Pins: 12345678

Rear PanelFront Panel

Link

LED

Activity

LED

1000 Mbps

Connection

Network is

active.

Data is being

sent/r

eceived.

Ethernet

Touchlink Pro

Touchpanel

Extron Devices

(Switchers, Scalers)

TCP/IP

Network

Straight-through Cable

(for connection to a switch, hub, or router)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-orange

2 orange 2 orange

3 white-green 3 white-green

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 green

7 white-brown 7 white-brown

8 brown 8 brown

Crossover Cable

(for direct connection to a PC)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-green

2 orange 2 green

3 white-green 3 white-orange

4 blue 4 blue

5 white-blue 5 white-blue

6 green 6 orange

7 white-brown 7 white-brown

8 brown 8 brown

T568B T568AT568BTIA/EIA-T568B

LAN/PoE (Ethernet)

Default protocol:

• IPL IP address: 192.168.254.250

• Gateway IP address: 0.0.0.0

• Subnet mask: 255.255.255.0

• DNS address: 127.0.0.1

• DHCP: off

• Link speed and duplex level:

autodetected

• Data rates: 10/100/1000Base-T

Power over Ethernet (PoE):

If PoE is available, the IPL uses PoE.

If PoE is dropped (disconnects), the

IPL switches seamlessly to the

external 12 VDC power supply, if it

is installed.

Default login credentials:

• Username: admin

• Password: extron

The control processor is assigned a unique user hardware ID number (MAC address) (for example,

00-05-A6-05-1C-A0). You may need this address during configuration of the control processor. A

label that indicates the MAC address is located on the rear panel of the unit.

NOTE: The supported serial formats

vary depending on the COM port,

as shown at right.

RS-232

Only

RS-232, RS-422,

or RS-485

Serial Options

Model COM Port

IPL Pro S1

2, 3

IPL Pro S3

2, 3, 4, 5, 6

IPL Pro S6

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

00-05-A6-XX-XX-XX

MAC: 00-05-A6-XX-XX-XX

S/N: ####### E######

MAC

Address

IPL Pro Series • Setup Guide (Continued)

About Global Conﬁgurator (with GC Professional and GC Plus Modes)

What The Software Does

Global Configurator is the software tool for network setup and configuration of an IPLPro control processor. Global Configurator:

• Loads device drivers for monitoring the status of and controlling devices within the AV system.

• Uploads GUIDesigner layouts to touchpanels and third party touch interfaces.

• Creates the configuration containing all the settings for the control processor and the products with which it interacts in the

AV system.

• Generates a graphical user interface called GlobalViewer that is uploaded to the IPL (a GlobalViewer host device) along with

the completed configuration and can be accessed as a web page.

Using GlobalViewer, users can monitor and control Extron and third-party equipment such as projectors, displays, computer

monitors, VCRs, and DVD players.

Resources

Obtaining Control Drivers

Extron provides an extensive selection of device drivers available on the

Extron website. If the system requires a control driver that is not already

available, you have additional options:

• Request a new serial (RS-232) or Ethernet driver from Extron.

Obtaining Instructions, Information,

and Assistance

A checklist of basic setup steps is provided at the

beginning of this guide. For additional information

see the help files and the IPLProSeries User

Guide, available at www.extron.com.

If you have questions during installation and

setup, call the ExtronS3 Sales & Technical

Support Hotline or the ExtronS3 Control

Systems Support Hotline.

Locating Software, Firmware, and Driver Files on the Extron Website

There are three main ways to find software, firmware, and device drivers within www.extron.com:

• Via links from the web page for the specific product

• Via the Download Center page (Click on the Download tab at the top of any page within www.extron.com.)

• Via links from search results

NOTE: For some software you have the option to click the Download Now button to begin downloading the software file.

For other software there is a link for contacting an Extron support representative who can provide you access to the latest

version.

To obtain Global Configurator (GC Professional, GC Plus) software, you must have an Extron Insider account and contact

an Extron support representative. Extron provides training to our customers on how to use the software. Access to Global

Configurator Professional is available to users who successfully complete Extron Control Professional Certification.

NOTE: New RS-232 and Ethernet drivers are required. You must use serial and Ethernet drivers developed specifically

for the IPLinkPro platform. With the exception of IR device drivers, drivers used for the previous generation

IPLink (non-Pro) control processors are not compatible.

Keep this text to add when the IRS8 model is ready to be

shipped.

• Create your own custom IR device driver

using Extron IRLearner software. Follow

the directions in the IRLearner Help file to

create a driver by using the remote control

for that device and the IR receiver port on

the front panel of the IPLProIRS8.

If you have questions during installation and setup, you can call the Extron S3 Sales & Technical Support Hotline or the Extron

S3 Control Systems Support Hotline (1.800.633.9877).

Figure 4. Overall Conﬁguration Steps

Overall Conﬁguration Procedure for the Control Processor

Conﬁgure the IP settings of

the control processor and the

TouchLink Pro touchpanels.

See “Network

Communication

Setup” in this

guide.

Create GUI layouts for the

touchpanels or other interfaces:

1. Start GUI Designer.

2. Create GUI layout designs for each

TouchLink Pro or third party

touchpanel (with a TouchLink

Interface), or for a computer or

mobile device (with LinkLicense).

3. Save and build the GUI layout le.

Create monitors, schedules,

macros, and local variables.

Congure ports on the

control processor.

Import GUI layouts, add touchpanels

or other interfaces (if used), and

congure them.

Test the system, make adjustments,

nalize conguration.

Save the project.

Build and upload the conguration to

the control processor.

Will

TouchLink Pro or

third party touchpanels or

other user interfaces

be used?

No Yes

Create a new GC Professional or GC Plus project

and add the control processor to it.

Within Global Conﬁgurator

(GC Professional or

GC Plus mode):

“Network

Communication

Setup”

IPL Pro Series • Setup Guide (Continued)

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

68-2437-50

Rev. A

04 14

Contact information

Andere Handbücher für IPL Pro Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extron electronics Computerhardware Handbücher

Extron electronics

Extron electronics Network Device PIP 444 Bedienungsanleitung

Extron electronics

Extron electronics EDID 101H 4K PLUS Bedienungsanleitung

Extron electronics

Extron electronics Annotator 401 Bedienungsanleitung

Extron electronics

Extron electronics WindoWall Pro Series Bedienungsanleitung

Extron electronics

Extron electronics Instruction Card Video DC Block Technisches Handbuch

Extron electronics

Extron electronics DTP3 T 202 Bedienungsanleitung

Extron electronics

Extron electronics Quantum Ultra Bedienungsanleitung

Extron electronics

Extron electronics PIP 422 Bedienungsanleitung

Extron electronics

Extron electronics Quantum Ultra Series Bedienungsanleitung

Extron electronics

Extron electronics IPL Pro Series Bedienungsanleitung

Extron electronics

Extron electronics EDID 101H 4K PLUS Bedienungsanleitung

Extron electronics

Extron electronics Annotator 300 Bedienungsanleitung

Extron electronics

Extron electronics SMP 351 Bedienungsanleitung

Extron electronics

Extron electronics AXP 50 C AT Bedienungsanleitung

Extron electronics

Extron electronics IPCP Pro PCS1 xi Bedienungsanleitung

Extron electronics

Extron electronics IPCP Pro Series Bedienungsanleitung

Extron electronics

Extron electronics Multi-Graphic Processor MGP 464 Bedienungsanleitung

Extron electronics

Extron electronics StudioStation 100 Bedienungsanleitung

Extron electronics

Extron electronics Annotator 300 Bedienungsanleitung

Extron electronics

Extron electronics Multi-Graphic Processor MGP 464 Bedienungsanleitung

Extron electronics

Extron electronics XMP 240 C AT Bedienungsanleitung

Extron electronics

Extron electronics HAE 100 4K Bedienungsanleitung

Extron electronics

Extron electronics MTP 15HD RS Series Bedienungsanleitung

Extron electronics

Extron electronics Annotator 300 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
