Front Runner MKIII Small Bedienungsanleitung

Load Bed Cargo Slide

MKIII -Small

SSBS007

ENG

45 min

IMPORTANT WARNING!

Thank you for purchasing a Front Runner Load Bed Cargo Slide MKIII Small.

Before you start, take a moment to familiarize yourself with this Fitting Instruction and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE.

IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH.

YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE.

THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE.

IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES,

YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

READ ME !

TOOLS NEEDED

17MM

10MM 10MM

17MM

FIGURE 1.1

4mm

9.5mm

1 1 X Load Bed Cargo Slide MKIII - Small

2 1 X M6x25 Countersink Bolt

3 1 X M10 Flat Washer

4 9 X M6x40 Hex Bolt

5 2 X M8 Nyloc Nut

6 5 X M6x25 Hex Bolt

7 10 X M6 Rivnut

8 9 X M6 Spring Washer

9 6 X 19x12.58x12 Aluminium Spacer

10 9 X M6x30x1 Flat Washer

GET ORGANIZED

IN THE BOX

Here is what you are looking at for SSBS007

4mm

2 3

4 5

6 7

8 9

FIT AND SECURE

2.1

2.2

2.3

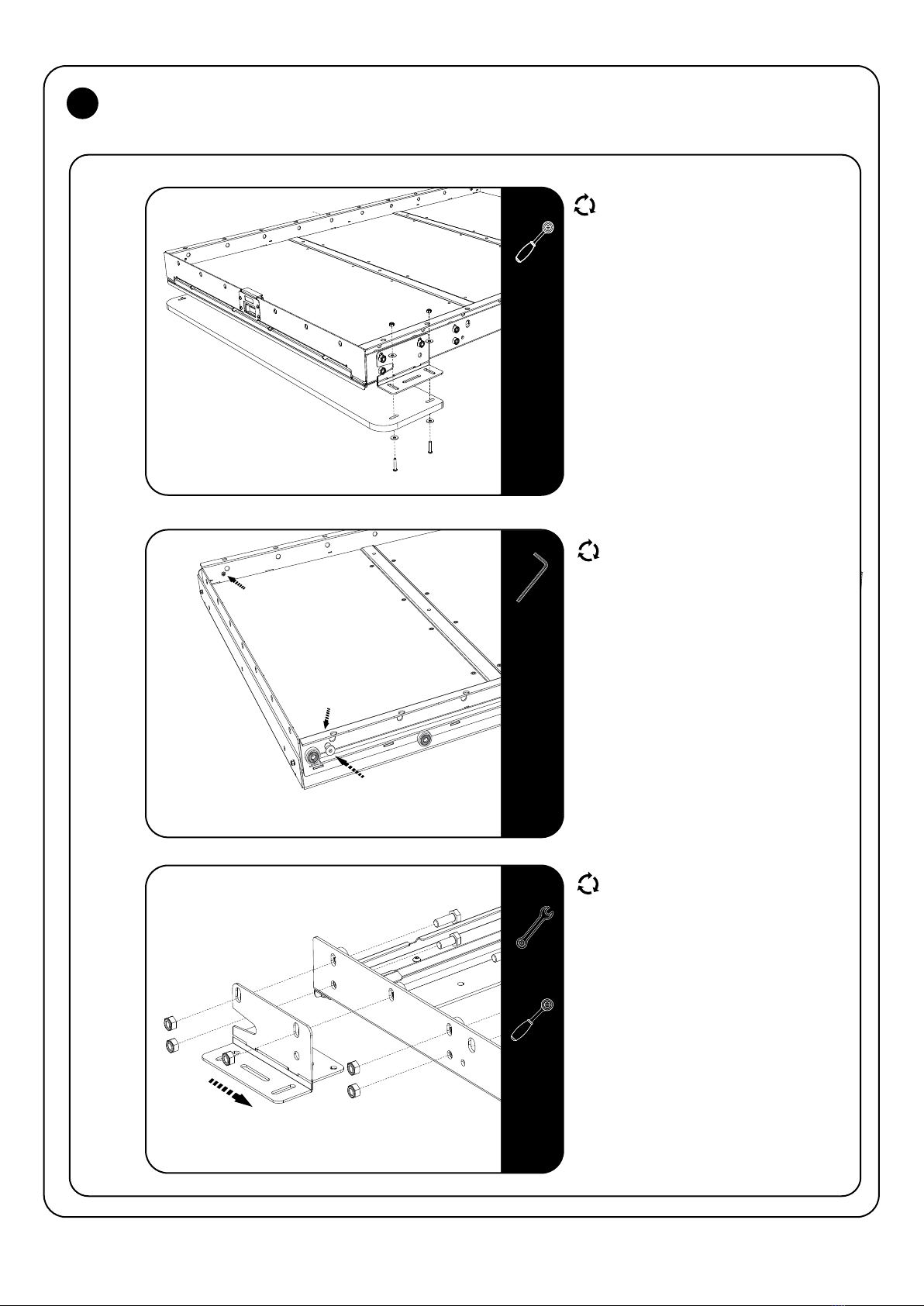

Before ﬁtting the Cargo Slide in the vehicle,

remove the protective wood base by

loosening the four M6 button heads.

10MM

The front mounting brackets may be

relocated backwards should it be required

to obtain a more suitable mounting position

as shown in diagram 2.3.

Looking at both the left and right rear

corners of the Cargo Slide (Item 1), loosen

and remove the rubber stopper. This is done

by gripping the stopper to prevent it from

turning and removing the M6 button head

bolt as shown. Once removed keep in a safe

place as you will need to replace them at a

later stage.

Place the Cargo Slide into the vehicles load

bed. Carefully pull the "tray" free from the

frame and store in a safe place until later.

Position the frame, front to back and left to

right. Load beds vary with each

manufacturer, so the exact positioning of

the frame will vary from vehicle to vehicle.

It is advisable to get all mounting points in

the center of the raised sections that run

the length of the load bed, however in the

event of mounting points not lining up with

raised sections,spacers have been

provided.

Stopper

4MM

17MM

FIT AND SECURE

2.4

2.5

2.6

Place the frame back onto the load bed and

secure using the fasteners and spacers

supplied. The spacers (Item 5) are to be

used when the mounting points are in a

"dip" and not on a raised section by

placing it over the rivnut so that the frame

rests on the spacer.

When securing the front of the frame use

the M6x25 countersunk screw, M10 ﬂat

washer and a spacer

Refer to Step 2.2, reﬁt the tray and

stoppers. Once reﬁtted check that the push

to close latch engages fully and that the

slide is secure.

4MM

9MM

Make sure you have closed the load bed tail

gate to ensure that it does not make

contact with the frame. Once you are

satisﬁed with the positioning of the frame,

mark the position of all the mounting points

as indicated by the arrows onto the load

body.

Remove the frame and drill a 4mm pilot

hole on each of your markings. Check the

underside of the load bed before drilling to

make sure that there is no piping or wiring

in the way. Re-drill all of the pilot holes to

9mm.

Insert and crimp a M6 rivnut (Item 6) into

each of the holes you have drilled.

4MM

10MM

Congratulations. You did it. Take a step back and admire your work!

COMPLETION

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

3.1
