Interlogix TruVision 5 Series Merkblatt

TruVision Series 5 IP

Camera Configuration

Manual

P/N 1073340-EN • REV A • ISS 27JUN17

2017 United Technologies Corporation.

Interlogix is part of UTC

Climate, Controls & Security

, a unit of United

Technologies Corporation.

Trademarks and

patents

rade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC

Building & Industrial Systems B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

Contact information

For contact

information, see www.interlogix.com or

www.utcfssecurityproducts.eu

TruVision Series 5 IP Camera Configuration Manual 1

Content

Introduction 3

Network access 4

Checking your web browser security level 4

Activating the camera 5

Overview of the camera web browser 7

Camera configuration 9

Configuration menu overview 9

Local configuration 10

System time 11

Network settings 12

Recording parameters 20

Video image 23

OSD (On Screen Display) 27

Text Overlay 28

Privacy masks 29

Motion detection alarms 30

Tamper-proof alarms 36

Exception alarms 37

Alarm inputs and outputs 38

Face detection 39

Cross line detection 41

Intrusion detection 43

Unattended Baggage Detection 45

Object Removal Detection 46

Snapshot parameters 48

NAS settings 49

Storage devices 50

Recording Schedule 51

Camera management 55

User management 55

RTSP authentication 57

IP address filter 58

Defining the security service 59

Restore default settings 59

Import/export a configuration file 60

Upgrade firmware 60

Reboot camera 62

Camera operation 63

Logging on and off 63

Live view mode 63

Playing back recorded video 64

2 TruVision Series 5 IP Camera Configuration Manual

Searching event logs 66

Index 69

TruVision Series 5 IP Camera Configuration Manual 3

Introduction

This is the user manual for the following TruVision IP camera models:

TVB-5501 (3MPX IP bullet camera)

TVB-5502 (8MPX IP bullet camera)

TVT-5501 (3MPX IP turret camera)

TVT-5502 (8MPX IP turret camera)

TVD-5501 (3MPX IP dome camera)

TVD-5502 (8MPX IP dome camera)

4 TruVision Series 5 IP Camera Configuration Manual

Network access

This manual explains how to configure the camera over the network with a web

browser.

TruVision IP cameras can be configured and controlled using Microsoft Internet

Explorer (IE) and other browsers. The procedures described use Microsoft Internet

Explorer (IE) web browser.

Checking your web browser security level

When using the web browser interface, you can install ActiveX controls to connect and

view video using Internet Explorer. However, you cannot download data, such as video

and images due to the increased security measure. Consequently you should check the

security level of your PC so that you are able to interact with the cameras over the web

and, if necessary, modify the Active X settings.

Configuring IE ActiveX controls

You should confirm the ActiveX settings of your web browser.

To change the web browser’s security level:

1. In Internet Explorer click Internet Options on the Tools menu.

2. On the Security tab, click the zone to which you want to assign a web site under

“Select a web content zone to specify its security settings”.

3. Click Custom Level.

4. Change the ActiveX controls and plug-ins options that are signed or marked as

safe to Enable. Change the ActiveX controls and plug-ins options that are

unsigned to Prompt or Disable. Click OK.

- or -

Under Reset Custom Settings, click the security level for the whole zone in the

Reset To box, and select Medium. Click Reset.

Then click OK to the Internet Options Security tab window.

5. Click Apply in the Internet Options Security tab window.

Windows Internet Explorer

Internet Explorer operating systems have increased security measures to protect your

PC from any malicious software being installed.

To have complete functionality of the web browser interface with Windows 7, 8 and 10,

do the following:

• Run the Browser interface as an administrator in your workstation

• Add the camera’s IP address to your browser’s list of trusted sites

TruVision Series 5 IP Camera Configuration Manual 5

To add the camera’s IP address to Internet Explorer’s list of trusted sites:

1. Open Internet Explorer.

2. Click Tools, and then Internet Options.

3. Click the Security tab, and then select the Trusted sites icon.

4. Click the Sites button.

5. Clear the “Require server verification (https:) for all sites in this zone box.

6. Enter the IP address in the “Add this website to the zone” field.

7. Click Add, and then click Close.

8. Click OK in the Internet Options dialog window.

9. Connect to the camera for full browser functionality.

Activating the camera

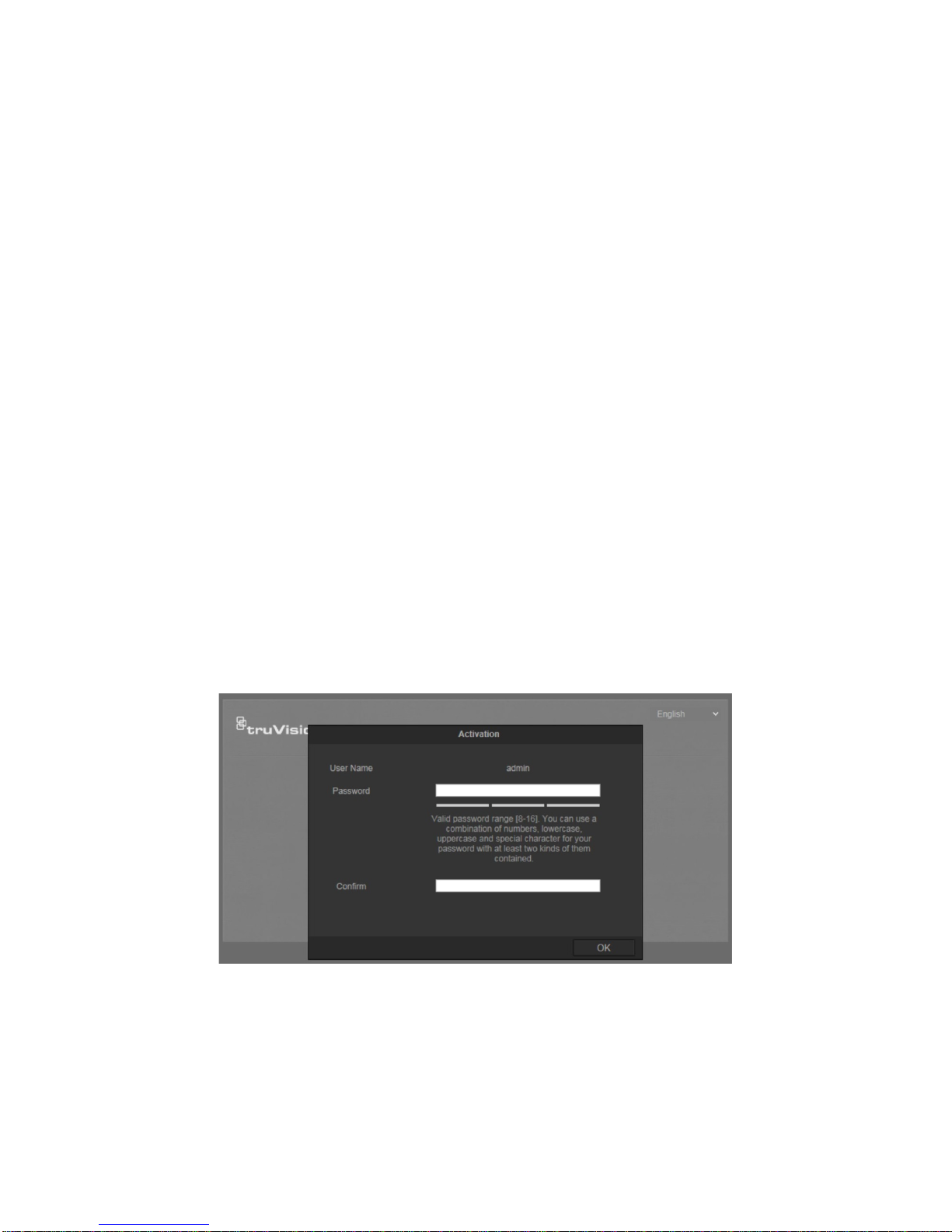

When you first start up the camera, the Activation window appears. You must define a

high-security admin password before you can access the camera. There is no default

password provided.

You can activate a password via a web browser and via TruVision Device Manager

(included on the CD to find the IP address of the camera).

Activation via the web browser:

1. Power on the camera and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to

enter the activation interface.

Note:

The default IP address of the camera is 192.168.1.70.

For the camera to enable DHCP by default, you must activate the camera via

TruVision Device Manager. Please refer to the following section, “Activation via

TruVision Device Manager”.

3. Enter the password in the password field.

6 TruVision Series 5 IP Camera Configuration Manual

Note: A valid password range must be between 8 and 16 characters. You can use a

combination of numbers, lower and upper case letters, and special characters : _ - ,

. * & @ / $ ? Space. The password must contain characters from at least two of

these groups. We also recommend that you reset your password regularly. For high

security systems, it is particularly recommended to reset the password monthly or

weekly for better protection.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

Activation via TruVision Device Manager:

1. Run the TruVision Device Manager to search for online devices.

2. Check the device status from the device list, and select the inactive device.

3. Enter the password in the password field, and confirm it.

Note: A valid password range must be between 8 and 16 characters. You can use a

combination of numbers, lower and upper case letters, and special characters : _ - ,

. * & @ / $ ? Space. The password must contain characters from at least two of

these groups. We also recommend that you reset your password regularly. For high

security systems, it is particularly recommended to reset the password monthly or

weekly for better protection.

4. Click OK to save the password.

A pop-up window appears to confirm activation. If activation fails, confirm that the

password meets the requirements and try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the check box of Enable DHCP.

TruVision Series 5 IP Camera Configuration Manual 7

6. Input the password and click the Save button to activate your IP address

modification.

Overview of the camera web browser

The camera web browser lets you view, record, and play back recorded videos as well

as manage the camera from any PC with Internet access. The browser’s easy-to-use

controls give you quick access to all camera functions. See Figure 1 below.

If there is more than one camera connected over the network, open a separate web

browser window for each individual camera.

Figure 1: Web browser interface

8 TruVision Series 5 IP Camera Configuration Manual

Table 1: Overview of the web browser interface

Name Description

1. Live view Click to view live video.

2. Playback Click to play back video.

3. Log Click to search for event logs. There are three main types: Alarm,

Exception and Operation.

4. Configuration Click to display the configuration window for setting up the camera.

5. Viewer View live video. Time, date and camera name are displayed here.

6. Current user Displays current user logged on.

7. Logout Click to log out from the system. This can be done at any time.

8. Display Control Click each tab to adjust the layout and the stream type of the live

view. You can also click the drop-down list to select the plug-in.

For IE (internet explorer) users, web components and quick time are

selectable. For non-IE users, web components, quick time, VLC, or

MJPEG are selectable if they are supported by the web browser.

9. Start/stop live view Click to start/stop live view.

10. Capture Click to take a snapshot of the video. The snapshot will be saved to

the default folder in JPEG or BMP format.

11. Start/stop

recording Click to record live video.

12. Digital zoom Click to enable digital zoom.
