P/N 1072501A • ISS 20SEP12

TVC-5120-1 Box Camera

Pocket Guide

Overview

This is the pocket guide for TVC-5120-1-P / TVC-

5120-1-N Box Camera. It is used indoors. However, if

installed in a housing, it can be used outdoors. The

guide describes a standard installation.

The camera consists of the following:

Camera body

CCD protection cap

Spare lens connector (male)

Refer to the figures in the front of the guide when

performing the camera setup procedures.

Note: Check the package and contents for visible

damage. If any components are damaged or missing,

do not attempt to use the unit, contact the supplier

immediately. If the unit must be returned, it must be

shipped back in its original packaging.

1: Setting the lens mode

1. Camera

2. Autoiris lens connector

3. Autoiris lens plug

4. Lens (Autoris lens shown. Manual lens has no

cable)

5. C-mount adaptor

6. DC-type autoiris lens leads: Damping coil

positive (A) and negative (B), Driving coil

positive (C) and negative (D)

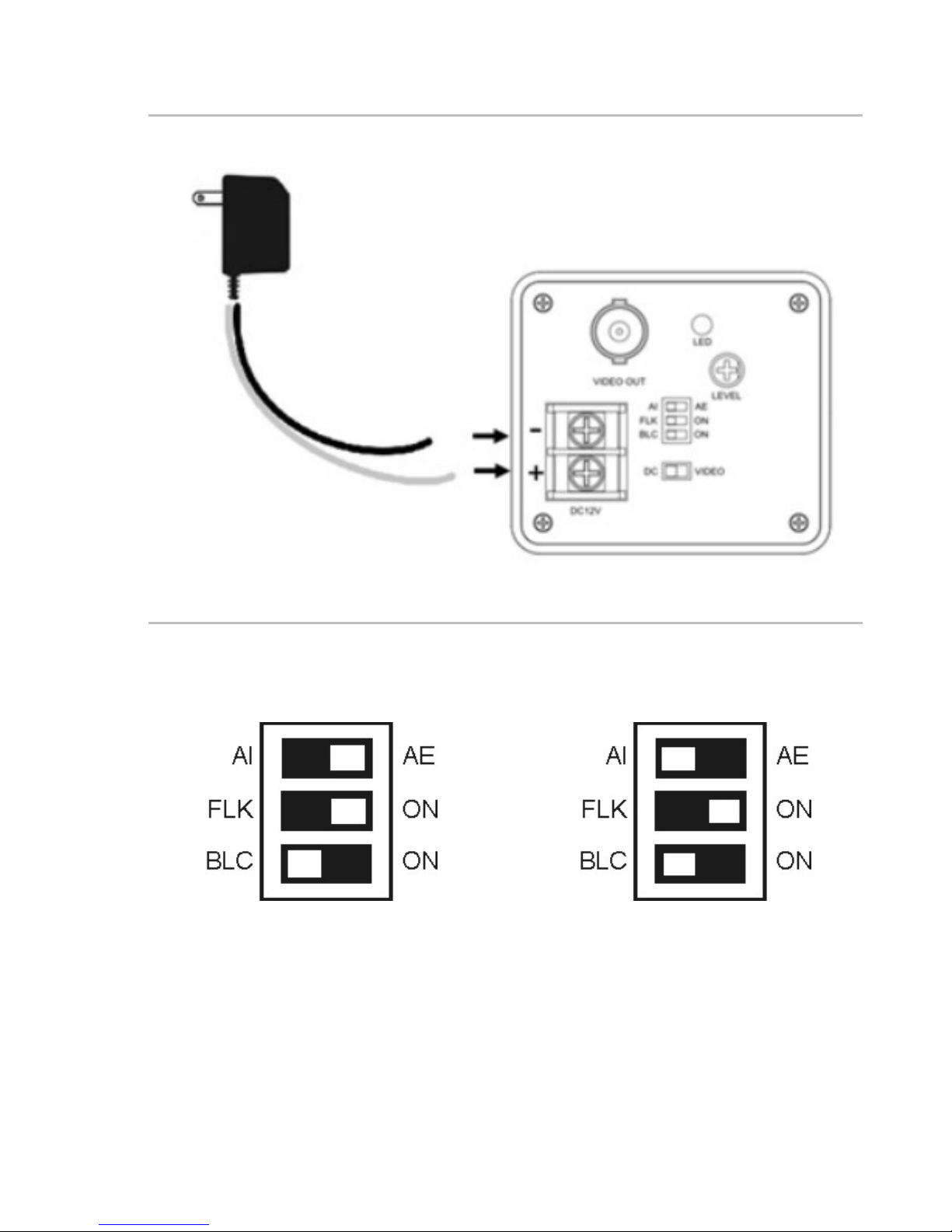

2: Connecting power

3: Recommend DIP switch settings

Fixed lens: DC iris lens:

Installation

To install the camera:

1. Connect a coaxial cable terminated with BNC

connectors between the VIDEO OUT connector

of the camera and the video in connector on a

monitor, multiplexer, switcher, or other standard

video device.

2. To attach the lens, please refer to the

instructions that came with the lens. See Figure 1

on page 1 for guidance.

Note: If you are using a C-mount lens, screw on

the provided C-mount adapter. For optimal

performance, use an auto iris lens.

3. To connect power, loosen the DC12V and GND

terminal screws on the terminal block using a

screwdriver. Connect a universal 12 VDC power

supply to the terminal block. Retighten the

terminal screws until snug, ensuring that the

power leads are secure. Supply power to the unit

by plugging the power supply into a proper

source.

The power LED illuminates to show that the

camera is receiving power. If it does not

illuminate, check the terminal block connections

and the power source

4. Set the DIP switches. See the table below and

Figure 3 on page 3 for the recommended

settings.

Item Description Remark

AI Auto Iris For autoiris lens only, the

shutter is fixed 1/50 (PAL)

AE Auto

Electronic

shutter

For fixed lens. As the iris

is fixed, the camera

automatically sets the

optimum shutter speed.

FLK Flickerless Flickerless mode avoids

interference from light

sources (recommended

for DC-iris lenses only ).

BLC Back Light

Compensation

Selectively amplifies parts

of the image to

compensate for large

contrast differences when

only a portion of the

image is brightly lit.

Specifications

Power supply 12 VDC

Current 85 mA

Power consumption 1 W max.

Operating temperature -10to +50 °C

(14 to 122°F)

Storage temperature -20to70 °C

(-4 to +158°F)

Weight 305 g (0.67 lb.)

Dimensions (H × W × L) 56 x 50 x 125 mm

(2.2 x 4.9 x 4.95 in.)

Contact information

For contact information, see www.interlogix.com or

www.utcfssecurityproducts.eu.

Regulatory information

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626 5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

FCC compliance

Class B: This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause

harmful interference to radio communications.

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

ACMA compliance

Notice! This is a Class A product. In a domestic environment

this product may cause radio interference in which case the

user may be required to take adequate measures.

Canada

This Class A digital apparatus complies with Canadian ICES-

003.

Cet appareil numérique de la classe A est conforme à la

norme NMB-0330 du Canada.

Certification

N4131

European Union directives

12004/108/EC (EMC directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive

2004/108/EC.

2002/96/EC (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.
