Interlogix TruVision TVB-2402 Bedienungsanleitung

TruVision HD

-TVI 720P and

1080P

Bullet Camera

Installation Guide

P/N 1073164-EN • REV C • ISS 22NOV17

Installation Guide 1

Contents

Product overview 2

Camera description 5

Installation 8

Built-in heater in the TVB-2405/4405

camera 12

Program 13

Menu trees 18

Specifications 20

Legal and regulatory information 22

2 Installation Guide

Product overview

This is the installation guide for TruVision 720P and

1080P HD-TVI bullet camera models:

TVB-2402 (720P Bullet, 2.8 to 12 mm VF lens,

PAL)

TVB-4402 (720P Bullet, 2.8 to 12 mm VF lens,

NTSC)

TVB-2404 (1080P Bullet, 2.8 to 12 mm VF

lens, PAL)

TVB-4404 (1080P Bullet, 2.8 to 12 mm VF

lens, NTSC)

TVB-2405 (1080P Bullet, 2.8 to 12 mm

motorized VF lens, PAL)

TVB-4405 (1080P Bullet, 2.8 to 12 mm

motorized

Installation Guide 3

Package contents

Camera with power

and video output

cables

4 screws and 4

anchors for wall or

ceiling installation

Back box

Screws M4.8 × 18,

4 pcs to attach the

back box

Template

Hex wrench

Hole A:for cables routed through the wall

Drill Template

Screw hole 1: for integrative bracket

Screw hole 2: for conduit back box

4 Installation Guide

•Installation guide

•WEEE disposal

sheet

CD

•Video test cable

Installation Guide 5

Camera description

Figure 1: Camera description

1. 960H analog output

(black)

2. TVI output (gray)

3. Power cable

4. Camera body

5. Sun shield

6. Lens

7. Mounting bracket

8. Back box

Note: Please check the camera output settings

before setting up a system. The TVI video output

can be only connected to a DVR with a TVI signal

input. The 960H analog output supports a standard

6 Installation Guide

960H analog monitor (or test monitor), an encoder,

or a DVR.

For 720P VF bullet cameras, TVB-2402 / TVB-4402,

the 960H analog and TVI output cannot be used at

the same time. Use the built-in switch to select the

camera video output.

For 1080P VF bullet cameras, such as TVB-

2404/TVB-4404 and TVB-2405/TVB-4405, the built-

in switch is used to enable/disable the WDR feature.

When the WDR feature is enabled, the 960H analog

output will be blocked.

Note: When making adjustments to the VF lens

bullet camera, it is important to tighten the access

cover for the area that contains the video test cable

connector, OSD menu button, and the 960H analog

/WDR/TVI selection switch. The access cover

should be rotated until it is tight up against the

camera body.

Installation Guide 7

Figure 2: TVB-2402 /TVB-4402

Focus

Zoom

OSD menu button

Switch (Up= 960H

analog/ Down = TVI)

BNC output (for video

test cable)

Figure 3: TVB-2404 /TVB-4404

Focus

Zoom

OSD menu button

Switch (Up= 960H

analog/ Down =

WDR)

BNC output (for video

test cable)

8 Installation Guide

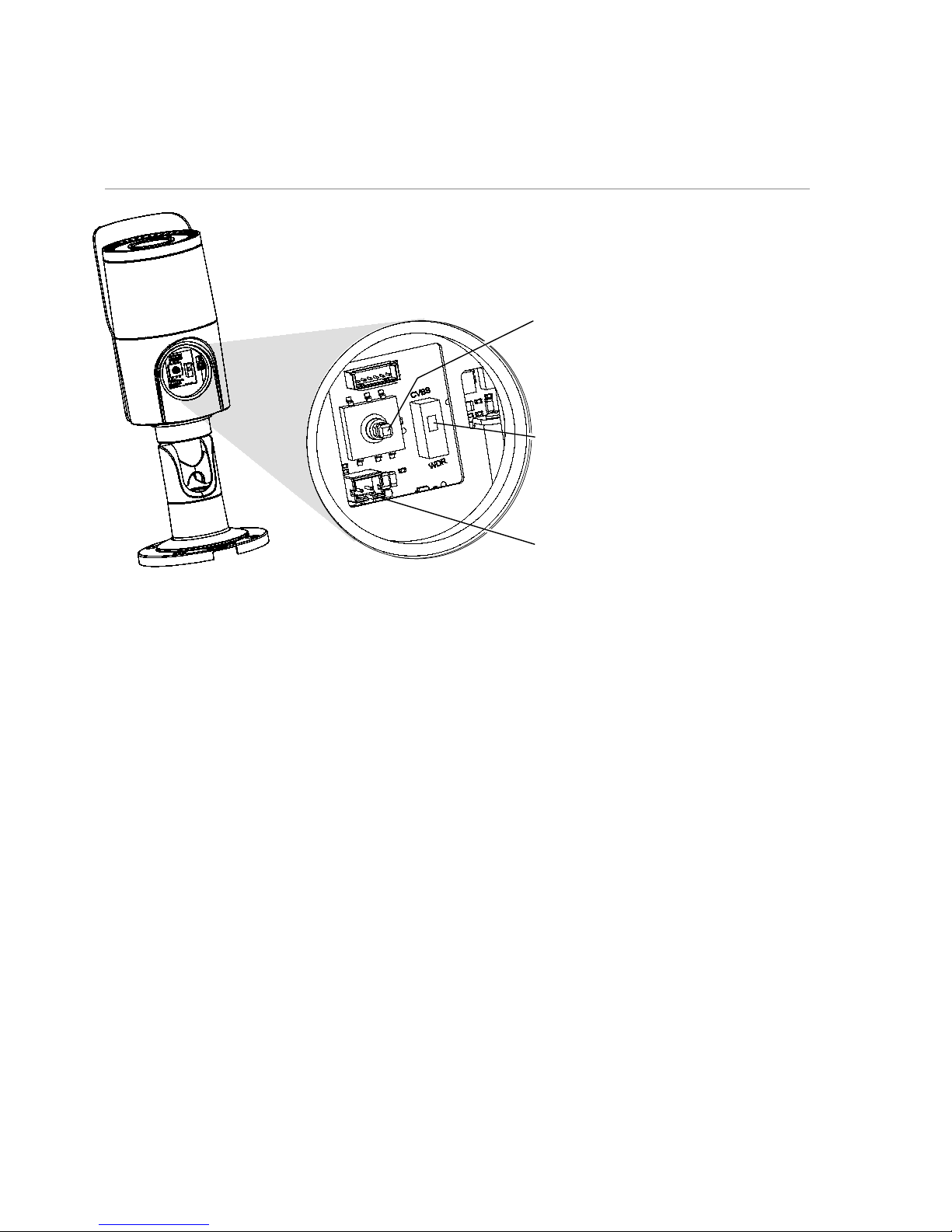

Figure 4: TVB-2405 /TVB-4405

OSD menu button

Switch (Up= 960H

analog/ Down =

WDR)

BNC output (for video

test cable)

Installation

To install the camera:

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.
