SEARS

Kenmore Vacuum Cleaner

0WNER'$MANUAL

READTHISMANUAL for important safety,

assembly and operating instructions.

Cg IZACSI gUgg-4369555A

= : ONTENTS

WARRANTY

SERVICE

IMPORTANT SAFETY INSTRUCTIONS ....... I

PARTS AND FEATURES .................... 2

ASSEMBLY ............................... 3

USE ...................................... 4

How to Staff ............................. 4

Pile Height Selection and Setting ............ 5

Bare Floor Setting ......................... 5

Releasing the Handle ...................... 5

On/Off and Power Level Selection ........... 6

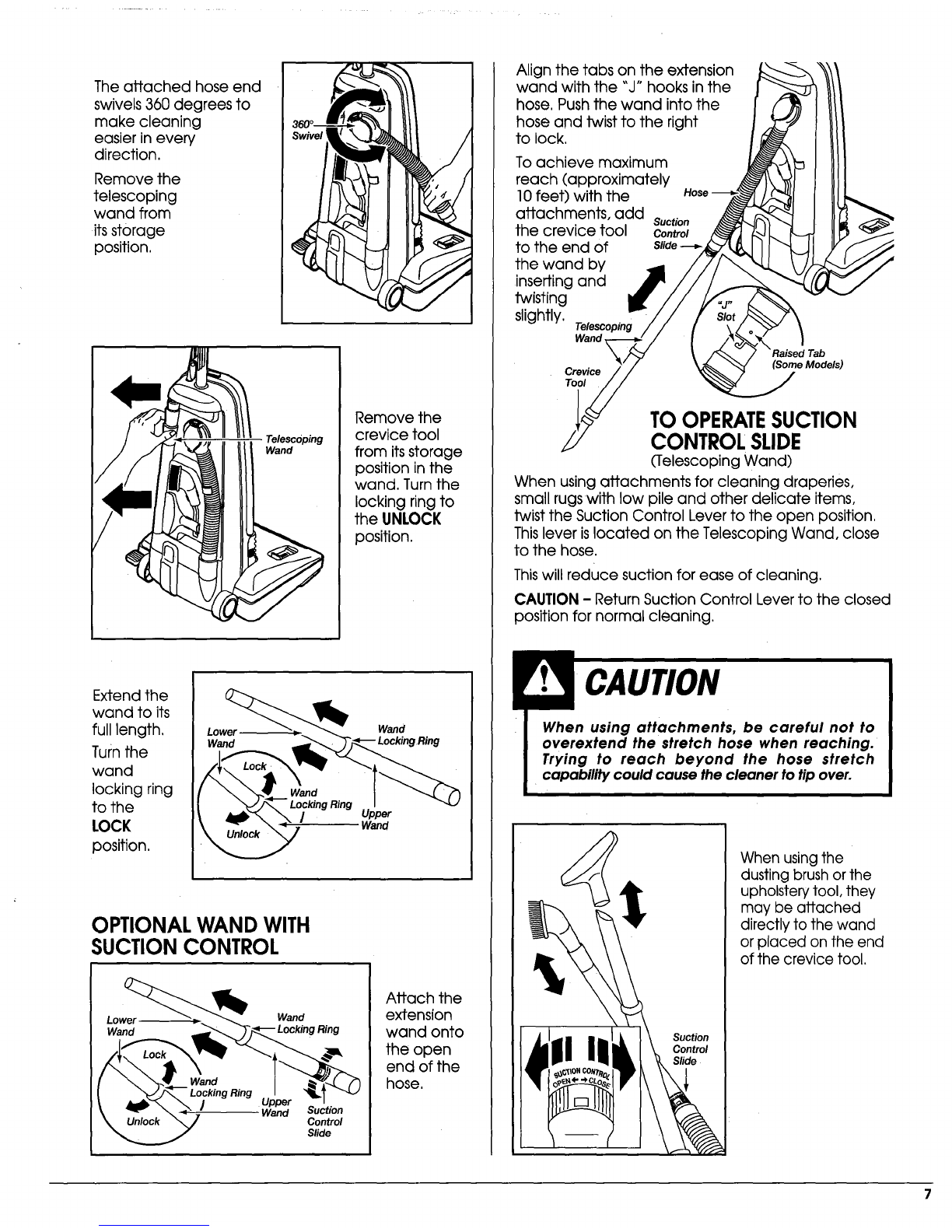

Using Attachments ...................... 6-8

Vacuuming Tips ........................... 9

Performance Features ..................... 9

VACUUM CARE ........................... I0

Vacuum Storage ......................... I0

Cleaning Exterior and Attachments ......... 10

Bag Changing ........................... 11

Motor Safety Filter Cleaning ................ 12

Exhaust Filter Cleaning .................... 13

Belt Changing and Brush Cleaning ....... 14-16

Clog Removal ........................... 17

Light Bulb Changing ............ . ......... 18

Brush Servicing ........................... 19

Brush Assembly .......................... 19

TROUBLESHOOTING ..................... 2o

i ii ii ii i

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your cleaner is

intended only for household use. The cleaner should be stored in a dry, indoor area. Read this Owner's

Manual carefully for important use and safety information.

i i i

WARRANI ERVICE

KENMOREVACUUM CLEANER

FULLONE-YEARWARRANTY

When used for private household purposes, if within

one year from the date of purchase, this vacuum

cleaner fails due to a defect in material or

workmanship, RETURN IT TO THE NEAREST SEARS

SERVICECENTER/DEPARTMENTIN THE UNITEDSTATES,

and Sears will repair it free of charge.

If this vacuum cleaner is used for commercial or

rental purposes, the above warranty coverage

applies for only 90 days from the date of purchase.

This warranty gives you Specific legal rights, and

you may also have other rights which vary from

state to state.

SEARS,ROEBUCKAND CO., D/817 WA,

Hoffman Estates,IL.60179

If you need service or parts, visit your nearest Sears

Service Center or the Service Department located at

most Sears Retail Stores. They will be able to solve

your problem and supply any needed replacement

parts. Any service needed other than described in

this Owner's Manual should be done by a Sears

authorized service representative.

How to Order Repair Parts

When requesting service or ordering parts, have the

following information available:

1. Model number.

2. Serial number.

3. Description of problem.

4. Part number.

5. Name of par[.

EnglishSpeaking:

To Call Toll Free For Service:

To Call Toll Free For Parts:

Spanish Speaking:

To CallTollFreeForService:

To CallTollFreeForParts:

(1-800-4-REPAIR)

(1-800-473-7247)

(1-800-FON-PART)

(1-800-366-7278)

(1-800-626-5811 )

(1-800-659-7084)

---IMPORTANT SAFETYINSTRUCTIONS

To reduce the risk of fire, electrical shock, injury to persons or damage when using

your vacuum cleaner, follow basic safety precautions including the following:

Read this manual before assembling or using

your vacuum cleaner.

Use your cleaner only as described in this

manual, Use only with Sears recommended

attachments.

To reduce the risk of electrical shock - Do not

use outdoors or on wet surfaces.

Disconnect electrical supply before servicing

or cleaning out brush area. Failure to do so

could result in electrical shock or brush

suddenly starting,

Always turn cleaner off before unplugging.

Do not unplug by pulling on cord. To unplug,

grasp the plug, not the cord.

Do not use with damaged cord or plug. If

cleaner is not working as it should, has been

dropped, damaged, left outdoors, or dropped

into water, return it to a Sears Service

Center/Department.

Donot pull or carry by cord, use cord as a

handle, close door on cord, or pull cord

around sharp edges or corners. Do not run

cleaner over cord. Keep cord away from

heated surfaces.

Do not leave cleaner when plugged in.

Unplug from outlet when not in use and before

servicing.

Do not allow to be used as a toy. Close

attention is necessary when used by or near

children.

Do not handle plug or cleaner with wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair and anything that may

reduce air flow.

Keep hair, loose clothing, fingers, and all parts

of body away from openings and moving

parts.

Do not use cleaner without dust bag in place.

Always change the dust bag after vacuuming

carpet cleaners or fresheners, powders and

fine dust. These products clog the bag,

reduce airflow and can cause the bag to

burst. Failure to change bag could cause

permanent damage to the cleaner.

Do not use the cleaner to pick up sharp hard

objects, small toys, pins, paper, etc. They may

damage the cleaner or dust bag.

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use cleaner to pick up flammable or

combustible liquids (gasoline, cleaning fluids,

perfumes, etc.), or use in areas where they

may be present. The fumes from these

substances can create a fire hazard or

explosion.

Use extra care when cleaning on stairs. Do not

put on chairs, tables, etc. Keep on floor.

You are responsible for making sure that your

vacuum cleaner isnot used by anyone unable

to operate it properly.

SAVETHESEINSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities.

Your cleaner is intended only for household use.

Read this Owner's Manual carefully for important use and safety information.

AND FEATURES

It isimportant to know your vacuum cleaner parts

and features to assure its proper and safe use.

Review these before using your cleaner.

COPY YOUR MODELAND SERIAL

NUMBERSHERE.

Copy this information from the

bottom of the vacuum cleaner into

these spaces. Keep these numbers

for future reference. If you need

service or call with a question, have

this information ready:

UPRIGHT

Handle

OnlOff Switch

Handle Mounted

(Some Models)

116.

Model Number

Serial Number

Body Mounted

(Some Models)

Bag Cover

Handle

Pedal

Quick Releese--_

UpperCordHook

Power Cord

Cord Hook

Carry

Crevice Tool

Telescoping

Wand

Dusting

Brush --

Upholstery

Model/Serial

Numbers

Upper

I IIII

Bag Cover

Bag # In U.S. #20-50688

Bag # In Canada #20-50680

Bare Floor

Setting

(Some

Models)

Height Adjustment

Lever

Belt Protection

System Reset --

Furniture

Guard

Clean-Out

Port Cover

Ready-to-Use

360 °Swivel Hose

Four-to-One

Stretch Hose

Headlight

Bulb # In U.S. #20-5240

Bulb # In Canada #20-40600

Belt

Belt #In U.S. #20-5286 I

Belt # In Canada #20-40094 I

Brush

Assembly

Indicator

(Some Models)

-Base

Cover

Base

EEEEEE SSEMBLY

HANDLEASSEMBLY

Before assembling your vacuum cleaner be sure you

have all the parts shown,

Electrical Shock Hazard i

Do not plug into the electrical supply until the

assembly is complete_ Failure to do so could

resultin electrical shock or injury.

]

,Cord Hooks

Screw Hole

Opening for Handle

Carry Handle

IIII H_,o

Screw Hole

Back of

Vacuum Cleaner

Carry Handle

Screw

Remove the screw located just below the carry

handle on the back side of the vacuum,

Position the handle so the cord hooks are toward the

back of the cleaner.

Insert the handle into _ /

the opening at the

top of the vacuum.

Align the screw hole

in the handle with the CordHooks

screw hole in the

vacuum.

Insert the screw so it

passes through the

back of the vacuum

into the handle.

Begin to tighten the

screw with your

fingers, It may be

necessary to adjust Handle

_Carry Handle

Using a

screwdriver,

tighten the

screw, Wrap the power

cord around the

upper and lower

cord hooks and

lock the power

cord plug unto

the power cord.

CAUTION

Do not overtighten.

Overtightenlngcould stripthe screwholes.

Do natoperate thecleaner withoutthescrewln

•place. TOSTART

CORD ASSEMBLY

Make sure the quick release upper cord hook is in

the upright position, Remove the wire tie from the

power cord,

Lock the cord into

place by forcing it

into the locking

notch on the body

of the upper cord

hook as shown. This

helps keep the

power cord out

from under the

vacuum cleaner

agitator.

1. Turn the quick

release cord hook

to either side and

down to release

the power cord.

2. Release the power cord plug from the power cord

and pull the cord off the upper cord hook. Check to

be sure the power cord isstill locked into the lock in

the upper cord hook.

3. Check to see if the cleaner has a bag installed

(See page 11).

NOTE:To reduce the riskof electric shock, this

vacuum cleaner has a polarized plug, (one blade is

wider than the other). This plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install the proper outlet. Do

not change the plug in any way.

4. Plug the polarized power cord into a 120-volt

outlet located near the floor.

PersonalInjury and Product Damage Hazard

• DO NOT plug in ifswitch isin ON position.

Personalinjury or damage could result.

•DO NOT use outletsabove counters. Damage

to itemsin surroundingarea could occur. i

i, I

HEIGHT

SELEOTIONAND

SETTING

To select a pile height setting:

Turn off the cleaner. Select a pile height setting by

tilting the cleaner back until the front wheels are

lifted slightly off the floor.

Slide the height adjustment lever to the correct

setting.

SUGGESTEDPILEHEIGHTSETTINGS

You may need to raise the height to make some jobs

easier (such as scatter rugs and longer pile carpets).

Suggested settings are:

HIGH: shag carpet, long pile, plush, scatter rugs.

MED: medium to long pile.

LOW: short to medium pile.

EX LO:very low pile.

Personal Injury Hazard

DO NOT place hands or feet underneath the unit

when changing from the bare floor setting to the

carpet pile height setting: The brush assembly

begins to revolve rapidly when the vacuum is

turned on and isswitched to a carpet height setting.

FLOOR

SETTING

(SOME MODELS)

To select the bare floor setting:

Turn off the cleaner.

Tilt the cleaner back until the front wheels are lifted

slightly off the floor.

Slide the height adjustment lever to the bare floor

setting.

In this position, the headlight isoff and the brush

assembly does not revolve. Thissetting isrecom-

mended for cleaning hardwood and tile floors.

EEEEEERELEASINGTHE

HANDLE

Release the

handle by

pressing

down on the

handle

release pedal

with your foot

and pulling

down on the

handle with

your hand. Handle

Release Pedal

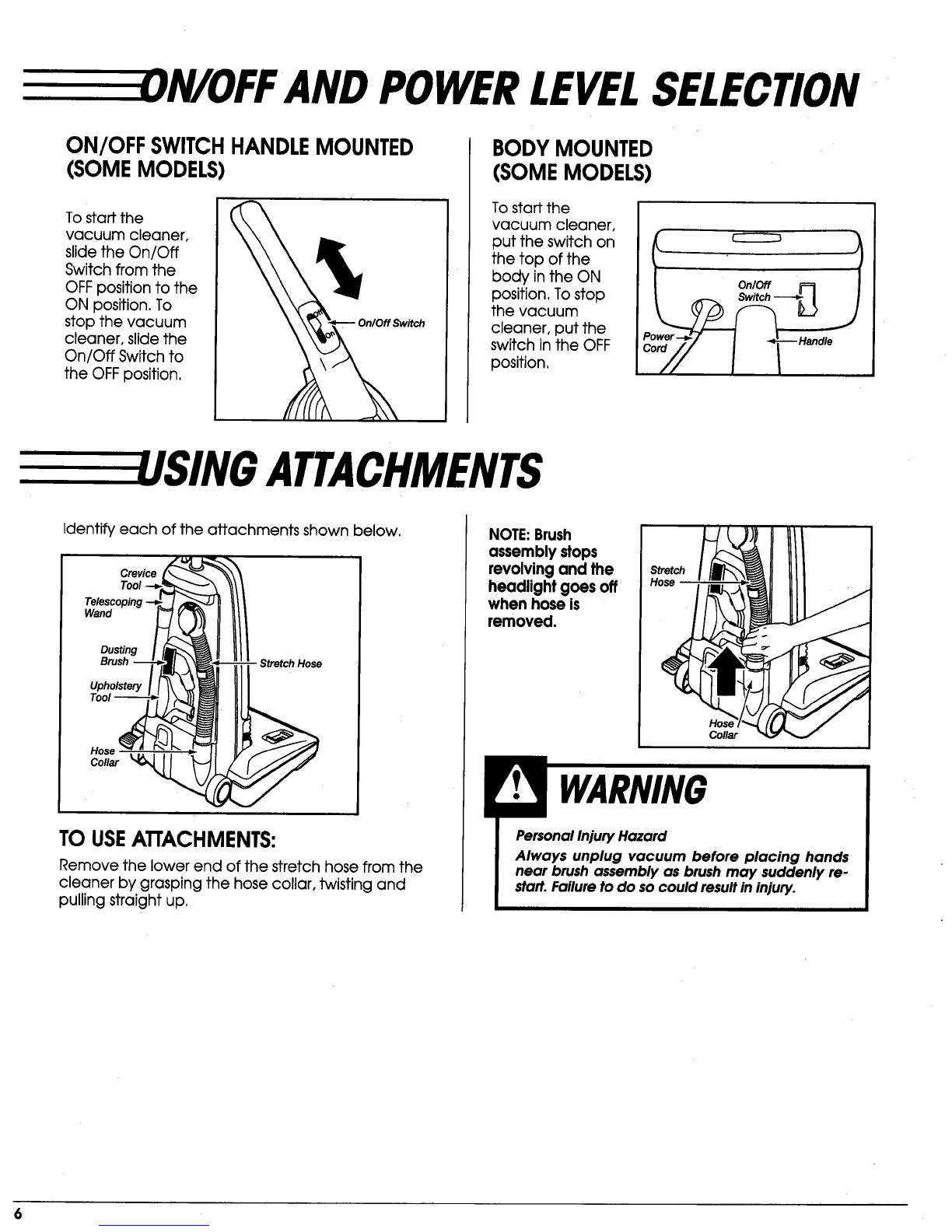

ANDPOWERLEVELSELECTION

ON/OFF SWITCHHANDLEMOUNTED

(SOMEMODELS)

To start the

vacuum cleaner,

slide the On/Off

Switch from the

OFF position to the

ON position. To

stop the vacuum

cleaner, slide the

On/Off Switch to

the OFF position.

BODYMOUNTED

(SOMEMODELS)

To staff the

vacuum cleaner,

put the switch on

the top of the

body in the ON

position. To stop

the vacuum

cleaner, put the

switch in the OFF

position.

OnlOff _ I

_T Handle

ATTACHMENTS

Identify each of the attachments shown below.

Crevice

Telescopin!

Wand

Dusting

Brush Stretch Hose

Upholstery

Tool --

Hose

Collar

TO USEATTACHMENTS:

Remove the lower end of the stretch hose from the

cleaner by grasping the hose collar, twisting and

pulling straight up.

NOTE:Brush

assembly stops

revolving and the

headlight goes off

when hose is

removed.

Hose

Collar

WARNING

Personal InjuryHazard

Always unplug vacuum before placing hands

near brush assembly as brush may suddenly re-

start.Failureto do so could resultin injury.

The attached hose end

swivels 360 degrees to

make cleaning

easier in every

direction.

Remove the

telescoping

wand from

its storage

position.

Telescoping

Wand

Extend the

wand to its

full length,

Turn the

wand

locking ring

to the

LOCK

position.

OPTIONALWAND WITH

SUCTIONCONTROL

L°w__ Woa_kdm. •

;por

U_nlock_ 'Wand _oCrt_O_l

Slide

Remove the

crevice tool

from its storage

position in the

wand. Turn the

locking ring to

the UNLOCK

position.

Wand

Upper

Wand

Attach the

extension

wand onto

the open

end of the

hose.

Align the tabs on the extension

wand with the "J" hooks in the

hose. Push the wand into the

hose and twist to the right

to lock.

To achieve maximum

reach (approximately

10 feet) with the

attachments, add

the crevice tool

to the end of

the wand by

inserting and

twisting

slightly. Telescoping

Wand

Suction

Control

Slide -_

Crevice

Tool

Tab

(Some Models)

TO OPERATESUCTION

CONTROLSLIDE

(Telescoping Wand)

When using attachments for cleaning draperies,

small rugswith low pile and other delicate items,

twist the Suction Control Lever to the open position.

This lever islocated on the Telescoping Wand, close

to the hose.

Thiswill reduce suction for ease of cleaning.

CAUTION -Return Suction Control Lever to the closed

position for normal cleaning.

CAUTION

Suction

Control

When using the

dusting brush or the

upholstery tool, they

may be attached

directly to the wand

or placed on the end

of the crevice tool.

TO STOREATTACHMENTS:

Remove dusting brush or upholstery tool, Snap into

appropriate storage location,

Remove crevice tool from the wand by twisting.

Lay aside.

Remove the extension wand from the hose. Twist the

wand to the left and pull from the hose end,

Lock Wand

\Unlock_l L_'klngRing

I __---/ Upper_

_*'___=._,'rWand ,.

Unlock the wand by

turning the wand

locking ring to the

UNLOCK position.

Slide the lower wand into

the upper wand, Turn the wand

locking ring to the LOCK position.

Place the crevice tool down into the compressed

wand,

Snap into the appropriate storage location.

Be sure the unit isturned off, Reinsert the hose fully

into the opening on the lower body from which it

was removed.

Pressfirmly to assure connection.

NOTE:Brushassembly will not turn if hose isnot fully

inserted.

WARNING

PersonalInjuryHazard

DO NOT place hands or feet underneath the unit

when insertingthehose. Thebrushassemblybegins

to revolve rapidly when the vacuum is turned on

and isswitched to a carpet height setting.

CAUTION [

IDO NOTpull the vacuum cleaner around the room |

by thelhose. Propertydamage could result.

EXTENSIONHOSE

NOT INCLUDEDIN ALLMODELS

The stretch hose attached to the vacuum cleaner

has two "J" shaped slots in the end where

attachments fit into.

Unit Hose Extension Hose

The extension hose has two tabs on the end that can

be pushed into the slots and twisted to attach the

two hoses together.

Attachments and the telescoping wand can be

attached to the other end of the extension hose for

additional reach.

If your model did not come with an extension hose.

one can be purchased at any SEARSretail store

under part number 20-52571.

hose attached, the cleaner should be on a solid

surface on the same level or below the level of

the user's feet. DO NOT use the hoses when the

cleaner isabove the level of the user'sfeet.

ATTACHMENTUSECHART

ATTACHMENT

CLEANING AREA

Furniture*

X X

Between

Cushions*

DUSTING BRUSH

CREVICE TOOL

FABRIC BRUSH _X

*Alwaysclean attachments before usingon fabrics.

Drapes* Stairs

X X

Walls

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore DS6001 Bedienungsanleitung

Kenmore

Kenmore Sears Destiny II 204.36997690 Bedienungsanleitung

Kenmore

Kenmore BC4027 Bedienungsanleitung

Kenmore

Kenmore BC4040 Bedienungsanleitung

Kenmore

Kenmore 116.32721 Bedienungsanleitung

Kenmore

Kenmore 116.22804C Bedienungsanleitung

Kenmore

Kenmore 116.26212 Bedienungsanleitung

Kenmore

Kenmore CSV Go XL DS4030 Bedienungsanleitung

Kenmore

Kenmore 116.35922 Bedienungsanleitung

Kenmore

Kenmore VACUUM CLEANER 116.32289 Bedienungsanleitung

Kenmore

Kenmore 125.31150610 Bedienungsanleitung

Kenmore

Kenmore 37100 - Twilight Upright Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.10701 Bedienungsanleitung

Kenmore

Kenmore CROSSOVER MAX 116.10325 Bedienungsanleitung

Kenmore

Kenmore 592.30413 Bedienungsanleitung

Kenmore

Kenmore 3693 - Progressive Bagless Upright Bedienungsanleitung

Kenmore

Kenmore CSV Max 30990 Bedienungsanleitung

Kenmore

Kenmore 116.23105C Bedienungsanleitung

Kenmore

Kenmore FeatherLite Lift-Up DU4080 Bedienungsanleitung

Kenmore

Kenmore 116.23155C Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore 116.27212 Bedienungsanleitung

Kenmore

Kenmore Progressive DU2001 Bedienungsanleitung

Kenmore

Kenmore 116.29319 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
