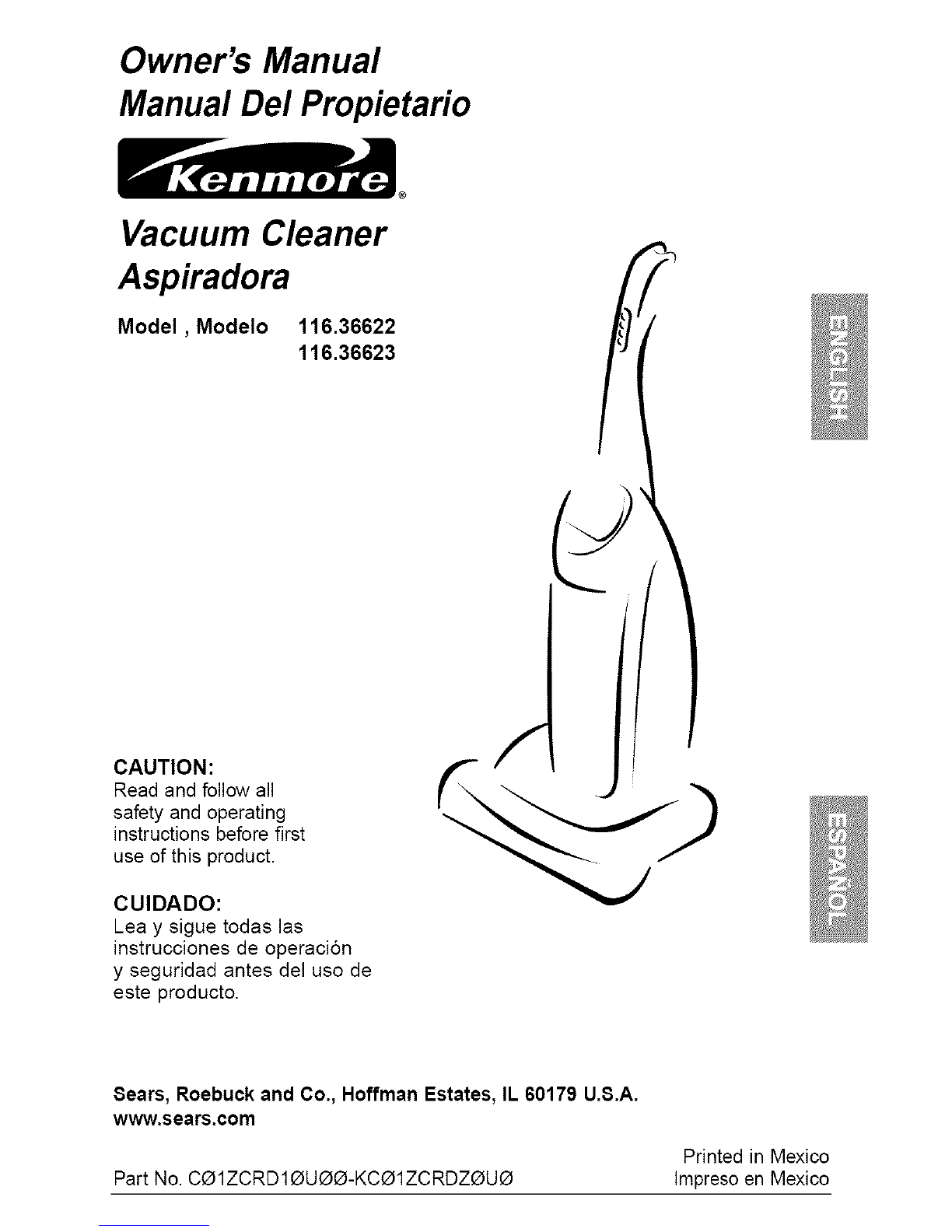

Owner's Manual

Manual Del Propietario

Vacuum Cleaner

Aspiradora

Model, Modelo 116.36622

116.36623

CAUTION:

Read and follow all

safety and operating

instructions before first

use of this product.

CUIDADO:

Lea y sigue todas las

instrucciones de operaci6n

y seguridad antes del uso de

este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

Printed in Mexico

Part No. CO1ZCRD1OUO_-KCO1ZCRDZ_UO Impresoen Mexico

Before Using Your New

Vacuum Cleaner .................... 2

Kenmore Vacuum Cleaner Warranty ... 2

Important Safety Instructions ......... 3

Parts and Features .................. 4

Assembly Instructions ............. 5-6

Operating Instructions ............... 6

Cord Release ....................... 6

Releasing the Handle ................. 7

Touch Control ...................... 7

Pile Height Selection and Setting ........ 8

Carpet/Bare Floor Selector ............. 8

Attachments ..................... 9-10

Attachment Use Table ............... 11

Vacuuming Tips .................... 11

Performance/Safety Features ....... 12-13

Vacuum Cleaner Care ............... 14

Vacuum Cleaner Storage ............. 14

Cleaning Exterior and Attachments ...... 14

Dust Bag Replacement .............. 15

Motor Safety Filter Cleaning ........... 16

Exhaust Filter Replacement ............ 16

Belt Changing and Agitator Cleaning . .17-19

Light Bulb Replacement .............. 20

Clog Removal ..................... 21

Troubleshooting .................... 22

Requesting Assistance Or Service back page

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call your nearest Sears store.

You will need the complete model and serial numbers when requesting information. Your vacu-

um cleaner's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore

vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

ONE YEAR FULL WARRANTY ON KENMORE VACUUM CLEANER

This warranty is for one year from the date of purchase, and includes only private household

vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and

maintained according to the owner's manual instructions, Sears will repair any defects in

material or workmanship free of charge.

This warranty excludes vacuum cleaner bags, belts, light bulbs, and filters, which are

expendable parts and become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Center in

the United States.

This warranty applies only while this product is in use in the United States. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

AWARNING: Your safety is important to us. To reduce the risk

of fire, electrical shock, injury to persons or

damage when using your vacuum cleaner, follow

basic safety precautions including the following:

Read all instructions in this manual before

assembling or using your vacuum cleaner.

Use your vacuum cleaner only as

described in this manual. Use only with

Sears recommended attachments.

Disconnect electrical supply before ser-

vicing or cleaning out the brush area.

Failure to do so could result in the brush

unexpectedly starting, causing personal

injury from moving parts.

Do not leave vacuum cleaner when

plugged in. Unplug from outlet when not in

use and before performing maintenance.

To reduce the risk of electrical shock - Do

not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

Do not use with a damaged cord or plug. If

vacuum cleaner is not working as it should,

has been dropped, damaged, left outdoors,

or dropped in water, return it to a Sears

Service Center.

Do not pull or carry by cord, use cord as a

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run

cleaner over cord. Keep cord away from

heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with

wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that may

reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on

floor.

Do not use vacuum cleaner to pick up

flammable or combustible liquids (gaso-

line, cleaning fluid, perfumes, etc.), or use

in areas where they may be present. The

fumes from these substances can create a

fire hazard or explosion.

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use vacuum cleaner without dust

bag and/or filters in place.

Always replace the dust bag after vacuum-

ing carpet cleaners or freshener, powders,

and fine dust. These products clog the fil-

ters, reduce airflow and can cause damage

to the vacuum cleaner. Failure to replace

the dust bag could cause permanent dam-

age to the cleaner.

Do not use the vacuum cleaner to pick up

sharp hard objects, small toys, pins, paper

clips, etc. They may damage the cleaner or

dust bag.

Unplug before connecting Handi-mate Jr.®

You are responsible for making sure that

your vacuum cleaner is not used by anyone

unable to operate it properly.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your

cleaner is intended for Household use. Read this Owner's Manual carefully for important

use and safety information. This guide contains safety statements under warning and cau-

tion symbols.

itisimportanttoknowyourvacuumcleaner'spartsandfeaturestoassureitsproperandsafe

use.Reviewthesebeforeusingyourvacuumcleaner.

Item Part No. Part No.

In U.S. In Canada

Headlight Bulb 20-5248

Exhaust Filter 20-86889 20-40324

Dust Bag 20-50690 20-50510

Belt 20-5275 20-40096 Touch

Control

Handi-Mate Jr. ®_

Handle

Upper Cord Hook Telescopic

Wand

Combination

Brush

Carrying

Handle

Upper Hose

Extension

Hose

Tool

Cover

(Filter Inside)

Release

Pedal

Extension

Release Lever

Motor Protector

(Behind Hose)

Furniture

Guard

Wand Holder

Carpet/Bare

Floor Selector

Please pay special attention to these hazard alert boxes, and follow any instructions I

,_ given. WARNING statements alert you to such hazards as fire, electric shock, burns I

and personal injury. CAUTION statements alert you to such hazards as personal

injury and/or property damage.

WARNING

Electrical Shock Hazard

Do not plug into the electrical supply

until the assembly is complete. Failure

to do so could result in electrical

shock or injury.

Before assembling the vacuum cleaner,

check the PACKING LIST on the cover of

the separate REPAIR PARTS LIST. Use

this list to verify that you have received all

the components of your new Kenmore

vacuum cleaner.

HANDLE ASSEMBLY

Remove the combination brush from

the handle to expose the handle mount-

ing hole.

Remove the handle screw from the body

of the vacuum cleaner.

Position the handle assembly as shown in

the illustration below.

When installing the handle, firmly press

the handle onto the body. Secure with

handle screw provided.

Begin to tighten the screw with your fin-

gers. It may be necessary to adjust the

handle slightly.

Using a screwdriver, tighten handle screw.

Reinstall combination brush.

Electrical

Connection

Assembly

Handle

Screw

CAUTION

Do not overtighten.

Overtightening could strip the screw

holes.

Do not operate the vacuum cleaner

without the screw in place.

CORD ASSEMBLY

Make sure the quick release upper cord

hook is in the upright position. Remove

the wire tie from the power cord.

Make sure the

power cord is

placed into the lock-

ing notch on the

body as shown. This

helps keep the

power cord from

under the vacuum

cleaner agitator.

Notch

Power

lug

Wrap the power cord around the quick

release cord hook and the carrying handle.

Lock the power cord plug onto the power

cord.

HANDI-MATE JR.@

For operation of Handi-MateJ_® /l_l_

Htond_Me ate J'® __ _

TO INSERT HANDI-MATE JR_'

Place Handi-Mate Jr.® intothe storage

compartment.

Rotate the Handi-Mate Jr.® back untilit

snaps intoplace.

TO REMOVE HANDI-MATE JR._

Rotate Handi-Mate Jr.® out of the storage

compartment.

OPERATING INSTRUCTIONS

TELESCOPIC WAND

PLACEMENT

Place the telescopic wand in the wand

holder. Place the crevice tool in the top of

the telescopic wand.

lipi c

1. Turn the quick

release upper

cord hook to

either side and

down to release

the power cord.

kWARNING

To reduce the risk of electric shock,

this vacuum cleaner has a polar-

ized plug (one blade is wider than

the other).

The plug will fit in a polarized outlet

only one way. If the plug does not

fit fully in the outlet, reverse the

plug. If it still does not fit, contact a

qualified technician to install the

proper outlet. Do not change the

plug in any way.

2. Detach the Lockinl

_ower cord plug Notch

from the power cord

and pull the cord off

the quick release

upper cord hook. Power

Be sure the power

cord is still locked

into the locking notch of the upper cord

hook.

3. Plug the polarized power cord into a 120

Volt outlet located near the floor.

4. To store cord, turn upper cord hook to

the up position, then wrap cord.

IbWARNING

Personal Injury and Product Damage

Hazard

•DO NOT place hands or feet under

the unit at any time.

•DO NOT use outlets above coun-

ters. Damage from cord to items in

surrounding area could occur.

Release the handle by pressing down on

the handle release pedal with your foot and

pulling back and down on the handle with

your hand.

Note: The agitator may rotate when the vac-

uum cleaner is in the upright position.

OFF - Turns OFF the vacuum cleaner

(suction) motor.

ON - Turns ON the vacuum cleaner motor

to HIGH suction level for cleaning of most

carpets and rugs. In order to get MEDIUM

and LOW suction levels for cleaning, press

the SUCTION button to cycle the vacuum

cleaner motor through MEDIUM, LOW,

and HIGH suction levels respectively.

SUCTION - Changes the suction level of

the vacuum cleaner motor. If the unit is

OFF, pressing the SUCTION button turns

ON the vacuum cleaner motor to HIGH

suction level for cleaning of most carpets,

rugs, and fabrics. If the unit is ON, press-

ing the SUCTION button cycles the vacu-

um cleaner motor through suction levels.

To select a pile height setting:

Turn off vacuum cleaner. Select a pile

height setting by tilting the cleaner back

until the front wheels are lifted slightly off

the floor.

Slide the adjustment lever to the correct

setting.

There are four (4) pile height settings on

the vacuum cleaner. Use the LOW setting

for most low-pile carpets and bare floor

cleaning. Use the HIGH setting for high-

pile carpets like shag carpet, scatter rugs,

etc. Use the other settings as needed for

carpet heights in between.

CAUTION

Do not allow vacuum cleaner to remain

in one spot for any length of time

when the agitator is turning. Damage

to carpet may occur.

Bare floor setting: Slide the carpet/bare

floor selector all the way back and down

toward the bottom of the nozzle until it locks

into place.

in this position the brush assembly does not

revolve. This setting should be used for

cleaning hardwood and tile floors and when

any attachments (tools) are used.

Carpet setting: Slide the selector all the

way forward and up to the carpet

position.

in this position the brush assembly will turn.

When carpets are being cleaned the selec-

tor should be in this position.

Attention: Refer to your carpet manufac-

turers cleaning recommendations. Some

more delicate carpets may require that they

be vacuumed with the agitator turned off, to

prevent carpet damage.

IbCAUTION

Do not allow vacuum cleaner to remain

in one spot for any length of time

when the agitator is turning, Damage

to carpet may occur.

Note: For longer belt life, turn vacuum

cleaner off before moving selector. Failure

to do so can cause the belt to rub on the

selector shaft and may result in the belt

becoming hot and creating a burning rubber

smell.

To Bare FlOor

Position I

Floor Selector

Combination

Brush

Handle

Extension

Release Lever

.....Crevice

Tool

TO USE ATTACHMENTS

Place the carpet/bare floor selector in the

bare floor setting by rotating the selector

back and down to the bare floor setting.

See CARPET/BARE FLOOR SELECTOR

section.

Remove the lower end of the extension

hose from the wand holder by grasping the

hose collar, twisting, and pulling straight up.

Rotate the extension hose release lever

down if maximum reach is needed.

IbWARNING

Electrical Shock And Personal Injury

Hazard

Disconnect electrical supply before ser-

vicing or cleaning the unit. Failure to do

so could result in electrical shock or

personal injury from vacuum cleaner

suddenly starting,

TELESCOPIC WAND WITH

SUCTION CONTROL SLIDE

1. Remove the lower end of the extension

hose from the wand holder by grasping

the hose collar, twisting, and pulling

straight up.

2. Remove the telescopic wand from the

wand holder.

3. Remove the crevice tool from its stor-

age position in the wand. Turn the lock-

ing ring to the UNLOCK position.

1. Crevice

Tool

2. Telescopic

3. Hose

Collar

Wand

Extend the wand to its full length. Turn the

locking ring to the LOCK position. Attach

the wand onto the open end of the hose.

Lower_-_ _Suction

Wand_'_r_ Control Slide

\ _._<_ Locking Ring I

_Unlock _,_ Upper

Wand

Align the tabs on the wand with the "J"

slots in the hose. Push the wand into the

hose and twist to the right to lock.

Raised

Tab

Suction

Telescopic l

Wand

Tool

To achieve maximum reach with the

attachments, add the crevice tool to the

end of the wand by inserting and twisting

slightly.

The combination brush can be attached

directly to the wand.

bBrush_ ......

Combination _ _

Brush BrushS

Holder

Use the brush holder without the brush for

greater suction on furniture cushions or

stairs. Use brush holder with brush for

cleaning loose surfaces such as drapes.

TO OPERATE SUCTION

CONTROL SLIDE

Telescopic Wand

When using attachments for cleaning

draperies, small rugs with low pile and

other delicate items, twist the suction con-

trol slide to the open position. This slide is

located on the telescopic wand, close to

the hose.

Suction

Control This will reduce

suction for ease of

cleaning.

Note: Return suction control slide to the

closed position for normal cleaning.

CAUTION

When using attachments, be careful

not to overextend the stretch hose

when reaching. Trying to reach beyond

the hose stretch capability could cause

the vacuum cleaner to tip over.

TO STORE ATTACHMENTS

Remove the combination brush. Snap into

appropriate storage location.

Remove crevice tool from the wand by twist-

ing. Lay aside.

Remove the telescopic wand from the hose.

Twist the wand to the left and pull from the

hose end.

Unlock the wand by turning the wand lock-

mg ring to the UNLOCK position.

Slide the lower wand into the upper wand.

Turn the wand locking ring to the LOCK

3osition.

Place the crevice tool down into the com-

3ressed wand. Place the telescopic wand in

the wand holder

CAUTION

DO NOT pull the vacuum cleaner around

the room by the hose. Property damage

or personal injury could result.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore CSV Max Bedienungsanleitung

Kenmore

Kenmore 1163511290 Bedienungsanleitung

Kenmore

Kenmore SSV Quick Clean 125.10440710 Bedienungsanleitung

Kenmore

Kenmore 116.29319 Bedienungsanleitung

Kenmore

Kenmore VACUUM CLEANER 116.32189 Bedienungsanleitung

Kenmore

Kenmore 116.36724 Bedienungsanleitung

Kenmore

Kenmore Aspiradora 125.31140610 Bedienungsanleitung

Kenmore

Kenmore 116.23637C Bedienungsanleitung

Kenmore

Kenmore Elite 116.31150 Bedienungsanleitung

Kenmore

Kenmore 116.27212 Bedienungsanleitung

Kenmore

Kenmore 116.20212 Bedienungsanleitung

Kenmore

Kenmore BC3060 Bedienungsanleitung

Kenmore

Kenmore Sears 175.8690090 Hom? cleaning system Bedienungsanleitung

Kenmore

Kenmore 116.32735 Bedienungsanleitung

Kenmore

Kenmore 125.81414610 Bedienungsanleitung

Kenmore

Kenmore 116.31100 Bedienungsanleitung

Kenmore

Kenmore COIZDMWOOU00 - KC01ZDMWZOUO Bedienungsanleitung

Kenmore

Kenmore 116.34924 Bedienungsanleitung

Kenmore

Kenmore Sears refrigerator Bedienungsanleitung

Kenmore

Kenmore VACUUM CLEANER 116-28095C Bedienungsanleitung

Kenmore

Kenmore 3704 - Bagless Upright Vacuum Bedienungsanleitung

Kenmore

Kenmore 116.81714 Bedienungsanleitung

Kenmore

Kenmore PowerMate Nozzle Bedienungsanleitung

Kenmore

Kenmore 116.22512 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
