Kramer FC-1DGH Bedienungsanleitung

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

FC-1DGH

DGKat to HDBT Converter

P/N: 2900-300279 Rev 1

FC-1DGH – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the FC-1DGH 5

5Connecting the FC-1DGH 6

6Configuring the FC-1DGH 8

7Wiring the DGKat TP RJ-45 Connectors 9

8Technical Specifications 10

Figures

Figure 1: FC-1DGH DGKat to HDBT Converter Front Panel 5

Figure 2: FC-1DGH DGKat to HDBT Converter Rear Panel 5

Figure 3: Connecting the FC-1DGH DGKat to HDBT Converter 6

Figure 4: FC-1DGH Rear Panel DIP-switch 8

Figure 5: TP Pinout Wiring 9

FC-1DGH - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 13 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products; GROUP 12: Digital Signage; and GROUP 13: Audio.

Congratulations on purchasing your Kramer FC-1DGH DGKat to HDBT Converter,

which is ideal for the following typical applications:

Home theater, presentation and multimedia applications

Boardrooms and classrooms

FC-1DGH - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check

if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cable) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer FC-1DGH away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

No operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall adapter

that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

FC-1DGH - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

FC-1DGH - Overview

3 Overview

The FC-1DGH is a DGKat and Ethernet to HDBaseT converter.

The FC-1DGH lets you connect any DGKat device and your Ethernet LAN over an

extended distance to any HDBaseT compatible receiver, (for example, a projector

with an HDBaseT input).

In particular, the FC-1DGH features:

A maximum data rate of 4.95Gbps (1.65Gbps per data channel)

System range on the DGKat side—up to 90m (295ft) at 1080i, or up to 30m

(98ft) at 1080p on shielded BC-DGKat524 cable; 90m (295ft) at 1080i, or up

to 70m (230ft) at 1080p on shielded BC-DGKat623 cable; 100m (330ft) at

1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable

System range on the HDBaseT side—up to 130m (430ft) when using

BC−HDKat6a cable and up to 180m when used in conjunction with devices

that support long range mode

HDTV compatibility with support for resolutions up to 1080p @60Hz

HDCP compliance

Intelligent EDID handling and processing algorithm that ensures Plug and

Play operation for HDMI systems

12V DC power

A Kramer DigiTOOLS 

®enclosure

FC-1DGH - Defining the FC-1DGH

4 Defining the FC-1DGH

Figure 1 defines the front panel of the FC-1DGH DGKat to HDBT Converter.

Figure 1: FC-1DGH DGKat to HDBT Converter Front Panel

Feature

Function

ETHERNET RJ-45

Connector

Connect to the Ethernet LAN

STATUS LED

Lights yellow/green when there is a DGKat signal present.

Lights orange when there is no DGKat signal present

DGKAT IN RJ-45

Connector

Connect to the output of the DGKat source device, (see

Section 5)

ON LED

Lights green when the device is powered on

Figure 2 defines the rear panel of the FC-1DGH DGKat to HDBT Converter.

Figure 2: FC-1DGH DGKat to HDBT Converter Rear Panel

Feature

Function

LINK LED

Lights green when the HDBaseT link is valid

LIVE LED

Flashes green when there is an HDBaseT signal

HDBT OUT RJ-45 Connector

Connect to an HDBaseT-compatible receiver

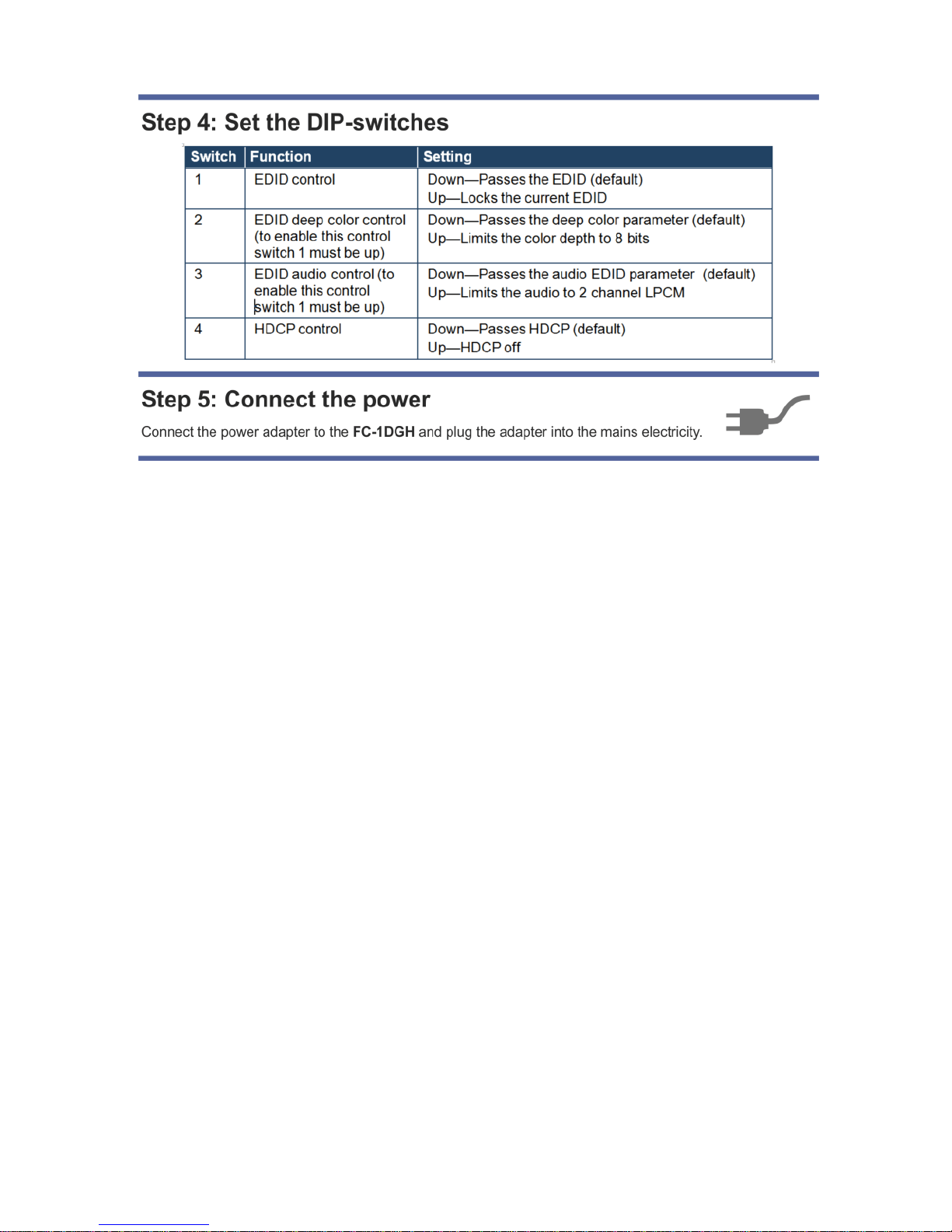

SETUP 4-way DIP-switch

Sets the device behavior, (see Section 6)

12V DC

+12V DC connector for powering the unit, center

positive

FC-1DGH - Connecting the FC-1DGH

5 Connecting the FC-1DGH

Always disconnect/switch off the power to each device before

connecting it to your FC-1DGH. After connecting your FC-1DGH,

connect its power and then reconnect/switch on the power to each

device.

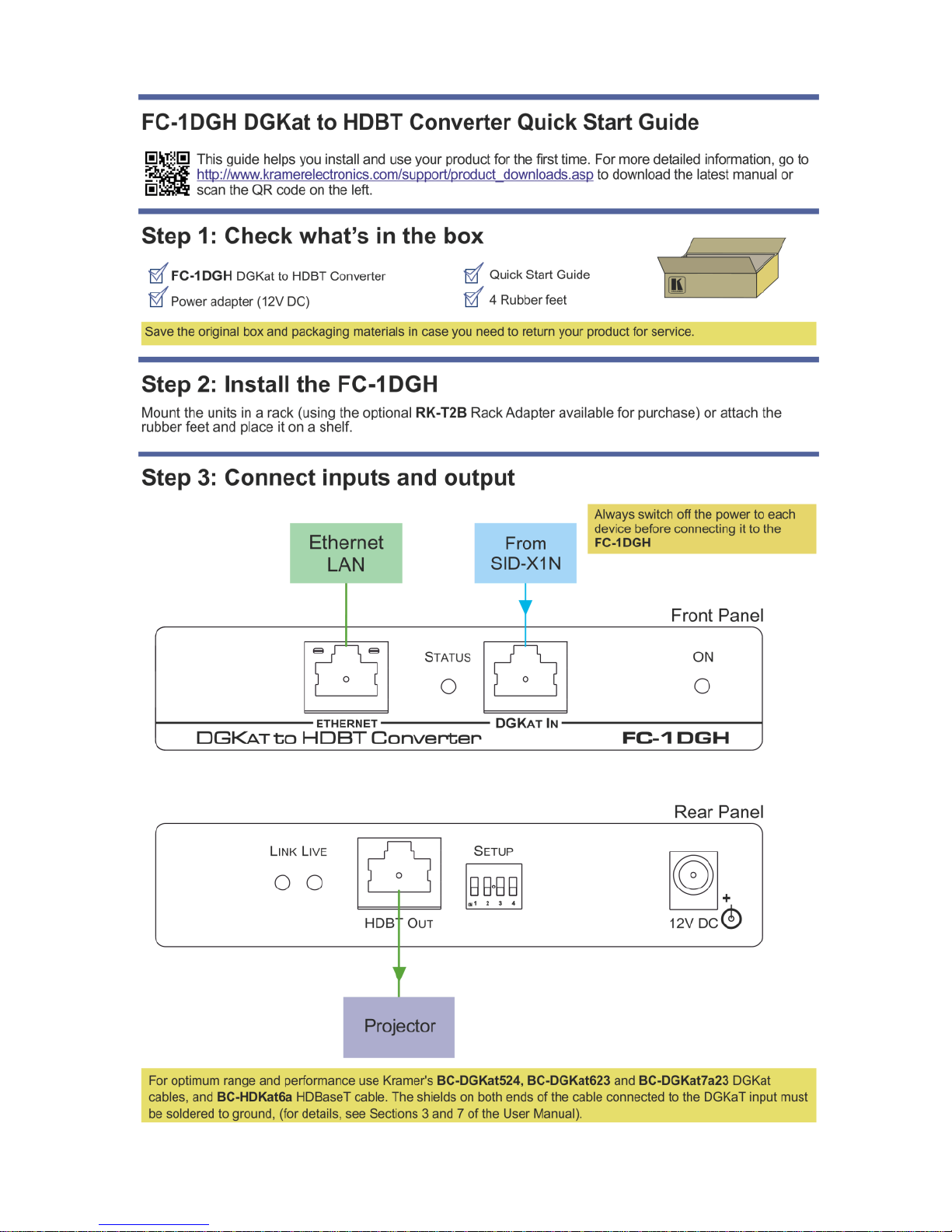

Figure 3: Connecting the FC-1DGH DGKat to HDBT Converter

To connect the FC-1DGH as illustrated in the example in Figure 3:

1. Connect a video and audio source, (for example, a laptop) to the DisplayPort

and Audio In connectors on the SID-X1N.

2. Connect an HDMI source, (for example, a Blu-ray Disc player) to the HDMI

input on the SID-X1N.
