EM-8410 Rev.7 P. 1 / 3

INSTRUCTION MANUAL

DC MILLIVOLT INPUT MODULE

(4 points, isolated) MODEL R3-SV4A

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

DC millivolt input module ..................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■HOT SWAPPABLE MODULES

• Replacing the module does not affect other modules on

the same base. Thus, the module can be replaced while

the power is ON. However, replacing multiple modules

at once may greatly change live voltage levels. We highly

recommend to replace them one by one.

■GENERAL PRECAUTIONS

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■UNUSED INPUT CHANNELS

• Set the unused channels to open. Otherwise, set them as

“Unused” with PC Conﬁgurator software: R3CON.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3-SV4A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8410 Rev.7 P. 2 / 3

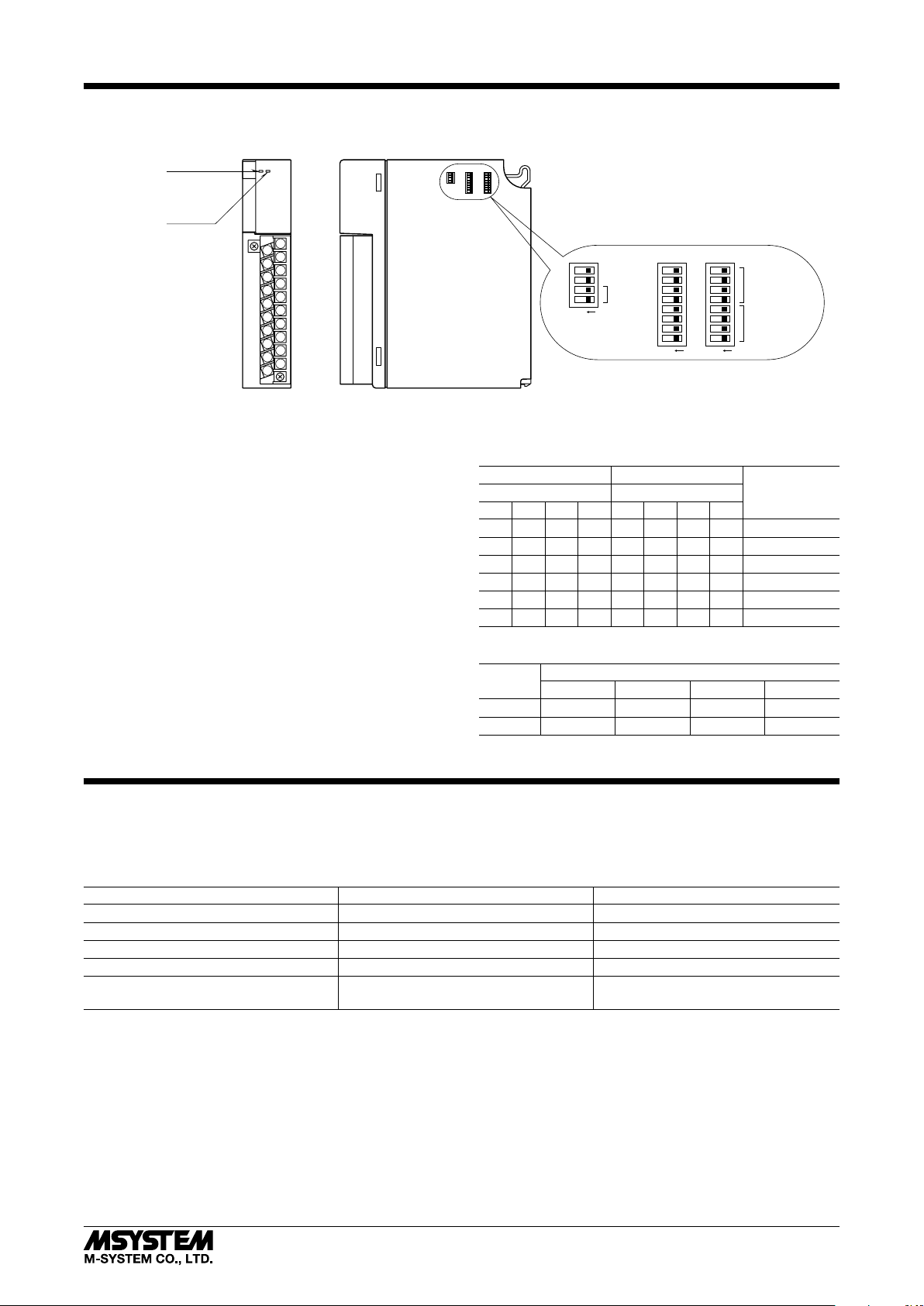

COMPONENT IDENTIFICATION

SW1SW2

SW3

■ FRONT VIEW ■ SIDE VIEW

ERR LED

RUN LED

Conv.

Rate

Input 2 (SW1)

Input 4 (SW2)

Range

Input 1 (SW1)

Input 3 (SW2)

Functions

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/green) LED;

Red with input circuit abnormality (AD con-

verter response failure);

Green in normal operating conditions.

■SIDE DIP SW

(*) Factory setting

• Input Range: SW1, SW2

INPUT 1 (SW1) INPUT 2 (SW1)

RANGEINPUT 3 (SW2) INPUT 4 (SW2)

12345678

OFF OFF OFF OFF OFF OFF OFF OFF

-100 – +100mV (*)

OFF

OFF OFF

OFF OFF OFF

-50 – +50mV

OFF

OFF OFF OFF

OFF OFF

0 – 100mV

ON ON

OFF OFF

ON ON

OFF OFF

0 – 60mV

OFF OFF

OFF OFF OFF

OFF

0 – 50mV

OFF

-60 – +60mV

• Conversion Rate: SW3-1, 3-2

SW CONVERSION RATE

80 ms (*)40 ms 20 ms 10 ms

SW3-1 OFF ON OFF ON

SW3-2 OFF OFF ON ON

Note: Be sure to set unused SW3-3 and 3-4 to OFF.

PC CONFIGURATOR

With conﬁgurator software, settings shown below are available.

Refer to the software manual of R3CON for detailed operation.

■CHANNEL INDIVIDUAL SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Zero Scale -32000 to +32000 0

Full Scale -32000 to +32000 10000

Zero Adjust -320.00 to +320.00 0.00

Full Adjust -32000 to +32000 1.0000

Unused 0: Enable

1: Disable

0: Enable

R3-SV4A

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8410 Rev.7 P. 3 / 3

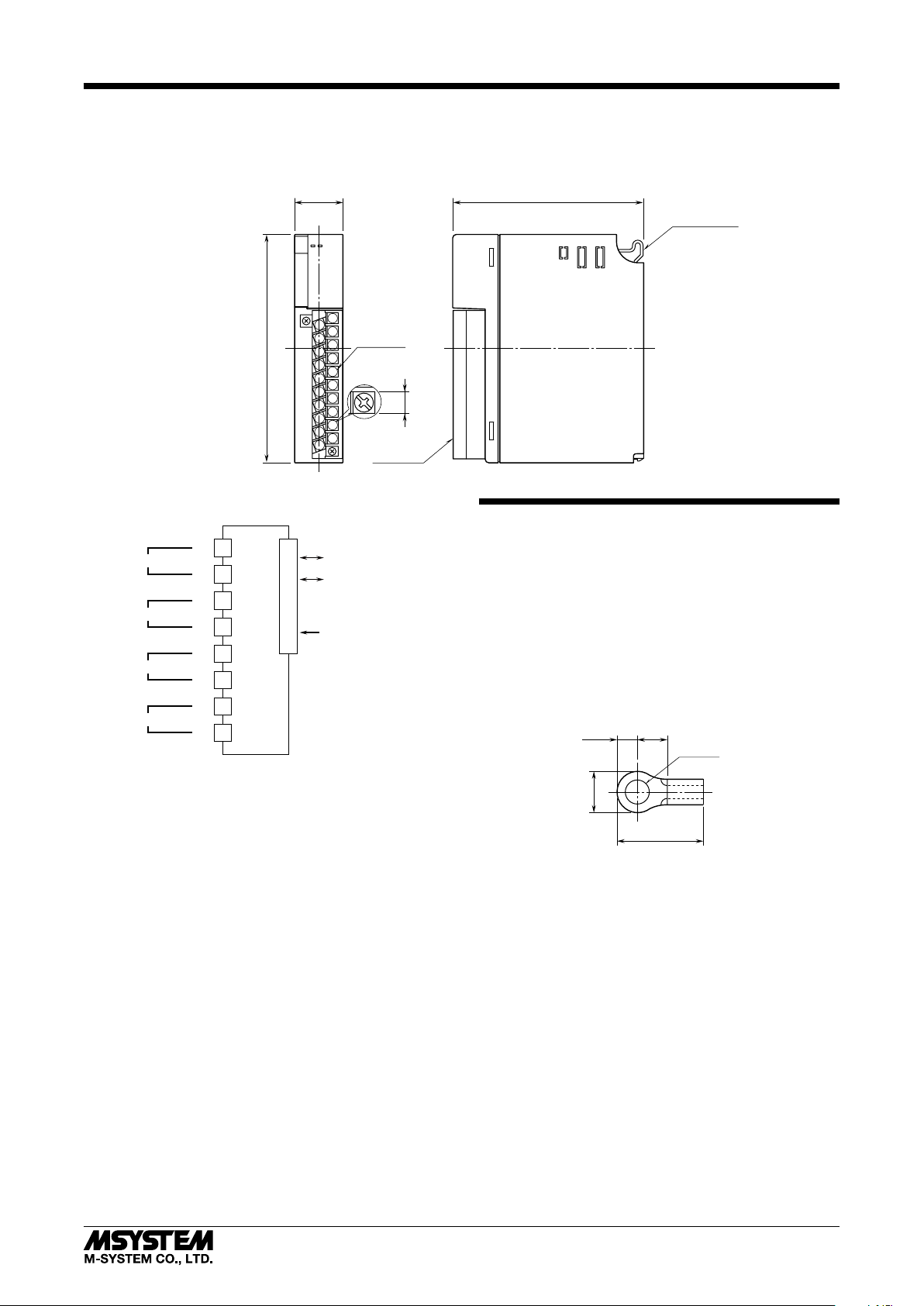

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

130 (5.12)

27.5 (1.08) 109 (4.29) POSITIONING

GUIDE

TERMINAL

COVER

20–M3

SCREW

6.2

(.24)

■CONNECTION DIAGRAM

–

INPUT 1

*For dual redundant communication.

DO NOT connect external wiring to the unused terminals.

BUS CONNECTOR

–

INPUT 2

–

INPUT 3

–

INPUT 4

INTERNAL POWER

INTERNAL BUS A

INTERNAL BUS B*

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.3 – 0.75 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

12max

6max

3max 4min

3.2 dia.

(mm)
