Metra Electronics 95-8904B Bedienungsanleitung

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

KIT FEATURES

KIT COMPONENTS

TOOLS REQUIRED

1-800-221-0932 metraonline.com

METRA. THE WORLD’S BEST KITS.™

REV. 2/03/2010

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-8904BINSTALLATION INSTRUCTIONS FOR PART 95-8904B

SUBARU

LEGACY & OUTBACK

2010

(non-NAV models)

95-8904B

• DDIN radio provision

• ISO stacked provision

• Painted scratch resistant matte black

• A) DDIN Trim Plate • B) DDIN Brackets

• Phillips Screwdriver • Panel Removal Tool • Utility Knife

• Small Flat Blade Screwdriver • Hacksaw (or similar cutting tool)

WIRING & ANTENNA CONNECTIONS (SOLD SEPARATELY)

• 70-8901 Subaru Harness 1990-UP

• 70-7552 Nissan Harness 2007-UP

• 40-SB10 Subaru Antenna Adapter 2005-UP

Note: Minor sub-dash modications required. Part

# 95-8903B does not require these modications.

TABLE OF CONTENTS NOTES

DASH DISASSEMBLY

• 2010 SUBARU LEGACY/OUTBACK . . . . . . . . . 1

KIT ASSEMBLY

• 2010 SUBARU LEGACY/OUTBACK

• DDIN / STACKED ISO HEAD UNIT PROVISION. . 2

*NOTE: Refer Also to the instructions included with the aftermarket radio.

Metra recommends MECP certiﬁed

technicians

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

95-8904B 95-8904B

2010 SUBARU LEGACY / OUTBACK

95-8904B DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the radio trim

panel including the a/c vents.

(Fig. A)

Remove (4) Phillips screws securing

the factory radio.

Continue to Kit Assembly

NOTES

95-8904B

Locate the factory wiring harness

in the dash. Metra recommends

using the proper mating adapters

from Metra and AXXESS to inte-

grate your new radio. Re-connect

the negative battery terminal and

test the unit for proper operation.

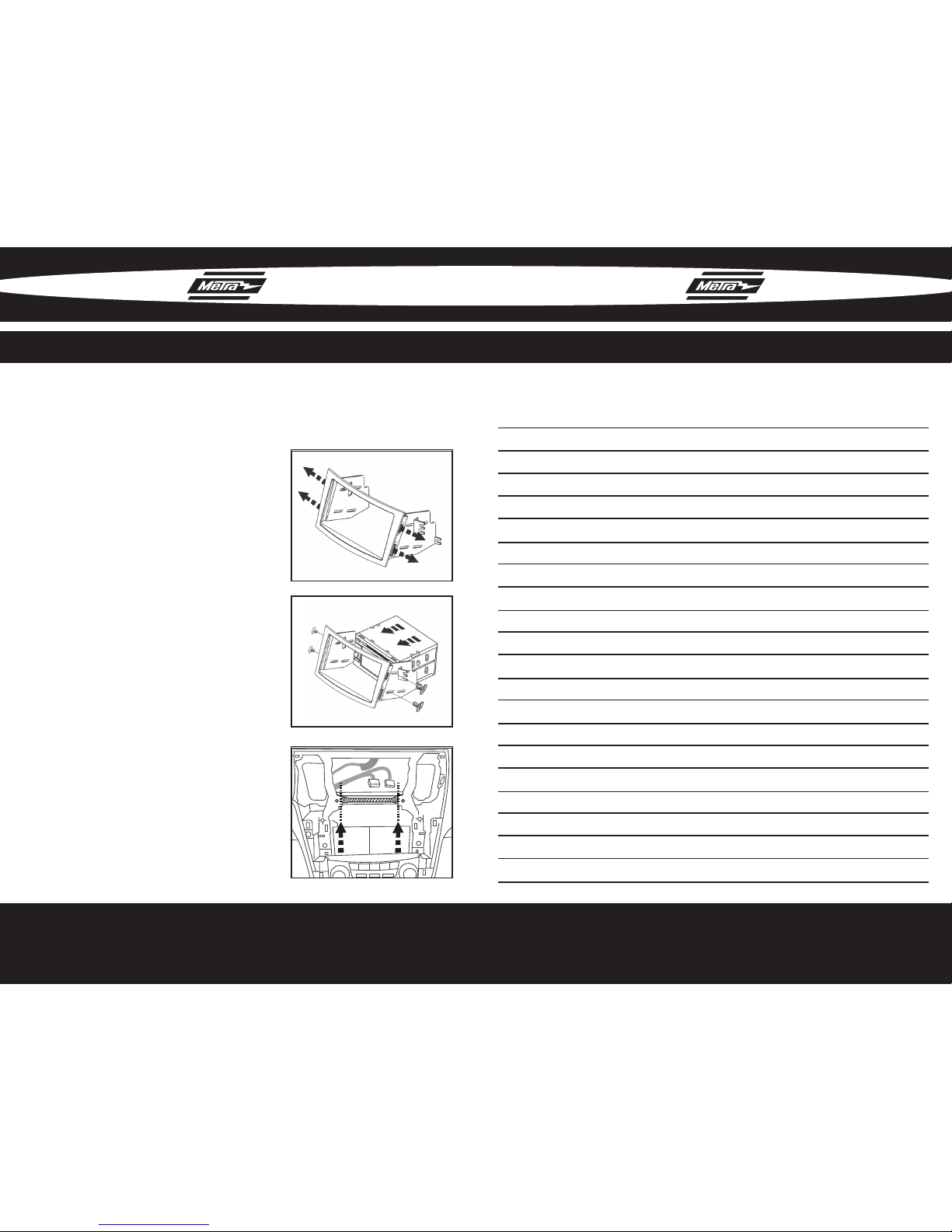

Attach the Double DIN brackets to

the Double DIN trim plate. (Fig. A)

Slide the Double DIN head unit or

stacked ISO head units into the

bracket/radio housing assembly

and secure the Double DIN head

unit or stacked ISO head units to

the assembly using the screws

supplied with the radio. (Fig. B)

Using an air saw, hacksaw, or simi-

lar cutting tool, cut to the inside of

the radio’s lower mounting holes,

through the plastic and metal

bracket. (Cut on the inside of each

hole as close to the hole as you

can get. If cut properly you may re-

use two bottom factory screws, if

not use self tapping screws on the

bottom.) (Fig. C)

Reassemble dash in reverse order

of disassembly.

95-8904B KIT ASSEMBLY

DDIN / STACKED ISO

HEAD UNIT PROVISION

NOTES

95-8904B

2010 SUBARU LEGACY / OUTBACK
