Metra Electronics 99-7954 Bedienungsanleitung

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7954

Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver

TOOLS REQUIRED

Suzuki SX4 2007-up

99-7954

• DIN radio provision with pocket

• ISO mount radio provision with pocket

• Double DIN radio provision

• Stacked ISO units provision

B C

• A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Trim Plate

• E) Double DIN Brackets • F) Pocket

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-1721 - Honda harness 1998-up

Antenna Adapter:

• Not Required

Table of Contents

Dash Disassembly

– Suzuki SX4 2007-up 3

Kit Assembly

– DIN radio provision with pocket 4

– ISO mount radio provision with pocket 5

– Double DIN radio provision 6

– Stacked ISO units provision 7

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

99-7954

Caution

Metra recommends disconnecting the negative battery terminal before beginning any

installation. All accessories, switches, and especially air bag indicator lights must be

plugged in before reconnecting the battery or cycling the ignition.

*NOTE: Refer also to the instructions included with the aftermarket radio.

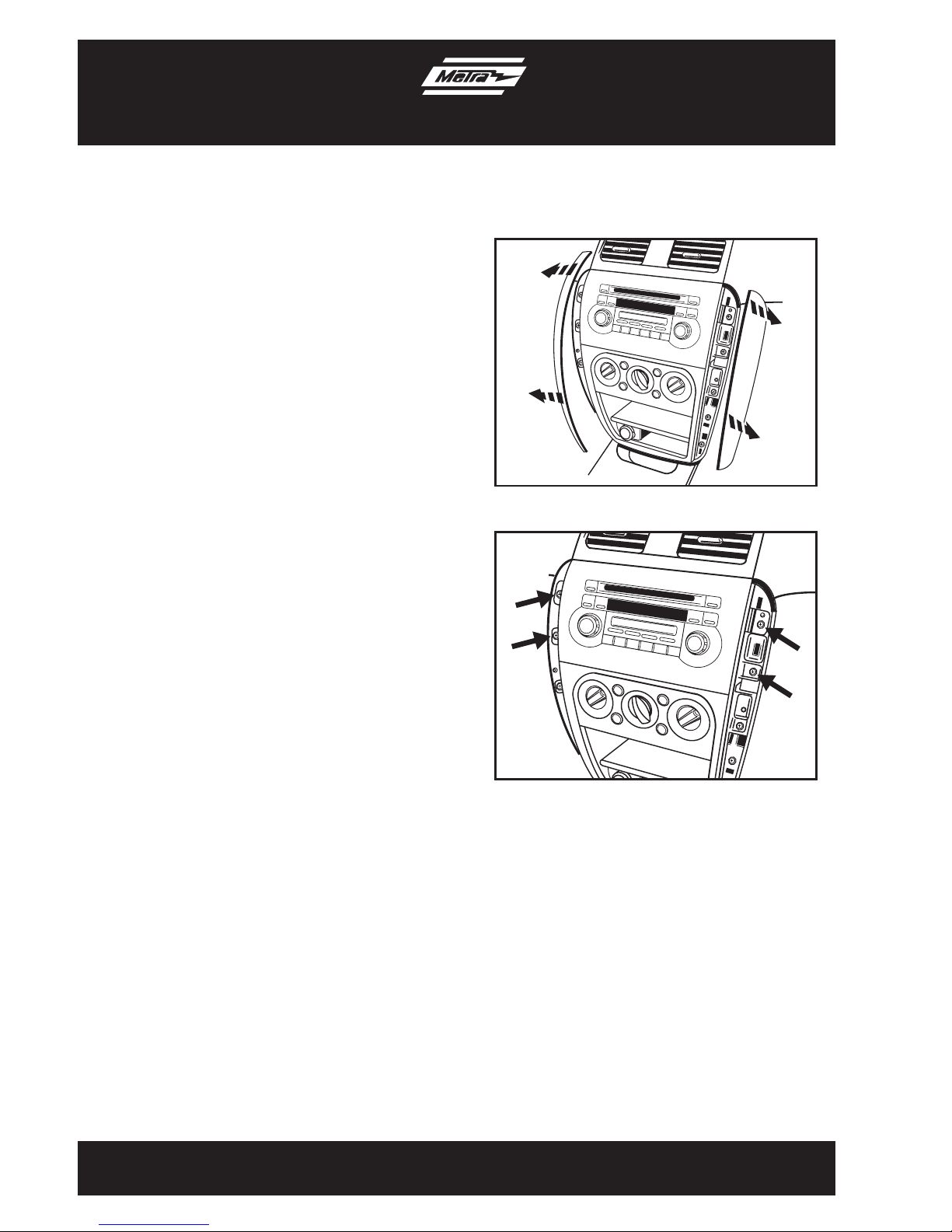

1. Unclip and remove the (2) outside

trim panels. (Figure A)

2. Remove (4) Phillips screws securing

the radio to the sub dash. Unplug and

remove radio. (Figure B)

Continue to kit assembly

Dash Disassembly

99-7954

(Figure A)

(Figure B)

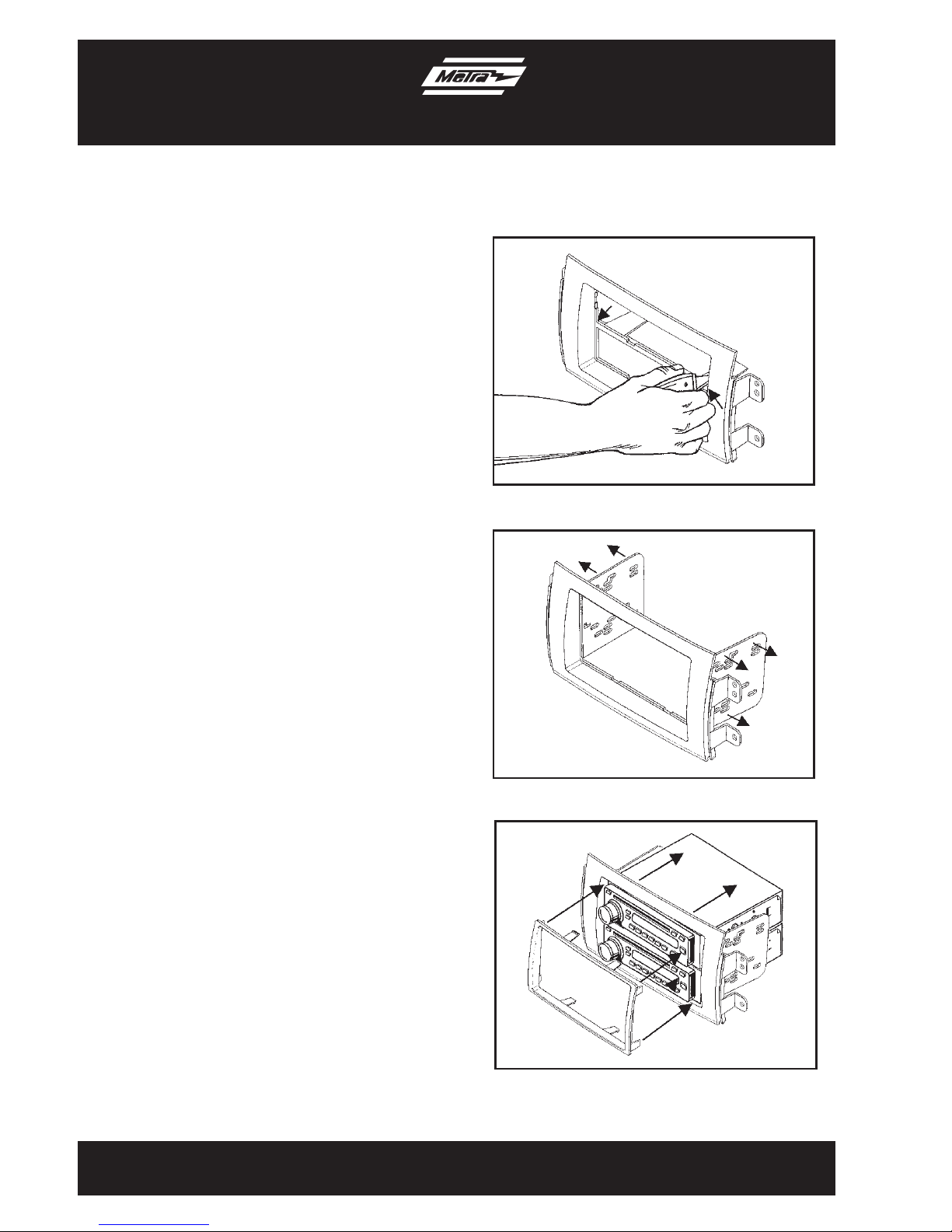

Kit Assembly 99-7954

DIN radio provision with pocket

(Figure A)

(Figure B)

(Figure C)

1. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2. Slide the DIN cage into the radio

housing and secure by bending the

metal locking tabs outward. (Figure A)

3. Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

4. Snap the pocket into the radio

housing. (Figure C)

5. Reassemble dash in reverse order

of disassembly.

Kit Assembly 99-7954

1. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2. Mount the ISO brackets to the radio

with the screws supplied with the radio.

(Figure A)

3. Slide the radio into the radio housing

until it snaps into place. (Figure B)

4. Snap the ISO trim plate onto the front of

the radio housing. (Figure B

5. Snap the pocket into the radio housing.

(Figure C)

6. Reassemble dash in reverse order

of disassembly.

ISO mount radio provision with pocket

(Figure A)

(Figure B)

(Figure C)

Kit Assembly 99-7954

1. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2. Cut and remove the center bar from the

radio housing. (Figure A)

3. Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure B)

4. Slide the Double DIN radio into the

bracket/trim plate assembly and secure

the radio to the assembly using the

screws supplied with the radio.

(Figure C)

5. Snap the Double DIN trim plate into the

radio housing. (Figure C)

6. Reassemble dash in reverse order

of disassembly.

Double DIN radio provision

(Figure A)

(Figure B)

(Figure C)

Kit Assembly 99-7954

1. Locate the factory wiring harness in

the dash. Metra recommends using

the proper mating adapter from Metra

or AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

2. Cut and remove the center bar from the

radio housing. (Figure A)

3. Snap the Double DIN brackets to the

inside edge of the radio housing.

(Figure B)

4. Slide the stacked ISO units into the

bracket/radio housing assembly and

secure the units to the kit using the

screws supplied with the units.

(Figure C)

5. Snap the Double DIN trim plate into the

radio housing. (Figure C)

6. Reassemble dash in reverse order

of disassembly.

Stacked ISO units provision

(Figure A)

(Figure B)

(Figure C)

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 99-7954

REV. 5/18/11
