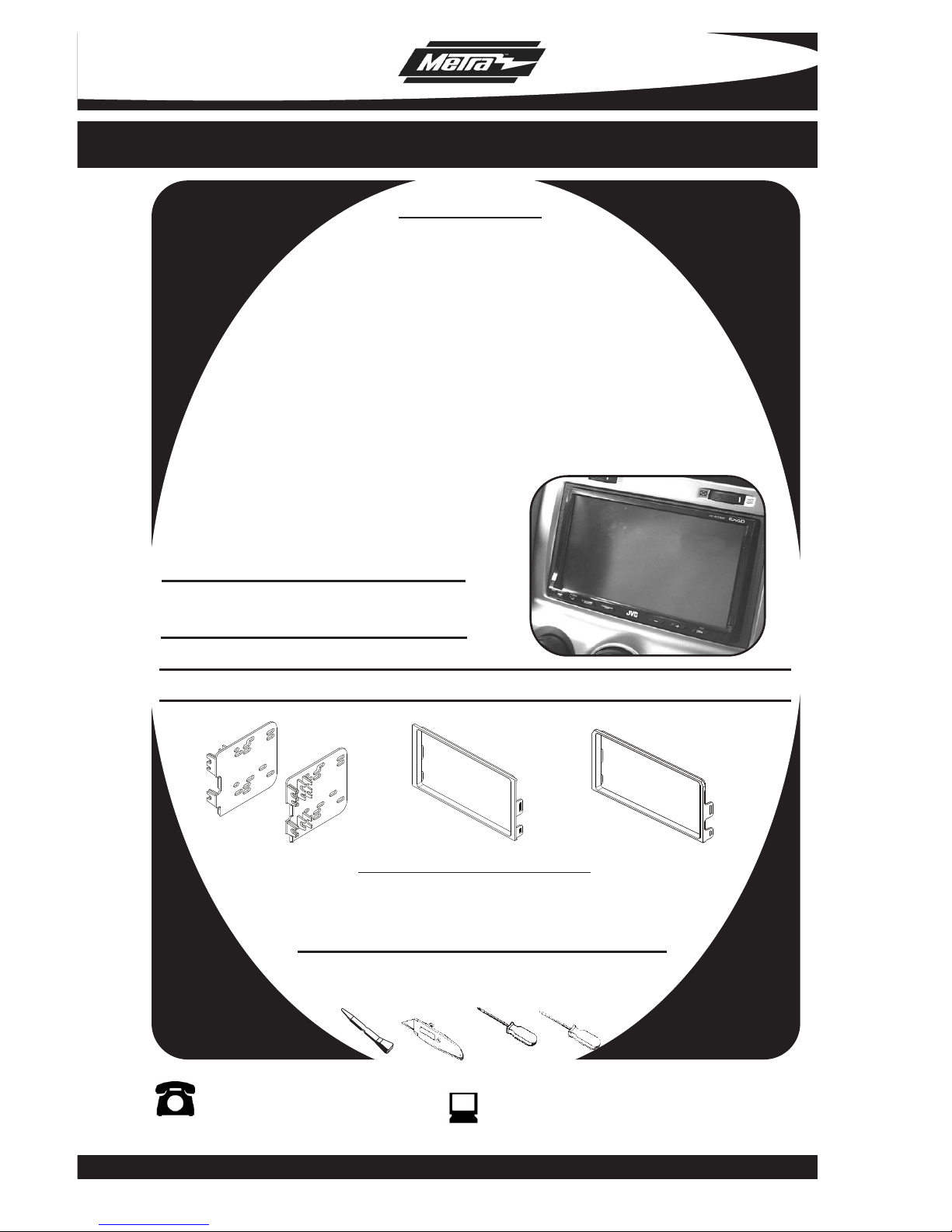

INSTALLATION INSTRUCTIONS FOR PART 95-1003
1-800-221-0932
©COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
95-1003
KIT FEATURES
•DDIN Head Unit Provision
•ISO Stacked Head Unit Provision
A) DDIN Brackets • B) DDIN Trim Plate #1 • B) DDIN Trim Plate #2
KIT COMPONENTS
APPLICATIONS
KIA
Rio 2001
Sephia 1995-2001
Spectra 2000-2001
Sportage 1998-2003
AC
B
Panel Removal Tool • Cutting Tool • Phillips Screwdriver
•Small Flat Blade Screwdriver
TOOLS REQUIRED:
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
•70-1003 - KIA Harness 1995-02
•Antenna Adapter N/R
Dash Disassembly
-KiaRio2001 .................................................. .1
-Sephia1995-1997...............................................2
-Sephia1998-2001...............................................3
-Spectra2000-2001...............................................3
-Sportage1998-2000.............................................4
-Sportage2001-2003.............................................5
Kit Assembly
-KitAssemblyPreparation .........................................6
-DDIN / Stacked ISO DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
TABLE OF CONTENTS
95-1003
*Note:
Refer also to the instructions included with the aftermarket radio.
Metra recommends MECP
certified technicians
K
NOWLEDGE IS
P
OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake steps
toward abetter tomorrow.
95-1003 DASH DISASSEMBLY
RIO 2001
A
B
1
Disconnect the negative battery-
terminal to prevent an accidental
short circuit.
1
Remove ashtray and (1) Phillips
head screw inside ashtray cavity.
(Figure A)
2
Remove knob from climate control
slide lever.
(Figure B)
3
Unsnap and remove radio/climate
control trim panel.
(Figure C)
4
5
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
Continue to kit preparation.
A/C
OFF
C
A/
OFF
A/C
OFF
*Note: Refer also to the instructions included with the aftermarket radio.
2
95-1003 DASH DISASSEMBLY
SEPHIA 1995-1997
Remove plastic screw cover to the
left of the coin tray and remove the
Phillips head screw from behind
cover.
2
Remove switch blank to the far
right of the switchpanel and
remove the Phillips head screw
from behind switch blank.
3
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
5
Unclip and remove dash trim
panel.
4
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
3
95-1003 DASH DISASSEMBLY
SEPHIA 1998-2001
SPECTRA 2000-2001
Remove (1) Phillips head screw
from above instrument cluster.
2
Unclip and remove dash trim
panel.
3
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
4
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
4

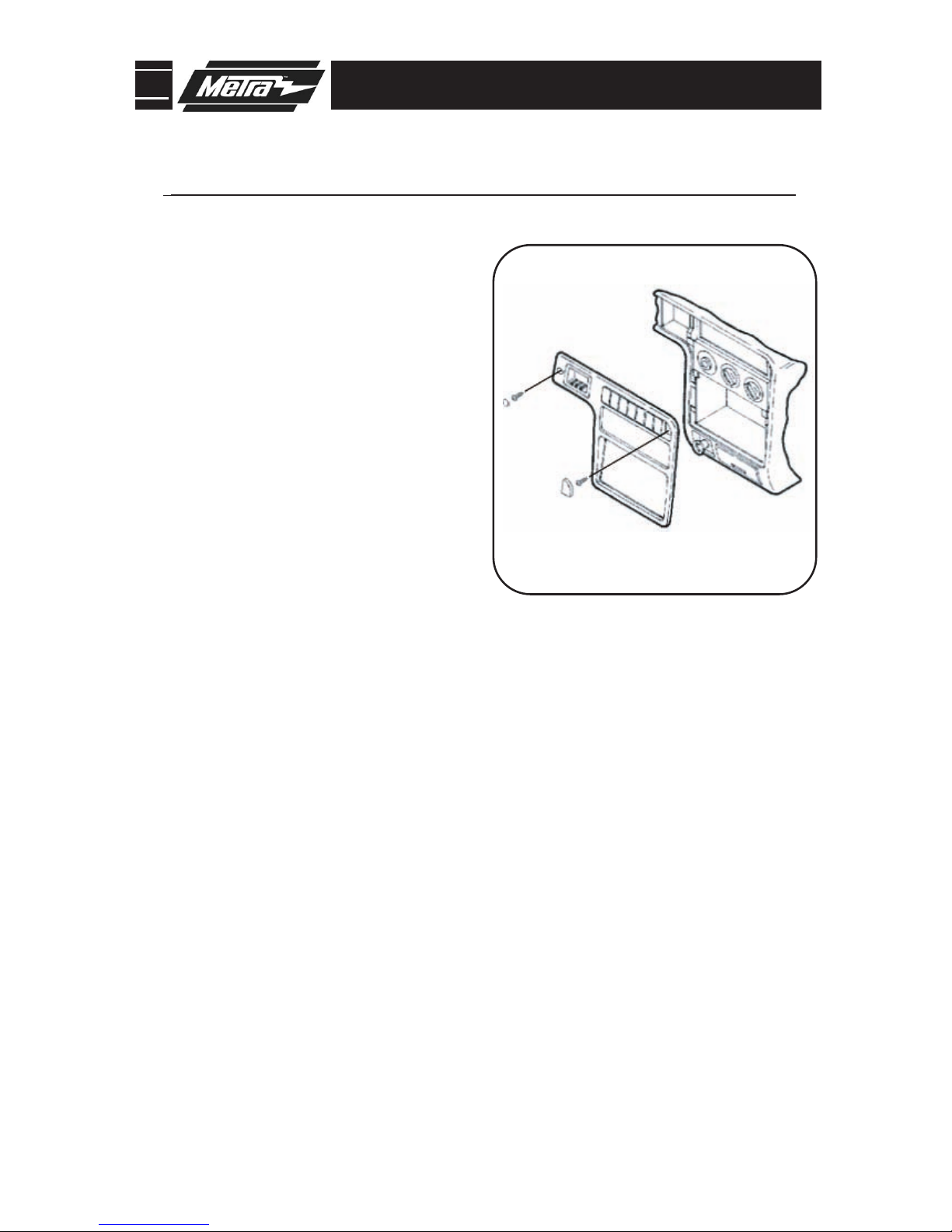

95-1003 DASH DISASSEMBLY
SPORTAGE 1998-2000
Unclip and remove dash trim panel.
2
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
3
Continue to kit preparation.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
5
95-1003 DASH DISASSEMBLY
SPORTAGE 2001-2003
Unclip and remove climate con-
trol/vent trim panel.
(Figure A)
2
Remove screw covers from trim
panel below steering column and
remove screws from behind cov-
ers. Lower the trim panel (it is not
necessary to remove the panel).
(Figure B)
3
Remove (3) Phillips head screws
from bottom of steering column
housing and remove both upper
and lower sections of housing.
4
Remove (1) Phillips head screw
from outside left edge of dash and
(2) Phillips head screws from near
hood release.
(Figure C)
5
Loosen nut behind hood release
and remove lower left side dash
trim.
(Figure C)
6
Remove (4) Phillips head screws
from instrument trim panel and
remove panel.
(Figure D)
7
Remove (4) Phillips head screws
securing the radio.Unplug and
remove the radio.
8
Continue to kit assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
A
B
C
D
6
95-1003 KIT PREPARATION
KIT ASSEMBLY PREPARATION
RIO 2001
SEPHIA 1995-1997
SEPHIA 1998-2001
SPECTRA 2000-2001
Continue to kit assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
Use the trim with notched corners at
the top and the first set of tabs on the
brackets.
(Figure A)
SPORTAGE 1998-2003 DDIN BRACKETS
Use the trim without the notched cor-
ners and the third set of mounting tabs.
(Figure C)
Use the following sets of mounting tabs
for each model respectively. The fourth
set of tabs will not be used in this kit.
Use the trim without the notched cor-
ners and the second set of mounting
tabs.
(Figure B)
BA
C
1st Set
2nd Set
3rd Set
4th Set
(Not Used in this kit)
D
95-1003 KIT ASSEMBLY
DOUBLE DIN / STACKED ISO DIN
HEAD UNIT PROVISION
*Note: Refer also to the instructions included with the aftermarket radio.
7
B
A
Clip the brackets into the sides of
the DDIN trim plate. (Figure A)
2
Reassemble dash in reverse order
of disassembly.
4
Slide the Double DIN head unit or
stacked ISO head units into the
bracket/radio housing assembly
and secure to the assembly using
the screws supplied with the radio.
(Figure B)
3
Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metraor AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
1
95-1003 INSTRUCTIONS
NOTES
