Metra Electronics 99-8714 Bedienungsanleitung

INSTALLATION INSTRUCTIONS FOR PART 99-8714

APPLICATIONS

SMART FORTWO

2008

KIT FEATURES

•DIN Radio Provision with Pocket

•Stacked DIN Units Provision

A) Radio Housing • B) Pocket

KIT COMPONENTS

TOOLS REQUIRED:

•Small Flat Blade Screwdriver/ Panel Removal Tool

•T-20 Torx Screwdriver

1-800-221-0932

www.metraonline.com

99-8714

Dash Disassembly

SmartFortwo2008...................................

Kit Assembly

-DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-Stacked DIN Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly ........................................... 4

TABLE OF CONTENTS

99-8714

*Note:

Refer also to the instructions included with the aftermarket radio.

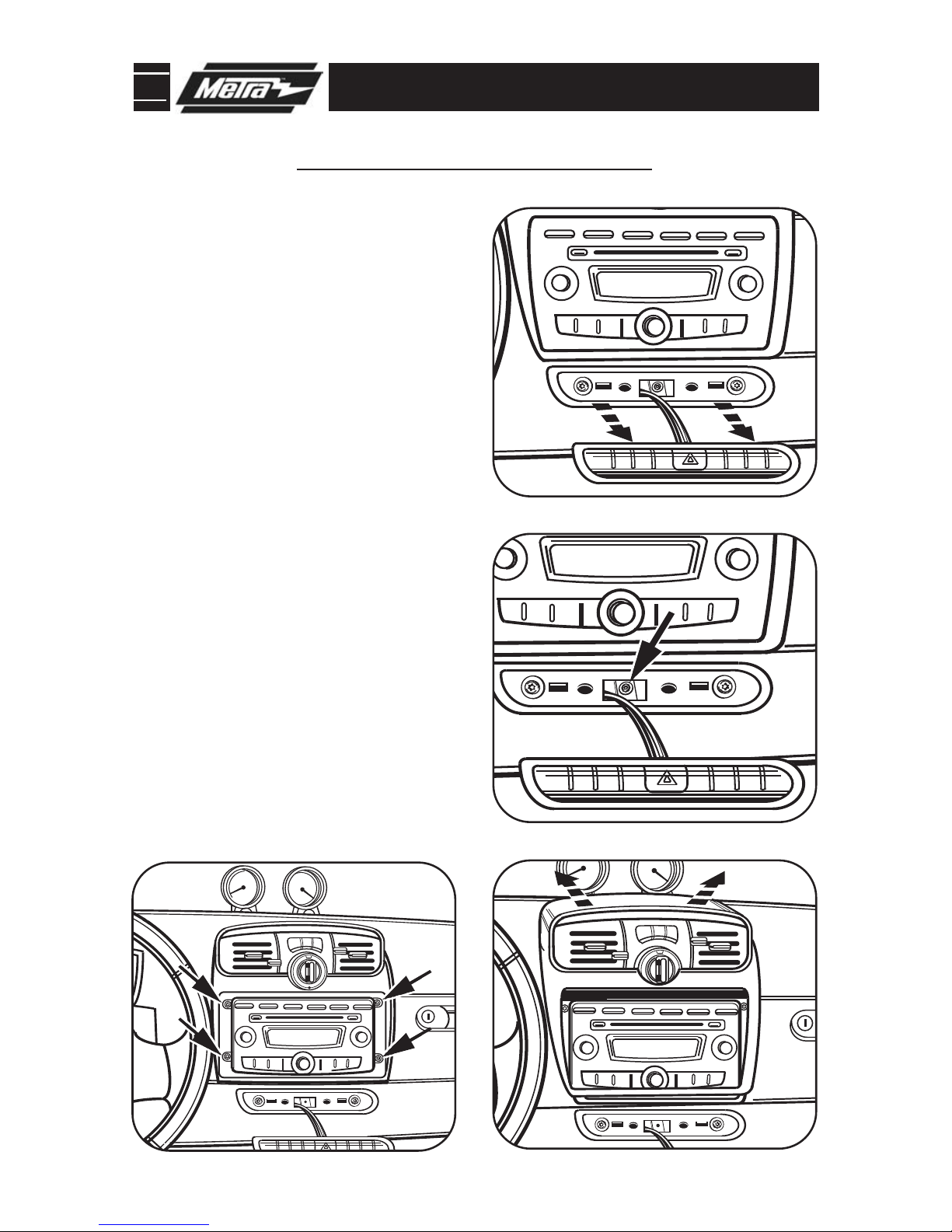

99-8714 DASH DISASSEMBLY

SMART FORTWO2008

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip the Hazard button switch panel.

(

Figure A)

Remove (1) T-20 Torx head screw.

(Figure B)

Carefully unclip the panel surrounding

the radio, start at the top of the dash

and work your way down.

(Figure C)

Remove (4) T-20 Torx head screws

from around the radio. (

Figure D)

Disconnect the wire harness and

antenna and remove radio.

Continue to kit assembly.

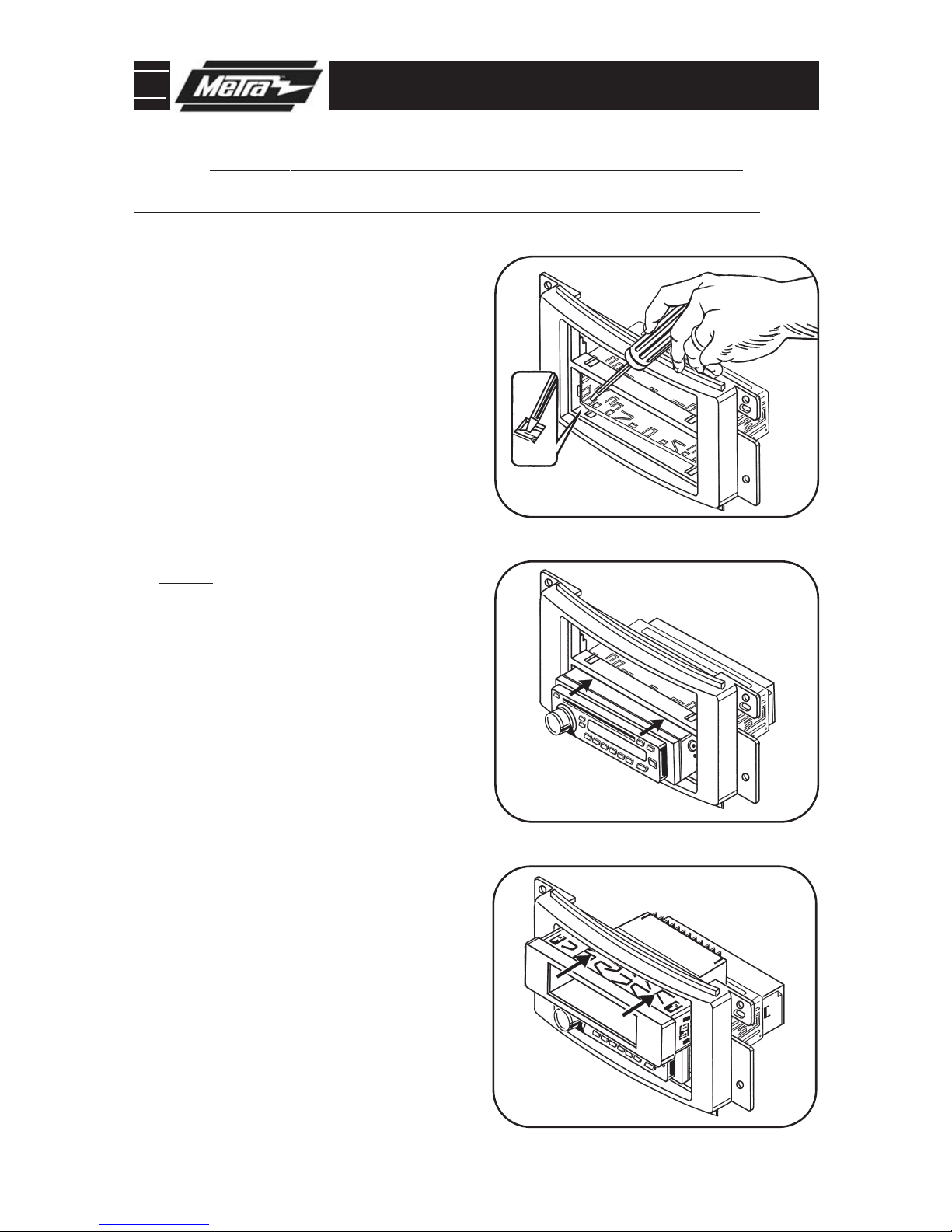

99-8714 KIT ASSEMBLY

Slide the DIN cage into the radio

housing and secure by bending the

metal locking tabs outward.

(Figure A)

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

Snap the pocket into the radio hous-

ing.

(Figure C)

Continue to final assembly.

NOTE: Pocket may be installed in top

or bottom of radio housing.

Note: Refer also to the instructions included with the aftermarket radio.

DIN RADIO PROVISION WITH POCKET

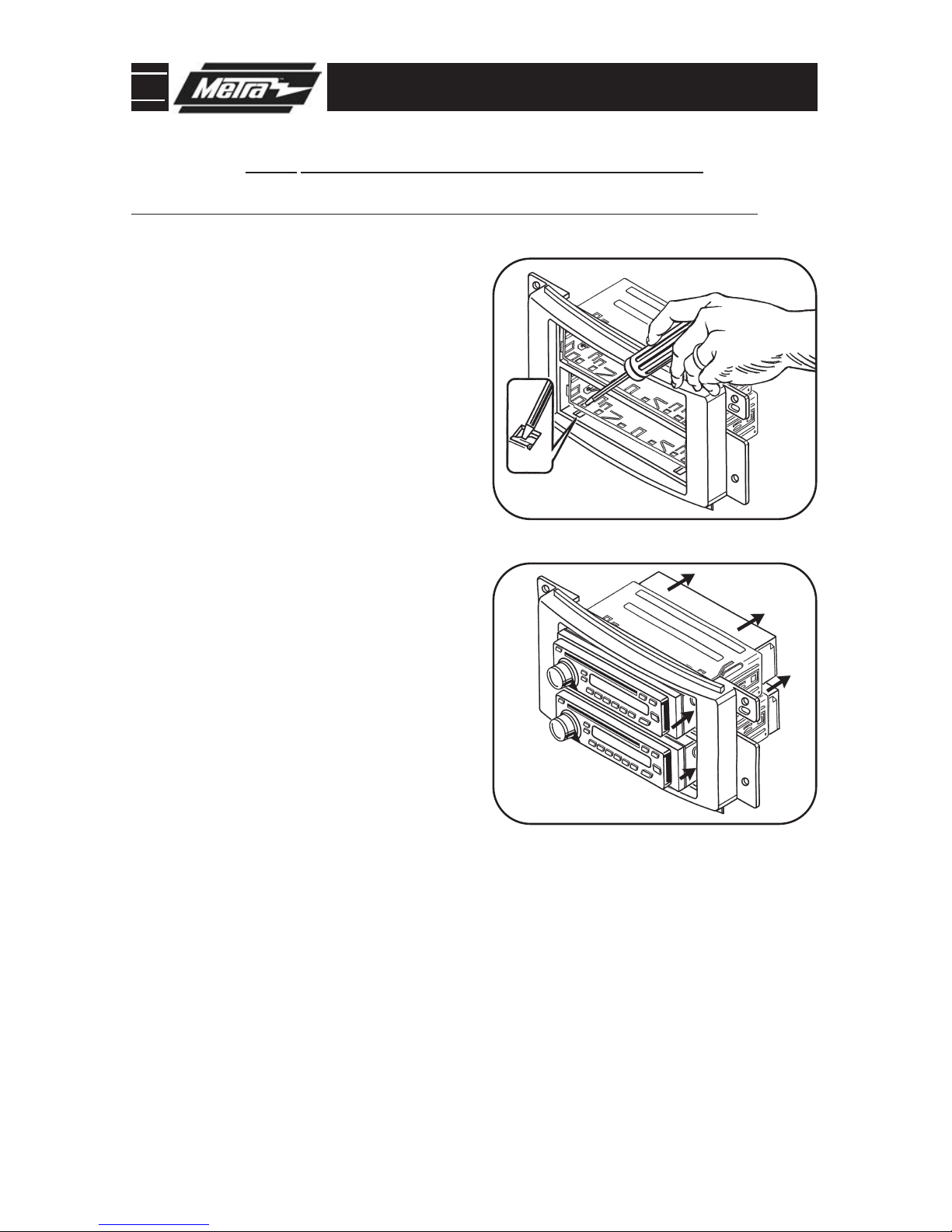

99-8714 KIT ASSEMBLY

Slide the DIN cages into the radio

housing and secure by bending the

metal locking tabs outward.

(Figure A)

Slide the aftermarket units into the

cage until it snaps into place.

(Figure B)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

STACKED DIN UNITS PROVISION

99-8714 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

99-8714

NOTES

99-8714 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
