Pro-Form 1150 RXW Bedienungsanleitung

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manu-

al for future reference.

Model No. PFEVEL36020

Serial No.

Serial

Number

Decal

www.iconeurope.com

Visit our website at

USER’S MANUAL

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you have

questions, or if there are missing

or damaged parts, please call:

Or write:

ICON Health & Fitness, Ltd.

Customer Service Department

Unit 4

Revie Road Industrial Estate

Revie Road

Beeston

Leeds, LS118JG

email: [email protected]

08457 089 009

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO OPERATE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users of the elliptical crosstrainer

are adequately informed of all precautions.

3. Place the elliptical crosstrainer on a level

surface, with a mat beneath it to protect the

floor or carpet. Keep the elliptical crosstrain-

er indoors, away from moisture and dust.

4. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

5. Keep children under 12 and pets away from

the elliptical crosstrainer at all times.

6. The elliptical crosstrainer should not be used

by persons weighing more than 115 kg (250

lbs).

7. Wear appropriate exercise clothes when

using the elliptical crosstrainer. Always wear

athletic shoes for foot protection.

8. Always hold the handgrip pulse sensor or the

handlebars when mounting, dismounting, or

using the elliptical crosstrainer.

9. The pulse sensors are not medical devices.

Various factors may affect the accuracy of

heart rate readings. The pulse sensors are

intended only as exercise aids in determin-

ing heart rate trends in general.

10. Keep your back straight when using the ellip-

tical crosstrainer; do not arch your back.

11. If you feel pain or dizziness at any time

whilst exercising, stop immediately and

begin cooling down.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. The elliptical crosstrainer is intended for

home use only. Do not use the elliptical

crosstrainer in a commercial, rental, or insti-

tutional setting.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob-

lems. Read all instructions before using. ICON assumes no responsibility for personal injury or

property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM®

1150 RXW. The PROFORM®1150 RXW is an incredi-

bly smooth exerciser that moves your feet in a natural

elliptical path, minimizing the impact on your knees

and ankles. And the unique PROFORM®1150 RXW

features adjustable resistance and a state-of-the-art

console to help you get the most from your exercise.

Welcome to a whole new world of natural, elliptical-

motion exercise from PROFORM.

For your benefit, read this manual carefully before

you use the elliptical crosstrainer. If you have ques-

tions after reading this manual, please call our

Customer Service Department at 08457 089 009. To

help us assist you, please note the product model

number and serial number before calling. The model

number is PFEVEL36020. The serial number can be

found on a decal attached to the elliptical crosstrainer

(see the front cover of this manual for the location of

the decal).

Before reading further, please familiarise yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Handlebar

FRONT

BACK

LEFT SIDE

Pedal Spring

Pedal Disk

*No water bottle

is included

Wheel

Pedal

Console Bookrack

Water Bottle Holder*

Leveling Foot

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

spanner , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.

The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on

page 26. The second number refers to the quantity used in assembly. Note: Some small parts may have been

pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

M10 x 112mm Carriage Bolt (34)–4

Adjustment Bolt (20)–2

M10 x 88mm Button Bolt (63)–1

M10 x 78mm Button Bolt (27)–2

M10.3 Black

Washer (53)–2

M8 x 19mm Button

Screw (22)–2

M4 x 16mm

Screw (66)–2

M10 x 27mm

Screw (71)–3

M10

Washer (38)–6

M10 Split

Washer (70)–4

M10 Nylon

Locknut (29)–6

Frame Spacer (83)–1

M8 x 45mm Button Bolt (50)–4

M8 Nylon

Locknut (46)–4

1. Identify the Front Stabiliser (3), which has Wheels (32)

attached to it. While another person lifts the front of

the Frame (1), attach the Front Stabiliser to the Frame

with two M10 x 112mm Carriage Bolts (34) and two

M10 Nylon Locknuts (29). Make sure that the Front

Stabiliser is turned so the Wheels are not touching

the floor.

2. While another person lifts the back of the Frame (1),

attach the Rear Stabiliser (4) to the Frame with two

M10 x 112mm Carriage Bolts (34) and two M10 Nylon

Locknuts (29).

871

63 83

3. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (86) to

the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack. While holding the upper end of the

Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.

Slide an M10 Split Washer (70) and a Frame Spacer

(83) onto the M10 x 88mm Button Bolt (63), and insert

the Button Bolt into the Frame and the Upright. Make

sure that the concave end of the Frame Spacer is

turned toward the Frame. Do not tighten the

Button Bolt at this time.

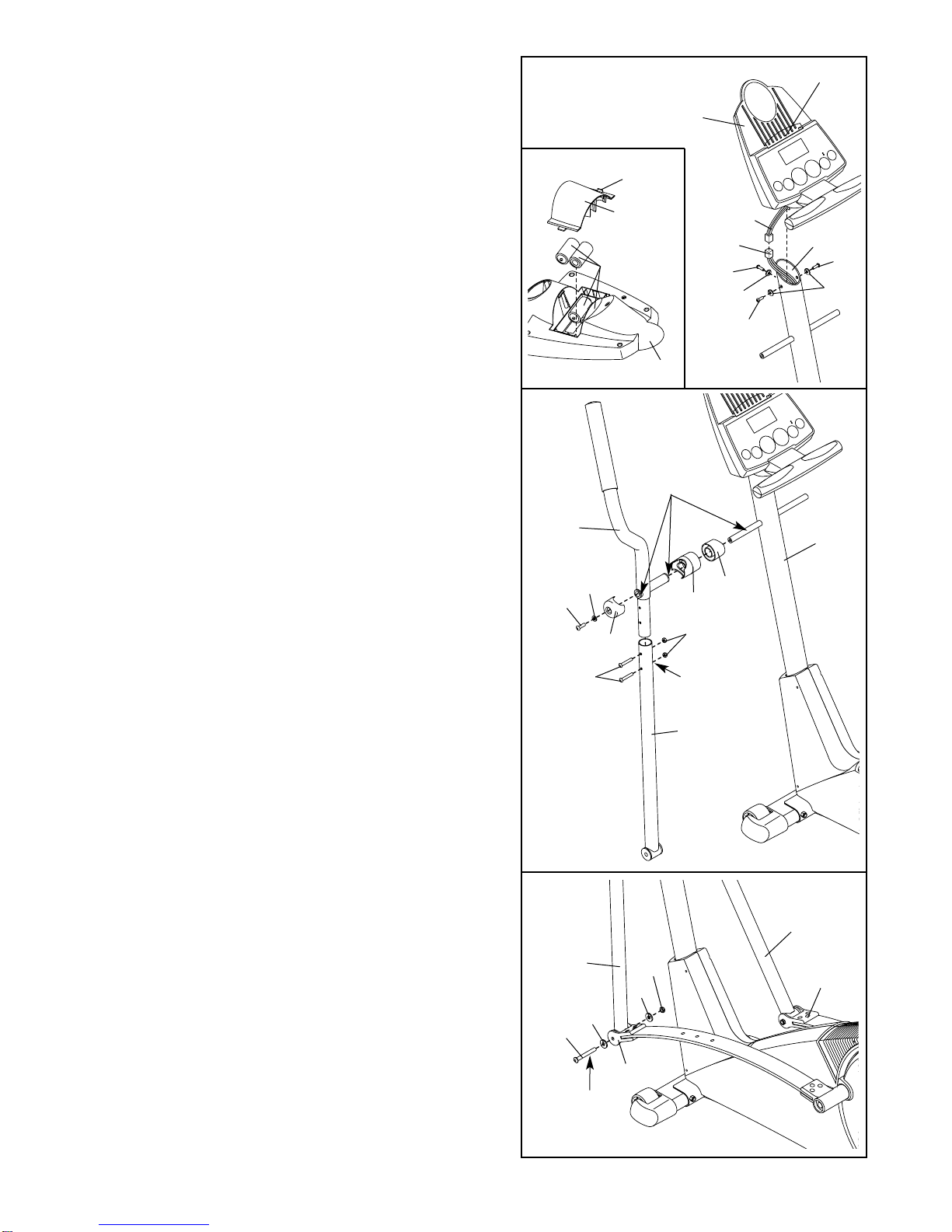

4. Connect the wire harness on the Handgrip Pulse

Sensor (81) to the indicated wire harness on the

Console (5). Insert both wire harnesses into the open-

ing in the bottom of the Console.

Refer to the inset drawing. Insert the metal tube on the

Handgrip Pulse Sensor (81) into the metal bracket

inside the Console (5) as shown. Be careful not to

pinch the wire harnesses. Align the holes in the

metal tube with the holes in the metal bracket, and

tighten two M4 x 16mm Screws (66) into the indicated

holes. 81

Wire Harnesses

Bracket

Tube 66

Make sure the

Wire Harnesses

(86, 87) do not

get pinched and

damaged during

this step.

7. Hold the lower end of the left Handlebar Leg (79) inside

of the left Front Spring Bracket (17). Apply a generous

amount of grease to an M10 x 78mm Button Bolt (27).

Attach the left Handlebar Leg to the left Front Spring

Bracket (17) with the Button Bolt, two M10 Washers

(38), and an M10 Nylon Locknut (29). Do not over-

tighten the Nylon Locknut; the left Handlebar Leg

must be able to pivot freely.

Attach the right Handlebar Leg (79) to the right Front

Spring Bracket (17) in the same way.

Refer to step 6. Tighten the M8 x 45mm Button Bolts

(50) in the Handlebar Legs (79). Refer to step 3.

Tighten the M10 x 88mm Button Bolt (63).

27 38 38

Grease

5. The Console (5) requires four 1.5V “D” batteries; alka-

line batteries are recommended. Refer to the inset

drawing. Press the tab on the battery cover, and lift off

the battery cover. Insert four batteries into the battery

compartment. Make sure that the batteries are

turned as shown by the diagram in the battery

compartment. Reattach the battery cover.

While another person holds the Console (5) in the

position shown, connect the wire harness on the

Console to the Upper Wire Harness (86). Insert the

excess wire harness into the Upright (2). Next, attach

the Console to the Upright with three M10 x 27mm

Screws (71) and three M10 Split Washers (70). Be

careful to avoid pinching the wire harnesses.

Snap the bookrack onto the Console (5) in the indicated

location.

Bookrack

86 71

6. Identify the Left Handlebar (9), which is marked with a

sticker. Insert the Left Handlebar into one of the

Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the

indicated side. Attach the Left Handlebar to the

Handlebar Leg with two M8 x 45mm Button Bolts (50)

and two M8 Nylon Locknuts (46). Make sure that the

Nylon Locknuts are inside of the hexagonal holes.

Do not fully tighten the Button Bolts yet.

Apply a generous amount of the included grease to the

left axle on the Upright (2) and inside of the two

Handlebar Bushings (24) in the Left Handlebar (9).

Carefully slide an Upright Spacer (26), a Handlebar

Spacer (25), the Left Handlebar (9), and a Handlebar

Cap (23) onto the left axle on the Upright (2) as shown.

Slide an M10.3 Black Washer (53) onto an M8 x 19mm

Button Screw (22), and tighten the Button Screw into the

axle.

Attach the Right Handlebar and the other Handlebar Leg

(not shown) in the same way.

Wire

Harness

22 53

Hexagonal

Holes

Tab

Batteries

Battery

Cover

Grease

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the

elliptical crosstrainer.

820

8. Identify the Left Pedal (13). Attach the Left Pedal to the

left Pedal Spring (14) with an Adjustment Bolt (20), an

M10 Washer (38), and an Adjustment Knob (15) as

shown. Note: The Left Pedal can be attached in several

positions using the five positions in the Left Pedal and

the three holes in the Pedal Spring (see HOW TO

ADJUST THE PEDALS on page 10).

Attach the Right Pedal (not shown) in the same way.

Make sure that both Pedals are in the same hole and in

the same pedal position.

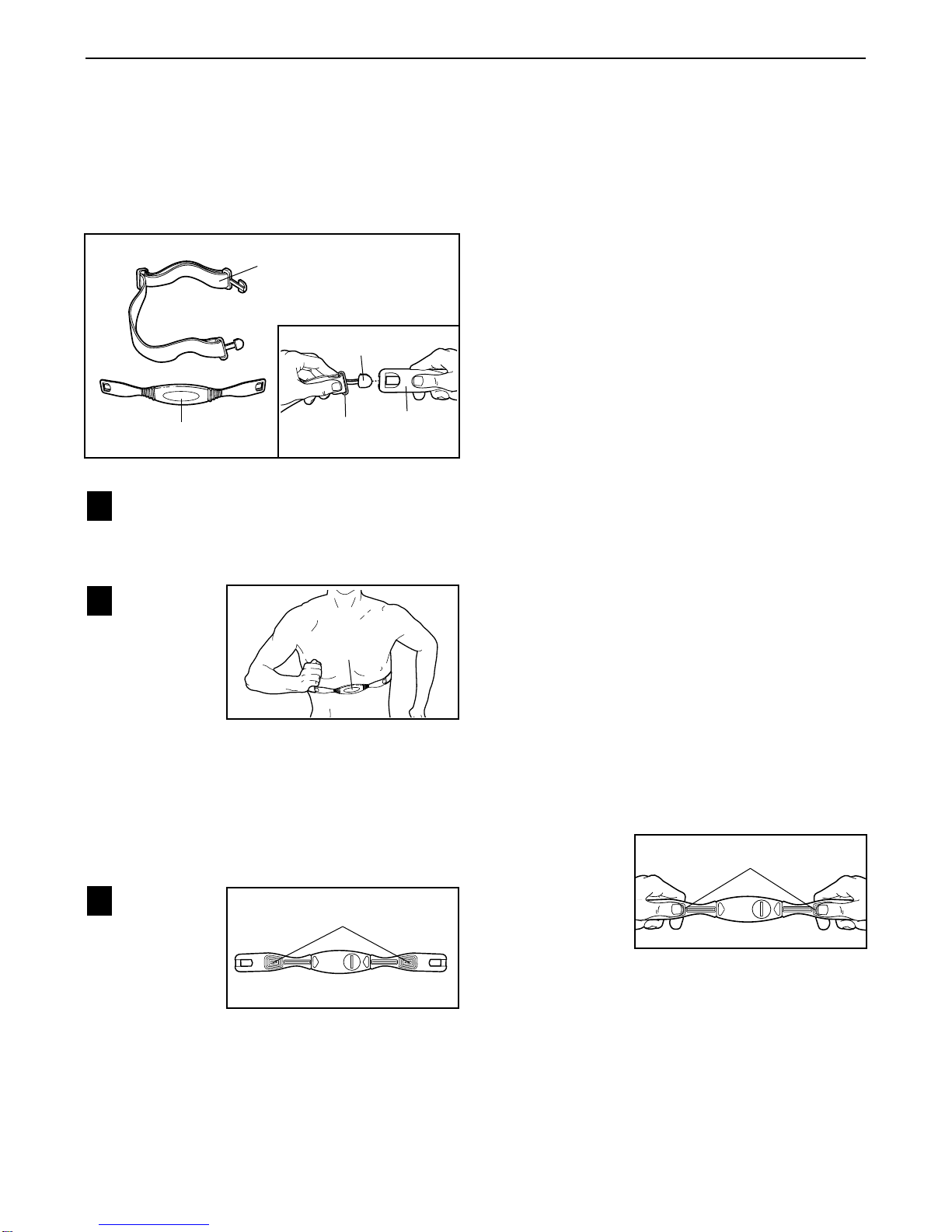

HOW TO USE THE CHEST PULSE SENSOR

HOW TO PUT ON THE CHEST PULSE SENSOR

The chest pulse sensor consists of two components:

the chest strap and the sensor unit. Follow the steps

below to put on the chest pulse sensor.

See the inset drawing above. Insert the tab on

one end of the chest strap through one end of the

sensor unit. Press the end of the sensor unit

under the buckle on the chest strap.

Wrap the

chest pulse

sensor

around

your chest.

Attach the

free end of

the chest

strap to the

sensor unit as described above. Adjust the length

of the chest strap, if necessary. The chest pulse

sensor should be under your clothes, against

your skin, and as high under the pectoral mus-

cles or breasts as is comfortable. Make sure that

the logo is right-side-up and facing forward.

Pull the

sensor unit

away from

your body

a few inch-

es and

locate the

two elec-

trode areas on the inner side. Using a saline

solution such as saliva or contact lens solution,

wet both electrode areas. Return the sensor unit

to a position against your chest.

CHEST PULSE SENSOR TROUBLESHOOTING

If the chest pulse sensor does not function proper-

ly, or if the displayed heart rate is excessively high

or low, try the troubleshooting steps below.

• Make sure that you are wearing the chest pulse sen-

sor as described at the left. If the chest pulse sensor

does not function when positioned as described,

move it slightly lower or higher on your chest.

• Each time you use the chest pulse sensor, use

saline solution such as saliva or contact lens solu-

tion to wet the two electrode areas on the sensor

unit (see the drawing below). If heart rate readings

do not appear until you begin perspiring, re-wet the

electrode areas.

• Make sure that you are within arm’s length of the

console. For the console to display heart rate

readings, the user must be within arm’s length of

the console.

• The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical condi-

tions such as premature ventricular contractions

(pvcs), tachycardia bursts, and arrhythmia.

• The operation of the chest pulse sensor can be

affected by magnetic interference caused by high

power lines or other sources. If it is suspected that

magnetic interference may be causing a problem,

try relocating your exercise equipment.

• If the chest pulse sensor still does not function prop-

erly, test the chest pulse sensor in the following way:

Hold the chest

pulse sensor

and place your

thumbs over

the electrode

areas as

shown. Next,

hold the chest

pulse sensor near the console. Whilst holding one

thumb stationary, begin tapping the other thumb

against the electrode area at a rate of about one tap

per second. Check the heart rate reading on the

console.

Chest Strap

Sensor Unit

Tab

Buckle

Electrode Areas

Sensor

Unit

Electrode Areas

Logo

•If the chest pulse sensor does not function properly

after you have followed all of the above instructions,

the battery should be replaced in the following way:

Locate the battery

cover on the back of

the sensor unit.

Insert a coin into the

slot in the cover,

turn the cover coun-

terclockwise, and

remove the cover.

Remove the old

battery and insert a

new CR 2032 bat-

tery. Make sure

that the battery is

turned so the writ-

ing is on top.

Replace the battery

cover and turn it

clockwise to close

it.

CHEST PULSE SENSOR CARE

• Thoroughly dry the chest pulse sensor after each

use. The chest pulse sensor is activated when the

electrode areas are wetted and the chest pulse sen-

sor is put on; the chest pulse sensor shuts off when

it is removed and the electrode areas are dried. If

the chest pulse sensor is not dried after each use, it

may remain activated longer than necessary, drain-

ing the battery prematurely.

• Store the chest pulse sensor in a warm, dry place.

Do not store the chest pulse sensor in a plastic bag

or other container that may trap moisture.

• Do not expose the chest pulse sensor to direct

sunlight for extended periods of time. Do not expose

the chest pulse sensor to temperatures above 50° C

(122° F) or below -10° C (14° F).

• Do not excessively bend or stretch the sensor unit

when using or storing the chest pulse sensor.

• Clean the sensor unit using a damp cloth—never

use alcohol, abrasives, or chemicals. The chest

strap may be hand washed and air dried.

CR 2032

Battery

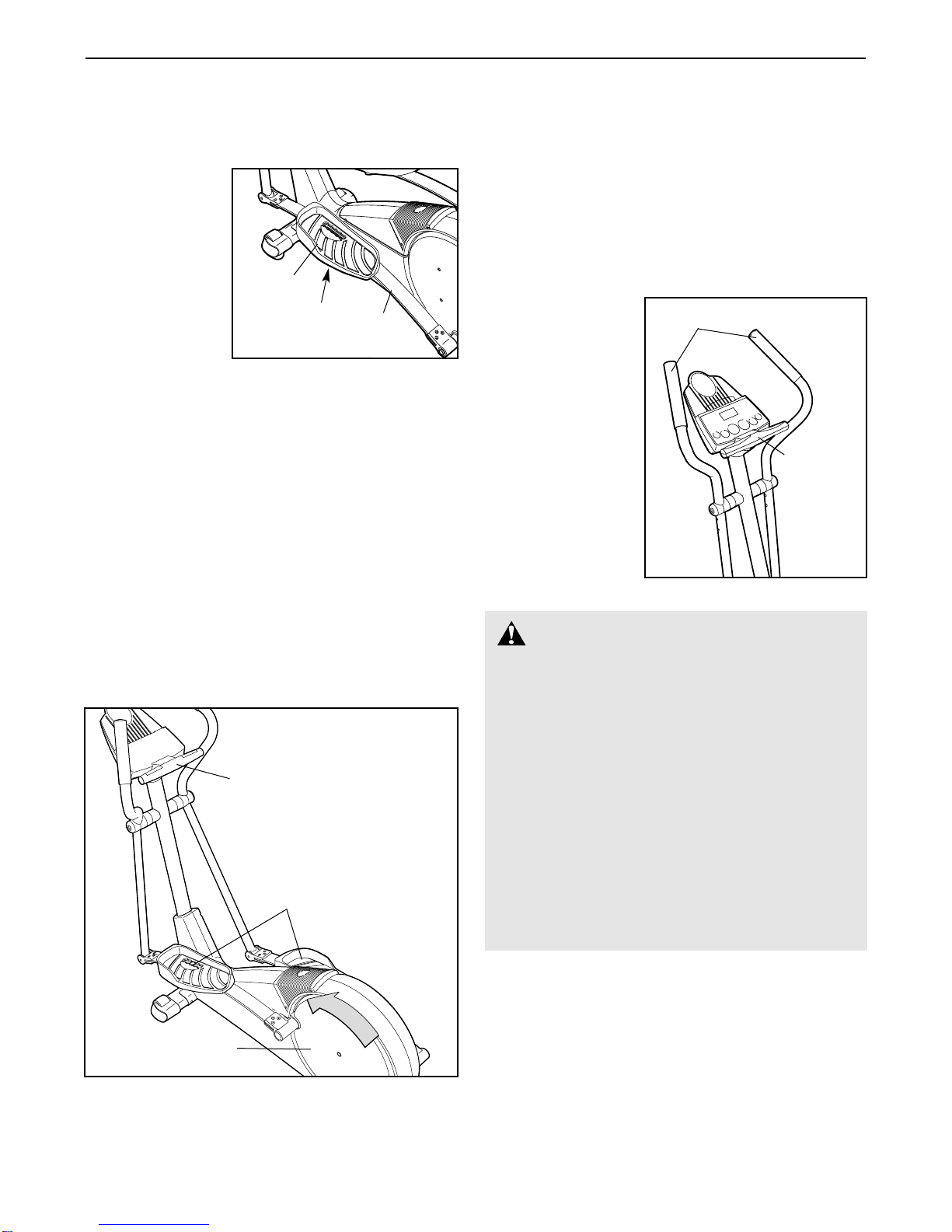

HOW TO OPERATE THE ELLIPTICAL CROSSTRAINER

HOW TO ADJUST THE PEDALS

The motion of the

pedals is deter-

mined by their

position on the

pedal springs. To

adjust the pedals,

first remove the

pedal knob

beneath each

pedal. Slide each

pedal forward or

backward and

reattach it using one of the five positions in the pedal

and one of the three holes in the pedal spring. Make

sure that both pedals are in the same position.

HOW TO EXERCISE ON THE ELLIPTICAL

CROSSTRAINER

To mount the elliptical crosstrainer, hold the handgrip

pulse sensor and step onto the pedal that is in the low-

est position. Then, step onto the other pedal. Push the

pedals until they begin to move with a continuous

motion. Note: The pedal disks can turn in either

direction. It is recommended that you move the

pedal disks in the direction shown by the arrow

below; however, for variety, you may turn the pedal

disks in the opposite direction.

To dismount the elliptical crosstrainer, wait until the

pedals come to a complete stop. Note: The elliptical

crosstrainer does not have a free wheel; the ped-

als will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest

pedal first. Then, step off the lowest pedal.

HOW TO USE THE HANDLEBARS

The handlebars are

designed to add

upper-body exer-

cise to your work-

outs. Push and pull

the handlebars as

you exercise to

work your arms,

shoulders, and

back.

To exercise only

your lower body,

hold the handgrip

pulse sensor as

you exercise.

CAUTION:Before using the ellipti-

cal crosstrainer, read the following precau-

tions.

• Always hold the handgrip pulse sensor or the

handlebars when mounting, dismounting, or

using the elliptical crosstrainer.

• When you stop exercising, allow the pedals to

slowly come to a stop.

• The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

Pedals

Pedal Disk

Handgrip

Pulse Sensor

Handlebars

Handgrip

Pulse

Sensor

Knob Pedal

Spring

Pedal

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Pro-Form Ellipsentrainer Handbücher

Pro-Form

Pro-Form 595 HR Einrichtungshandbuch

Pro-Form

Pro-Form 696 Elliptical Handbuch

Pro-Form

Pro-Form 595E PFEL04900 Bedienungsanleitung

Pro-Form

Pro-Form PCEL87075 Bedienungsanleitung

Pro-Form

Pro-Form 530e Bedienungsanleitung

Pro-Form

Pro-Form 450 Hr Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 380 Razor Elliptical Einrichtungshandbuch

Pro-Form

Pro-Form ENDURANCE 420 E Bedienungsanleitung

Pro-Form

Pro-Form 790e Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 725 Pr Elliptical Benutzerhandbuch

Pro-Form

Pro-Form ZE5 Bedienungsanleitung

Pro-Form

Pro-Form PFEL7806.1 Bedienungsanleitung

Pro-Form

Pro-Form ZE 3 Bedienungsanleitung

Pro-Form

Pro-Form 400 Zle Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 910 E Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 480 Spacesaver Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 762 Ekg Bike Kurzanleitung

Pro-Form

Pro-Form PFEL94910.0 Bedienungsanleitung

Pro-Form

Pro-Form 15.5 s 831.28622.1 Bedienungsanleitung

Pro-Form

Pro-Form 400 Zle Elliptical Bedienungs- und Wartungshandbuch

Pro-Form

Pro-Form 780 Cse Elliptical Bedienungsanleitung

Pro-Form

Pro-Form 1050 E Bedienungsanleitung

Pro-Form

Pro-Form PFEL29220 Bedienungsanleitung

Pro-Form

Pro-Form PFEL19011 Bedienungsanleitung

Beliebte Ellipsentrainer Handbücher anderer Marken

Weslo

Weslo Momentum 4.0 Elliptical Bedienungs- und Wartungshandbuch

Progear Fitness

Progear Fitness Air elliptical pro 1307 Bedienungsanleitung

Torque Fitness

Torque Fitness XPLLP Bedienungsanleitung

Octane Fitness

Octane Fitness PRO3700C Bedienungsanleitung

Xterra

Xterra FS5.8e Bedienungsanleitung

Bodyguard

Bodyguard E-40 Bedienungsanleitung

Bonn Germany

Bonn Germany Concept 2.2 Bedienungsanleitung

Precor

Precor Resolute RSL 620 Bedienungsanleitung

NordicTrack

NordicTrack E 9.2 Elliptical Bedienungsanleitung

Vision Fitness

Vision Fitness X6600iNetTV Bedienungsanleitung

Matrix

Matrix MX-A5x Bedienungsanleitung

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Bedienungsanleitung

Sears

Sears FREE SPIRIT C249 30737 0 Bedienungsanleitung

True

True FS-64 Bedienungsanleitung

Sport-thieme

Sport-thieme ST 310 Bedienungsanleitung

VIRTUFIT

VIRTUFIT CTR 1.1 Bedienungsanleitung

Kettler

Kettler GIRO C 1 Bedienungsanleitung

CIRCLE FITNESS

CIRCLE FITNESS E7 Bedienungsanleitung
