USER’S MANUAL

Serial

Number

Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. PFEL64915.0

Serial No.

Write the serial number in the space

above for reference.

www.proform.com

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Google Maps is a trademark of Google Inc.

IFIT is a registered trademark of ICON Health & Fitness, Inc.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the elliptical only as described in this

manual.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

7. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

8. Keep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

14. Keep your back straight while using the ellip-

tical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

IMPORTANT PRECAUTIONS

all

STANDARD SERVICE PLANS

Thank you for selecting the revolutionary PROFORM®

620 E elliptical. The 620 E elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Handlebar Upper Body Arm

Pedal

Roller

Handle Ramp

Ramp Handle

Console

Tab l et Ho l d er

BEFORE YOU BEGIN

Wheel

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 2 in. (66 cm)

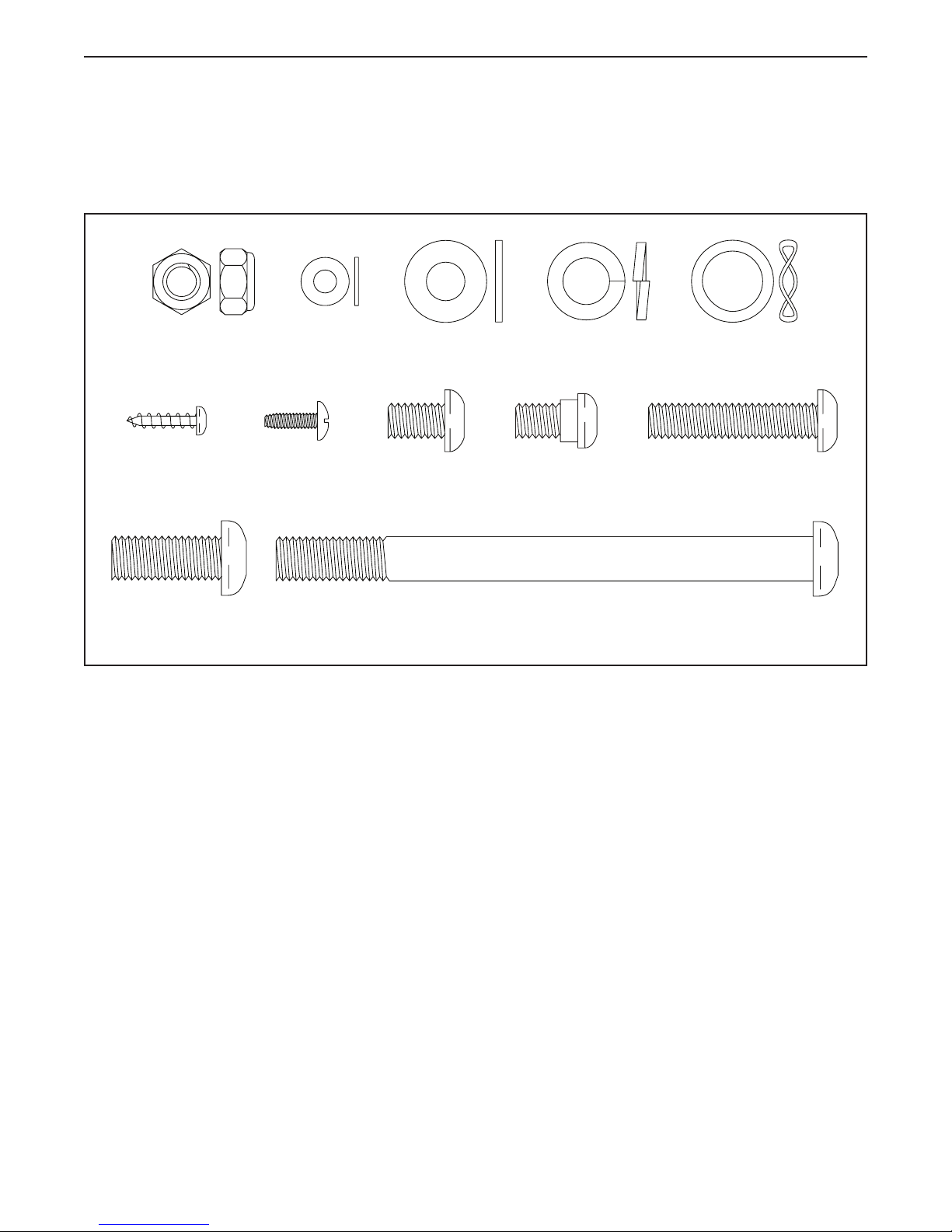

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 x 13mm

Screw (82)–6

M10 x 25mm

Screw (92)–4

M10 x 122mm Screw

(104)–4

M8 Locknut

(102)–4

M4 x 16mm

Screw (101)–16

16mm Wave

Washer (54)–2

M10 Split

Washer (105)–8

M8 Washer

(97)–8

M5 Washer

(32)–2

M8 x 38mm Bolt

(96)–4

M8 x 14mm

Shoulder

Screw (120)–2

#8 x 12mm

Screw (122)–4

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

AttachtheRearStabilizer(2)totheFrame(1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then,removethepackingmaterialsfromunder

the rear of the Frame (1).

104 105

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you ﬁnish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 7.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to www.proformservice.com/registration

on your computer and register your product.

•activates your warranty

•saves you time if you ever need to contact

Customer Care

•allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this

manual) and register your product.

106

3. Press the Cover Mounts (106) on the underside

of the Rear Stabilizer Cover (15) into the Rear

Stabilizer (2).

4. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then,removethepackingmaterialsfromunder

the front of the Frame (1).

104

105

5. Orient the Upright (4) as shown. Have a second

person hold the Upright near the Frame (1).

See the inset drawing. Locate the wire tie in

the lower end of the Upright (4). Tie the wire tie

to the Upper Wire (110). Then, pull the upper

end of the wire tie until the Upper Wire is routed

through the Upright.

Tip: To prevent the Upper Wire (110) from

falling into the Upright (4), secure the Upper

Wire with the wire tie.

110

Wire

Tie

Wire

Tie

110

6. Tip: Avoid pinching the Upper Wire (110).

Avoid damaging the indicated plastic tabs.

Set the Upright (4) on the Frame (1).

AttachtheUpright(4)withfourM10x25mm

Screws (92) and four M10 Split Washers (105);

start all the Screws, and then tighten them.

Avoid pinching the Upper

Wire (110) and avoid

damaging the tabs

Tab s

105

110
