Samson SATELLITE Bedienungsanleitung

Owner's Manual

Samson Technologies Corp.

278-B Duffy Ave

Hicksville, New York 11801

Phone: 1-800-3-SAMSON (1-800-372-6766)

Fax: 631-784-2201

www.samsontech.com

Owner’s Manual 3

Congratulations on your purchase of the Samson Satellite USB/

iOS Broadcast Microphone. Satellite represents the culmination

of Samson’s history of building world-class microphones, and

position on the leading edge of digital microphone technology.

Designed for capturing high-deﬁnition audio on your computer,

iPhone or iPad, the Satellite offers 24-bit/96kHz audio, three

selectable pickups patterns and an innovative fold-back leg design

in a portable package. Its 1/8” headphones output allows for zero-

latency monitoring, while a silent mute switch further increases the

production value of your recording. Whether you’re recording your

latest song idea, podcast, or streaming live, the Satellite is the

simplest and most comprehensive solution for high-quality audio

on a Mac, PC, iPhone or iPad. Just plug it in and start creating!

In these pages, you’ll ﬁnd a detailed description of the features of

the Satellite, as well as step-by-step instructions for its setup and

use. If your microphone was purchased in the United States, you’ll

also ﬁnd a registration card enclosed—don’t forget to follow the

instructions so that you can receive online technical support and

so that we can send you updated information about this and other

Samson products in the future. Also, be sure to check out our

website www.samsontech.com for complete information about our

full product line.

We recommend you keep the following records for reference, as

well as a copy of your sales receipt:

Serial number: ______________________________________

___

Date of purchase: ___________________________________

___

If you have any questions or comments regarding the Satellite or

any other products from Samson, do no hesitate to contact us at

support@samsontech.com.

With proper care, your Satellite will operate trouble-free for many

years. Should your Satellite ever require servicing, a Return

Authorization (RA) number must be obtained before shipping your

unit to Samson. Without this number, the unit will not be accepted.

Please visit www.samsontech.com/ra for an RA number prior to

shipping your unit. Please retain the original packing materials

and, if possible, return the unit in its original carton. If your

Satellite was purchased outside of the United States, contact your

local distributor for warranty details and service information.

Introduction

Satellite • USB/iOS Broadcast Microphone4

1. Capsule – Dual condenser capsule with 16mm diaphragms.

2. Status Indicator – The three color Power/Clip/Mute LED

lights green to indicate power, ﬂashes red when the input

signal is clipping, and lights amber when the microphone

is muted.

3. Pattern Switch – Select from one of the three pick-up

patterns: Omnidirectional, Unidirectional (Cardioid),

Bidirectional (Figure-8).

4. Mute Button – Mutes the output of the microphone to the

computer and headphone output. The Status Indicator will

illuminate amber when the microphone is muted.

5. Headphone Volume – Control to adjust the overall volume of

the 1/8” Headphone output.

6. Direct MONITOR ON/OFF Switch – This switch turns the

direct monitor on and off. This switch does not affect the

audio from the computer.

7. Stand Mount – Standard 5/8” thread mount to attach the

Satellite to a microphone stand.

Satellite Callouts

Owner’s Manual 5

Satellite Callouts

7. Headphone Output – 3.5mm stereo jack for connecting

headphones or studio monitors. The headphone output

provides a mix of the direct signal (if Direct Monitor is

enabled) from the microphone and the audio playback from

the computer.

8. USB Jack – Micro USB connector for interfacing with your

computer or iOS device. The Satellite can also work with an

Android device with applications that accept external audio

sources using a host OTG adapter.

Satellite • USB/iOS Broadcast Microphone6

2. Set the Satellite’s pattern switch. If you are

recording a single person, set the switch to the

Cardioid position and be sure to face the front

side, with the Samson logo. If recording two

people, set the microphone to the Bidirectional

position and if recording multiple subjects, set

the switch to the Omnidirectional position.

3. Connect headphones to the

Headphone output located on the

rear of the microphone.

4. Plug the USB cable into

the Satellite and plug the

other end of the cable

into an available USB

port on your computer.

1. Unfold the legs of the Satellite, and position the microphone

on your desktop. The legs can be adjusted to set the angle of

the microphone.

Note: the microphone can also be mounted to a microphone

stand via the standard 5/8” threading on the bottom of the

mic body.

Quick Start

Owner’s Manual 7

Quick Start

5. Set the Satellite as the input and output audio device by

following the steps in the section “Using the Satellite with

Apple OSX” or “Using the Satellite with Windows”.

6. Launch your recording software.

7. Turn down the Headphone Volume control on the Satellite

and if not already set, select the Satellite as the input and

outputs in the software.

8. Create a mono audio track.

9. Arm the tracks for recording.

10. Set the level of the Satellite

by slowly raising the level

of the microphone in your

software while singing or

playing an instrument into the

microphone at the performance level. If you see the peak

indicator illuminate red, your signal will be distorted. Turn the

microphone level control down until it no longer flashes red.

11. Set the direct monitor setting by following the steps in the

section “Direct Monitor”.

12. Press the record button and start creating.

Mono 1

Samson Satellite

My instrument is connected with:

Input Source:

Recording Level:

Monitor:

Mono 1 (Samson Satellite)

L R

No Effects

Tracks

Satellite • USB/iOS Broadcast Microphone8

1. Connect the Satellite to the computer using the included

USB cable.

2. Open System Preferences from the dock or the main Apple

Menu.

3. Select the Sound preference icon, choose the Input tab and

select Samson Satellite.

4. Set the Satellite as the output device by clicking the Output tab

and selecting Samson Satellite.

5. To set the sample rate, from the Applications folder, open the

Utilities folder and open Audio MIDI Setup.

6. From the Window menu, select Show Audio Window.

7. Select the Samson Satellite

8. From the Format dropdown menu, select the desired sample

rate and bit depth.

Using the Satellite with Apple OSX

Owner’s Manual 9

1. From the Start Menu, open the Control Panel and

select Sound.

2. Under the Playback and Recording tabs, select the

Samson Satellite as the audio device.

3. To adjust the gain of the microphone, click the

Properties button, and then select the Levels tab. You

can view the volume level as either a percentage or in

dB, by right clicking on the number box.

4. If the microphone LED is lighting red, turn this control

down until the LED no longer ﬂashes red.

5. In the Playback tab, select the Level tab and set

the computer’s Master Volume to 100%. Use the

Headphone Volume knob on the Satellite control the

overall output from the headphones or speaker.

6. To adjust the direct monitoring level in the Playback tab

by moving the fader labeled Microphone.

Using the Satellite with Windows

Satellite • USB/iOS Broadcast Microphone10

Setting Sample Rate in Windows

Sample Rate Conﬂicts

If you start recording/playback and the microphone’s status indi-

cator starts ﬂashing red continuously, this is due to the comput-

er’s operating system requesting different sample rates for input

and output at the same time. The microphone will still appear to

function, but either the input or output will be garbled, so the LED

is warning you of this problem.

This problem can happen in Windows 7 or Windows 8, and will

happen by default in Windows 10, when playing and recording

simultaneously. It happens with DirectSound, WASAPI Shared

mode, WaveOut, MME, and other software that uses the Windows

Default Format settings.

This will not happen in macOS or iOS, or with Windows software

that uses ASIO4ALL, WASAPI Exclusive mode, WDM, or other

software that sets the sample rates on its own.

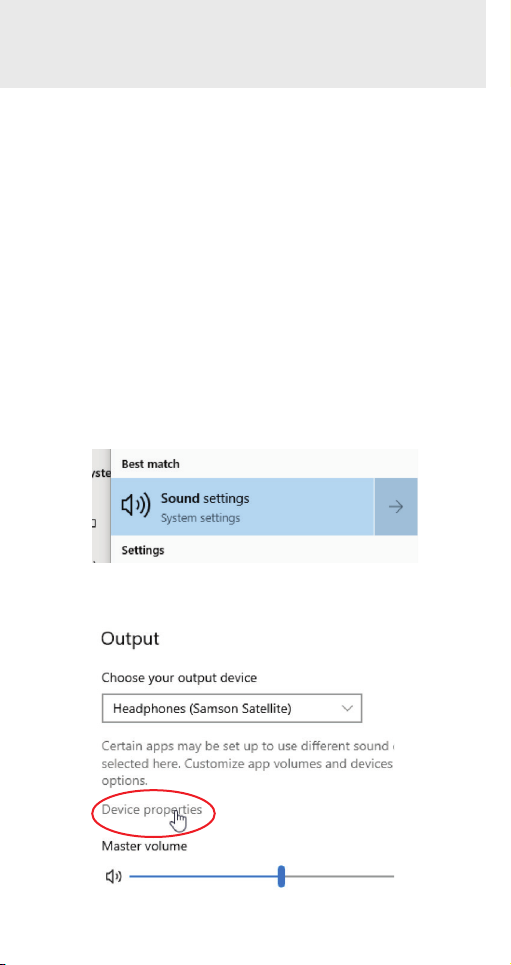

To change the default sample rates in Windows 10

In the Windows Search bar, type “sound”, and then select Sound settings

2. Make sure the Samson device is selected in the drop-down

menu and click Device Properties
