Wasp WLR8900 Betriebsanleitung

Wasp Barcode Technologies

1400 10th Street

Plano, TX 75074

www.waspbarcode.com 0308 US

Programming Guide

Barcode Scanning Made Easy

No part of this publication may be reproduced or transmitted in any form or by any

means without the written permission of Wasp Barcode Technologies. The information

contained in this document is subject to change without notice.

Wasp and the Wasp logo are registered trademarks of Wasp Barcode Technologies. All other

trademarks or registered trademarks are the property of their respective owners.

CCDLRProgrammingGuide

Please Read

Note:

The Wasp®WLR8900 Series Scanners

are ready to scan the most popular barcodes out of the box.

This manual should only be used to make changes in the

configuration of the scanner for specific applications. These

scanners do not require software or drivers to operate. The

scanner enters data as keyboard data. Please review this manual

before scanning any of the programming barcodes in this manual.

Tech Tip

If you are unsure of the scanner configuration or have scanned

the incorrect codes, please scan the default barcode on page 7.

This will reset the scanner to its factory settings.

Check Version

Wasp Barcode Technologies

Productivity Solutions for Small Business that

Increases Productivity & Profitability

• Barcode, data colection solutions

• Small business focus

• Profitable growth since 1986

• Over 200,000 customers

• Business unit of Datalogic SPA

Wasp®Barcode Technologies

1400 10th Street

Plano, TX 75074

Phone: 214-547-4100 • Fax: 214-547-4101

www.waspbarcode.com

Table of Contents

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2. Barcode Symbologies. . . . . . . . . . . . . . . . . . . . 2

Chapter 3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 4. Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Chapter 5. WLR8900/8905 Setup & Configuration . . . 5-28

1. Factory Default & Keyboard Connection . . . 6

2. Autosense Stand Mode . . . . . . . . . . . . . . . . 6

3. Beep and Delay . . . . . . . . . . . . . . . . . . . . 7-8

4. Upper/Lower Case. . . . . . . . . . . . . . . . . . . . 9

5. Keyboard Language. . . . . . . . . . . . . . . . . . 10

6. Preamble/Postamble Configuration. . . . . . 11

7. Terminator/Code ID . . . . . . . . . . . . . . . . . . 12

8. Enable/Disable Barcode Symbologies . 13-14

9. Barcode Symbology Settings . . . . . . . . 15-27

Code 39. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Interleaved 2 of 5 and Code 93 . . . . . . . . . 16

Code 128 and UCC/EAN 128 . . . . . . . . . . . 17

MSI/Plessey . . . . . . . . . . . . . . . . . . . . . . . 18

Codabar . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

UPC-A . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

UPC-A Supplemental / UPC-A to EAN-13 . 21

UPC-E . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

UPC-E Supplemental . . . . . . . . . . . . . . . . . 23

EAN-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

EAN-8 Supplemental . . . . . . . . . . . . . . . . . 25

EAN-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EAN-13 Supplemental . . . . . . . . . . . . . . . . 27

Appendix A Barcode Test Symbols . . . . . . . . . . . . . . . 28-30

Appendix B ASCII Table . . . . . . . . . . . . . . . . . . . . . . . . 31-34

Appendix C Codes for PC . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appendix D Technical Specifications . . . . . . . . . . . . . . . . . 36

Product Support. . . . . . . . . . . . . . . . . . . . . . . 37

Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Frequently Asked Questions. . . . . . . . . . . . . . 38

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 1

Chapter 1

Introduction

Barcoding is the most common Automated Data Collection (ADC)

technology providing timely, error-free information that can be used to

increase productivity, accuracy, and efficiency in the workplace. Virtually

every type of industry is using bar codes to replace keyboard data entry.

Studies have shown that a proficient data entry operator will make one

error for every 300 characters that are manually entered. The error rate

using barcodes is almost negligible and can be error-free using barcode

symbologies with the check digit enabled.

The Wasp Charged Coupled Device (CCD) technology is a technique

whereby a barcode is photographed, digitized, and electronically sampled

by built-in photodetectors. The detectors process the measurement of

every bar and space using the number of adjacent photodetectors which

contrast a black mark and a white space. Wasp WLR8900 series scanners

extremely rugged since they have no moving parts. Wasp WLR8900 series

scanners are support PS/2 or USB keyboard interfaces and easily wedges

between the computer and keyboard. Barcode data is passed directly into

the keyboard buffer as if it had been typed in by hand by a data entry

operator.

Of all the hand held barcode scanning devices on the market, the CCD

reader is the easiest to use and most cost effective for the typical business

user. The Wasp WLR8900 series scanners are extended distance scanners

with a depth of reading of up to one foot depending on the mil size of the

barcode. To activate the scanner, the user simply points the scanning

aperture towards the barcode, pulls the trigger, and aims the red LED

beam across the barcode.

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 2

Chapter 2

Barcodes are symbols consisting of a series of bars and spaces which can

be applied to packages, cartons, bottles, and other commercial products.

The bars and spaces in each symbol are grouped in such a way to

represent a specific ASCII character or function. The interpretation of

these groups is based on a particular set of rules called symbologies.

Various symbologies have been developed for particular applications.

Some examples are shipping and receiving, manufacturing, retail,

healthcare, transportation, document processing and tracking, and

libraries.

The resolution of a barcode is dependent on the narrowest element of a

barcode (X dimension), and can vary from high density (nominally less

than 0.009 in./0.23 mm), medium density (between 0.009 in./0.23 mm and

0.020 in./0.50 mm), and low density (greater than 0.020 in./0.50 mm).

Medium and low densities are the most common since these are the

easiest to read (scan) with nearly all scanning devices. Wasp

WLR8900/8905 Scanners can read barcodes with X-dimensions as low as

5 mils (0.005 in/0.13mm).

Wasp WLR8900/8905 Scanners can read the most popular barcode

symbologies including Code 39, Code 93, Code 128, Interleaved 2 of 5,

UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Codabar, and MSI/Plessey.

Please see test chart on pages 29-31.

Barcode Symbologies

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 3

Chapter 3

Installation

Tr igge r

Tr ig ge r

Scanning Aperture

Di n- 6M

Di n- 6F

US B Po rt

1. Plug the USB of the WLR8905 Scanner directly into your PC’s USB port.

1. Turn off your computer.

2. Unplug your PC keyboard cable and plug the male end (Din 6) of

the WLR8900 Scanner directly into your PC keyboard port. Plug your

keyboard cable into the other end (female Din 6) of the the scanner.

3. Turn your computer on.

WLR8905 USB Scanner

WLR8900 PS2 Scanner

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 4

Chapter 4

Your Wasp WLR8900/8905 Scanners are ready for use. The default

settings of the scanners have been pre-programmed for the most common

bar code configurations. Use the “WLR8900/8905 Setup & Configuration”

sections only to customize the scanners settings. Please review the

“Enable Barcode Symbologies” configuration beginning on page 14 to see

the list of barcode symbologies which are enabled by default.

Tip:

•Use the pre-printed “Barcode Test Symbols” in Appendix A on pages

29-31 as a test chart to practice scanning.

Quick Start

USB Connection

PS2 Connection

into your PC’s USB port.

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 5

Chapter 5

In order to configure Wasp WLR8900/8905 Scanners, you must familiarize

yourself with the setup procedures on the following pages. The default

settings of the Wasp WLR8900/8905 Scanners are identified on each page

and clearly marked using an asterisk (*). The default settings have been

preprogrammed for the most common barcode configurations. Use the

Setup & Configuration only to customize the Wasp WLR8900/8905

Scanners settings. If you need to configure the scanner, the default

settings will be overwritten. All the programmed settings are stored

permanently in non-volatile memory; therefore, your configuration will be

maintained even if the keyboard power to Wasp WLR8900/8905 Scanners

is removed by turning off your PC.

In order to configure Wasp WLR8900 Series Scanners,

two basic steps need to be followed:

(1) Locate the group that contains the options to be changed.

(2) Scan the barcode representing the option to be changed.

The scanner will sound two beeps.

To change Minimum/Maximum Length:

(1) Scan the Minimum or Maximum Length barcode.

(2) Scan a 2 digit value from the ASCII table on pages 32-35

(3) Scan the Minimum or Maximum Length barcode again.

Example: To have a minimum length barcode of 1, you must scan a

0 then 1, then scan the minimum barcode again. To have a maximum

length barcode of 10, you must scan a 1 then 0, then scan the

maximum barcode again.

Setup & Configuration

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 6

Chapter 5

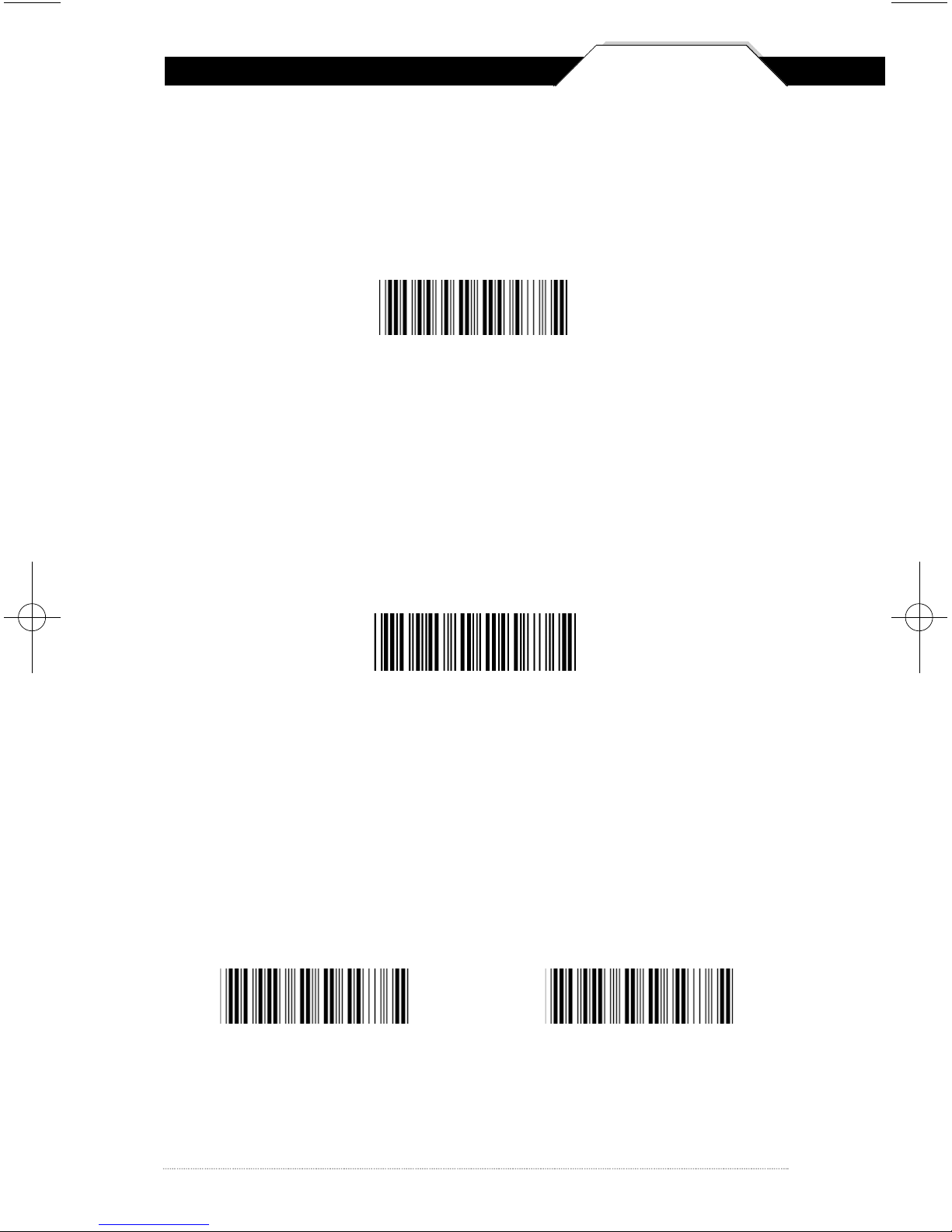

FACTORY DEFAULT & KEYBOARD CONNECTION

Use the Factory Default barcode to reset the scanner to the Default

settings.

PC (USB or PS/2) * Not e b o o k

The Keyboard Connection is used to program the Wasp WLR 8900/8905

Scanners for the type of computer it is attached.

*Default

Keyboard Connection

Factory Default

F a c t o ry Default

Scan this Autosense Stand Mode barcode to enable the hands-free

autosense feature of the WLR8900/8905 Scanners. If you desire to turn

this mode “off,” please scan the default barcode above.

Autosense Stand Mode

Autosense Flash Mode

Ena b l e

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 7

Chapter 5

BEEP AND DELAY

The 'Beep and Delay' configuration supports the general control options

for the Wasp WLR8900/8905 Scanners. These options include the volume,

intercharacter delay, and interblock delay.

Interblock delay is the minimum time interval between two adjacent scans.

If the processing speed of your host device is slower than your scanning

speed, a longer interblock delay may ensure the data integrity.

Intercharacter delay is the time period that the scanner will wait before

transmitting the next character. If data sent by the scanner has incorrect or

missing characters, a longer intercharacter delay may solve the problem.

The intercharacter delay should be changed only if the transfer rate cannot

be maintained between the scanner and the keyboard buffer of the

computer.

Note: The default for the intercharacter delay is set to '140us' and is the

most common configuration; however, your PC may be different. When

you scan a barcode, if some stray or scrambled characters appear,

increase the intercharacter delay to slow down the transfer rate.

Beep Off

Beep Medium *

Beep High to Low

Beep Hi

Beep Low to High

Beep Low

Beep Settings

*Default

WLR8900_8905Manual0308_sm.A0 6/25/08 3:38 PM Page 8

Andere Handbücher für WLR8900

Inhaltsverzeichnis

Andere Wasp Barcode-Lesegerät Handbücher

Wasp

Wasp Wasp WDI7500 Bedienungsanleitung

Wasp

Wasp WDI4200 Bedienungsanleitung

Wasp

Wasp HC1 Bedienungsanleitung

Wasp

Wasp WWS800 Bedienungsanleitung

Wasp

Wasp WDI9600 Bedienungsanleitung

Wasp

Wasp WWS650 Bedienungsanleitung

Wasp

Wasp WDI4700 Bedienungsanleitung

Wasp

Wasp Wasp WDI7500 Installations- und Betriebshandbuch

Wasp

Wasp WWS750 Bedienungsanleitung

Wasp

Wasp WPL305 Betriebsanleitung

Wasp

Wasp WLS9600 Installations- und Betriebshandbuch

Wasp

Wasp N1181 Betriebsanleitung

Wasp

Wasp WDI4600 Bedienungsanleitung

Wasp

Wasp WWS500 Betriebsanleitung

Wasp

Wasp WWS550SBR Bedienungsanleitung

Wasp

Wasp WWS650 Installations- und Betriebshandbuch

Wasp

Wasp WWS550i Installationsanleitung

Wasp

Wasp WLS8600 Bedienungsanleitung

Wasp

Wasp WLS 9500 Bedienungsanleitung

Wasp

Wasp WWS550i Bedienungsanleitung

Wasp

Wasp WRS100SBR Bedienungsanleitung

Wasp

Wasp WWS110i Bedienungsanleitung

Wasp

Wasp WPL25 Bedienungsanleitung

Wasp

Wasp WPL618 Series Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
