WE-EF RMC320 LED Bedienungsanleitung

Safety Notice

The manufacturer is discharged from liability when damage

is caused by improper use or installation.

If any luminaire and/or accessory is subsequently modi-

fied, the persons responsible for the modification shall be

considered as manufacturer.

RMC320_241121 / 006-1335

Technical specifications are subject to change.

we-ef.com

WE-EF LIGHTING USA

Tel +1 724 742 0030

[email protected]

WE-EF LIGHTING

Installation and

Maintenance Instructions for

Post Top Luminaire

RMC320 LED

Product Information / Surge Protection

As an option, this luminaire can also be fitted with a surge

protector of Type 2-3 (at the time of order). The technical

data can be found directly on the installed device. If the

surge protector has been triggered by an adverse event,

the luminaire is automatically disconnected from the

mains. In that case, the LED on the surge protector no

longer lights up.

For comprehensive protection of the luminaire against

lightning and electrical surges, primary (Type 1) and

secondary (Type 2) surge arrestors must be installed into

the power supply. We recommend a combination arrestor

(Type 1+2+3), which is installed in the control cabinet.

The technical planner/installer is responsible for the pro-

per selection, sizing and installation of the surge protection

modules that must be provided on site. Please note the

various protection levels for Class I and II, as well as the

applicable statutory provisions regarding surge protection.

Installation and maintenance may only be performed by a

qualified electrician.

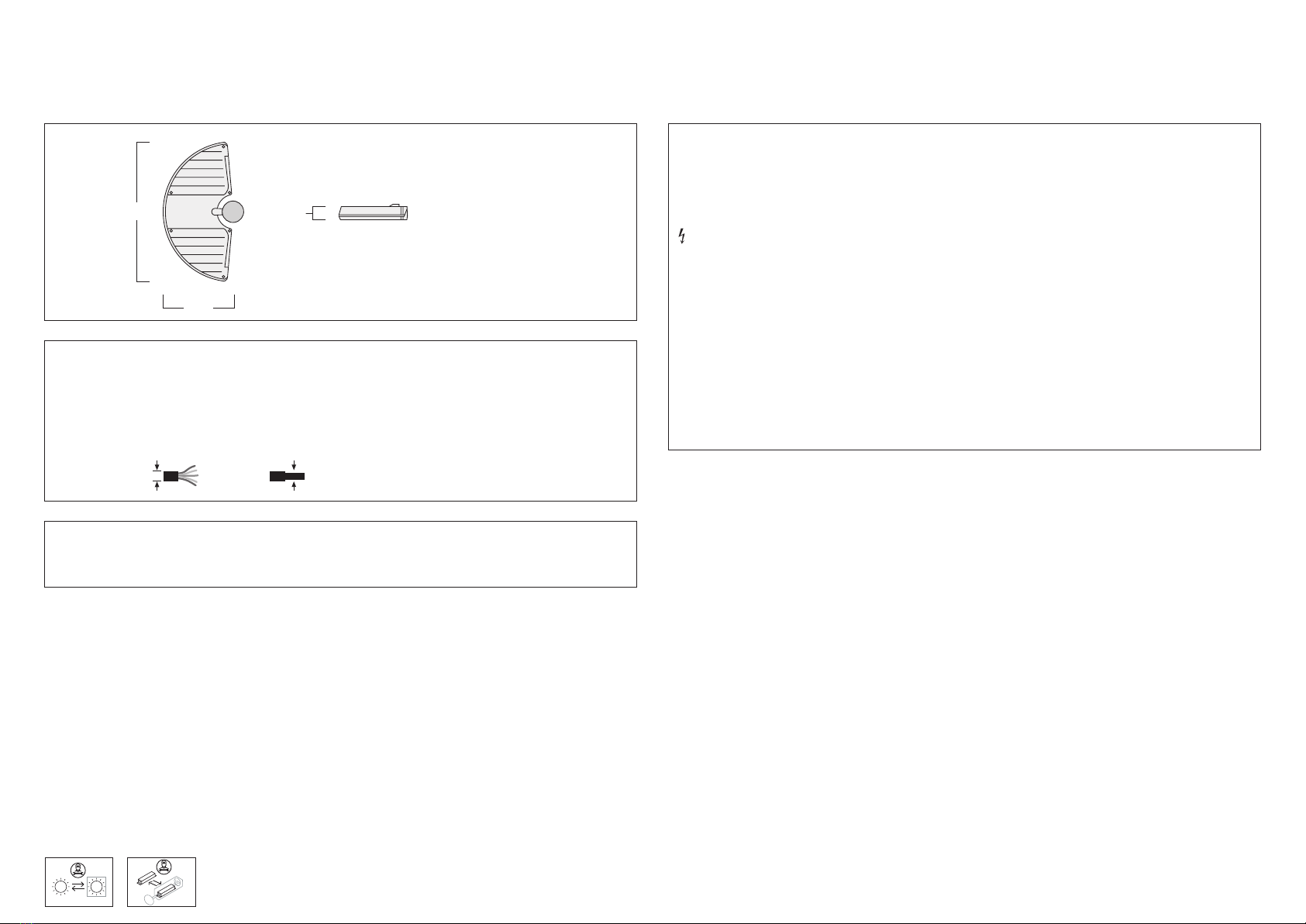

25.5

12.80

2.36

Tools required

– Screwdriver with 4 x 1.0 mm blade

– TORX key TX25 / TX30 / TX40

Post Top Luminaire

IP66, IK08

ø 0.354 –0.551 in

Light source

18 LED 18W / 18 LED 36W / 18 LED 54W*

* Nominal power, for latest data refer to

www.we-ef.com

Class I, ta = 40 °C

Mounting height. . . . . . . . . . . . . . . . . . . . . . 10 –20 ft

Weight ............................max. 18.5 lb

Windage area ......................max. 0.50 ft²

Installation: horizontal, light output downwards

16 AWG

RMC320

120-

277 V

Installation

The product must be installed and maintained by

a suitably qualified professional in compliance with

latest building/construction and/or electrical regu-

lations and relevant legislation.

Attention: Do not open luminaire while mains

supply is switched on.

Notice: If the luminaire is modified by anybody

other than the original manufacturer, then the

warranty will no longer be valid and shall become

the full responsibility of the modifying person/

organisation. Claims based on defects attributable

to improper installation and/or application, and the

consequences thereof, are excluded.

In case of component failure, LED replacement

due to abnormal circumstances or at end of life,

replacement must be carried out by a suitably qua-

lified and trained professional.

In case of questions please contact our technical

hotline: +1 724 742 0030 (from Monday - Friday

from 08.00 until 16.00 hours).

Maintenance

Apart from cleaning the product’s exterior surfaces,

no special maintenance work is required. Do not

use high-pressure cleaners.

Protect our environment: Discard used LEDs in

compliance with the most recent environmental

legislation.

For larger cable diameters of 0.354 – 0.472 in

the enclosed cable entries must be used.

Then tighten the pressure screw firmly. To fix

the mounting flange J, insert screws L, and

tighten firmly.

5) Connect mains supply cable Nto respective

terminals Pin terminal connector (N = Neutral,

L= Phase, = Earthing).

6) Position luminaire/wall bracket Qby attaching

to mounting flange Jand secure in position by

firmly tightening screws K.

Procedure wall mounting installation

Luminaire prewired, do not open!

1) Switch off the mains electrical supply.

2) Remove mounting flange Jby releasing

screws K.

3) Determine positions for fixing screws L. Ensure

the arrow mark Ron the flange Jlabel aims

upwards. Drill relevant holes and insert heavy

duty wall plugs M.

ATTENTION: Make sure not to damage any

electric cable, water pipe or other devices while

drilling holes.

4) Feed mains supply cable N(and the second

cable for through wiring, if required) through

packing ring O, while setting and fixing moun-

ting flange Jin position. The pre-installed

packing ring Ois suitable for cable diameters

0.276 – 0.374 in.

H 80 mm

ø 76 mm

Installation to a pole

Installation to a wall bracket

g. 1

g. 4

g. 7

g. 2

g. 5

g. 3

g. 6

5 Nm (44.3 in-lb)

PE ~ 180°~ 2.5 in

3) Pull the connecting cable through the pole. Put

the luminaire on top of the pole Dand tighten

the fixing screws E, tightening to a torque of

5 Nm (44.3 in-lb).

Installation Procedure Pole Installation

Luminaire prewired, do not open!

1) Switch off the mains electrical supply.

2) Cut cable to the corresponding height of the

pole and connect cable to the connector B

(fig. 1-6).

0-10V

Phase (L1) to 1, Neutral (N) to N, Control Phase

(+) to 2, Control Phase (–) to 3 and Earthing

For protection class II, the earthing is omitted.

Screw the gland nut together, tightening to a

torque of 5 Nm (44.3 in-lb) (fig. 5).

WE-EF Eco Step Dim® Advanced / ON-OFF

Individual wiring Through wiring

1-10V / DALI

Individual wiring Through wiring

0-10 VFor ON/OFF
