PCI-1752/54/56 Quick Start

Unpacking

The PCI-1752/54/56 package should contain the

following items:

þPCI-1752/54/56 card

þCompanion CD-ROM disc

þUser’s Manual

þQuick Start

Driver Installation

Step 1: Insert the companion disc into your CD-

ROM drive.

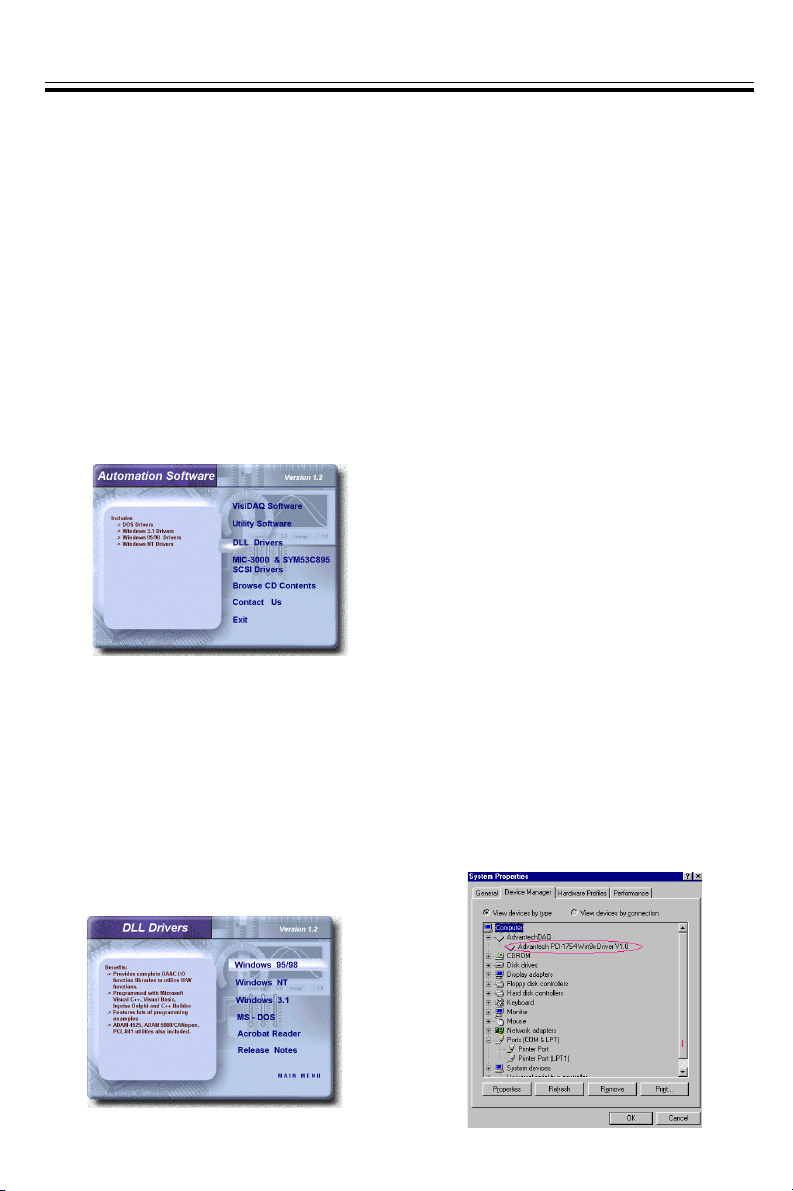

Step 2: The Setup Program will be launched

automatically, and you’ll see the

following Setup Screen.

Select the DLL Drivers installation

option. (If autoplay is not enabled, please

use Windows Explorer or Windows Run

command to execute setup.exe on CD-

ROM).

Step 3: Select the Windows 95/98 or Windows

NT option according to your operating

system.

Step 4: Follow the installation instructions step

by step to complete your DLL driver

setup.

Hardware Installation

Step 1: Turn off your computer and unplug the

power cord and cables

Step 2: Remove the cover of your computer

Step 3: Remove the slot cover on the back panel

of your computer

Step 4: Touch the metal part of your computer

chassis to discharge static electricity on

your body

Step 5: Adjust DIP switch SW1 on board ti set

the card’s board ID.

Step 6: Insert the PCI-1752/54/56 card into a

PCI slot. Hold the card only by its edges

and carefully align it with the slot, then

insert the card firmly into place. Use of

excessive force must be avoided

otherwise the card might be damaged.

Step 7: Fasten the bracket of the PCI card on

the back panel rail of the computer with

screws

Step 8: Connect appropriate accessories (100-

pin cable, wiring terminals, etc., if

necessary) to the PCI card.

Step 9: Replace the cover of your computer

chassis. Re-connect the cables you

removed in step 2.

Step10:Plug in the power cord and turn on the

computer

Verifying your Installation

wAccess the Device Manager through the

Control Panel/System/Device Manager. On the

Device Manager tab of the System Property

sheet, you can see the Device Name of the

PCI-1752/54/56 listed on it.

Device Installation

Step 1: Run the Device Installation program (by

accessing Start/Programs/ Advantech

Driver for 95 and 98 (or for NT)/Device

Installation).

Step 2: On the Device Installation program

window, select the Setup menu item on

the menu bar, and click the Device

command to bring up the I/O Device

Installation dialog box as below:

Step 3: Click the Add>> button and the List of

Devices box appears below the original

Installed Devices box on the dialog box.

Step 4: Scroll down the List of Devices box to

find the device that you wish to

configure, then click the Install button

to bring up the Device Found(s) dialog

box as shown below:

Step 5: After selecting a device and click OK,

the Device Setting dialog box will pop

up. You can configure various settings

for the selected device.

Step 6: After you have finished configuring of

the device, click OK and the device will

appear in the Installed Devices box as

seen below:

Step 7: After your card is properly installed and

configured, you can click the Test button

to test your hardware.

Step 8: You can test your hardware by using the

testing utility we supplied. For more

detailed information, please refer to

Chapter 2 of the User’s Manual .

This documentation and the software included with this product are copyrighted

2000 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves

the right to make improvements in the products described in this manual at any

time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in

any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable.

However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any

infringements of the rights of third parties which may result from its use.

Acknowledgments

PC-LabCard is a trademark of Advantech Co., Ltd. IBM and PC are trademarks of

International Business Machines Corporation. MS-DOS, Windows®, Microsoft®

Visual C++ and Visual BASIC are trademarks of Microsoft®Corporation. Intel®

and Pentium®are trademarks of Intel Corporation. Delphi and C++Builder are

trademarks of Inprise Corporation.

CE notification

The PCI-1752/1754/1756, developed by ADVANTECH CO., LTD., has passed the

CE test for environmental specifications when shielded cables are used for

external wiring. We recommend the use of shielded cables. This kind of cable is

available from Advantech.

Please contact your local supplier for ordering information.

On-lineTechnical Support

For technical support and service, please visit our support website at:

http://support.advantech.com

Part No. 2003175400 1st Edition

Printed in Taiwan April 2000

Contents

1. Introduction ............................................................................. 1

1.1 Features ........................................................................................................ 1

1.2 Installation Guide ......................................................................................... 6

1.3 Accessories .................................................................................................. 6

2. Installation ............................................................................... 7

2.1 Unpacking .................................................................................................... 7

2.2 Driver Installation ......................................................................................... 8

2.3 Hardware Installation ................................................................................... 9

2.4 Device Setup & Configuration ................................................................... 12

2.5 Device Testing ............................................................................................ 16

3. Signal Connections .............................................................. 19

3.1 I/O Connector Pin Assignment .................................................................. 19

3.2 Location of Jumpers and DIP switch .......................................................... 19

3.3 Isolated Digital Input Connections ............................................................ 27

3.4 Isolated Digital Output Connections .......................................................... 28

3.5 Field Wiring Considerations ....................................................................... 29

4. Operation ............................................................................. 31

4.1 Interrupt Function ...................................................................................... 31

4.2 Board ID ..................................................................................................... 33

4.3 Channel-Freeze Function ............................................................................ 34

Appendix A Specifications....................................................... 37

Appendix B Block iagram ..................................................... 39

Appendix C Register Structure and Format ........................... 43

C.1 Overview....................................................................................................43

C.2 I/O Port Address Map ...............................................................................43

C.3 PCI-1752 RegisterFormat ...........................................................................44

C.4 PCI-1754 RegisterFormat ...........................................................................45

C.5 PCI-1756 RegisterFormat ...........................................................................46

Appendix D ADAM-3951 Pin Assignment ............................... 47

Figures

Figure 1-1: Installation Flow Chart ..................................................................... 5

Figure 2-1: The Setup Screen of Advantech Auto ation Software ..................... 8

Figure 2-2: Different options for Driver Setup ..................................................... 9

Figure 2-3: The device na e listed on the Device Manager .............................. 11

Figure 2-4: The excla ation ark (!) on the device na e indicating

i proper installation of the card ..................................................... 11

Figure 2-5: The Advantech Device Installation utility progra .......................... 12

Figure 2-6: The I/O Device Installation dialog box ............................................ 13

Figure 2-7: Selecting the device you want to install ......................................... 13

Figure 2-8: The Device(s) Found dialog box .................................................. 14

Figure 2-9: The Device Setting dialog box of PCI-1752 .................................... 14

Figure 2-10: The Device Setting dialog box of PCI-1754 .................................... 14

Figure 2-11: The Device Na e appearing on the list of devices box .................. 15

Figure 2-12: PCI-1754 Digital Input tab on the Device Test dialog box ............... 16

Figure 2-13: PCI-1754 Digital Input tab on the Device Test dialog box ............... 17

Figure 2-14: PCI-1752 Digital Output tab on the Device Test dialog box ............ 17

Figure 4-1: The device No. and board ID on dialog box .................................... 34

Figure 4-2: The wiring in wet/dry contact input ode ...................................... 36

Tables

Table 1-1: PCI-1752/1754/1756 Features Co parison ....................................... 4

Table 3-1: PCI-1752 I/O Connector Signal Description ..................................... 21

Table 3-2: PCI-1754 I/O Connector Signal Description ..................................... 23

Table 3-3: PCI-1756 I/O Connector Signal Description ..................................... 25

Table 3-4: JP1: Power on configuration after hot reset ..................................... 28

Table 4-1: Interrupt control register bit ap ...................................................... 31

Table 4-2: Latch port data disable/enable control bit ........................................ 32

Table 4-3: Interrupt disable/enable control bit values ........................................ 32

Table 4-4: Interrupt triggering edge control bit values ....................................... 32

Table 4-5: Interrupt flag bit values .................................................................... 33

Table 4-6: Board ID register ............................................................................. 33

Table 4-7: Board ID setting .............................................................................. 34

Table 4-8: JP2: Channel-Freeze function input ode ....................................... 35

Table 4-9: Channel-Freeze function register ..................................................... 36

Table 4-10: Channel-Freeze function bit value .................................................... 36

–1 –

Chapter 1

PCI-1752/54/56 User’s Manual

Advantech Co., Ltd.

www.advantech.com

Chapter



1. Introduction

Thank you for buying the Advantech PCI-1752/1754/1756 DAS card.

The Advantech PCI-1752/1754/1756 DAS card is a powerful data

acquisition (DAS) card for the PCI bus. It features a unique circuit

design and complete functions for data acquisition and control. PCI-

1752/1754/1756 DAS card provides specific functions for different user

requirements:

PCI-1752 64-channel Isolated Digital Output card

PCI-1754 64-channel Isolated Digital Input Card

PCI-1756 32/32-channel Isolated Digital I/O DAS card

The following sections of this chapter will provide further information

about features of the DAS cards, a Quick Start for installation, together

with some brief information on software and accessories for the PCI-

1752/1754/1756 DAS card.

1.1 Features

The Advantech PCI-1752/1754/1756 DAS card provides users with the

most requested measurement and control functions as seen below:

PCI-1752 AS card

q64 isolated digital output channels

qHigh-voltage isolation on output channels (2,500 VDC )

qWide output range (5 ~ 40 VDC )

qHigh-sink current for isolated output channels (200 mA max./

channel)

qBoard ID

qOutput status read-back

qDigital output value retained after hot system reset

qChannel-Freeze function

qOutput status read-back

qProvides convenient wiring terminal module with LED indicators for

DIN-rail mounting

qHigh-density 100-pin SCSI connector

PCI-1754 AS card

q64 isolated digital input channels

qHigh-voltage isolation for input channels (2,500 VDC )

–2 –

Chapter 1

PCI-1752/54/56 User’s Manual Advantech Co., Ltd.

www.advantech.com

qWide input range (10 ~ 50 VDC)

qHigh ESD protection (2,000 VDC )

qHigh over-voltage protection (70 VDC )

qBoard ID

qInterrupt handling capability

qProvides convenient wiring terminal module with LED indicators for

DIN-rail mounting

qHigh-density 100-pin SCSI connector

PCI-1756 AS card

q32/32 isolated digital input/output channels

qHigh-voltage isolation for input/output channels (2,500 VDC )

qWide input range (10 ~ 50 VDC )

qWide output range (5 ~ 40 VDC )

qHigh-sink current on isolated output channels (200 mA max./

channel)

qHigh over-voltage protection (70 VDC ) for input channels

qHigh ESD protection (2,000 VDC ) for input channels

qBoard ID

qOutput status read-back for output channels

qDigital output value retained after hot system reset

qChannel-Freeze function for output channels

qInterrupt handling capability

qProvides convenient wiring terminal module with LED indicators for

DIN-rail mounting

qHigh-density 100-pin SCSI connector

The Advantech PCI-1752/1754/1756 DAS card offers the following

main features:

Robust Protection (PCI-1752/1754/1756)

The PCI-1752/1754/1756 features a robust isolation protection for

applications in industrial, lab and machinery automation. The PCI-1752/

1754/1756 can durably withstand a voltage up to 2,500 VDC, preventing

your host system from any incidental harms. The PCI-1754/1756, if

connected to an external input source with surge-protection, can offer

–3 –

Chapter 1

PCI-1752/54/56 User’s Manual

Advantech Co., Ltd.

www.advantech.com

up to a maximum of 2,000 VDC ESD (Electrostatic Discharge) protection

for input channels. Even with an input voltage rising up to 70 VDC, the

input channels of PCI-1754/1756 can still manage to work properly

albeit only for a short period of time.

Wide Input/Output Range (PCI-1752/1754/1756)

The PCI-1754/1756 has a wide range of input voltage from 10 to 50 VDC,

and it is suitable for most industrial applications with 12 VDC, 24 VDC

and 48 VDC input voltage. The PCI-1752/1756 also features a wide

output voltage range from 5 to 40 VDC, suitable for most industrial

applications with 12 VDC / 24 VDC output voltage. In the mean time, we

are also ready to serve your special needs for specific input/output

voltage range. Do not hesitate to ask us about tailoring our standard

products to meet your specifications. All these merits make PCI-1752/

1754/1756 the best choice for industrial applications.

Board I Setting (PCI-1752/1754/1756)

The PCI-1752/1754/1756 has a built-in DIP switch that helps define

each card’s ID when multiple cards have been installed on the same PC

chassis. The board ID setting function is very useful when users build

their system with multiple PCI-1752/1754/1756 cards. With correct

Board ID settings, you can easily identify and access each card during

hardware configuration and software programming.

Channel-Freeze Function (PCI-1752/1756)

The PCI-1752/1756 provides Channel-Freeze function, which can be

enabled either in dry contact or wet contact mode (selectable by the

on-board jumper). When the Channel-Freeze function is enabled, the

last status of each digital output channel will be safely kept for

emergency use. Moreover, you can enable this function through

software as it is useful in software simulation and testing program.

Reset Protection (PCI-1752/1756)

When the system has undergone a hot reset (i.e. without turning off

the system power), the PCI-1752/1756 can either retain outputs values

of each channel, or return to its default configuration as open status,

depending on its on-board jumper setting. This function protects the

system from wrong operations during unexpected system resets.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Advantech PCI-Karte Handbücher

Advantech

Advantech VEGA-340 Installations- und Betriebshandbuch

Advantech

Advantech PCIE-1824 Bedienungsanleitung

Advantech

Advantech PCIE-1884 Installations- und Betriebshandbuch

Advantech

Advantech MIC-3756 Bedienungsanleitung

Advantech

Advantech PCIE-1802 Bedienungsanleitung

Advantech

Advantech PCI-1671UP Installations- und Betriebshandbuch

Advantech

Advantech PCA-5650 Installations- und Betriebshandbuch

Advantech

Advantech PCA-5630 Installations- und Betriebshandbuch

Advantech

Advantech PCI-1758 Series Bedienungsanleitung

Advantech

Advantech PCI-1710U-DE Bedienungsanleitung

Advantech

Advantech MIC-3401 Bedienungsanleitung

Advantech

Advantech DSPC-8661-PCXE Bedienungsanleitung

Advantech

Advantech ECU-P1761 Installations- und Betriebshandbuch

Advantech

Advantech MIC-3716 Bedienungsanleitung

Advantech

Advantech PCIE-1750U Bedienungsanleitung

Advantech

Advantech MOS-1110Y-0101E Bedienungsanleitung

Advantech

Advantech PCI-1730U Bedienungsanleitung

Advantech

Advantech DSPC-8682 Bedienungsanleitung

Advantech

Advantech EKI-6340 Series Bedienungsanleitung

Advantech

Advantech ECU-P1706 Installations- und Betriebshandbuch

Advantech

Advantech PCM-3614I Installations- und Betriebshandbuch

Advantech

Advantech MIC-3950 Bedienungsanleitung

Advantech

Advantech PCI-1721 Bedienungsanleitung

Advantech

Advantech PCI-1714UL Installations- und Betriebshandbuch

Beliebte PCI-Karte Handbücher anderer Marken

ERMA

ERMA SSI 1417 Bedienungsanleitung

SIIG

SIIG CyberSerial Dual PCI Montageanleitung

Moxa Technologies

Moxa Technologies CP-102E Bedienungsanleitung

I-Bus

I-Bus IBC2602 Bedienungsanleitung

Exsys

Exsys EX-60102 Bedienungsanleitung

Chelsio Communications

Chelsio Communications T5 Series Bedienungsanleitung

Conrad Electronic

Conrad Electronic 97 46 71 Bedienungsanleitung

Micro Innovations

Micro Innovations USB650A Bedienungsanleitung

KTI Networks

KTI Networks KF-310 Bedienungsanleitung

Asus

Asus SpaceLink WL230 Bedienungsanleitung

SIIG

SIIG SC2475 Bedienungsanleitung

TRENDnet

TRENDnet TEW-703PI Bedienungsanleitung

Belkin

Belkin F5D7000F Bedienungsanleitung

Pericom

Pericom PI7C7100 Bedienungsanleitung

ADLINK Technology

ADLINK Technology cPCI-3548 Bedienungsanleitung

Digium

Digium TE200 Series Bedienungsanleitung

Allo.com

Allo.com 2nd Gen E1/T1/J1 Bedienungsanleitung

Western Digital

Western Digital FireWire PCI Adapter Bedienungsanleitung
