Car-Interface RL4-MIB92 Bedienungsanleitung

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Video inserter

RL4-MIB92

Compatible with

VW vehicles with MIB2 High - Discover Pro infotainment

and 9.2inch monitor

Skoda vehicles with MIB2 High –Columbus infotainment

and 9.2inch monitor

Example MIB2 High Discover Pro

Video-inserter for front- and rear-view camera

and two additional video inputs

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2

Tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Activatable parking guide lines for rear-view camera (not available for all vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC and PAL compatible

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Boxes and connectors –video interface

1.4. Settings - 8 Dip switches (black)

1.4.1. Activating the front camera (dip 1)

1.4.2. Enabling the interface’s video inputs (dip 2-3)

1.4.3. Rear-view camera setting (dip 5)

1.4.4. Activating the guide lines (dip6)

1.4.5. Activation of the Interface PDC Graphic (Dip 7)

1.4.6. Activation of the manual image adjustment in the menu (Dip 8)

1.5. Settings - 4 Dip switches (CAN function –red)

1.6. Settings - 2 Dip switches (Selection head-unit –black)

2. Installation

2.1. Place of installation

2.2. Connection schema

2.2.1. Connection –factory head-unit

2.2.2. Connection - Power

2.2.3. Analog power supply

2.3. Power supply output

2.4. Connection - video-sources

2.4.1. Audio insertion

2.4.2. After-market front camera

2.4.3. After-market rear-view camera

2.4.3.1. Case 1: Interface receives the reverse gear signal

2.4.3.2. Case 2Interface does not receive the reverse gear signal

2.5. Connection - video-interface and external keypad

2.6. Picture -, guide-lines- and PDC settings

3. Interface operation

3.1. By factory infotainment button

3.2. By keypad

4. Specifications

5. FAQ –Trouble Shooting-Interface functions

6. Technical support

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

video interface’s place of installation must be free of moisture and away from heat sources.

Before the final installation in the vehicle of the video sources, we recommend a test-run

to ensure the compatibility of vehicle and interface. Due to changes in the production of

the vehicle manufacturer there’s always a possibility of incompatibility.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page4

Requirements

Brand

Compatible vehicles

Compatible systems

Seat/Cupra

Arona (KJ7) since MY 2022

Ateca (KH7) since MY 2021

Ibiza (KJ) since MY 2022

MIB2 High und MIB3 High –

Media System Plus

Only with 9.2inch monitor

Skoda

Fabia3 (NJ) MY since 2018

Kamiq (NW4) since 06/2019

Karoq (NU7) MY since 2018

Kodiaq (NS7) MY since 2018

Octavia3 (5E) MY since2018

Superb3 (3V) MY since2018-

MIB2 High und MIB3 High -

Columbus

Only with 9.2inch monitor

Arteon (3H) MY since 2018

Golf7 (SQ) MY since 2018

Golf7 Sportsvan MY 2018-2020

Passat (B8) MY since 2018

Tiguan2 (AD1) since MY 2018

Touran (5T) MY since2018-

Touareg3 (CR) since 07/2018

Transporter T6.1 (SH) since MY2020

MIB2 High und MIB3 High-

Discover Pro

Only with 9.2inch monitor

Limitations

Video only The interface inserts ONLY video signals into the infotainment. For

inserting Audio signals either the possibly existing factory audio-

AUX-input or a FM-modulator can be used. If 2 audio sources shall

be connected to the infotainment, an additional electronic is

necessary to switch them.

After market front camera The front camera will automatically be switched for 5 seconds

after disengaging the reverse gear. A manually front camera

switching is possible by external keypad.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-

view camera is only possible while the reverse gear is engaged. To

delay the switch-back an additional electronic part is required.

PDC and guidelines If the video interface does not receive the required information

from the vehicle CAN-bus, neither guide-lines nor optical PDC

display will be supported.

1.2. Checking the compatibility of vehicle and accessories

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page5

1.3. Boxes and connectors –video interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page6

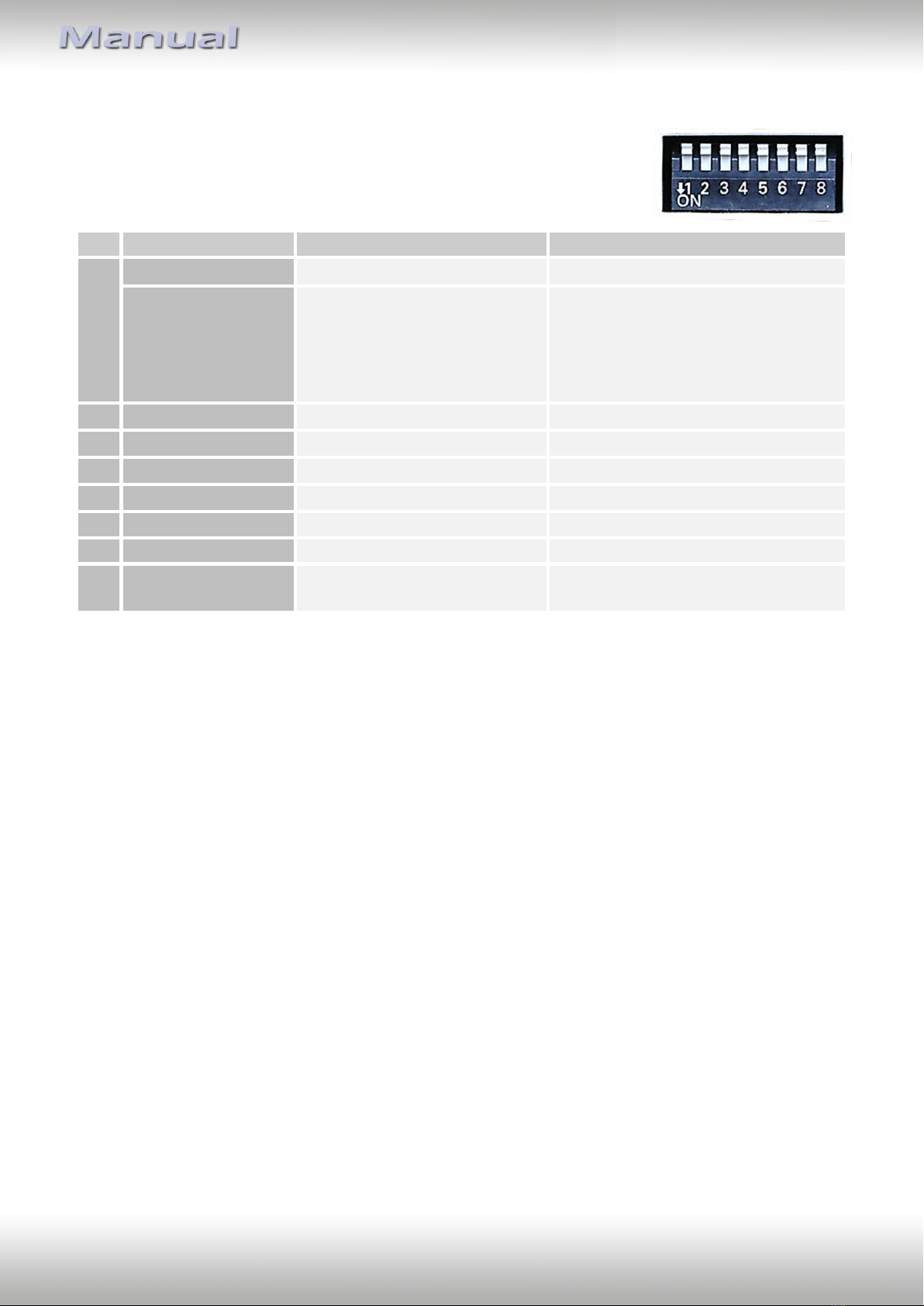

1.4. Settings - 8 Dip switches (black)

Some settings have to be selected by the dip-switches on the

video interface. Dip position down is ON and position up is OFF.

*The front camera will automatically be switched for 10 seconds after disengaging the

reverse gear.

*see also chapter "Picture settings and guide lines".

After each Dip-switch-change a power-reset of the Video interface has to be performed!

See the following chapters for detailed information.

Dip

Function

ON (down)

OFF (up)

Front camera

enabled*

disabled

Power supply

output

(red wire)

+12V (max. 3A) when reverse

gear is engaged incl. 10

seconds delay and +12V by

manual switching to front

camera by keypad

+12V (max. 3A) ACC

Video 1-input

enabled

disabled

Video 2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

Guide-lines

enabled

Auf OFF stellen

PDC

enabled

disabled

Manual

picture settings*

enabled

disabled

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page7

1.4.1. Activating the front camera (dip 1)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

Description of the power supply output: see chapter “Power supply output”.

1.4.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed by switching through the interface’s video

sources. It is recommended to enable only the required inputs, as the disabled inputs will be

skipped while switching through the video interfaces inputs.

Note: Dip 4 is out of function and has to be set to OFF!

1.4.3. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

1.4.4. Activating the guide lines (dip6)

If set to ON, the guide-lines will be shown on the display.

If set to OFF, the guide lines won’t be visible on the display.

Note: If there is no communication between interface and the vehicle`s CAN-bus (several

vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s

operation, even if they once appear after having switched the system to powerless!

1.4.5. Activation of the factory Interface PDC Graphic (Dip 7)

Dip 7 is used to display the interface PDC graphic as „picture in picture“ in combination with

the camera image.

1.4.6. Activation of the manual image adjustment in the menu (Dip 8)

Dip-8 aktiviert die im Menü vertikale und horizontale manuelle Einstellbarkeit der

Bildposition falls diese im Display nicht automatisch einwandfrei dargestellt wird. Mit Dip-8

in der OFF Position ist die manuelle Einstellung im Menü nicht möglich (siehe hierzu auch

Kapitel „Bildeinstellungen, Führungslinien und PDC“.

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page8

1.5. Settings of the 4 Dip switches (CAN functions –red)

The 4 dip-switches of the video are used to select the head unit and the vehicle.

Dip position down is ON and position up is OFF.

Fahrzeug/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

Alle Fahrzeuge

OFF

Set all 4 dips to OFF position.

1.6. Settings of the 2 Dip switches (selection head unit - black)

The 2 dip switches on the upper side of the interface box are used to select the head unit.

Warning! Dip position up is ON and position down is OFF (vice versa to the black 8 dips and

the red 2 dips).

Head Unit

Dip 1

Dip 2

Alle Fahrzeuge

Set both dips to ON position.

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page9

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

2.1. Place of installation

The interface is supposed to be installed at a suitable location behind the vehicle`s head-

unit.

Version 27.08.2021 HW: CAM(V100)/(V20/V30) RL4-MIB92

Page10

2.2. Connection schema

Inhaltsverzeichnis

Andere Car-Interface Autozubehör Handbücher

Car-Interface

Car-Interface v.LiNK CI-VL2-PC-HSD Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-FSYNC54 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free TF-NTG1 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-LR16-8 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-C25 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-C20 Bedienungsanleitung

Car-Interface

Car-Interface CI-UCON5-JEEP Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-NTG3 Bedienungsanleitung

Car-Interface

Car-Interface CI-C2-MK-AUX Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG45 Bedienungsanleitung

Car-Interface

Car-Interface r.LiNK CI-RL2-RLINK Bedienungsanleitung

Car-Interface

Car-Interface TV-Free Bedienungsanleitung

Car-Interface

Car-Interface CI-C1-RNSE Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-MMI3G Bedienungsanleitung

Car-Interface

Car-Interface CI-V5-CIC-F-PNP Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-NAC08 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-CCC Bedienungsanleitung

Car-Interface

Car-Interface CI-DAB-MMI2G Installationsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-PCM30 Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG5 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-MIB-3 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL3-MBN51 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MBN6 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MIB92 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
