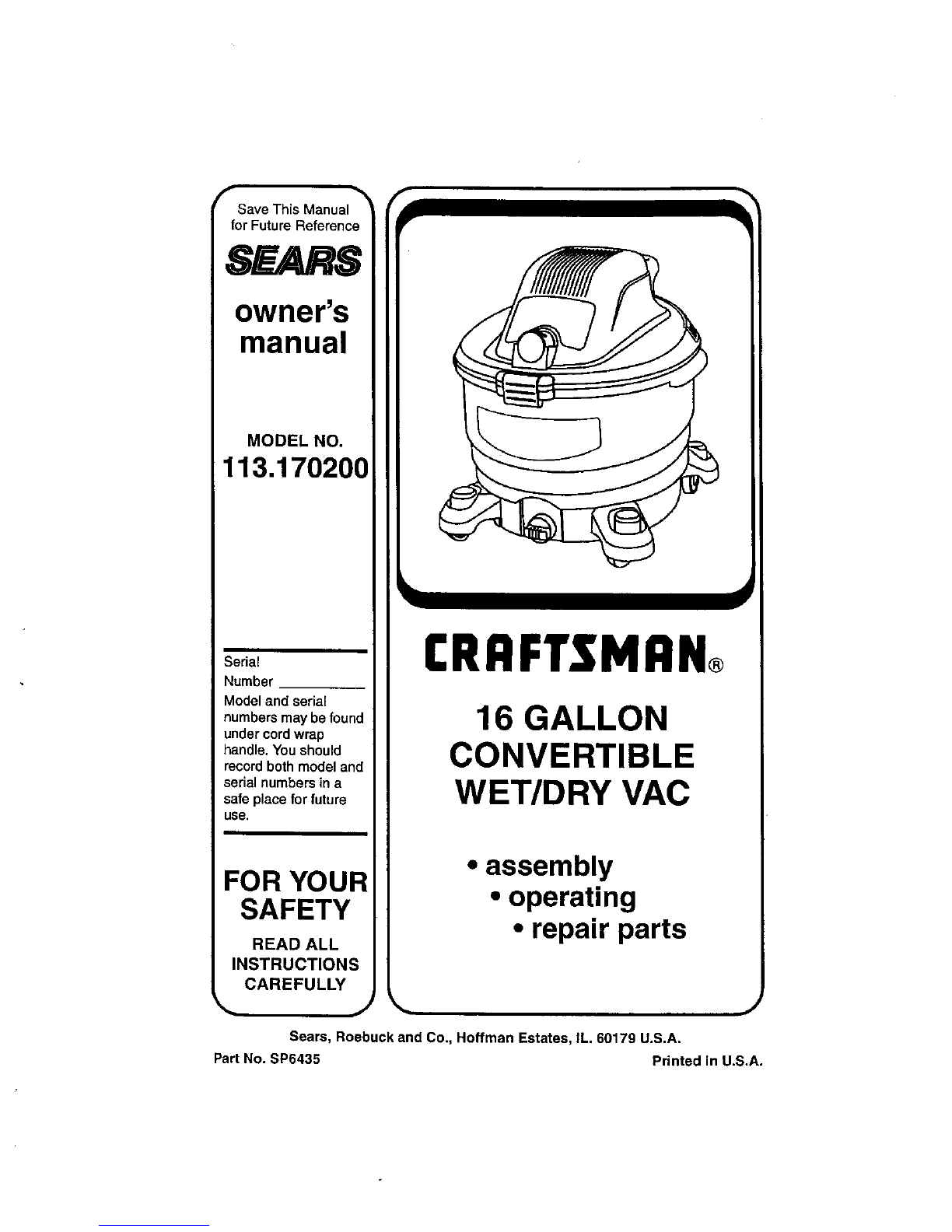

Craftsman 113.170200 Bedienungsanleitung

Save This Manual

for Future Reference

SF:ARS

owner's

manual

MODEL NO.

113.170200

Serial

Number

Model and serial

numbers may be found

under cord wrap

handle. You should

record both model and

serial numbers in a

safe place for future

use.

FOR YOUR

SAFETY

READ ALL

INSTRUCTIONS

CAREFULLY

CRRFTSMRN®

16 GALLON

CONVERTIBLE

WET/DRY VAC

•assembly

•operating

•repair parts

Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.

Part No. SP6435 Printed in U.S.A.

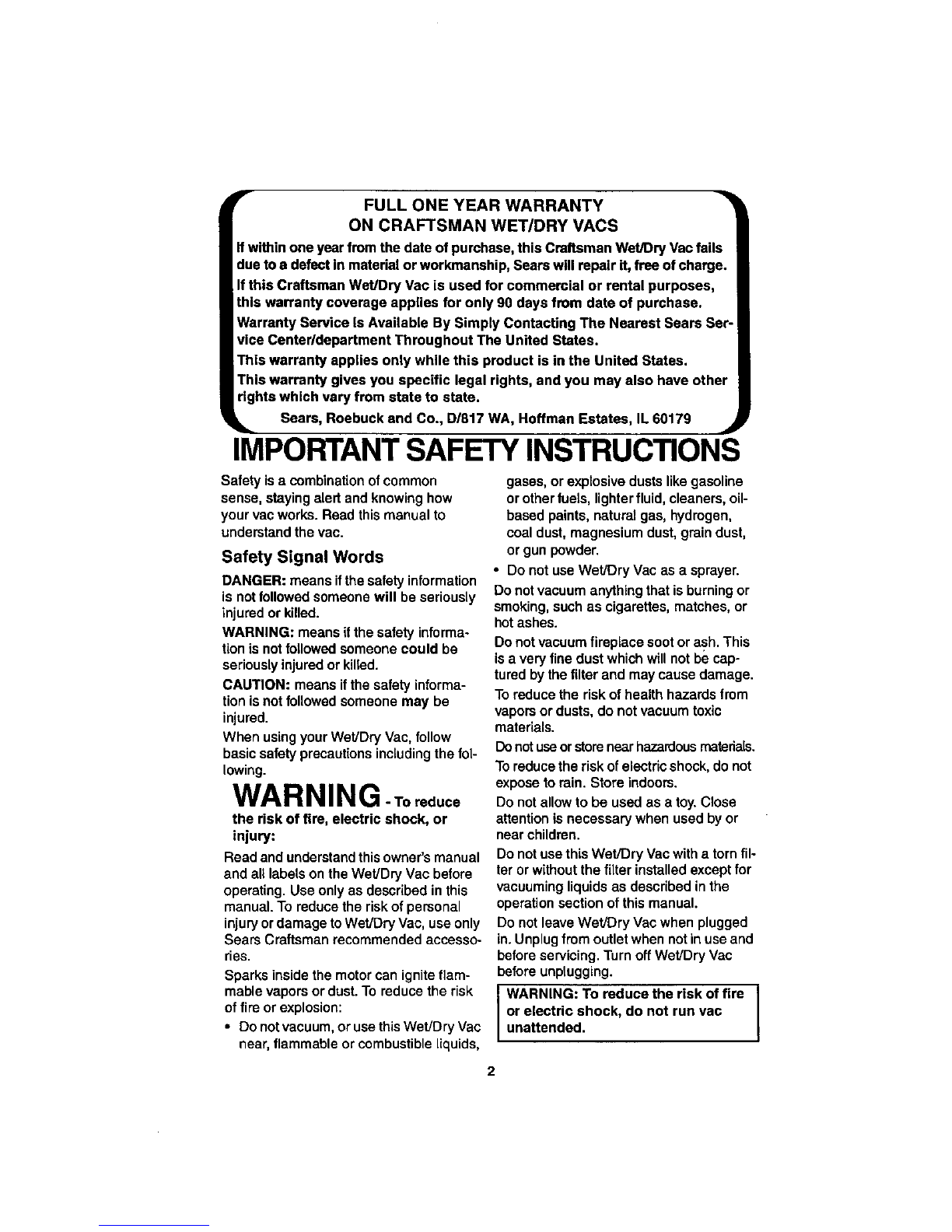

FULL ONE YEAR WARRANTY

ON CRAFTSMAN WET/DRY VACS

If within one year from the date of purchase, this Craftsman Wet/Dry Vac fails

due to a defect in material or workmanship, Sears will repair it, free of charge.

If this Craftsman WetJDry Vac is used for commercial or rental purposes,

this warranty coverage applies for only 90 days from date of purchase.

Warranty Service Is Available By Simply Contacting The Nearest Sears Ser-

vice Center/department Throughout The United States.

This warranty applies only while this product is in the United States.

This warranty gives you specific legal rights, and you may also have other

dghts which vary from state to state.

•Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

IMPOM'ANTSAFETY INSTRUCTIONS

Safety isa combination of common

sense, staying alert and knowing how

your vac works. Read this manual to

understand the vec.

Safety Signal Words

DANGER: means ifthe safety information

is notfollowed someone will be seriously

injured or killed.

WARNING: means if the safety informa-

tion is notfollowed someone could be

seriously injured or killed.

CAUTION: means if the safety informa-

tion is notfollowed someone may be

injured.

When using your Wet/Dry Vac, follow

basic safety precautions including the fol-

lowing.

WARNING +oreduca

the risk of fire, electric shock, or

injury:

Read and understand this owner's manual

and all labels on the Wet/Dry Vac before

operating, Use only as described in this

manual. To reduce the risk of personal

injury ordamage to Wet/Dry Vac, use only

Sears Craftsman recommended accesso-

ries.

Sparks inside the motor can ignite flam-

mable vapors or dust. To reduce the risk

of fire or explosion:

•Do not vecuum, or use this Wet/Dry Vac

near, flammable or combustible liquids,

gases, or explosive dusts like gasoline

or other luels, lighter fluid, cleaners, oil-

based paints, natural gas, hydrogen,

coal dust, magnesium dust, grain dust,

or gun powder.

•Do not use Wet/Dry Vac as a sprayer.

Do notvacuum anything that isburning or

smoking, such as cigarettes, matches, or

hotashes.

Do not vacuum fireplace soot or ash. This

is a very fine dust which will not be cap-

tured by the filter and may cause damage.

To reduce the risk of health hazards from

vapors or dusts, do not vacuum toxic

materials.

Do not use or store near hazardous materials.

To reduce the risk ofelectric shock, do not

expose to rein. Store indoors.

Do not allow to be used as atoy. Close

attention is necessary when used by or

near children.

Do not use this Wet/Dry Vac with a torn fil-

ter or without the filter installed except for

vacuuming liquids as described in the

operation section of this manual.

Do not leave Wet/Dry Vac when plugged

in. Unplug from outlet when not in use and

before servicing. Turn off Wet/Dry Vac

before unptugging.

WARNING: To reduce the risk of fire ]

or electric shock, do not run vac

unattended.

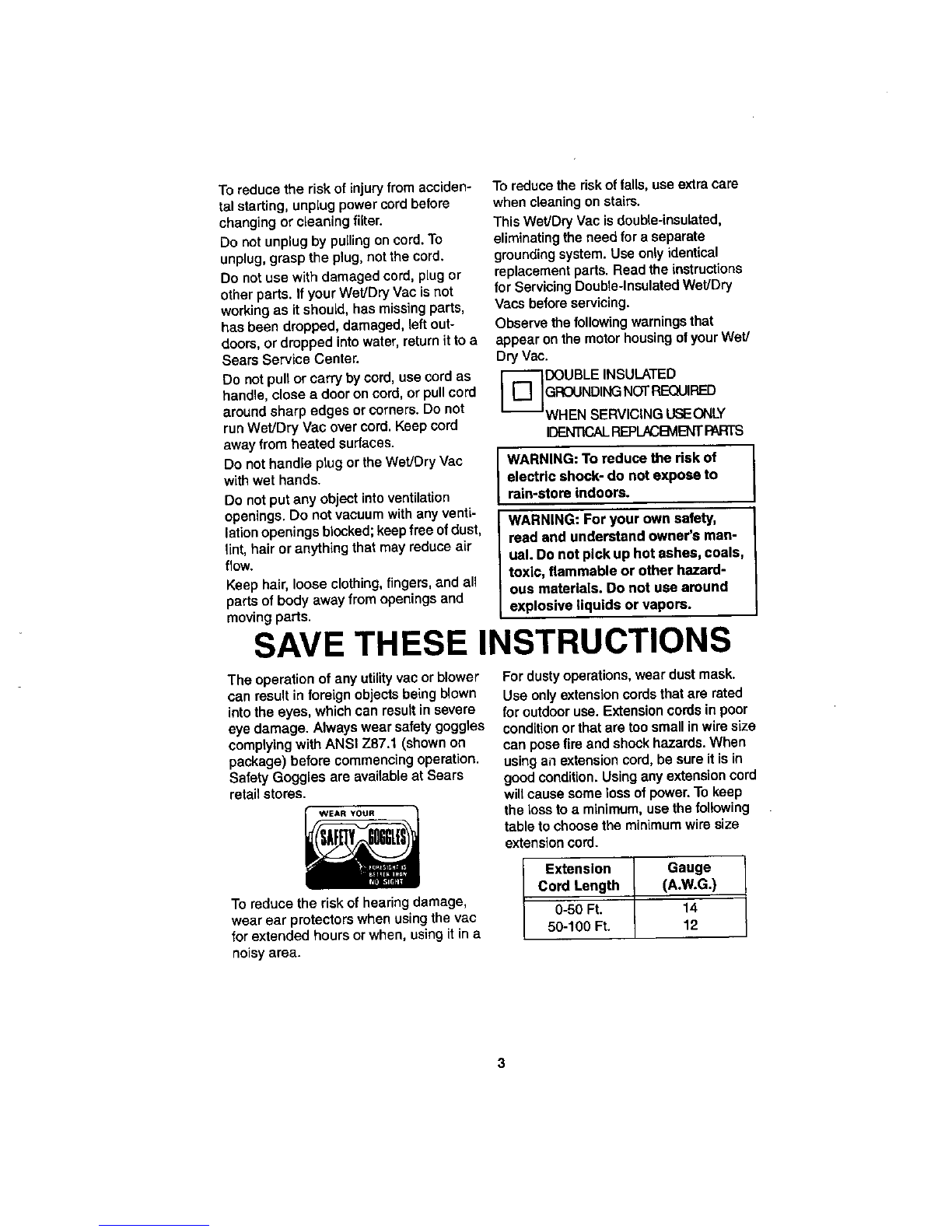

To reduce the risk of injury from acciden-

tal starting, unplug power cord before

changing or cleaning filter.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not use with damaged cord, plug or

other parts. If your Wet/Dry Vac is not

working as it should, has missing parts,

has been dropped, damaged, left out-

doors, or dropped Into water, return it to a

Sears Service Center.

Do not pull or carry by cord, use cord as

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not

run Wet/Dry Vac over cord. Keep cord

away from heated surfaces.

Do not handle plug or the Wet/Dry Vac

with wet hands.

Do not put any object into ventilation

openings. Do not vacuum with any venti-

lation openings blocked; keep free of dust,

lint, hair or anything that may reduce air

flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

To reduce the risk of fails, use extra care

when cleaning on stairs.

This Wet/Dry Vac is double-insulated,

eliminating the need for a separate

grounding system. Use only identical

replacement parts. Read the instructions

for Servicing Double-Insulated Wet/Dry

Vacs before servicing.

Observe the following warnings that

appear on the motor housing ol your Wet/

Dry Vac.

--_ OUBLE INSULATED

GROUNDINGNOTREQUIRED

WHEN SERVICING USEONLY

IDENTICALREPLACBvIENTPARTS

WARNING: To reduce the risk of

electric shock- do not expose to

rain-store indoors.

WARNING: For your own safety,

read and understand owner's man-

ual. Do not pick up hot ashes, coals,

toxic, flammable or other hazard-

ous materials. Do not use around

explosive liquids or vapors.

SAVE THESE INSTRUCTIONS

The operation of any utility vac or blower

can result in foreign objects being blown

into the eyes, which can result in severe

eye damage. Always wear safety goggles

complying with ANSI Z87.1 (shown on

package) before commencing operation.

Safety Goggles are available at Sears

retail stores.

To reduce the risk of headng damage,

wear ear protectors when using the vac

for extended hours or when, using it in a

noisy area.

For dusty operations, wear dust mask.

Use only extension cords that are rated

for outdoor use. Extension cords in poor

condition or that are toosmall in wire size

can pose fire and shock hazards. When

using a_lextension cord, be sure it is in

good conditLon. Using any extension cord

wilt cause some loss of power. To keep

the lossto a minimum, use the following

table to choose the minimum wire size

extension cord.

Extension Gauge

Cord Length (A.W.G,)

0-50 Ft. 14

50-100 Ft. 12

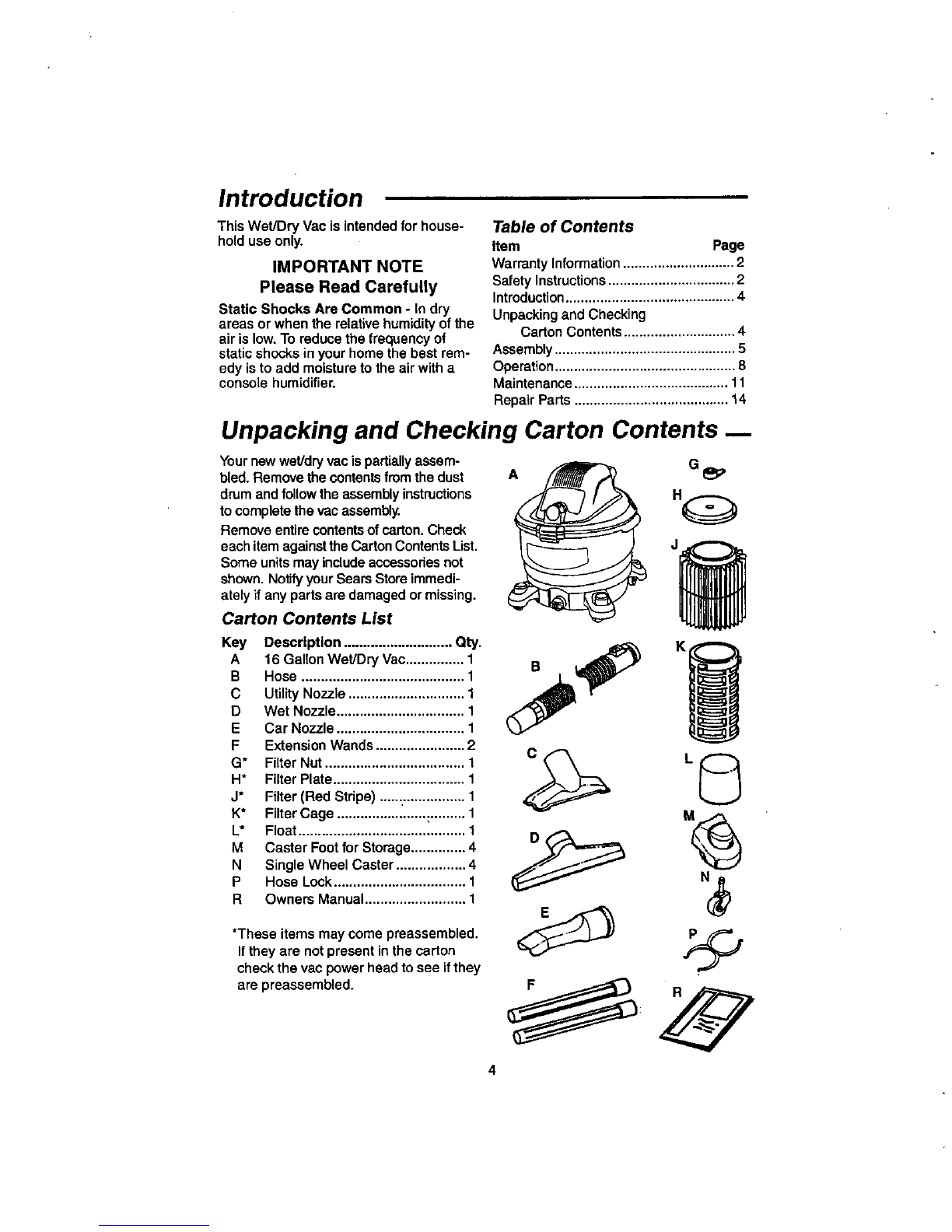

Introduction

This Wet/Dry Vac is intended for house-

hold use only.

IMPORTANT NOTE

Please Read Carefully

Static Shocks Are Common - In dry

areasor whentherelativehumidityofthe

airislow.To reducethefrequencyof

staticshocksinyourhomethe bestrem-

edyisto add moisturetotheairwitha

consolehumidifier.

Table of Contents

Item Page

Warranty Information ............................. 2

Safety Instructions................................. 2

Introduction............................................ 4

Unpacking and Checking

Carton Contents ............................. 4

Assembly ............................................... 5

Operation ............................................... 8

Maintenance ........................................ 11

Repair Parts ........................................ 14

Unpacking and Checking Carton Contents --

Your new wet]dry vac ispartiallyassem-

bled. Remove the contents from the dust

drum and follow the assembly instructions

to complete the vec assembly.

Remove entirecontents ofcarton. Check

each itemagainst the Carton Contents List.

Some units may includeaccessories not

shown. Nobly your Sears Store immedi-

ately if any parts are damaged or missing.

Carton Contents List

Key Description ............................ Qty.

A 16 Gallon Wet/Dry Vac ............... 1

B Hose .......................................... 1

C Utility Nozzle .............................. 1

D Wet Nozzle ................................. 1

E Car Nozzle ................................. 1

F Extension Wands ....................... 2

G* Filter Nut .................................... 1

H* Filter Plate .................................. 1

J* Filter (Red Stdpe) ...... ................ 1

K* Filter Cage ................................. 1

L* Float ........................................... 1

M Caster Foot for Storage .............. 4

N Single Wheel Caster .................. 4

P Hose Lock.................................. 1

R Owners Manual .......................... 1

*These items may come preassembled.

If they are not present in the carton

check the vac power head to see ifthey

are preassembled.

AG_

"©

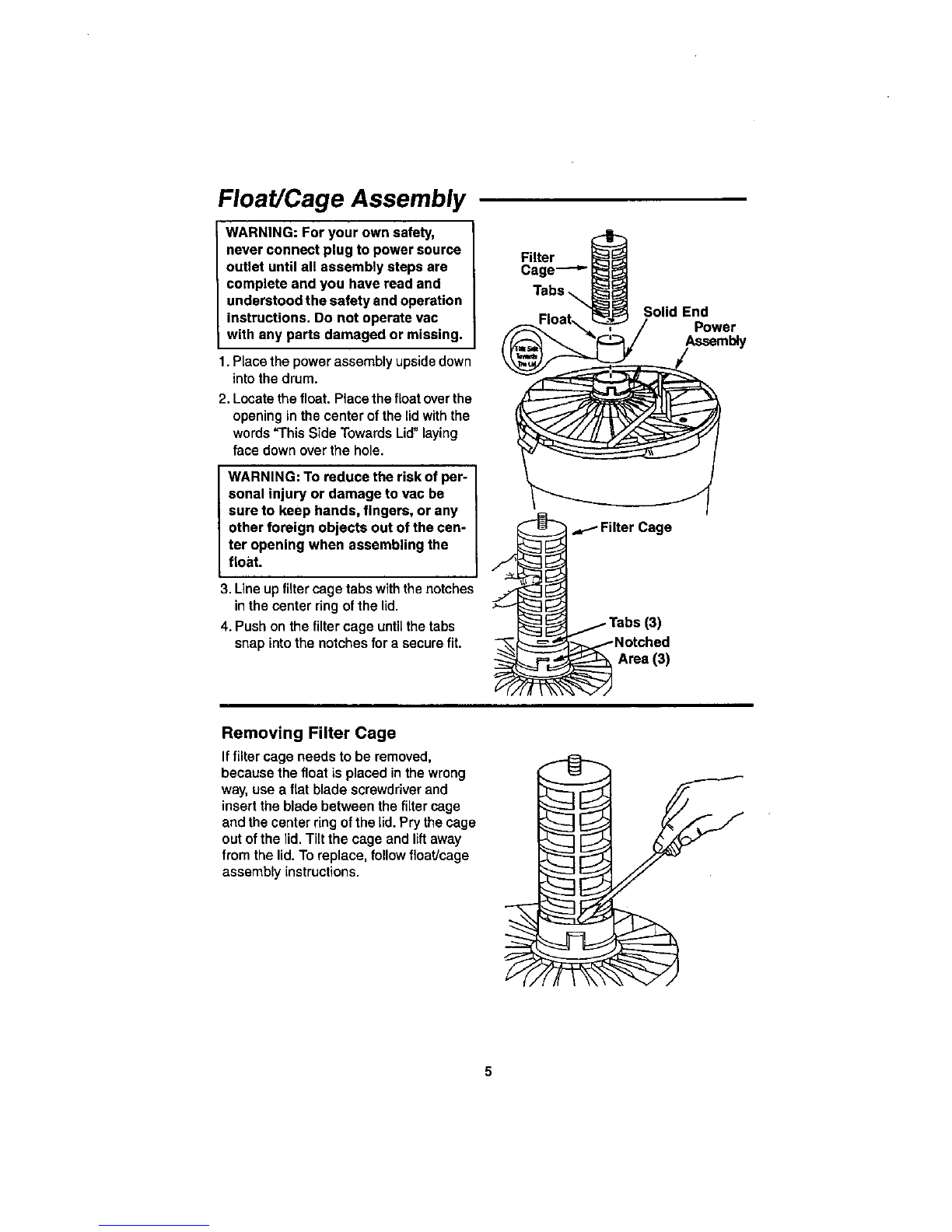

Float/Cage Assembly

WARN|NG: For your own safe_,

never connect plug to power source

outlet until all assembly steps are

complete and you have read and

understood the safety and operation

instructions. Do not operate vac

with any parts damaged or missing.

1. Place the power assembly upside down

into the drum.

2. Locate the float. Place the float over the

opening in the center of the lid with the

words "This Side Towards Lid" laying

face down over the hole.

WARNING: To reduce the risk of per-

sonal injury or damage to vac be

sure to keep hands, fingers, or any

other foreign objects out of the cen-

ter opening when assembling the

float.

3. Line up filter cage tabs with the notches

in the center ring of the lid.

4. Push on the filter cage until the tabs

snap into the notches for a secure fit.

Solid End

Filter Cage

jTabs (3)

>_Notched

Area (3)

Power

Assembly

Removing Filter Cage

If filter cage needs to be removed,

because the float is placed in the wrong

way, use a flat blade screwdriver and

insert the blade between the filter cage

and the center ring of the lid. Pry the cage

out of the lid. Tilt the cage and lift away

from the lid. To replace, follow float/cage

assembly instructions.

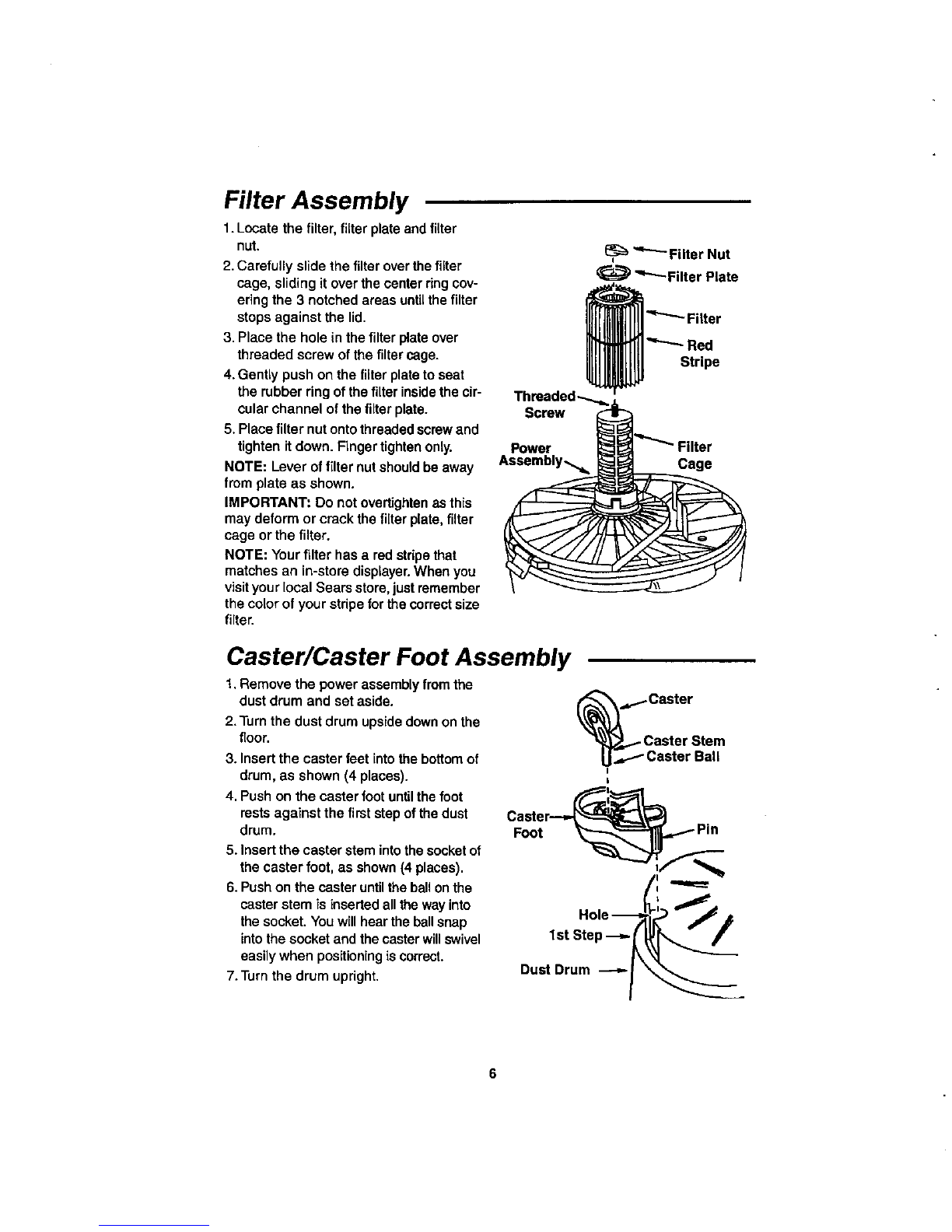

Filter Assembly

1. Locate the filter, filter plate and filter

nut.

2. Carefully slide the filter over the filter

cage, sliding it over the center ring cov-

ering the 3 notched areas until the filter

stops against the lid.

3. Place the hole in the filter plate over

threaded screw of the filter cage.

4. Gently push on the filter plate to seat

the rubber ring of the filter inside the cir-

cular channel of the filter plate.

5. Place filter nut onto threaded screw and

tighten it down. Finger tighten only.

NOTE: Lever of filter nut should be away

from plate as shown.

IMPORTANT: Do not overtighten as this

may deform or crock the filterplate, filter

cage or the filter.

NOTE: Your filter has a redstdpe that

matches an in-store dispLayer.When you

visit your local Sears store, just remember

the color of your stripe for the correct size

filter.

Power Filter

Assembly,,,_ Cage

Caster/Caster Foot Assembly

1, Remove the power assembly from the

dust drum and set aside.

2.Turn the dust drum upside down on the

floor.

3. Insert the caster feet into the bottom of

drum, as shown (4 places).

4. Push on the caster foot until the foot

rests against the first step of the dust

drum,

5. Insert the caster stem into the socket of

the caster foot, as shown (4 places).

6. Push on the caster until the ball on the

caster stem is inserted all the way into

the socket. You will hear the ball snap

into the socket and the caster will swivel

easily when positioning is correct.

7. Turn the drum upright.

(_C caster

aster Stem

Caster Ball

Dust Drum

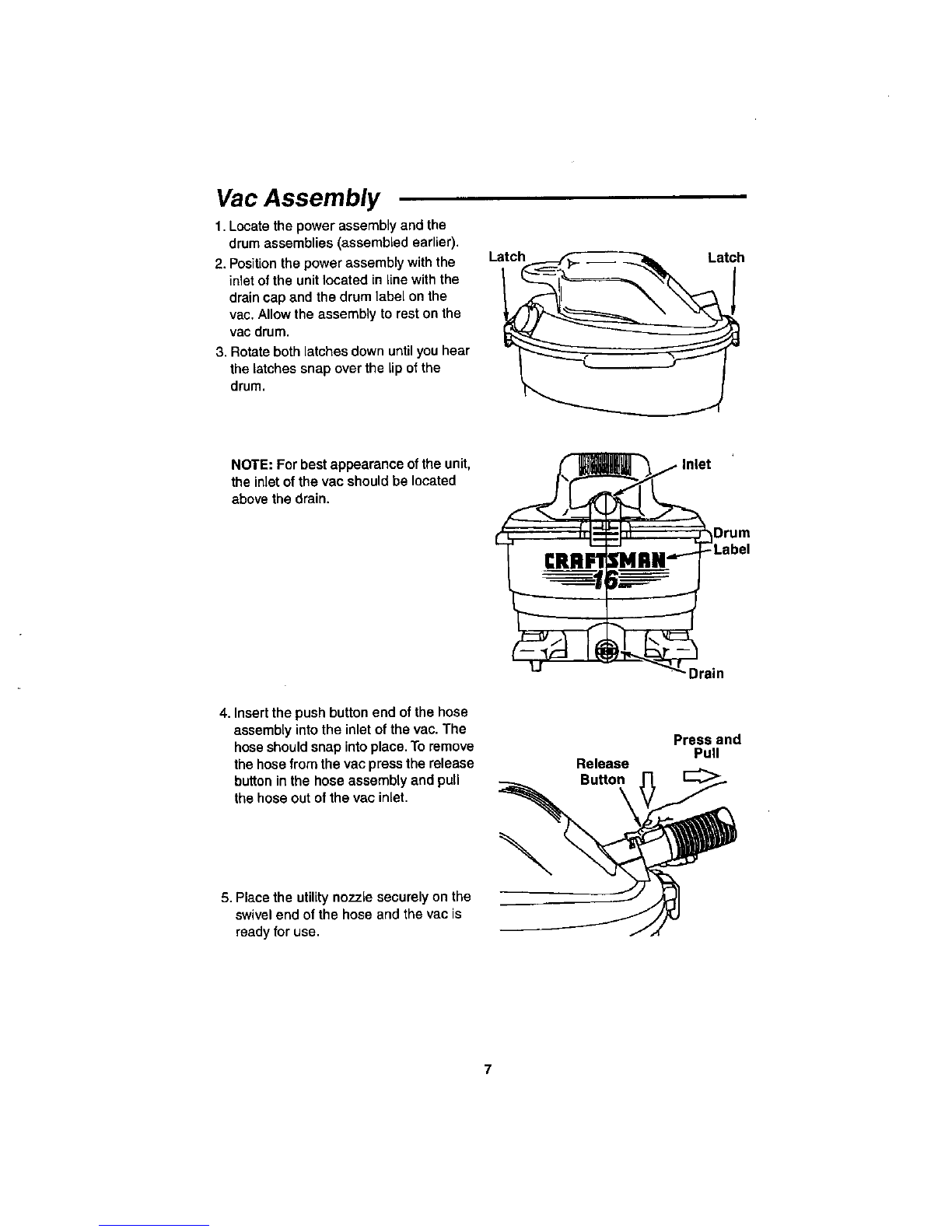

Vac Assembly

1. Locate the power assembly and the

drum assemblies (assembled earlier).

2. Position the power assembly with the

inlet of the unit located in line with the

drain cap and the drum label on the

vac. Allow the assembly to rest on the

vac drum.

3. Rotate both latches down until you hear

the latches snap over the lip of the

drum.

Latch Latch

NOTE: For best appearance of the unit,

the inlet of the vac should be located

above the drain.

Drum

-Drain

4. Insert the push button end of the hose

assembly intothe inlet ofthe vac. The

hose should snap into place. To remove

the hose from the vac press the release

button in the hose assembly and pull

the hose out of the vac inlet.

Release

Button

Press and

Pull

5. Place the utility nozzle securely on the

swivel end ofthe hose and the vac is

ready for use.

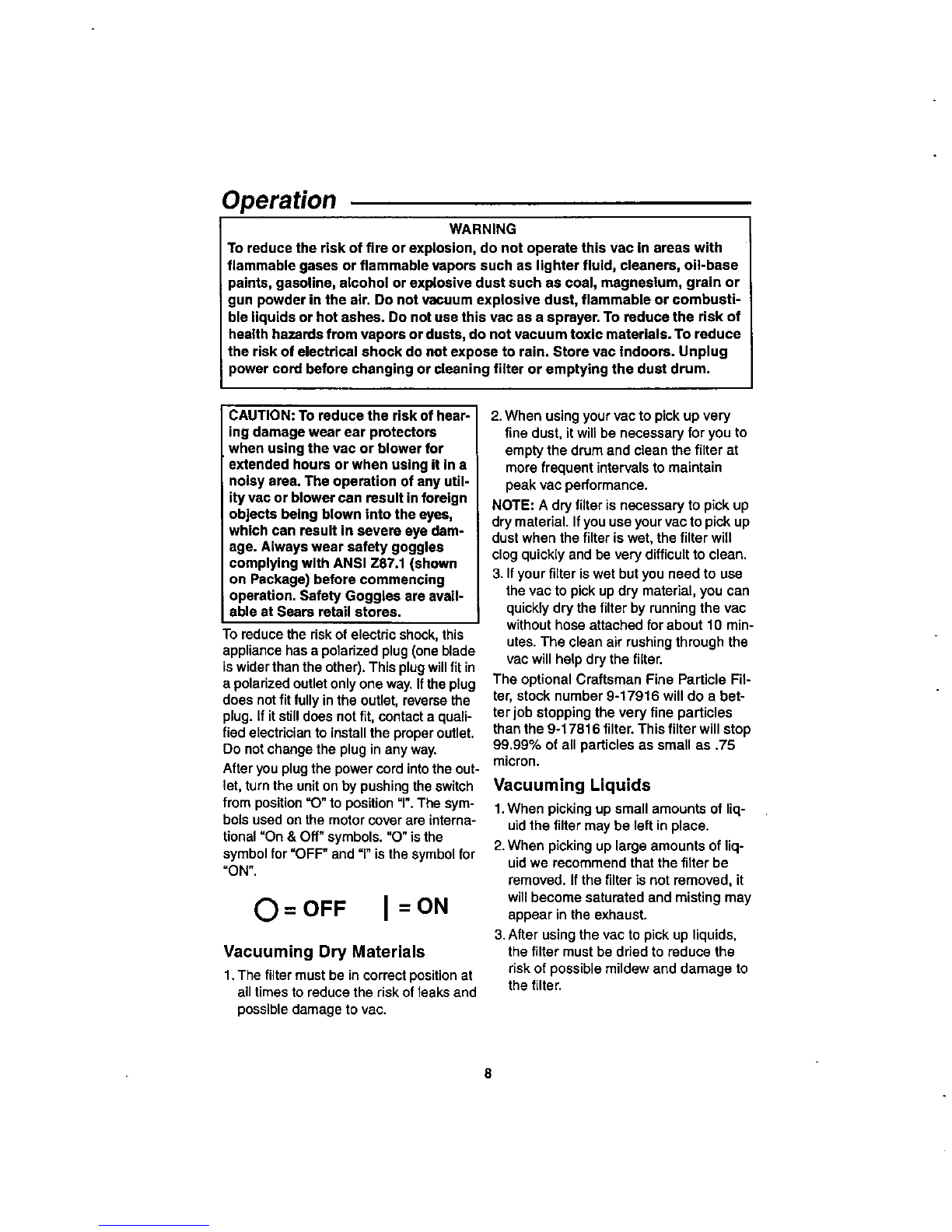

Operation WARNING

To reduce the risk of firs or explosion, do not operate this vac In areas with

flammable gases or flammable vapors such as lighter fluid, cleaners, oil-base

paints, gasoline, alcohol or explosive dust such as coal, magnesium, grain or

gun powder in the air. Do not vacuum explosive dust, flammable or combusti-

ble liquids or hot ashes. Do not use this vac as a sprayer. To reduce the risk of

health hazards from vapors or dusts, do not vacuum toxic materials. To reduce

the risk of electrical shock do not expose to rain. Store vac Indoors. Unplug

power cord before changing or cleaning filter or emptying the dust drum.

CAUTION: To reduce the risk of hear-

ing damage wear ear protectors

when using the vac or blower for

extended hours or when using it In a

noisy area° The operation of any util-

ity vac or blower can result in foreign

objects being blown into the eyes,

which can result in severs eye dam-

age. Always wear safety goggles

complying with ANSI Z87.1 (shown

on Package) before commencing

operation. Safety Goggles are avail-

able at Sears retail stores.

To reduce the risk of electric shock, this

appliance has s polarized plug (one blade

is wider than the other). This plug will fit in

a polarized outlet only one way. Ifthe plug

does not fit fully in the outlet, reverse the

plug. If it stilldoes not fit, contact aquali-

fied electrician to install the proper outlet.

Do not change the plug in any way.

After you plug the power cord into the out-

let, turn the unit on by pushing the switch

from position "O"to position "1".The sym-

bols used on the motor cover are interna-

tional =On& Off" symbols. "O" is the

symbol for =OFF" and =1"is the symbol for

"ON".

O=OFF I = ON

Vacuuming Dry Materials

1.The filter mustbe incorrectpositionat

alltimestoreducetheriskofteaksand

possibledamagetovac,

2. When using your vac to pick up very

fine dust, it will be necessary for you to

empty the drum and clean the filter at

more frequent intervals to maintain

peak vac performance.

NOTE: A dry filter is necessary to pick up

dry material. If you use your vac to pick up

dust when the filter is wet, the filter will

clog quickly and be very difficultto clean.

3. Ifyour fitter is wet but you need to use

the vac to pick up dry material, you can

quickly dry the filter by running the vac

without hose attached for about 10 min-

utes. The clean air rushing through the

vac will help dry the filter.

The optional Craftsman Fine Particle Fit-

ter, stock number 9-17916 will do a bet-

ter job stopping the very fine particles

than the 9-17816 filter. This filter will stop

99.99% of all particles as small as .75

micron.

Vacuuming Liquids

1.When picking up small amounts of liq-

uid the filter may be left in place.

2. When picking up large amounts of liq-

uid we recommend that the filter be

removed. Ifthe filter is not removed, it

will become saturated and misting may

appear in the exhaust.

3.After using the vac to pick up liquids,

the filter must be dried to reduce the

risk of possible mildew and damage to

the filter.

4. When the liquid in the drum reaches a

predetermined level, the float mecha-

nism will rise automatically to cut off air-

flow. When this happens, turn off the

vec, unp[ug the power cord, and empty

the drum. You will know that the float

has risen because vac airflowceases

and the motor noise will become higher

in pitch, due to increased motorspeed.

IMPORTANT: To reduce the risk of dam-

age to the vac do not run motor with float

in raised position.

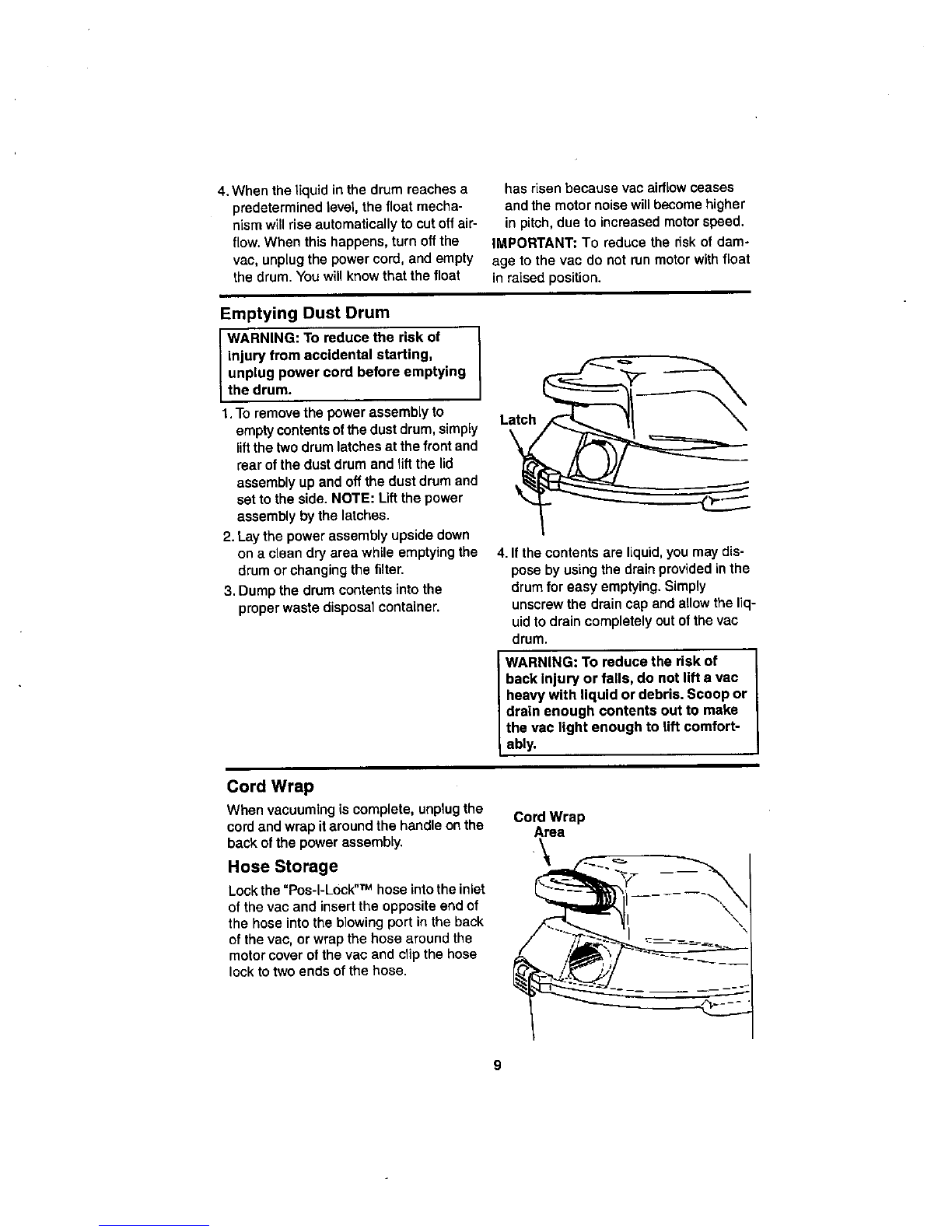

Emptying Dust Drum

WARNING: To reduce the risk of

injury from accidental starting,

unplug power cord before emptying

the drum.

1. To remove the power assembly to

empty contents of the dust drum, simply

liftthe two drum latches at the front and

rear of the dust drum and lift the lid

assembly up and off the dust drum and

set to the side. NOTE: Lift the power

assembly by the latches.

2. Lay the power assembly upside down

on a clean dry area while emptying the

drum or changing the filter.

3. Dump the drum contents into the

proper waste disposal container.

4. If the contents are liquid, you may dis-

pose by using the drain provided in the

drum for easy emptying. Simply

unscrew the drain cap and allow the liq-

uid to drain completely out of the vac

drum.

WARNING: To reduce the risk of

back injury or falls, do not lift a vac

heavy with liquid or debris. Scoop or

] drain enough contents out to make

I the vac light enough to lift comfort-

ably.

Cord Wrap

When vacuumingis complete,unplugthe

cordand wrap itaround the handleonthe

backofthepowerassembly.

Hose Storage

Lock the "Pos-I-Lock "TMhose into the inlet

of the vac and insert the opposite end of

the hose into the blowing port in the back

of the vac, or wrap the hose around the

motor cover ofthe vac and clip the hose

lock to two ends of the hose.

Cord Wrap

Area

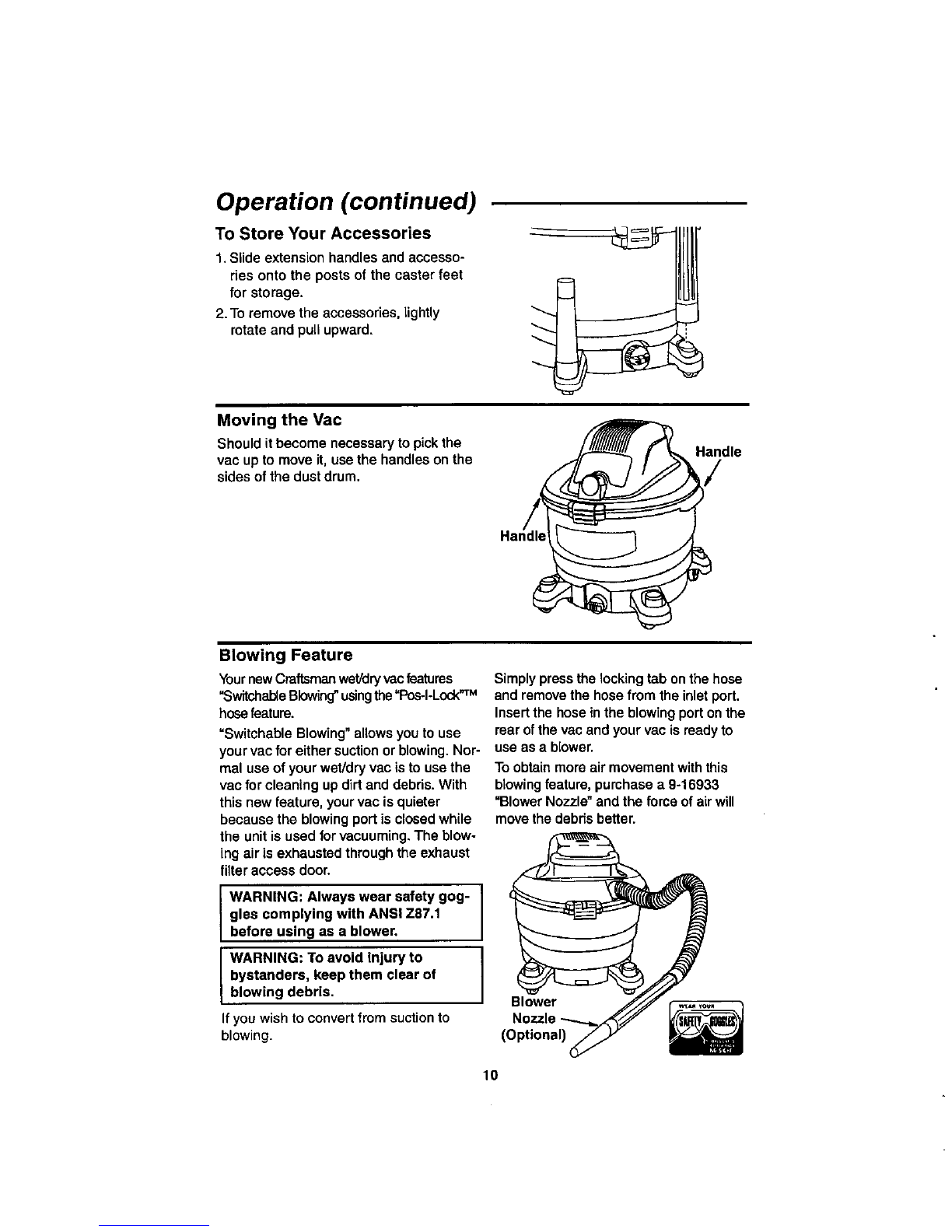

Operation (continued)

To Store Your Accessories

1.Slideextensionhandlesandaccesso-

riesontothe postsof the casterfeet

for storage.

2.To remove theaccessories,lightly

rotateand pullupward.

Moving the Vac

Should it become necessary to pick the

vac up to move it, use the handles on the

sides of the dust drum.

Handle

Blowing Feature

Your new Craftsman wet/dryvac features

"SwitchableBlowing"usingthe=Pos-I-Lock"TM

hosefeature.

"Switchable Blowing" allows you to use

your vac for either suction or blowing. Nor-

mal use of your wet/dry van is to use the

vac for cleaning up dirt and debris. With

this new feature, your vac is quieter

because the blowing port is closed while

the unit is used for vacuuming. The blow-

ing air is exhausted through the exhaust

filter access door.

WARNING: Always wear safety gog-

gles complying with ANSI Z87.1

before using as a blower.

IWARNING: To avoid injury to

bystanders, keep them clear of

blowing debris.

If you wish to convert from suction to

blowing.

Simply press the locking tab on the hose

and remove the hose from the inlet port.

Insert the hose in the blowing port on the

rear of the vac and your vac is ready to

use as a blower.

To obtain more air movement with this

blowing feature, purchase a 9-16933

"Blower Nozzle" and the force ofair will

move the debds better.

Blower

(Optional)

Inhaltsverzeichnis

Andere Craftsman Staubsauger Handbücher

Craftsman

Craftsman 315.114460 Bedienungsanleitung

Craftsman

Craftsman 315.115710 Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJC809 Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJF910 Bedienungsanleitung

Craftsman

Craftsman CMXEVBCV1660L Bedienungsanleitung

Craftsman

Craftsman 17761 - 16 Gal. Wet-Dry VAC Bedienungsanleitung

Craftsman

Craftsman 973.114090 Bedienungsanleitung

Craftsman

Craftsman 315.115710 Bedienungsanleitung

Craftsman

Craftsman 113.177745 Bedienungsanleitung

Craftsman

Craftsman 113.179345 Bedienungsanleitung

Craftsman

Craftsman 113.177778 Bedienungsanleitung

Craftsman

Craftsman 17776 - Clean N Carry 4 Gal. Wet-Dry VAC Bedienungsanleitung

Craftsman

Craftsman CMXEVBE176780 Bedienungsanleitung

Craftsman

Craftsman 315.177520 Bedienungsanleitung

Craftsman

Craftsman 125.12004 Bedienungsanleitung

Craftsman

Craftsman 113.177135 Bedienungsanleitung

Craftsman

Craftsman 125.38907 Bedienungsanleitung

Craftsman

Craftsman 113.177990 Bedienungsanleitung

Craftsman

Craftsman 113.176110 Bedienungsanleitung

Craftsman

Craftsman 125.17608 Bedienungsanleitung

Craftsman

Craftsman 113.170250 Bedienungsanleitung

Craftsman

Craftsman CMCV002B Bedienungsanleitung

Craftsman

Craftsman 358.797290 Bedienungsanleitung

Craftsman

Craftsman CMXEVCVVJH1211 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
