Daewoo RC-1700P Bedienungsanleitung

Service Manual

Vacuum Cleaner

Model: RC-1700P, S-36L

S/M No. :RC9003S001

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

http ://svc.dwe.co.kr Jun.2003

DAEWOO ELECTRONICS CORP.

CONTENTS

Page

1. SPECIFICATIONS ------------------------------------------------------------------------------------------

2. EXTERNAL VIEWS ---------------------------------------------------------------------------------------------

3. DIAGRAM

3-1. WIRING DIAGRAM ---------------------------------------------------------------

3-2. CIRCUIT DIAGRAM -------------------------------------------------------------------

4. TROUBLE SHOOTING GUIDE --------------------------------------------------------------

5. DISASSEMBLING AND TREATMENT

5-1. CLEANER ASSEMBLY ---------------------------------------------- 8

5-2. BODY ASSEMBLY ------------------------------------------------------------

5-3. MOTOR ASSEMBLY ----------------------------------------------------------------

5-4. CORDREEL ASSEMBLY ------------------------------------------------ 11

5-5. PCB ASSEMBLY --------------------------------------------------------------

5-6. HOSE ASSEMBLY ----------------------------------------------------------------

5-7. BRUSH ASSEMBLY --------------------------------------------------------------

6. EXPLODED VIEW AND PARTS LIST

6-1. CLEANER ASSEMBLY ---------------------------------------------- 17

6-2. BODY ASSEMBLY ----------------------------------------------- 19

6-3. COVER BODY ASSEMBLY -----------------------------------------------------

6-4. COVER DUST ASSEMBLY -----------------------------------------------------

6-5. MOTOR ASSEMBLY ----------------------------------------------------------------

6-6. CORDREEL ASSEMBLY ------------------------------------------------------

6-7. PCB ASSEMBLY --------------------------------------------------------------

6-8. HOSE ASSEMBLY -------------------------------------------------------- 33

6-9. PIPE ASSEMBLY ------------------------------------- 36

6-10. BRUSH ASSEMBLY (POWE NOZZLE)

--------------------------------------------------------

6-11. BRUSH ASSEMBLY (FLOOR)

--------------------------------------------------------

6-12. BRUSH ASSEMBLY (PEDAL)

--------------------------------------------------------

1. SPECIFICATIONS

RC-1700P, S-36L

(North America)

Rated Voltage AC 120V

Rated Frequency 50/60Hz

Input Watt 1100W

Suction Power 300W

Noise Level 75dB(A)

Weight (Body) 4.7Kg

Display LED

Dimension (WXHXD) 546 X 250 X 290 mm

Cord Length 8.2m

Filter HEPA

Telescopic

(Current Type)

Pedal

Crevice Tool

Upholstery Tool

Dusting Brush

Floor Tool

MODEL

Pipe

Nozzle

2. EXTERNAL VIEWS

PART NAME RC-1700P S-36L

AFILTER HEPA HEPA

BHOSE ASSEMBLY (4-Current, Power Nozzle Control) O O

CHOSE ASSEMBLY (2-Current, Power Nozzle Control) × ×

DHOSE ASSEMBLY (2-Current, Power Nozzle Control) × ×

EHOSE ASSEMBLY (2-Current, Power Nozzle Control) × ×

FPIPE ASSEMBLY (2-Currnet for Power Nozzlel) O O

GPIPE ASSEMBLY (Non Current) × ×

HBRUSH ASSEMBLY (Power Nozzle) O O

IBRUSH ASSEMBLY (Pedal) O O

JBRUSH ASSEMBLY (Floor) O O

3. DIAGRAM

Main PCB

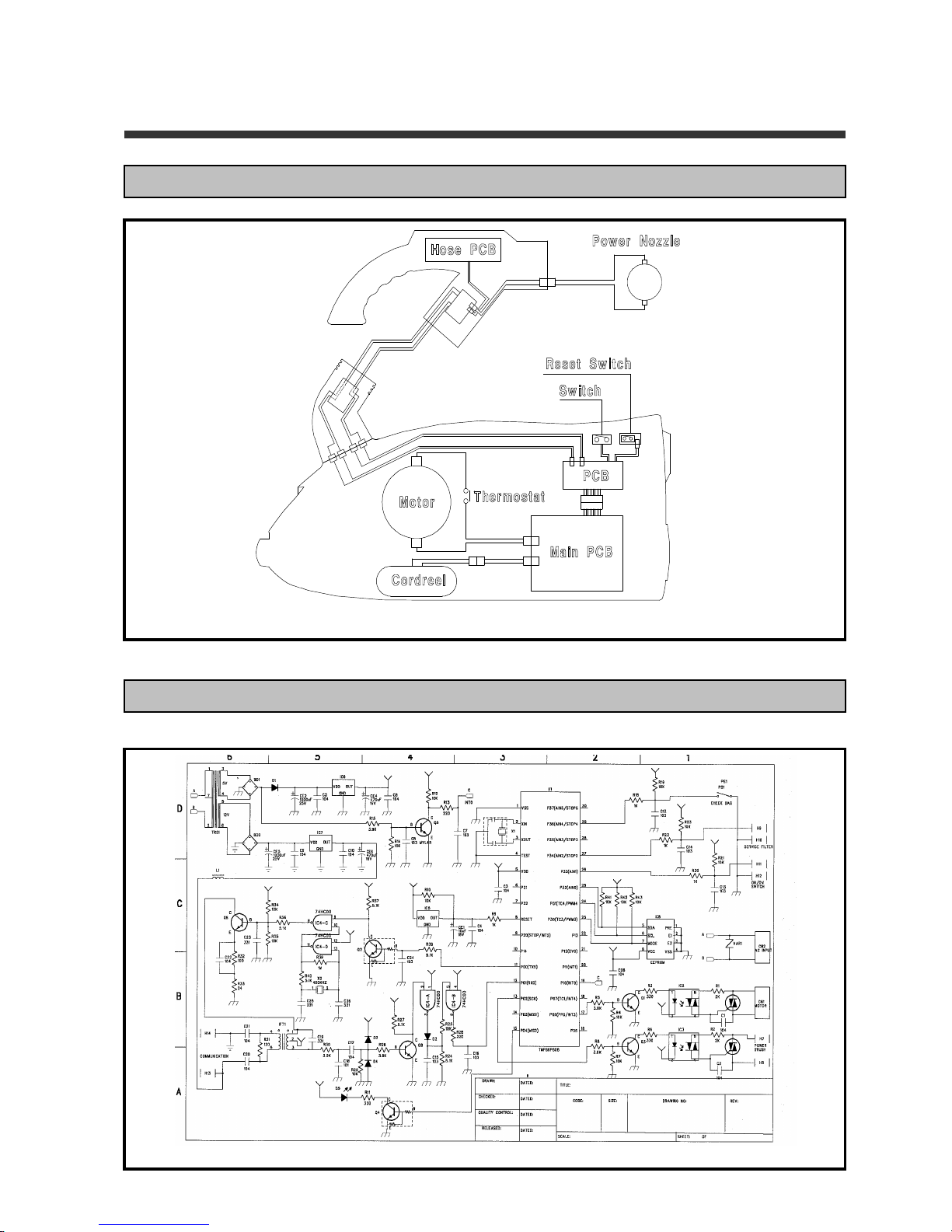

3-1. WIRING DIAGRAM

3-2. CIRCUIT DIAGRAM

PCB IN THE HOSE ASSEMBLY

4. TROUBLE SHOOTING GUIDE

TROUBLE COUNTERMEASURE

SUCTION POWER FILTER BAG(PAPER) IS FULL WITH CHANGE IT WITH NEW ONE (See 5-1)

IS WEAK DUST

FILTER PRE IS CLOGGY WITH DUST REMOVE THE DUST (See 5-2)

CLOGGING OR TEAR IN HOSE REMOVE OBSTACLE

OR REPLACE THE HOSE (See 5-6)

DEFECTIVE MOTOR REPLACE THE MOTOR (See 5-3)

THE OPENING IN BRUSH IS CLOGGY REMOVE THE DUST (See 5-7)

WITH DUST

FILTER(HEPA) IS FULL WITH DUST CHANGE IT WITH NEW ONE (See 5-1)

VACUUM CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER CORD(See 5-4)

NOT WORK (AT BLADE TIP OR ROOT OF PLUG)

BREAKING OF CONNECTIONS REPAIR (See 5-6)

IN HOSE ASSEMBLY

DEFECTIVE SWITCH REPLACE IT (See 5-1)

LOCATED IN COVER ASSEMBLY

DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

BREAKING OF CONNECTIONS REPAIR (See 5-4)

OR POOR CONTACTS IN

CORD REEL ASSEMBLY

DEFECTIVE MOTOR REPLACE IT (See 5-3)

BREAKING OF CONNECTIONS REPAIR (See 5-2)

IN BODY ASSEMBLY

BREAKING IN A FUSE REPLACE IT (See 5-5)

MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (See 5-5)

STOP EVEN IF

SWITCH

TROUBLE CAUSE COUNTERMEASURE

BROKEN REEL SPRING REPLACE IT (See 5-4)

OF CORD REEL

POWER CORD BROKE AWAY REPAIR (See 5-4)

FROM THE BOBBIN

ABRASION OF THE ROLLER BRAKE REPLACE THE ROLLER

OF CORD REEL BRAKE (See 5-4)

LEVER SPRING BROKE AWAY REPAIR (See 5-4)

FROM THE CORD REEL BRACKET

DEFECTIVE POWER NOZZLE REPAIR

BREAKING OF CONNECTIONS REPAIR

IN PIPE ASSEMBLY

DEFECTIVE PCB REPLACE IT (See 5-6)

LOCATED IN HOSE

BREAKING OF CONNECTIONS REPAIR (See 5-6)

IN HOSE ASSEMBLY

BREAKING OF CONNECTIONS REPAIR (See 5-1)

IN COVER ASSEMBLY

DEFECTIVE PCB(for connection) REPLACE IT (See 5-1)

LOCATED IN COVER

DEFECTIVE MAIN PCB REPLACE IT (See 5-1)

LOCATED IN BODY

DEFECTIVE MAIN PCB REPLACE IT (See 5-1, 5-2, 5-5)

LOCATED IN BODY

POOR CONNECTION BETWEEN TUBE REPAIR (See 5-1, 5-2)

AND MAIN PCB

FULL BAG SENSOR DOES

NOT WORK

POWER CORD DOES

NOT STOP AT AN

ARBITRARY POSITION

POWER CORD IS

NOT WOUND UP

POWER NOZZLE DOES

NOT WORK

BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE

REELSPRING

MAY SPRING OUT OF THE SPRING COVER.

CAUTION

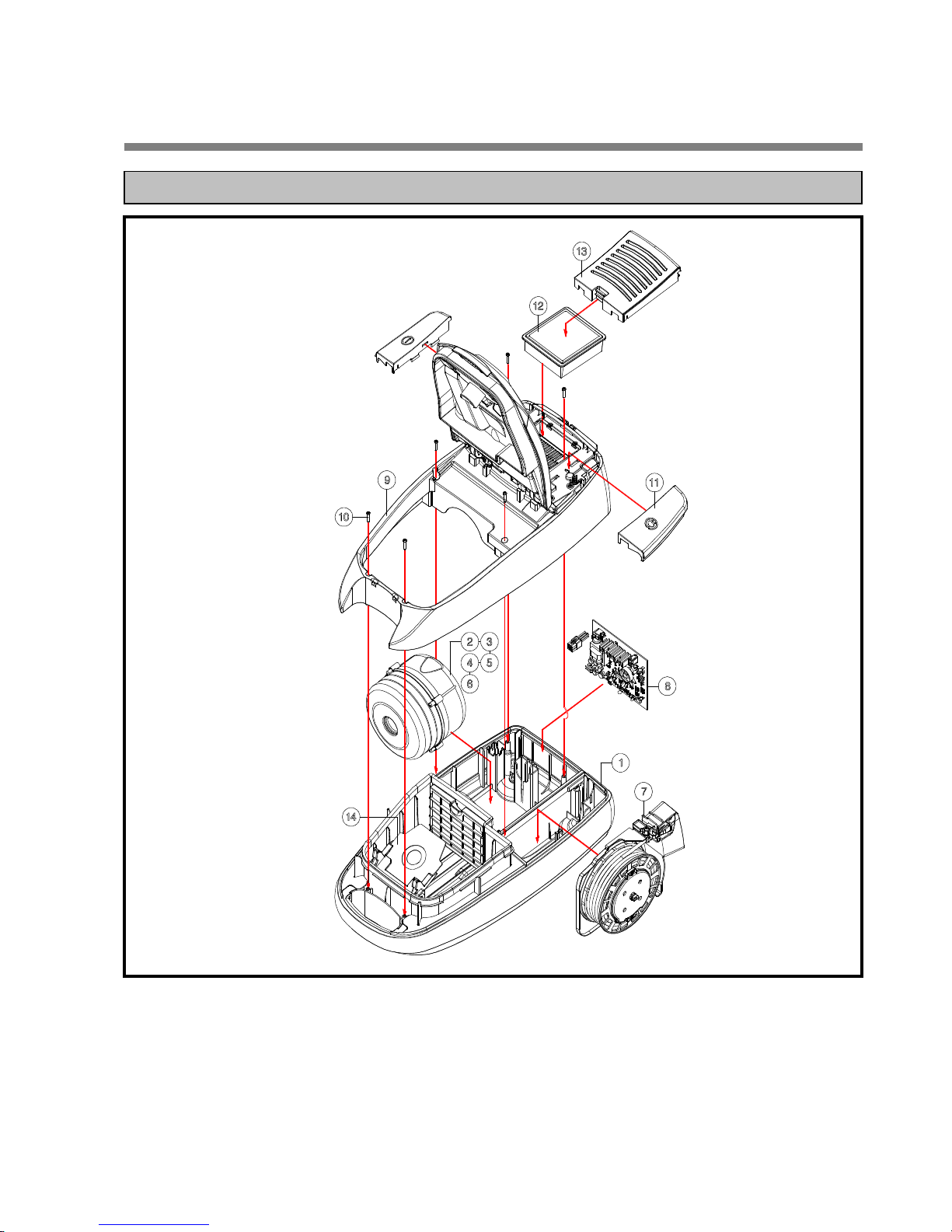

5. DISASSEMBLING AND TREATMENT

1) CHECK THE DUST BAG(14).

2) LIFT THE BUTTON(11), FILTER(12), GRILLE(13) AND UNSCREW THE 6 SCREWS(10).

AND THEN LIFT THE COVER ASSEMBLY(9) UP FROM THE BODY ASSEMBLY(1).

3) CHECK CONNECTION BETWEEN THE PCB(8) AND THE WIRES OF EACH ASSEMBLY(2,7,9) .

4) LIFT THE MOTOR ASSEMBLY(2), CORDREEL ASSEMBLY(7) FROM THE BODY ASSEMBLY(1).

5) CHECK CONNECTION BETWEEN THE PCB(8) AND TUBE IN THE BODY ASSEMBLY(1).

5) CHECK THE SWITCH IN THE COVER ASSEMBLY(9).

5-1. CLEANER ASSEMBLY

1) CHECK THE FILTER PRE (15).

2) CHECK CONNECTION BETWEEN PCB(8) AND THE TUBE(20) .

3) CHECK CONNECTION BETWEEN THE WIRE(21) AND THE MAIN PCB/ CORDREEL ASSEMBLY.

4) CHECK CONNECTION BETWEEN THE TUBE(20) AND SMALL PROTRUSION IN THE BODY(1).

5-2. BODY ASSEMBLY
