Dirt Devil FD50100 Bedienungsanleitung

Model #’s FD50100

FD50105

FD50110

CARPET

WASHER

MANUAL

#961151127 / ID109742 / R0

HI. WELCOME.

PRODUCT

REGISTRATION

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or

call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner’s manual. Verication of date of purchase may

be required for warranty service of your Dirt Devil®product.

Congrats on purchasing your new Dirt Devil®®Carpet

Washer. Inside, you’ll ﬁnd everything you want to

know from the quick start guide to how to.

So what are you waiting for? LET’S GO.™

This product uses the following parts:

BELT STYLE 30

PRE-MOTOR FILTER F92

Find GENUINE Replacement Parts at www.dirtdevil.com

TABLE OF

CONTENTS

Quick Start Assembly 6

Preparing the Carpet 10

How to

Remove and Replace Clean

Water Solution Tank 12

Empty the Dirty Water Tank 14

Place Dirty Water

Tank in Base of Cleaner 15

Remove the Brushroll 16

Replace the Belt 17

Trouble Shooting 18

Limited Warranty 19

Find GENUINE Replacement Parts at www.dirtdevil.com

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF

USED COMMERCIALLY WARRANTY IS VOID.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.

• Operate cleaner only at voltage specied on data plate on bottom of cleaner.

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before

cleaning or servicing.

• Use indoors only.

• Do not immerse. Use only on carpet moistened by cleaning process.

• Use only DIRT DEVIL® cleaning products intended for use with this machine.

(See the “Cleaning Products” section of this manual.)

• Do not use a ammable or combustible liquid to clean a oor.

• Do not allow to be used as a toy. Not intended for use by children age 12 and under.

Close supervision is necessary when used near children. To avoid injury or damage, keep

children away from product, and do not allow children to place ngers or other objects into

any openings.

• Use only as described in this manual. Use only manufacturer’s recommended attachments

and products.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to

continuing use.

• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord

around sharp edges or corners. Do not place product on cord. Do not run appliance over

cord. Keep cord away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of

dust, lint, hair, and anything that may reduce air ow.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent

the cleaner from falling, always place cleaner at bottom of stairs or on oor. Do not place

cleaner on stairs or furniture, as it may result in injury or damage.

• Do not use to pick up ammable or combustible materials, such as gasoline, or ne wood

sandings, or use in areas where they may be present.

• Connect to a properly grounded outlet only. See Grounding Instructions.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use without tanks or lters in place.

• Do not clean over oor electrical outlets.

• WARNING: This product contains chemicals known to the State of California to cause

cancer, birth defects or reproductive harm.

WASH HANDS AFTER USING.

WARNING

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store in a dry place. Do not expose machine to freezing temperatures.

• Do not use sharp objects to clean out hose as they can cause damage.

• To assist in reducing drying time, be certain the area is well ventilated when using

detergents and other cleaners with this machine.

• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep

children and pets away from carpets until they are completely dry.

• Do not store extractor with solution in tanks.

• With brushes on, do not allow cleaner to sit in one location with brushes on for extended

periods of time, as damage to oor can result.

• DO NOT USE THIS EXTRACTOR ON HARD FLOORS. USING THIS

MACHINE ON HARD FLOORS MAY SCRATCH OR DAMAGE YOUR FLOOR.

SAVE THESE INSTRUCTIONS

WARNING

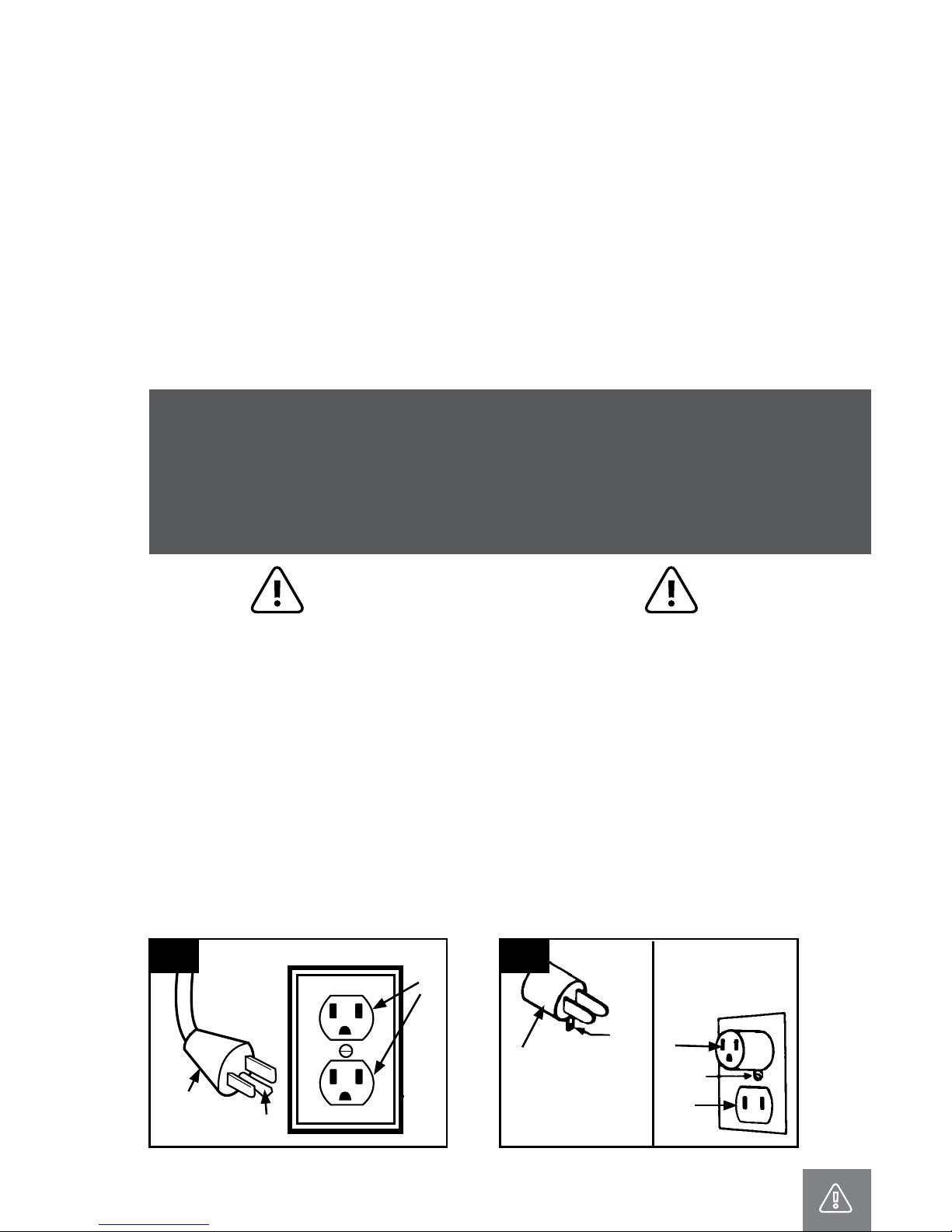

Improper connection of the equipment-grounding conductor can result in the risk of

electric shock. Check with a qualified electrician or service person if you are in doubt

as to whether the outlet is properly grounded. Do not modify the plug provided with

the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified

electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding

plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be

used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not

available (Fig. 2). The temporary adapter should be used only until a properly grounded

outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid

ear, lug, or the like (F) extending from the adapter must be connected to a permanent

ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the

adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use

of a temporary adapter is not permitted by the Canadian Electrical Code.

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a

path of least resistance for electric current to reduce the risk of electric shock. This appliance

is equipped with a cord having an equipment-grounding conductor (C) and grounding plug (A).

The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded

in accordance with all local codes and ordinances.

GROUNDING

OUTLET BOX

POP THE BACK PANEL

INTO THE BASE.

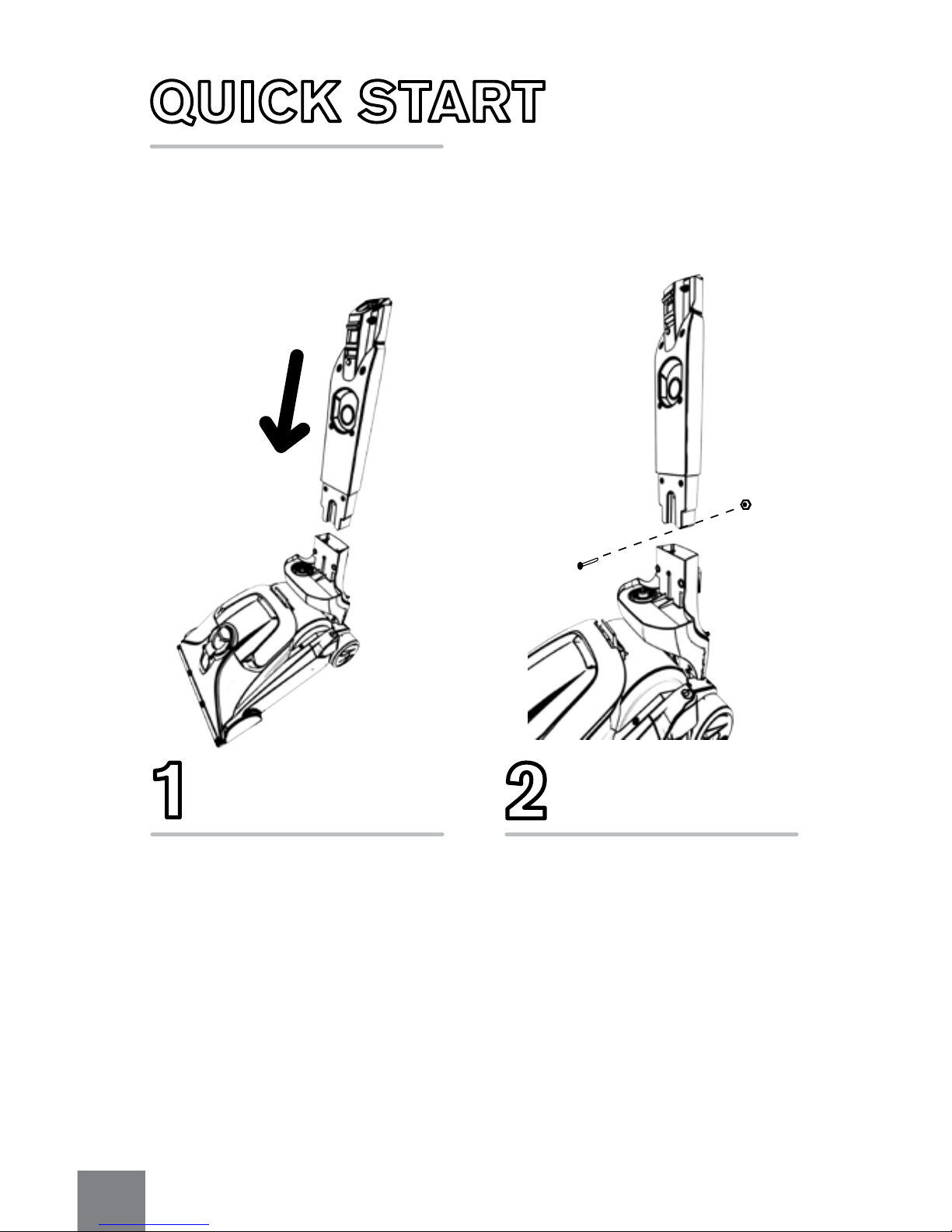

SCREW IT

TOGETHER.

NEED HELP?

Go to dirtdevil.com/support or contact our Customer Service

Department at (800) 321-1134 8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

or Sat. 10:00 a.m. - 6:00 p.m. EST.

CHECK FOR COLOR FASTNESS

Before cleaning carpet/upholstery, test for color fastness. Dampen a

white cloth with solution. Test a small area in a closet or under a cushion.

Gently rub the cloth over the area. Check each color for color bleeding. If

the cloth remains clean, it should be safe to clean the carpet/upholstery.

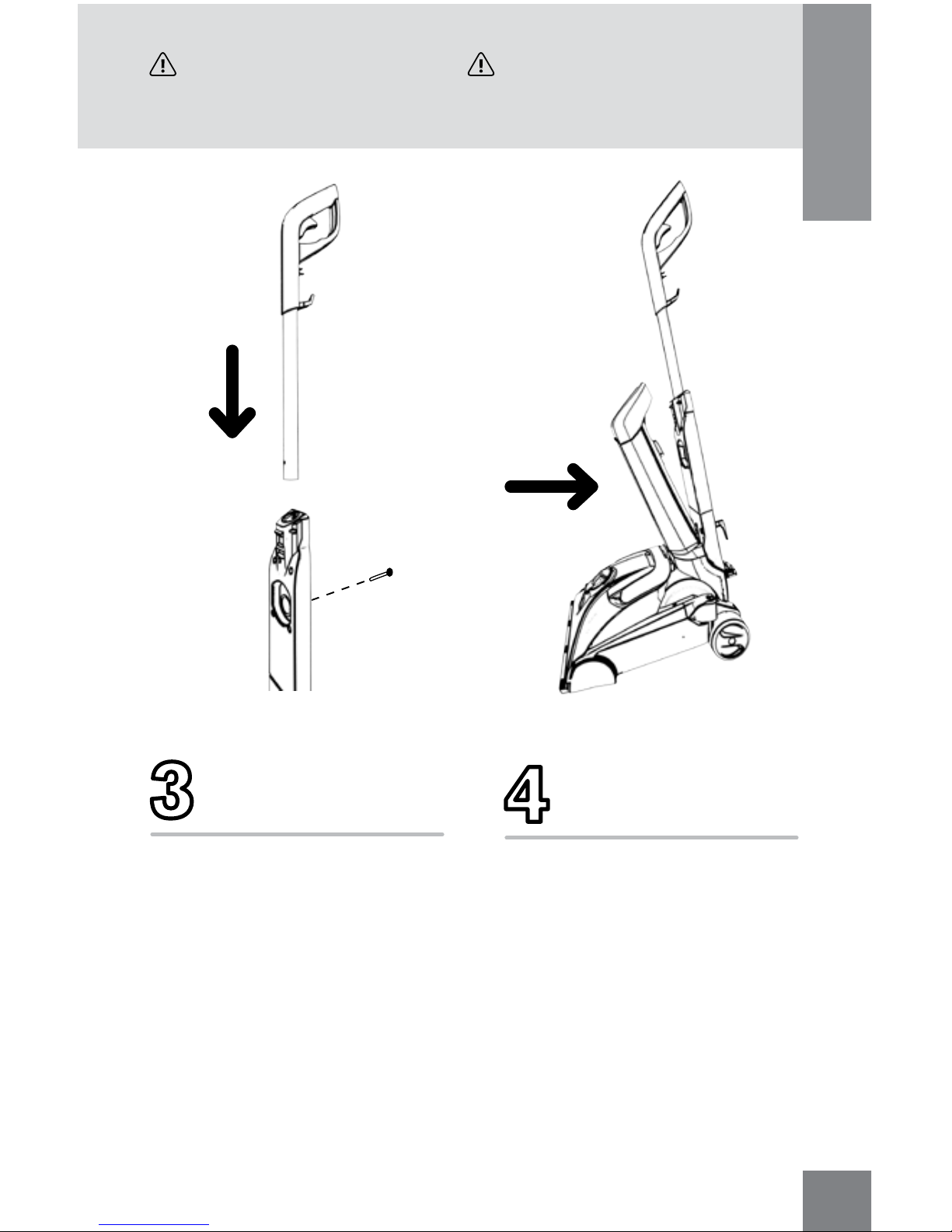

THEN INSERT THE

HANDLE INTO THE

BODY. INSERT

THE SCREW AND

TIGHTEN.

WARNING CAUTION

To reduce the risk of ﬁre, electric shock, or

injury: ensure the power cord is out of the

way before attaching the upper handle.

To reduce the risk of damage: Do not use this

extractor on hard ﬂoors. Using this machine on

hard ﬂoors may scratch or damage your ﬂoors.

FILL WATER

SOLUTION TANK.

(SEE PAGE 12)

TIP THE CLEAN

WATER SOLUTION

TANK IN LIKE THIS.

IT WILL CLICK.

QUICK START

PLUG UNIT IN. STEP

ON THE HANDLE

RELEASE PEDAL AND

PULL BACK ON THE

UPPER HANDLE. THEN

STEP ON THE POWER

BUTTON TO TURN ON.

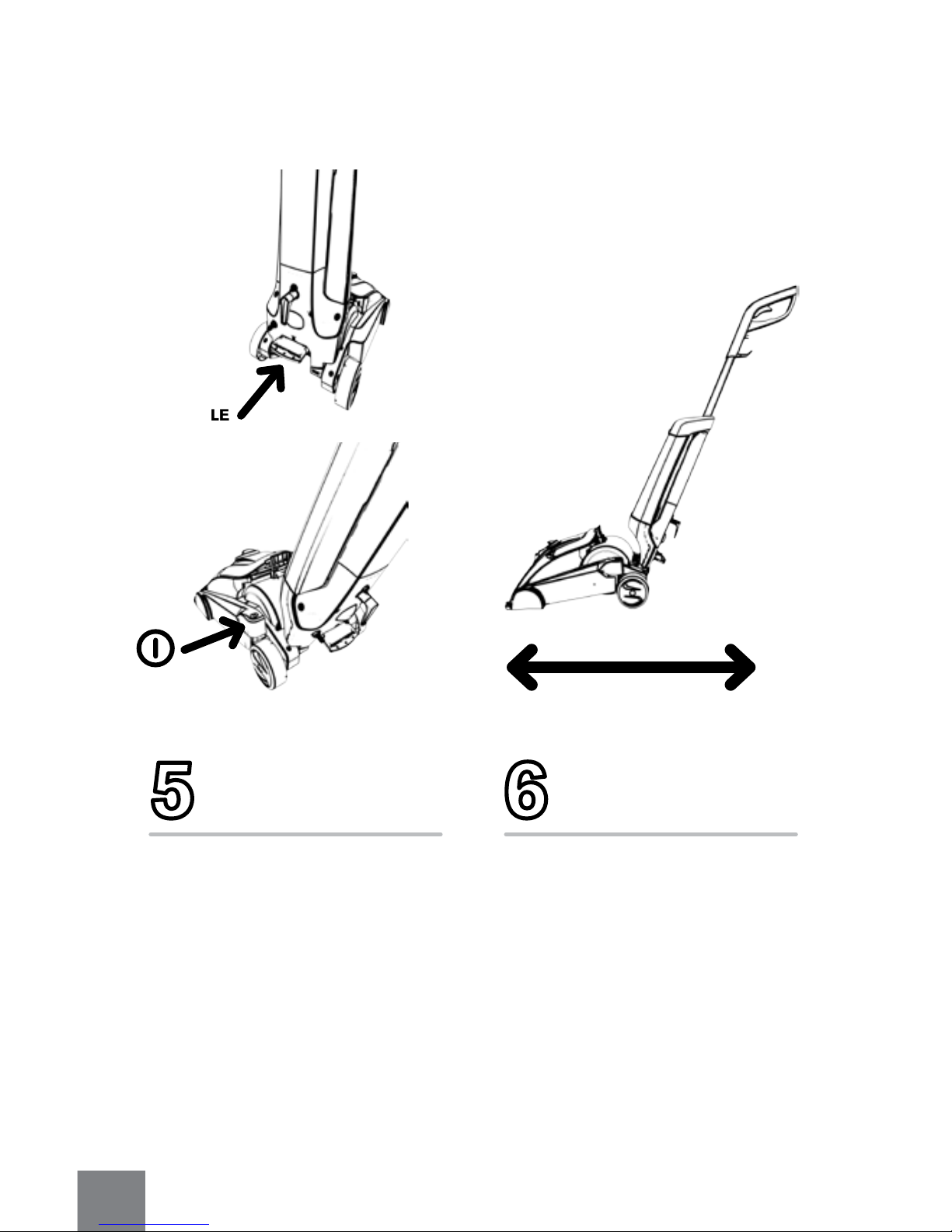

PULL TRIGGER TO

SPRAY SOLUTION WHILE

MOVING FORWARD.

THEN SLOWLY RELEASE

THE TRIGGER AND PULL

YOUR CARPET WASHER

BACK TO REMOVE DIRTY

WATER AND SOLUTION.

HANDLE

RELEASE

PEDAL

POWER

EMPTY CLEAN WATER

SOLUTION TANK AND

REFILL WITH CLEAN

WATER. REPEAT STEP

6 WITH JUST CLEAN

WATER FOR RINSING.

EMPTY DIRTY WATER

TANK WHEN FULL.

YOUR

CARPET

IS FRESH

AND CLEAN!

NEED HELP?

Go to dirtdevil.com/support or

contact our Customer Service

Department at (800) 321-1134

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

or Sat. 10:00 a.m. - 6:00 p.m. EST.

Pick up the conversation on...

Twitter@DirtDevil

Facebook.com/DirtDevil

CAUTION

Never leave unit unattended with power on. Turn OFF when emptying and ﬁlling tank. Do NOT oversaturate the carpet.

If the sound of the motor changes to a high pitch, this indicates the dirty water tank is full and must be emptied.

QUICK START

HELPFUL HINTS FOR CLEANING CARPET

1. Vacuum carpet thoroughly

with a Dirt Devil®cleaner.

• Do not oversaturate your

carpet with cleaning

solution.

• Stay off of the carpet

until it is dry.

2. Place plastic or foil under

and around the legs of

furniture until the carpet

has completely dried.

• Additional applications

may be needed for

heavily soiled areas.

• Be sure to rinse carpet

thoroughly with water.

• Wipe cleaning solution

from wood to prevent

damage.

• After carpet is dry,

vacuum with a

Dirt Devil®cleaner.

• Plan your route so you

don’t walk over previously

cleaned areas.
