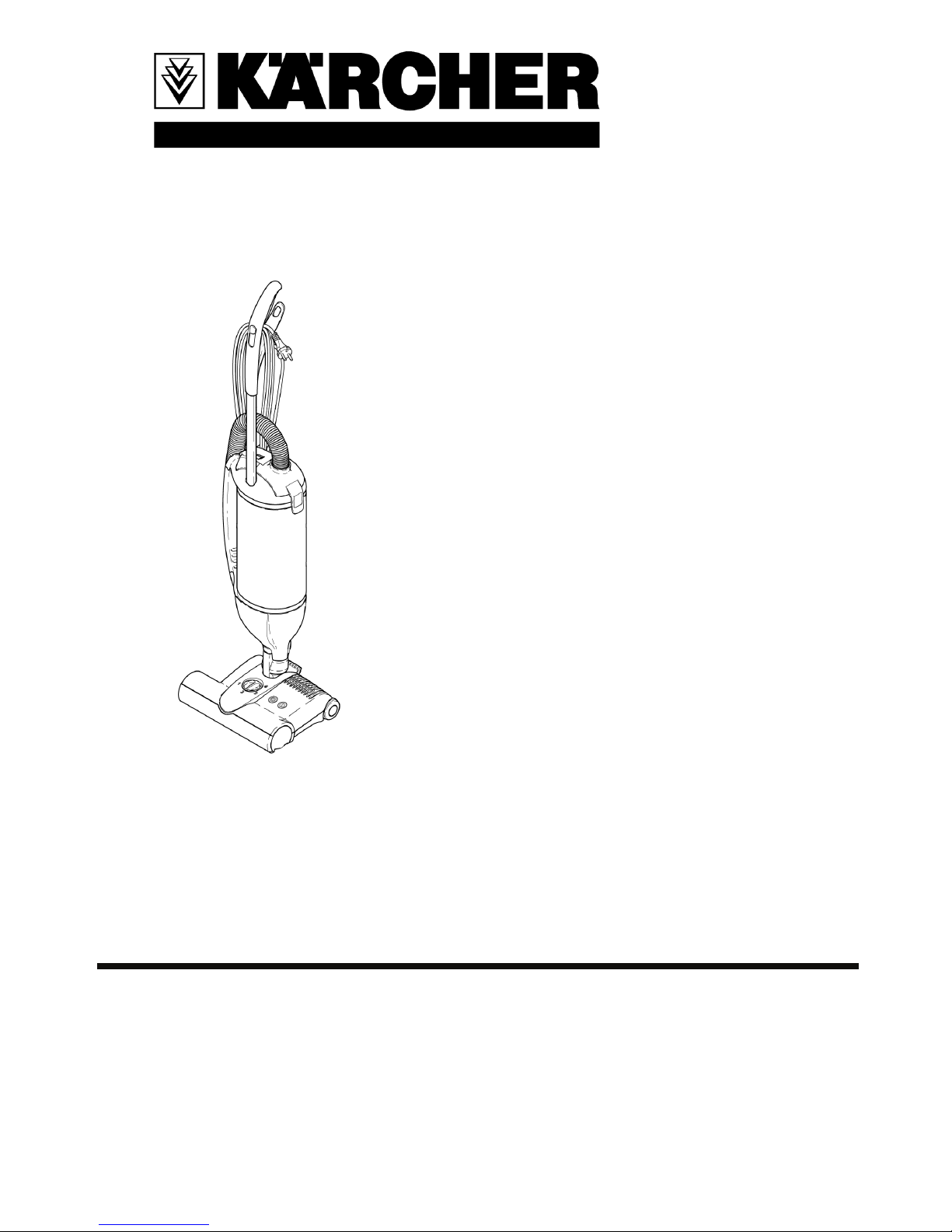

Kärcher CV 300 Bedienungsanleitung

Operating Instructions (ENG)

MODELS: CV 300

1.012-059.0

CV 380

1.012-060.0

86322070 - A

02/03/09

Read instructions before operating the machine.

COMMERCIAL

MACHINE DATA LOG/OVERVIEW

86322070 CV 02/03/09

YOUR DEALER

Name: __________________________________________________________________________________________________

Address: _______________________________________________________________________________________________

Phone Number: __________________________________________________________________________________________

MODEL _______________________________________

DATE OF PURCHASE ___________________________

SERIAL NUMBER ______________________________

SALES REPRESENTATIVE # _____________________

TABLE OF CONTENTS

86322070 CV 02/03/09 3

Machine Data Log/Overview...........................2

Table of Contents............................................3

HOW TO USE THIS MANUAL

How to use this Manual...................................1-1

SAFETY

Important Safety Instructions .......................... 2-1

Important Safe Guards....................................2-2

Grounding Instructions.................................... 2-3

OPERATIONS

Technical Specifications..................................3-1

Components....................................................3-2

Controls........................................................... 3-2

Assembly.........................................................3-3

Machine Operation..........................................3-3

Power Head .................................................3-4

Foot Pedal....................................................3-4

Light Indicators.............................................3-5

MAINTENANCE

Brush Roller. ...................................................4-1

Filter/Bag Replacement................................... 4-1

Filter Bag...................................................... 4-1

Motor Protection Filter..................................4-1

Exhaust Filter ............................................... 4-1

Removing Blockages. .....................................4-2

GROUP PARTS LIST

Power Head.....................................................5-1

Optional Attachments......................................5-1

Miscellaneous Spare Parts..............................5-1

Parts List .........................................................5-2

Warranty..........................................................5-7

Machine Registration Card..............................5-9

HOW TO USE THIS MANUAL

86322070 CV 02/03/09

1-1

This manual contains the following sections:

-HOW TO USE THIS MANUAL

-SAFETY

-OPERATIONS

-MAINTENANCE

-PARTS LIST

The HOW TO USE THIS MANUAL section will tell

you how to find important information for ordering

correct repair parts.

Parts may be ordered from an authorized dealers.

When placing an order for parts, the machine

model and machine serial number are important.

Refer to the MACHINE DATA log which is filled out

during the installation of your machine. The

MACHINE DATA log is located on the inside of the

front cover of this manual.

The model and serial number of your machine is

on the bottom back-end of the machine.

The SAFETY section contains important

information regarding hazard or unsafe practices

of the machine. Levels of hazards is identified that

could result in product or personal injury, or severe

injury resulting in death.

The OPERATIONS section is to familiarize the

operator with the operation and function of the

machine.

The MAINTENANCE section contains preventive

maintenance to keep the machine and its

components in good working condition. They are

listed in this general order:

-Filters

-Blockages

The PARTS LIST section contains assembled

parts illustrations and corresponding parts list. The

parts lists include a number of columns of

information:

-REF – column refers to the reference

number on the parts illustration.

-PART NO. – column lists the part

number for the part.

-PRV NO. - reference number.

-QTY – column lists the quantity of the

part used in that area of the machine.

-DESCRIPTION – column is a brief

description of the part.

-SERIAL NO. FROM – column

indicates the first machine the part

number is applicable to. When the

machine design has changed, this

column will indicate serial number of

applicable machine. The main

illustration shows the most current

design of the machine. The boxed

illustrations show older designs. If

column has an asterisk (*), call

manufacturer for serial number.

-NOTES – column for information not

noted by the other columns.

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement

parts numbers needed for ordering future parts.

NOTE: The number on the lower left corner of the

front cover is the part number for this manual.

MODEL _____________________________________

DATE OF PURCHASE ________________________

SERIAL NUMBER ____________________________

SALES REPRESENTATIVE # ___________________

86322070 CV 02/03/09 2-1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution must always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

WARNING: To reduce the risk of fire, electric shock, or injury:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not use near small children. Do not allow to be used as a toy. Close attention is necessary when used

by or near children.

4. Use only as described in this manual. Use only manufacturer’s recommended attachments.

5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return it to a service center.

6. Do not pull or carry by the cord, use cord as a handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair,

and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts. Do not

place fingers or other body parts under vacuum unless unplugged.

11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

12. Do not use without dust bag and/or filters in place. Do not wash filters.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may

have been present.

16. Machines can cause fire when operated near flammable vapors or materials. Do not operate this machine

near flammable fluids, dust or vapors.

17. Maintenance and repairs must be done by qualified personnel.

18. Use only identical replacement parts. See instructions for servicing of appliances.

19. Do not use machine as a step.

20. If used on plush carpet or carpet with thick padding, do not leave machine in one place with machine

turned on.

21. Do not re-use bags. Once full, discard and replace with a new bag.

22. Always turn off this appliance before connecting or disconnecting motorized nozzle.

23. Do not touch the brush roller while the machine is plugged in. Brush may unexpectedly restart. To reduce

the risk of injury from moving parts, unplug before servicing.

24. The vacuum has an electronic overload protection. The power head could shut itself off if used on certain

carpets. If that should occur, turn off the machine, unplug it and look for a blockage. If there is no

blockage, reduce the load on the brush roller by adjusting the brush height to a higher level (up to 4)

25. Store the vacuum in a dry place at room temperature. When the vacuum is not in use, you should wrap

the cord on the cable hooks.

26. Any other servicing should be performed by an authorized service representative.

SAVE THESE INSTRUCTIONS

86322070 CV 02/03/09

2-2

Important Safeguards

Accidents due to misuse can only be prevented by those using the machine. To guard against injury, basic safety

precautions should be observed, including the following:

Read and follow all safety instructions.

The vacuum cleaner is designed to be safe when used to perform cleaning functions. Should damage occur to

electrical or mechanical parts, cleaner should be repaired by a competent service center before using in order to

avoid further damage to machine or physical injury to user.

A damaged power cord could cause electrical shock and/or fire. To minimize this possibility observe the following

precautions:

Do not run cleaner over power core.

Avoid closing doors on power cord pulling it around sharp edges, or placing sharp-edged objects upon it.

Wind cord no tighter than is necessary to retain it on the cord hooks.

When disconnecting power cord from electrical outlet, grasp the plug. Pulling it out by the cord itself can

damage cord insulation and internal connections to plug.

Your vacuum cleaner creates suction and contains a revolving brush. To avoid bodily injury from suction or

moving parts, vacuum cleaner brush should not be placed against, or in close proximity of loose clothing, jewelry,

hair or body surfaces while cleaner is connected to electrical outlet. Cleaner should not be used to vacuum

clothing while it is being worn. Keep children away from machine when in operation or plugged in.

If used on plus carpet or carpet with thick padding, turn off unit when handle is in upright position. When using

accessory tools, keep floor bush off carpet by keeping handle in locked position and lowering handle with on hand

to raise bush off floor. Operate accessories with other hand.

Always plug your cleaner into a standard wall outlet. Use of extension cord or light socket with inadequate

current-carry capacity could result in electric shock or fire hazard.

Disconnect cleaner from electrical outlet before servicing, such as changing bags or belts. You could receive

bodily injury from moving parts of machine should switch accidentally turned on. Disconnect cleaner from

electrical outlet before detaching powerhead.

Do not use your vacuum cleaner in areas where flammable and/or explosive vapor or dust is present to avoid

possibility of fire or explosion. Some cleaning fluids can produce such vapors. Areas on which cleaning fluids

have been used should be completely dry and thoroughly aired before being vacuumed.

To avoid fire hazard, do not pick up matches, fireplace ashes, or smoking material with cleaner.

Keep your work area well lighted to avoid picking up harmful materials (such as liquids, sharp objects, or burning

substances) and avoid tripping accidents.

Use care when operating the cleaner on irregular surfaces such as stairs. As falling cleaner could cause bodily

injury and/or mechanical damage. Proper storage of machine in an out-of-way area immediately after use will

also prevent accidents caused by tripping over cleaner.

Store your vacuum indoors in a cool, dry area not exposed to the weather to avoid electrical shock and/or cleaner

damage.

Exercise strict supervision to prevent injury when using vacuum cleaner near children or when child is allowed to

operate vacuum cleaner. Do not allow children to play with vacuum cleaner and never leave cleaner plugged in

and unattended.

SAVE THESE INTRUCTIONS

WARNIG: ELECTRIC SHOCK COULD OCCUR IF USED

OUTDOORS OR ON WET SURFACES

86322070 CV 02/03/09 2-3

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least

resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a code having

an equipment–grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that

is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a

qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not

modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified

electrician.

This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated

in sketch A. A temporary adaptor looks like adaptor illustrated in sketches Band C, may be used it connect this

plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary

adaptor should be used only until a properly grounded outlet (sketch A) can be installed by a qualified electrician.

The green colored rigid ear, lug or the like extending from the adaptor must be connected to a permanent ground

such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal

screw.

Note: In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code.

GROUNDING

GROUNDED

OUTLET ADAPTER

METAL SCREW TAB FOR

GROUNDING SCREW

GROUNDED

OUTLET BOX

(A) (B) (C)

TECHNICAL SPECIFICATIONS

86322070 CV 02/03/09

3-1

VACUUM PORTION: (Carry unit)

ITEM DIMENSION/CAPACITY

Vacuum Motor High Performance, single stage

Vacuum Motor Rated Power 1000 Watts

Vacuum Motor Maximum Power 1200 Watts

Suction 225 Mbar (2300 mm WS)

Waterlift 92 in (234 cm)

Air Flow 102 cfm (48 l/s)

Filter Bag Capacity 3.5 litres, 3 layer, enclosed, top-loading

Weight

-CV300

-CV380

17 lbs (7.7 kg)

17.4 lbs (7.9 kg)

Dimensions - Height 48 in (123 cm)

Housing Injection molded, high impact ABS and PP plastic

Cable 40 in (12 M) 18/3 SJT

POWER HEAD: (Detachable Head unit)

ITEM DIMENSION/CAPACITY

Brush Motor Rated Power

-12 in (30 cm)

-15 in (38 cm)

175 Watt

200 Watt

Working Width of Powerhead

-CV300

-CV380

12 in (30 cm)

15 in (38 cm)

Brush Drive Non-slip Tooth Belt, enclosed, electronic safety clutch

and speed control.

Brush Speed 2700 rpm (5400 brush contacts per minute)

Wheels 2 in (5.2 cm) dia. rubberized

COMPONENTS/CONTROLS

86322070 CV 02/03/09 3-2

1. Handle

2. Tube

3. Dust Bag Housing

4. Filter Cover

5. Cable Hook

6. Hose

7. Hose Handle

8. Carrying Handle

9. Exhaust Filter

10. Filter Retaining Rings

11. Neck

12. Foot Pedal

13. Power Head (12” - 15”)

A. On/Off Switch

B. Power Cord

C. Cable Hook

ASSEMBLY/OPERATION

86322070 CV 02/03/09

3-3

ASSEMBLY

Please read all instructions before

using this machine.

1. Carefully attach the brush nozzle to the vacuum

cleaner through the fitting at the bottom of the

vacuum until it locks. [See below]

2. Push the black end of the hose [A] into the

connection on the filter cover [B].

3. Insert the hose handle [C] into the suction opening

on the side and press the hose into its place on the

side of the machine, as shown.

OPERATION

Your vacuum is operated with an electric power brush. The

machine can be used in the upright position.

When locking the vacuum in the

upright position, please ensure the

bag housing is clicked in place, face forward to the center

or the unit could overturn.

Please ensure that the On/Off switch is in the OFF

position. Turn the cable hook to release the power cable

and plug into the walls main outlet.

Now you may start your machine by moving the power

switch to the ON position.

To use the power head (12” or 15” model):

1. Press the foot pedal [D] on the rear of the power

head and lower the machine handle to an angled

position. The brush motor will then turn on.

When using the hose and

attachments, keep the machine in

upright position.

The hose handle can be removed from

the side of the vacuum and can be used

with or without attachments. Also

maintain a grasp on the machine when

using the hose as it could tip if the hose

is pulled too far.

The machine can also be used without

the power head. You can easily carry

the machine by using the carrying

handle.

When you have finished using the

machine, turn it off by moving the power

switch to the OFF position. Then unplug

the power cable and wind it into the

cable hook and handle.

!CAUTION

Handle

Hose

Handle

Carrying

Handle

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kärcher Staubsauger Handbücher

Kärcher

Kärcher T 7/1 Classic Bedienungsanleitung

Kärcher

Kärcher Sensor XP15 Bedienungsanleitung

Kärcher

Kärcher 2501 Bedienungsanleitung

Kärcher

Kärcher BR 530 Bp Bedienungsanleitung

Kärcher

Kärcher Puzzi 8/1 C Bedienungsanleitung

Kärcher

Kärcher ECO TEA NT 361 Bedienungsanleitung

Kärcher

Kärcher BRC 30 C Bedienungsanleitung

Kärcher

Kärcher CV 38/2 Bedienungsanleitung

Kärcher

Kärcher T 10/1 Adv Bedienungsanleitung

Kärcher

Kärcher NT 55/1 Tact Te M Bedienungsanleitung

Kärcher

Kärcher NT 65/2 Eco ME Bedienungsanleitung

Kärcher

Kärcher RM 69 ASF Bedienungsanleitung

Kärcher

Kärcher NT 561 Eco Package Craftsmen Bedienungsanleitung

Kärcher

Kärcher FC 5 Premium Bedienungsanleitung

Kärcher

Kärcher T 15/1 Bedienungsanleitung

Kärcher

Kärcher Puzzi 8/1 C Bedienungsanleitung

Kärcher

Kärcher NT 45/1 Tact Bedienungsanleitung

Kärcher

Kärcher WD 2.2 series Bedienungsanleitung

Kärcher

Kärcher VC 6100 Bedienungsanleitung

Kärcher

Kärcher A 2206 X Bedienungsanleitung

Kärcher

Kärcher NT 65/2 AP Te Bedienungsanleitung

Kärcher

Kärcher NT 72/2 ECO TC Bedienungsanleitung

Kärcher

Kärcher PUZZI 300 Bedienungsanleitung

Kärcher

Kärcher Puzzi 30/4 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
