Kärcher CV71/2 Bedienungsanleitung

Operating Instructions (ENG)

Model: CV71/2

1.012-548.0

86309230-D

01/10/09

MACHINE DATA LOG/OVERVIEW

86309230 CV71/2 02/19/08

OVERVIEW

The CV71/2 is a electric motor powered, wide area vacuum intended for commercial use. The

CV71/2 brushes and vacuums debris from carpeted surfaces and stores the collected debris

in vacuum bags.

Model:

Date of Purchase:

Serial Number:

Sales Representative:

Address:

Phone Number:

TABLE OF CONTENTS

86309230 CV71/2 02/19/08

Machine Data Log/Overview.........................1

Table of Contents..........................................3

HOW TO USE THIS MANUAL

How to use this Manual.................................1-1

SAFETY

Important Safety Instructions........................2-1

Hazard Intensity Level. .................................2-2

Grounding Instructions..................................2-3

OPERATIONS

Controls.........................................................3-1

Machine Operation........................................3-2

Set Up........................................................3-2

Operation...................................................3-2

Cleaning.....................................................3-2

MAINTENANCE

Belt/Brush Access.........................................4-1

Vac Motor Access & Filters...........................4-1

Vac Motor Brush Removal............................4-1

Brush Motor. .................................................4-1

Carbon Brush................................................4-1

Daily Maintenance. .......................................4-2

Regular/Periodic Maintenance......................4-2

Wiring Diagram.............................................4-3

Service Schedule..........................................4-4

GROUP PARTS LIST

Brush and Drive Group.................................5-1

Brush Height and Wheel Group....................5-3

Vacuum Group..............................................5-5

Handle Group................................................5-7

Lid/Decal Group............................................5-9

Electrical Panel and Cover Group………….5-11

Suggested Spare Parts……………………...5-13

HOW TO USE THIS MANUAL

86309230 CV71/2 02/19/08

1-1

This manual contains the following sections:

- HOW TO USE THIS MANUAL

- SAFETY

- OPERATIONS

- MAINTENANCE

- PARTS LIST

The HOW TO USE THIS MANUAL section will tell

you how to find important information for ordering

correct repair parts.

Parts may be ordered from authorized Windsor

dealers. When placing an order for parts, the

machine model and machine serial number are

important. Refer to the MACHINE DATA box which

is filled out during the installation of your machine.

The MACHINE DATA box is located on the inside of

the front cover of this manual.

The model and serial number of your machine is on

the bottom back-end of the machine.

The SAFETY section contains important information

regarding hazard or unsafe practices of the

machine. Levels of hazards is identified that could

result in product or personal injury, or severe injury

resulting in death.

The OPERATIONS section is to familiarize the

operator with the operation and function of the

machine.

The MAINTENANCE section contains preventive

maintenance to keep the machine and its

components in good working condition. They are

listed in this general order:

- Belt/Brush Motor

- Vac Motor and Filters

- Vac Motor Carbon Brushes

- Brush Motor

- Carbon Brush

- Daily Maintenance

- Regular/Periodic Maintenance

The PARTS LIST section contains assembled parts

illustrations and corresponding parts list. The parts

lists include a number of columns of information:

- REF – column refers to the reference

number on the parts illustration.

- PART NO. – column lists the part

number for the part.

- PRV NO. – reference number.

- QTY – column lists the quantity of the

part used in that area of the machine.

- DESCRIPTION – column is a brief

description of the part.

- SERIAL NO. FROM – column indicates

the first machine the part number is

applicable to. When the machine design

has changed, this column will indicate

serial number of applicable machine.

The main illustration shows the most

current design of the machine. The

boxed illustrations show older designs. If

column has an asterisk (*), call

manufacturer for serial number.

-NOTES – column for information not

noted by the other columns.

NOTE: If a service or option kit is installed on your

machine, be sure to keep the KIT INSTRUCTIONS

which came with the kit. It contains replacement

parts numbers needed for ordering future parts.

86309230 CV71/2 02/19/08 2-1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Use only indoors. Do not use outdoors or expose to rain.

Use only as described in this manual. Use only manufacturer’s recommended components and attachments.

If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return

it to an authorized service center.

Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.

This machine is not suitable for picking up hazardous dust.

Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near

flammable fluids, dust or vapors.

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops

and offices for more than normal housekeeping purposes.

Maintenance and repairs must be done by qualified personnel.

During operation, attention shall be paid to other persons, especially children.

When leaving unattended, secure against unintentional movement.

The machine shall only be operated by instructed and authorized persons.

When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.

Do not handle the plug or machine with wet hands.

Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.

Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the machine.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or

corners.

Do not pull/run machine over cord. Keep cord away from heated surfaces.

Connect to a properly grounded outlet. See Grounding Instructions.

SAVE THESE INSTRUCTIONS

HAZARD INTENSITY LEVEL

86309230 CV71/2 02/19/08

2-2

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR

SAFETY. The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property

damage.

FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper

operating condition. Following is information that signals some potentially dangerous conditions to the

operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate

all safety devices on the machine. Please take the necessary steps to train the machine operating

personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:

Unless Trained and Authorized.

Unless Operation Guide is Read and understood.

In Flammable or Explosive areas.

In areas with possible falling objects.

WHEN SERVICING MACHINE:

Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the

machine. Use approved replacement parts.

GROUNDING INSTRUCTIONS

86309230 CV71/2 02/19/08 2-3

THIS PRODUCT IS FOR COMMERCIAL USE

ONLY.

ELECTRICAL:

In the USA this machine operates on a

standard 15 amp 115V, 60 hz, A.C. power

circuit . The amp, hertz, and voltage are listed

on the data label found on each machine.

Using voltages above or below those indicated

on the data label will cause serious damage to

the motors.

EXTENSION CORDS:

If an extension cord is used, the wire size must

be at least one size larger than the power cord

on the machine, and must be limited to 50 feet

(15.5m) in length.

GROUNDING INSTRUCTIONS:

This appliance must be grounded. If it should

malfunction or break down, grounding provides

a path of least resistance for electric current to

reduce the risk of electric shock. This

appliance is equipped with a cord having an

equipment-grounding conductor and grounding

plug. The plug must be inserted into an

appropriate outlet that is properly installed and

grounded in accordance with all local codes

and ordinances.

This appliance is for use on a nominal 120-volt

circuit, and has a grounded plug that looks like

the plug in “Fig. A”. A temporary adaptor that

looks like the adaptor in “Fig . C” may be used

to connect this plug to a 2-pole receptacle as

shown in “Fig. B”, if a properly grounded outlet

is not available. The temporary adaptor should

be used only until a properly grounded outlet

(Fig. A) can be installed by a qualified

electrician. The green colored rigid ear, lug, or

wire extending from the adaptor must be

connected to a permanent ground such as a

properly grounded outlet box cover. Whenever

the adaptor is used, it must be held in place by

a metal screw.

Improper connection of the equipment-

grounding conductor can result in a risk of

electric shock. Check with a qualified

electrician or service person if you are in doubt

as to whether the outlet is properly grounded.

Do not modify the plug provided with the

appliance - if it will not fit the outlet, have a

proper outlet installed by a qualified electrician.

CONTROLS

86309230 CV71/2 02/19/08

3-1

1. Main Handle. Adjusts for operator comfort and

storage.

2. Brush on/off lever. Activates brush when

depressed.

3. Accessory vacuum hose and wand. Allows

operator to clean edges, recessed, ledges,

upholstery, etc.

4. Detail tools Dusting brush, crevice and

upholstery tools for above the floor cleaning.

Dusting brush comes with adapter for

attachment directly to hose. Upholstery and

crevice tool connect directly to both the hose

and the wand. The crevice tool fits loosely on

the wand.

5. Handle Adjustment Lever. Located on the left

side of handle. Pull away from handle to loosen,

adjust handle and press parallel to handle.

6. Vac on/off switch. Turns on and off vac motor.

7. Brush motor circuit breaker. Provides

overcurrent protection for the brush motor.

8. Vac motor circuit breaker. Provides

overcurrent protection for the vacuum motors.

9. Exhaust filter. Filters exhaust air for safe and

quiet operation.

10. Accessory hose activation pedal. Press

pedal down to use the accessory hose. Lift up

with toe for normal use.

11. Brush adjustment lever. Allows operator to

adjust brush to proper height for the carpet. (1)

for low nap carpet, (5) for thick nap. Position (6)

is storage.

12. Dust bag cover. Raise to allow access to dust

bag and vac motors.

13. Cloth dust bag. High filtration cloth bag with

zipper opening to access paper bag.

14. Paper bag. Fits within cloth bag for clean and

easy dust removal.

OPERATIONS

86309230 CV71/2 02/19/08 3-2

FILTER/BAG COMPARTMENT

MACHINE SET UP

1. Take machine out of storage position by lowering

onto all four wheels.

2. Adjust handle to comfortable position at waist level

by opening adjustment lever on left side of

machine and moving handle. Lock back into

position by closing adjustment lever.

3. Install cloth filter bag inside the main body by

pushing the rubber collar over the chute.

4. Unzip the cloth bag and place the paper bag

inside. Push the rubber gasket seal over the

chute. Zip cloth bag closed taking care not

to damage the paper bag and close lid.

5. Attach the detail tools to the top of the dust bag

cover by pressing the appropriate tool into the

clips.

6. Take the accessory wand and attach to the hose

and insert wand into the wand holster.

7. Strain relief.

NOTE: Attach strain relief/cord retainer to the

ower cord.

1. Make a loop in power cord approximately

12” from receptacle end.

2. Slide cord loop through slot in retainer arm.

Pull slack cord back through slot to secure.

Attach retainer to handle.

OPERATION

86309230 CV71/2 02/19/08

3-3

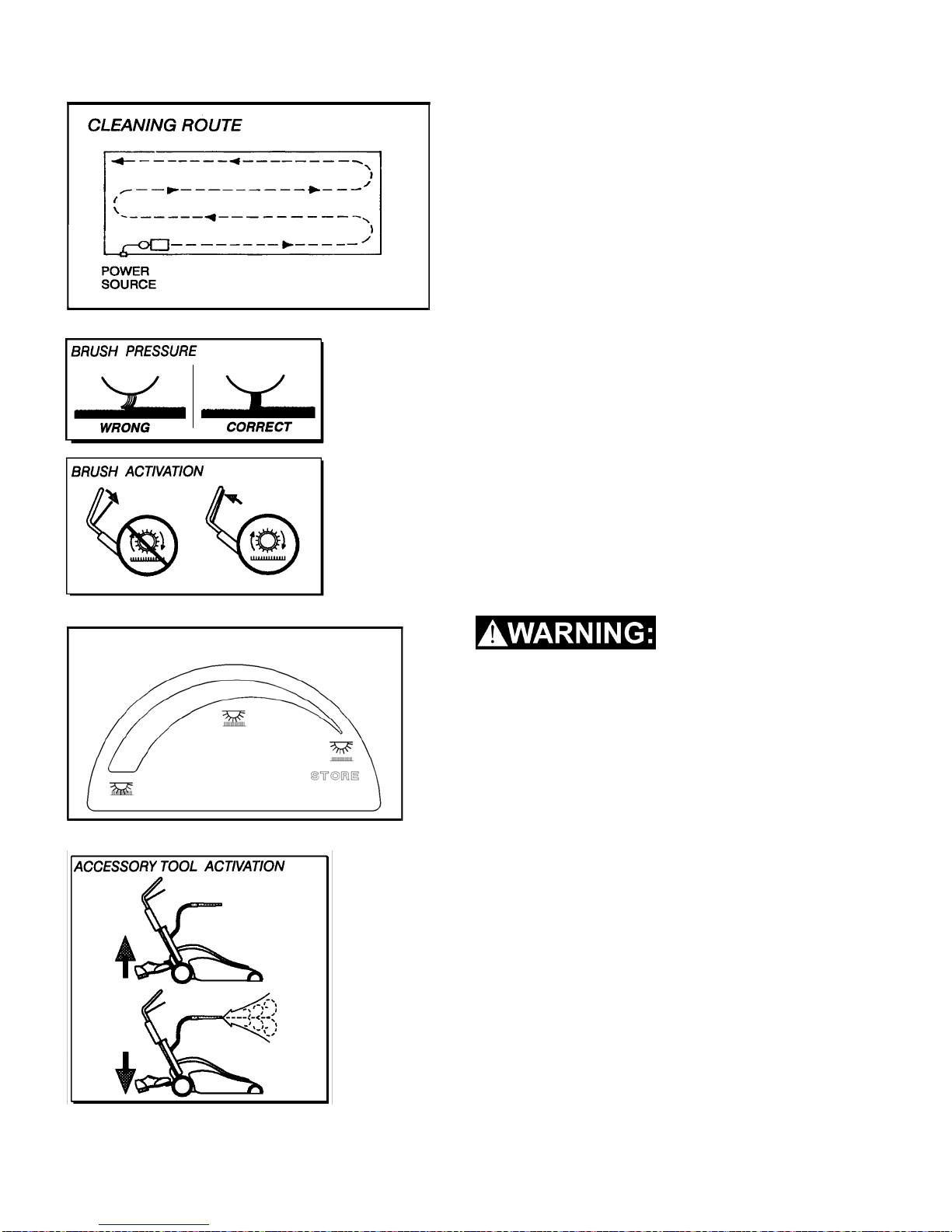

BRUSH POSITION

HOW IT OPERATES

This machine is a portable, easy to use wide area

vacuum designed for use indoors, in a commercial or

light industrial environment.

When operating as a carpet vacuum, soil is lifted

from the carpet surface by a rotating brush and

carried into a removable bag by the vacuum motors.

1. Large debris such as paper cups, plates, etc.,

should be picked up before starting the cleaning

process.

2. Plan your cleaning route to work away from the

electrical source. Move machine forward at a

steady pace.

CLEANING

1. Adjust handle to comfortable position at waist

level or higher.

2. Use your finger to depress the Vacuum switch at

the base of the handle to activate the vacuum.

3. To adjust brush height, move the Brush

Adjustment lever on the right side to the correct

setting for the carpet being vacuumed. Lower

brush gradually until firm brush contact is heard.

KEEP MACHINE MOVING WHILE BRUSH ENGAGED.

DAMAGE TO CARPET COULD OCCUR IF NOT

MOVING.

NOTE: Always return brush to storage position after

using machine.

4. Depress the brush lever at the handle to start the

brush.

5. Move forward at a steady pace for through

cleaning. Run machine more slowly over

extremely soiled areas.

6. Use the right side of the machine for edge

cleaning.

7. To use the accessory wand and detail tools,

depress the foot lever in the back of the machine.

8. To keep the vacuum operating at maximum

efficiency, check the dust bag regularly. Empty

when 1/2 to 3/4 full. Always use with disposable

paper bag for best results.

9. When finished vacuuming, coil the cable by hand

by looping into about a 3 foot diameter, Hang

coiled cable over handle. Wrap the end around

the cable loop to secure.

10. Return brush to storage position.

Inhaltsverzeichnis

Andere Kärcher Staubsauger Handbücher

Kärcher

Kärcher WD 2.2 series Bedienungsanleitung

Kärcher

Kärcher NT 611 ECO M A Bedienungsanleitung

Kärcher

Kärcher SC 5 Iron Plug Bedienungsanleitung

Kärcher

Kärcher WV 60 plus Bedienungsanleitung

Kärcher

Kärcher SC 4 Bedienungsanleitung

Kärcher

Kärcher Puzzi 400 K Bedienungsanleitung

Kärcher

Kärcher A 2204 Bedienungsanleitung

Kärcher

Kärcher T 10/1 eco!efficiency Bedienungsanleitung

Kärcher

Kärcher 397 M plus Bedienungsanleitung

Kärcher

Kärcher NT 48/1 Bedienungsanleitung

Kärcher

Kärcher WV 50 Bedienungsanleitung

Kärcher

Kärcher VC 6300 Bedienungsanleitung

Kärcher

Kärcher T 7/1 Classic Bedienungsanleitung

Kärcher

Kärcher NT 55/1 Eco Bedienungsanleitung

Kärcher

Kärcher NT 22/1 Ap L Bedienungsanleitung

Kärcher

Kärcher NT 72/2 ECO TC Bedienungsanleitung

Kärcher

Kärcher NT 50/1 Me Classic Bedienungsanleitung

Kärcher

Kärcher WD 7.2 series Bedienungsanleitung

Kärcher

Kärcher A 2054 Me Bedienungsanleitung

Kärcher

Kärcher VC 6200 Bedienungsanleitung

Kärcher

Kärcher NT 45/1 Tact Bedienungsanleitung

Kärcher

Kärcher T 17/1 eco!efficiency Bedienungsanleitung

Kärcher

Kärcher BRC 40/22 C Bedienungsanleitung

Kärcher

Kärcher NT 561 Eco Package Craftsmen Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
