Leica S4 E StereoZoom Bedienungsanleitung

Leica S4 E with A-Stand

Congratulations on the purchase of your new StereoZoom®. Soon you will be enjoying some of the finest imaging capabilities

modern technology can provide. All items are packed individually to secure optimal protection for storage and shipping. Prior to

unpacking or assembly please make sure that your shipment contains the following individual inner boxes:

Kit ##1108810 0014

1 Box 10446293 S4 E StereoZoom

1 Box 10447130 10x Eyepiece, fix

1 Box 10447131 10x Eyepiece, adj.

1 Box 10446339 Focus column

1 Box 10446340 Base

1 Box 10447039 Dust cover

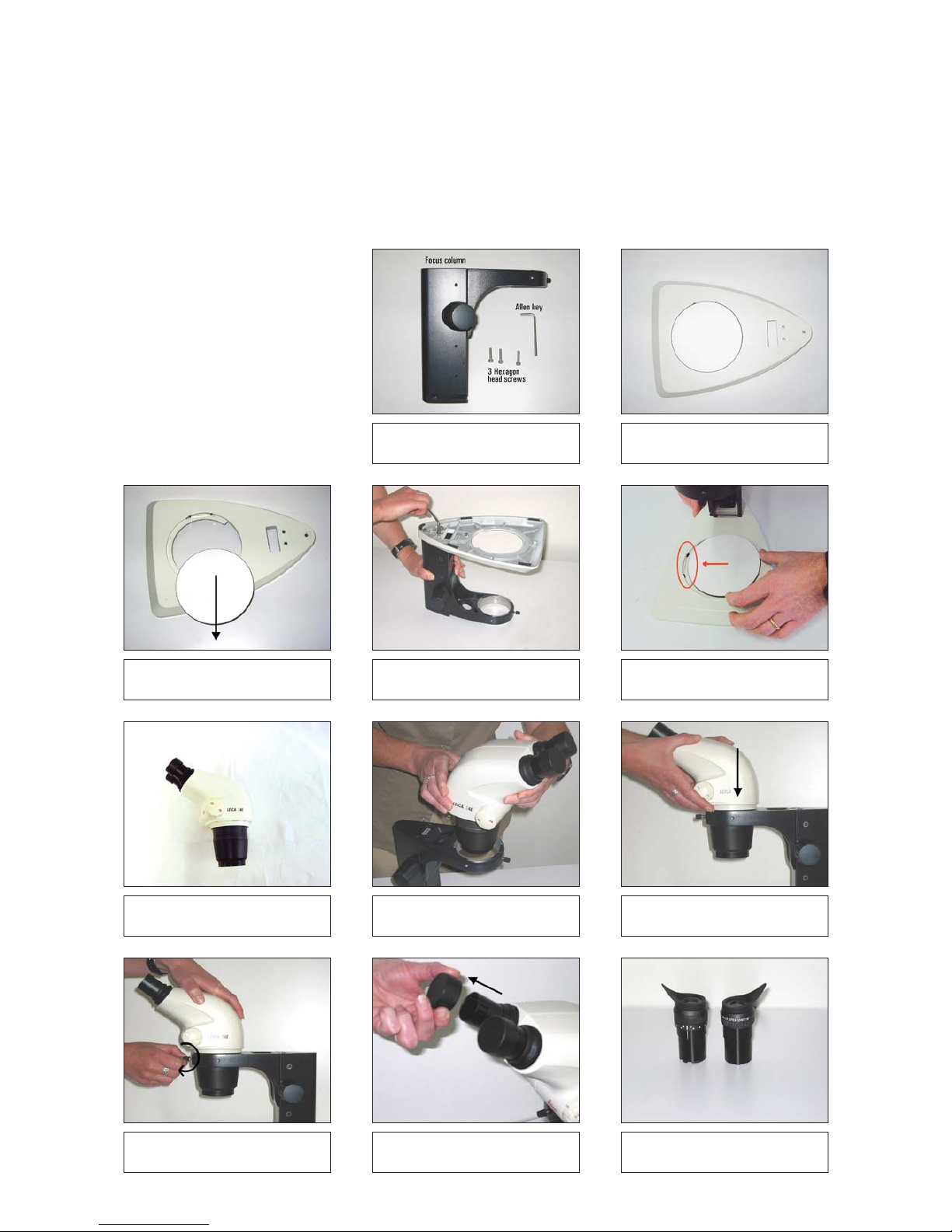

Open your box 10446399 “Focus

column” and you will find:

Open box 10446340 “Base”

Insert 3 screws from the bottom of

the base and screw them tightly

Slide in the stage plate from the

side as shown in the picture

Remove stage plate for assembly

of the focus column

Insert your StereoZoom® ... ... in the focus columnUnpack 10446293 StereoZoom®

Leica S4 E

Remove tube caps from the

StereoZoom®

Unpack the eyepiece 10447130

and the eyepiece 10447131

Fix StereoZoom® with clamping

screw by turning screw clockwise

Assembly manual

Insert eyepiece 10447131 into the

right eyetube as far as it will go

Your StereoZoom® S4 E is now

assembled and ready to use

Insert eyepiece 10447130 into the

left eyetube as far as it will go

For ccare iinstructions pplease rread

your uuser mmanual oonppage 334

Replacement parts and most com-

mon accessories:

Eyeguards 10 447 149

10x eyepiece fix 10 447 130

10x eyepiece adj. 10 447 131

16x eyepiece fix 10 447 132

16x eyepiece adj. 10 447 133

20x eyepiece fix 10 447 134

20x eyepiece adj. 10 447 135

Lens shield 10 446 324

Please read the user manual for use and safety instructions before putting your StereoZoom® into operation.

You will enjoy your StereoZoom even more with proper illumination. We have designed the Leica L2 illumination system

exclusively for your StereoZoom®. If you want to find out more please visit our web site www.stereozoom.com or call

us in the US toll free at 800 248 0123.

If you have any questions or problems related to your new StereoZoom®, please

call our US toll free number 800 248 0123 and then follow the instructions to reach

our customer care service.

Illustrations, descriptions and technical data not binding – Subject to change without notice.
